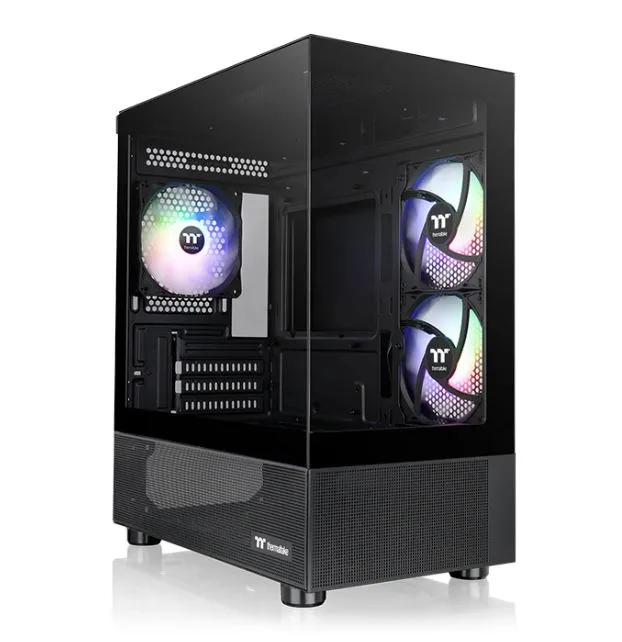

Black micro-ATX case with tempered glass front and side panels, three ARGB fans visible inside

Thermaltake

Thermaltake View 170 TG ARGB Micro-ATX Case CA-1Z4-00M1WN-00

SKU CH-WVKF-D5SHS MPN CA-1Z4-00M1WN-00

A micro-ATX chassis with dual 3 mm tempered glass panels, three pre-installed 120 mm ARGB fans and support for a 280 mm radiator

  • TypeARGB Micro Chassis
  • ColorBlack
  • Case MaterialSPCC
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityMini ITX (6.7" x 6.7") Micro ATX (9.6" x 9.6")
  • Dual 3mm tempered glass panels showcase the build
  • Three pre-installed 120mm ARGB Lite fans provide immediate airflow
  • Top radiator support up to 280mm enables liquid cooling
  • Fits graphics cards up to 340mm for high-end GPUs
  • Front I/O includes two USB 3.0 ports and audio

Compact micro-ATX case with dual tempered glass

The Thermaltake View 170 TG ARGB is a black SPCC chassis that accepts Mini ITX and Micro ATX motherboards. It ships with three 120 mm ARGB Lite fans already installed at the rear and right side. Builders who want a showcase panel on both the front and left side will find the 3 mm tempered glass suited to that purpose.

Room for a 280 mm top radiator

A 280 mm or 240 mm radiator can be mounted in the roof, while the rear supports a 120 mm unit. The interior clears graphics cards up to 340 mm long and CPU coolers up to 160 mm tall. One 3.5 inch bay and two 2.5 inch bays handle storage, and four expansion slots leave space for full-height add-in cards.

Three pre-installed fans run at 1000 RPM

The hydraulic-bearing ARGB Lite fans maintain a constant 1000 RPM speed with a rated noise level of 22.3 dBA, delivering steady airflow during extended sessions. Top mounts accept 120 mm, 140 mm, 240 mm or 280 mm radiators for additional cooling capacity. The bottom-mounted power supply area fits units up to 180 mm long, keeping cable routing tidy behind the cover.

Highlights

  • Dual 3mm tempered glass panels showcase the build
  • Three pre-installed 120mm ARGB Lite fans provide immediate airflow
  • Top radiator support up to 280mm enables liquid cooling
  • Fits graphics cards up to 340mm for high-end GPUs
  • Front I/O includes two USB 3.0 ports and audio

Specifications

BrandThermaltake
SeriesView 170 Series
ModelCA-1Z4-00M1WN-00
TypeARGB Micro Chassis
ColorBlack
Case MaterialSPCC
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityMini ITX (6.7" x 6.7")
Micro ATX (9.6" x 9.6")
Side Panel3mm Thick Tempered Glass x 2
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots4
Front Ports2 x USB 3.0, 1 x Audio
Fan OptionsTop: 2 x 120mm, 1 x 120mm/2 x 140mm, 1 x 140mm
Right: 2 x 120mm, 1 x 120mm
Rear: 1 x 120mm
Power Cover: 2 x 120mm, 1 x 120mm
Cooling System:
Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000RPM, 22.3 dBA) x 2
Rear: 120 x 120 x 25 mm ARGB Lite fan (1000RPM, 22.3 dBA) x 2
Pre-installed FansRear - 1 x 120mm / Side - 2 x 120mm
Radiator OptionsTop: 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm
Rear: 1 x 120mm
Max GPU Length340 mm
Max CPU Cooler Height160 mm
Max PSU Length180 mm
Dimensions14.9"x 8.4"x 17.3"
Weight14 lbs
Shipping weight5.76 kg
Package size483 × 432 × 279 mm

Questions about this item

How long a graphics card fits in the View 170 TG ARGB?

The case accepts graphics cards up to 340 mm long, so most dual-slot models fit without hitting the power-supply shroud.

How loud are the pre-installed ARGB Lite fans at full speed?

Each 120 mm ARGB Lite fan runs at 1000 RPM and is rated at 22.3 dBA, so three of them stay quiet even under sustained load.

What motherboard form factors does this chassis support?

It fits Mini-ITX boards at 6.7" x 6.7" and Micro-ATX boards at 9.6" x 9.6".
