Green circuit board M.2 2280 SSD with black controller and silver label

Titanium Micro

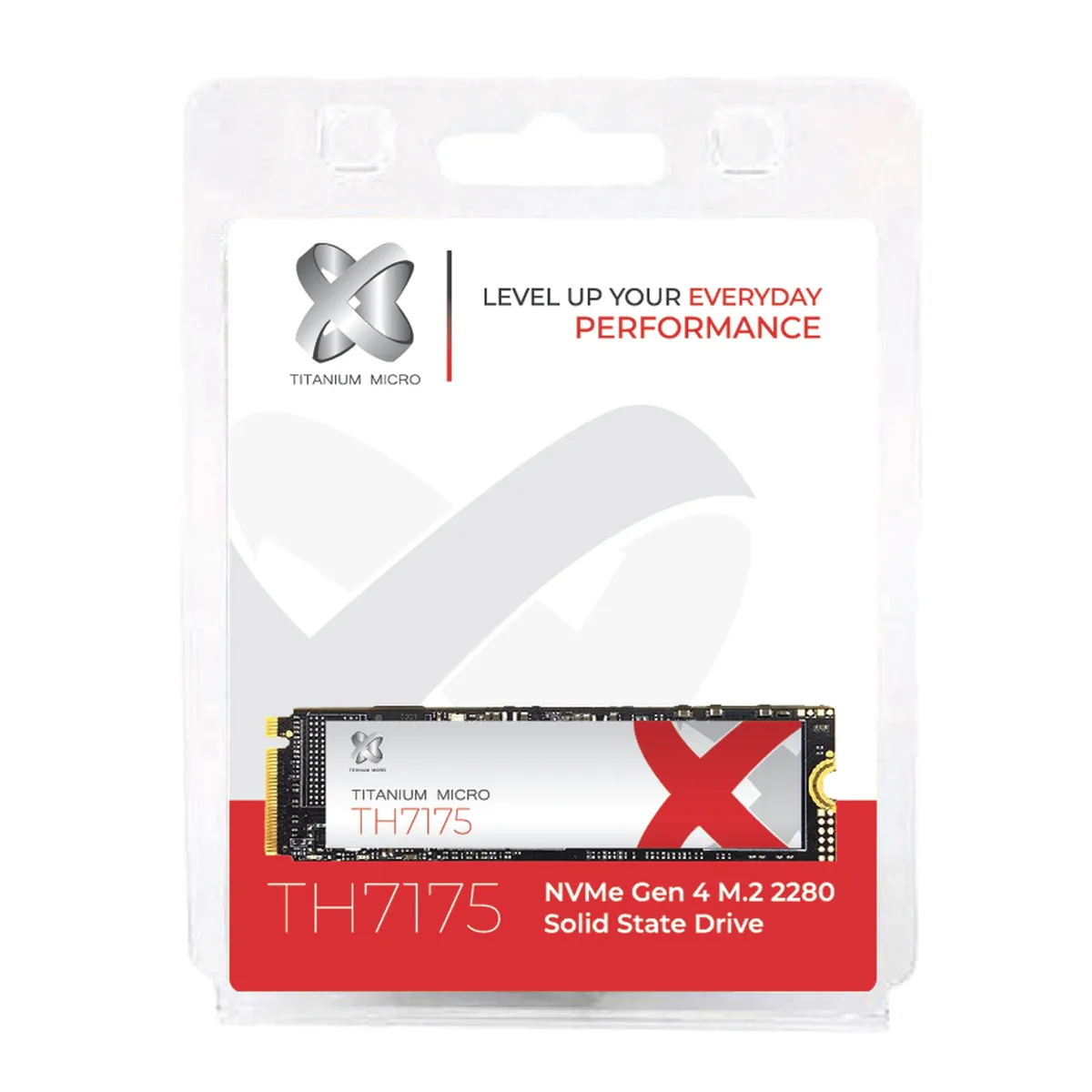

Titanium Micro TH7175 2TB M.2 2280 internal SSD

SKU CH-0HYF-8JW5X

A 2TB M.2 2280 NVME drive delivering up to 7175 MB/s read and 6800 MB/s write via PCIe 4.0 x4 with a Phison E18 controller and 1400TB endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory ComponentsQLC
  • InterfacePCI-Express 4.0 x4
  • ControllerPhison E18

Options 2TB

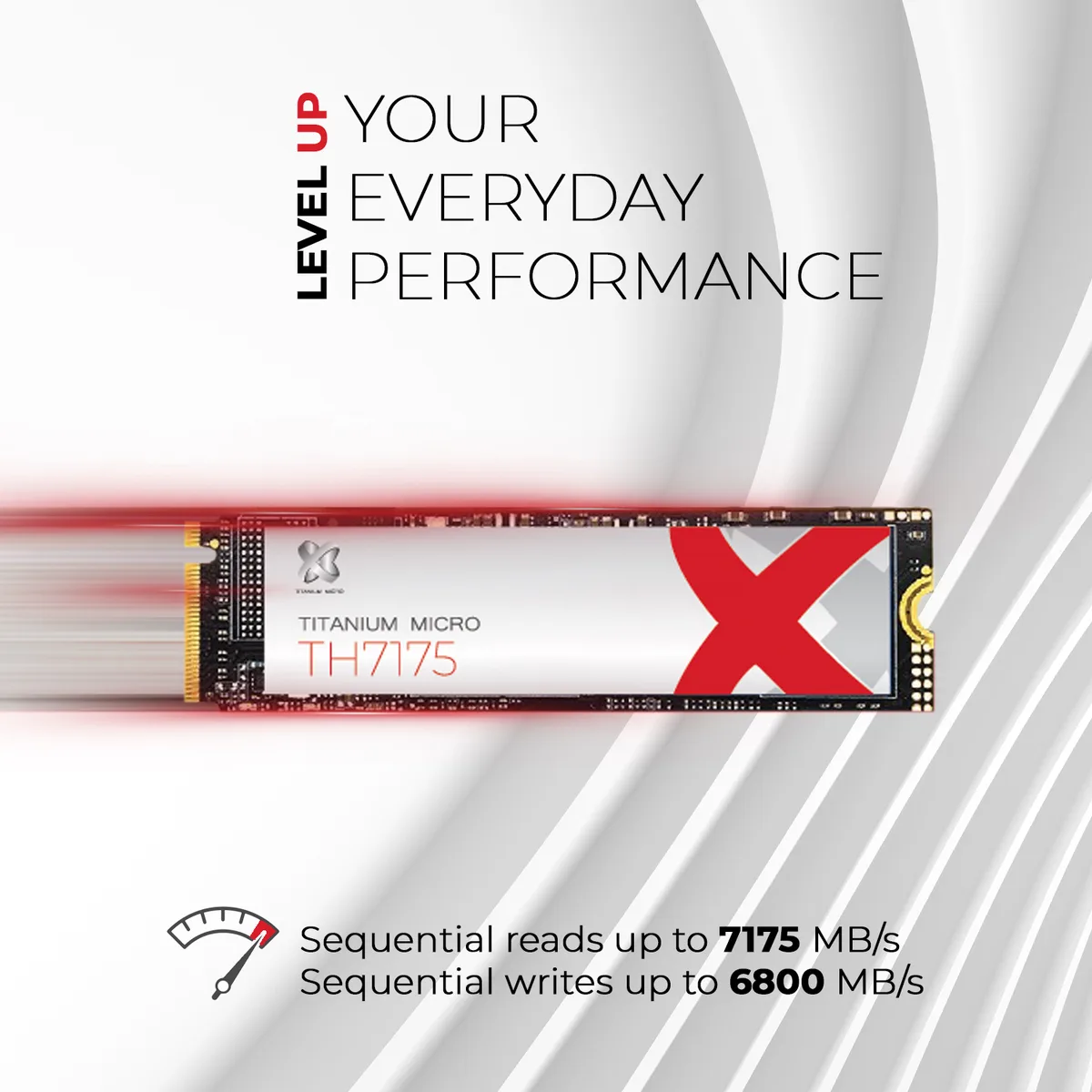

  • Sequential reads reach 7175 MB/s for rapid data access
  • Sequential writes hit 6800 MB/s to move large files quickly
  • Random reads up to 640000 IOPS keep multitasking responsive
  • 1400 TBW endurance rating supports heavy write workloads
  • 1800000-hour MTBF indicates long-term drive reliability

Titanium Micro TH7175 2TB M.2 2280 internal SSD

The Titanium Micro TH7175 is a 2TB M.2 2280 internal SSD built on PCI-Express 4.0 x4 with a Phison E18 controller and QLC memory. It targets desktop and laptop users who need a large, fast boot and storage drive for everyday computing, creative workloads and gaming libraries. The drive is compatible with PC, Mac, Linux, PlayStation and Xbox platforms.

Sustained load behaviour

Under sustained load the Phison E18 controller maintains high throughput, delivering sequential reads up to 7175 MBps and writes up to 6800 MBps while random performance reaches 640,000 IOPS read and 630,000 IOPS write. The 1400 TBW endurance rating and 1,800,000 hour MTBF indicate the drive is designed to handle heavy, long-duration write workloads without throttling or premature wear.

Thermals noise and power

In normal use the SSD draws 0.003W at idle and 6.6W when active, producing no audible noise because it has no moving parts. The low idle power helps extend battery life in laptops, while the active draw stays within typical M.2 slot limits. The solid-state design also provides resistance to vibration and physical shock.

Highlights

  • Sequential reads reach 7175 MB/s for rapid data access
  • Sequential writes hit 6800 MB/s to move large files quickly
  • Random reads up to 640000 IOPS keep multitasking responsive
  • 1400 TBW endurance rating supports heavy write workloads
  • 1800000-hour MTBF indicates long-term drive reliability

Specifications

BrandTitanium Micro
SeriesTH7175
ModelTMNM2Q-TH7175-2TB
Part NumberTMNM2Q-TH7175-2TB
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity2TB
Memory ComponentsQLC
InterfacePCI-Express 4.0 x4
ControllerPhison E18
Max Sequential ReadUp to 7175 MBps
Max Sequential WriteUp to 6800 MBps
4KB Random ReadUp to 640,000 IOPS
4KB Random WriteUp to 630,000 IOPS
Seek Time<0.1ms
MTBF1,800,000 hours
FeaturesReliability (TBW): 1400TB
Power Consumption (Idle)0.003W
Power Consumption (Active)6.6W

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat or noise does the Phison E18 controller produce at its 6.6W active power draw during all-day workloads?

The drive draws 6.6W when active and 0.003W at idle, so sustained use keeps power modest and the controller runs silently with no moving parts.

Does my motherboard need a PCIe 4.0 x4 M.2 slot and NVME support to use the TMNM2Q-TH7175-2TB at its rated 7175 MBps read speed?

Yes, a PCIe 4.0 x4 M.2 2280 slot with NVME 1.4 support is required to reach the quoted sequential read and write figures.

Will the 2TB QLC drive work reliably alongside an older PCIe 3.0 M.2 SSD in the same system without speed loss on the older drive?

Each M.2 slot negotiates its own link; the TH7175 runs at PCIe 4.0 x4 while a PCIe 3.0 drive stays at its native speed, so neither slows the other.
