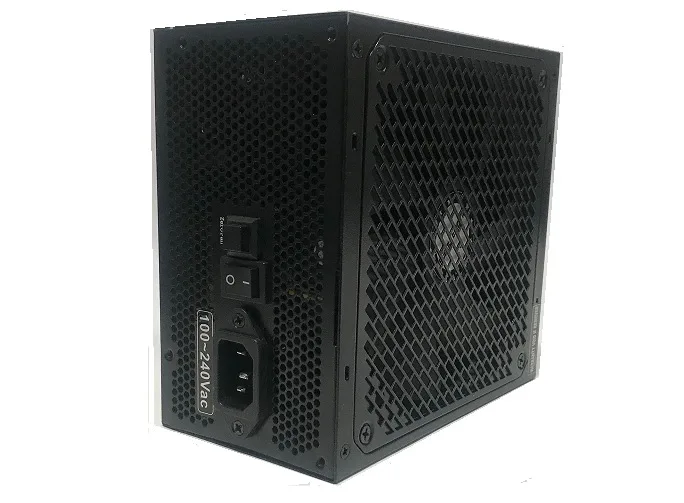

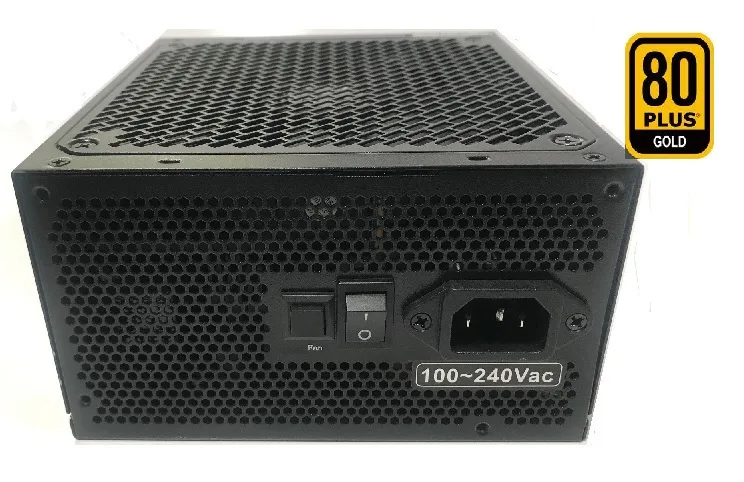

Black rectangular ATX power supply with 140 mm fan and modular cable sockets

TOPOWER

TOPOWER TOP-1000WG1 1000W ATX 3.0 PCIe 5.0 80 PLUS Gold Full Modular Power Supply

SKU CH-SQKT-T8S9K

ATX 3.0 power supply delivers 1000 W with 80 PLUS Gold efficiency, PCIe 5.0 12VHPWR cable and full modular cabling

  • ColorBlack
  • TypeATX 3.0 Compatible
  • Maximum Power1000 W
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector24 Pin
  • ATX 3.0 and PCIe 5.0 ready for 4080 and 4090 graphics cards
  • 1000 W continuous output on a single +12 V rail
  • 80 PLUS Gold efficiency cuts waste heat and electricity cost

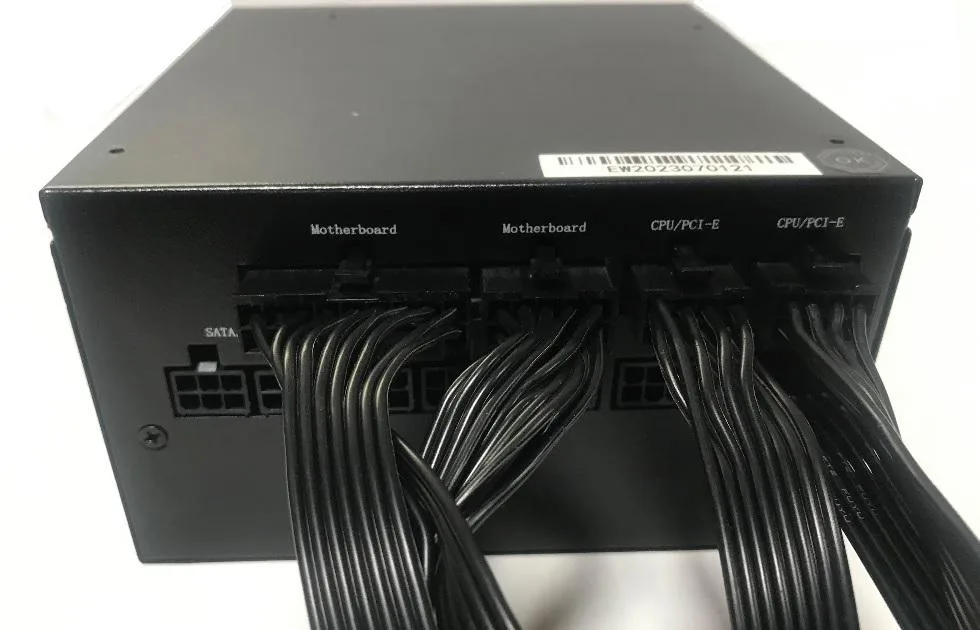

  • Full modular cabling keeps the build clean and airflow clear
  • 140 mm fan with silent switch runs quiet under load

1000W ATX 3.0 power supply for high-end builds

The TOPOWER TOP-1000WG1 delivers 1000 W through a single +12 V rail and meets ATX 3.0 and PCIe 5.0 requirements. It includes a native 12VHPWR cable for 4080 and 4090 class graphics cards. Full modular cabling keeps the build clean and airflow unobstructed.

Check ATX 3.0 support and 12VHPWR routing

Verify that your motherboard and GPU accept the 12VHPWR connector and that the case can accommodate a 160 mm deep unit. The 24 pin main connector and six 6+2 pin PCIe plugs cover most modern layouts, but confirm cable reach for your specific component placement before ordering.

140 mm fan with silent switch and Gold efficiency

A 140 mm fan runs at lower RPM under typical loads, and a silent switch lets you prioritise quiet operation. 80 PLUS Gold certification means high efficiency across the 100 to 240 V input range, reducing waste heat and lowering overall power draw during normal use.

Highlights

  • ATX 3.0 and PCIe 5.0 ready for 4080 and 4090 graphics cards
  • 1000 W continuous output on a single +12 V rail
  • 80 PLUS Gold efficiency cuts waste heat and electricity cost
  • Full modular cabling keeps the build clean and airflow clear
  • 140 mm fan with silent switch runs quiet under load

Specifications

BrandTOPOWER
Series80 Plus
ColorBlack
TypeATX 3.0 Compatible
Maximum Power1000 W
Fans1 x 140 mm
PFCActive
Main Connector24 Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2 Pin
SATA Power Connector12
SLIReady
Haswell SupportReady
CrossFireReady
Max PSU Length160 mm
ModularYes
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Power Rating1000W
Frequency Range50/60 Hz
+3.3V Max. Current25A
+5V Max. Current25A
-12V Max. Current0.5A
+5VSB Max. Current2A
12V Power Connector1 x 4+4 Pin ATX/EPS 12V
Floppy Connector1
Peripheral Connector4
Fans Total Quantity1
Top Fans Size140mm

Questions about this item

What cables come in the box and which ones must I buy separately?

The fully modular unit ships with a 24‑pin ATX cable, a 12VHPWR connector for PCIe 5.0 graphics cards, six 6+2‑pin PCIe cables and twelve SATA power leads; no extra cables are required for a standard build.

How do I decide between the available versions or capacities of this model?

This specific SKU is a single 1000 W ATX 3.0 unit; there are no alternate wattages or versions listed, so the only choice is whether 1000 W matches your system’s peak draw.

What does the 1000 W rating actually mean once the PSU is installed in a PC?

It guarantees up to 1000 W of continuous DC output on a single +12 V rail, with 80 PLUS Gold efficiency and a 140 mm fan that can run quietly under load.
