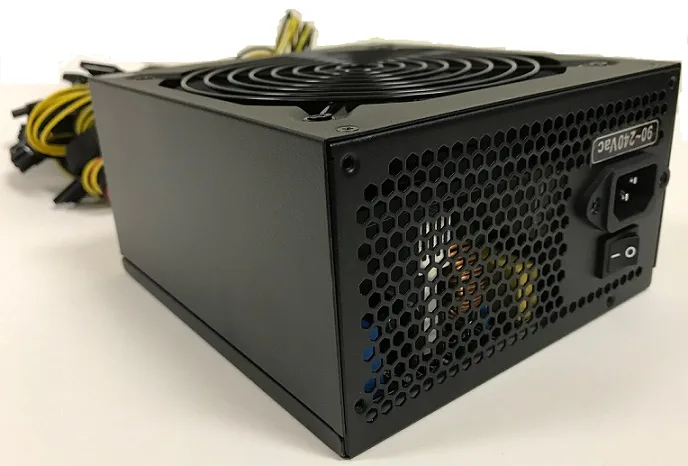

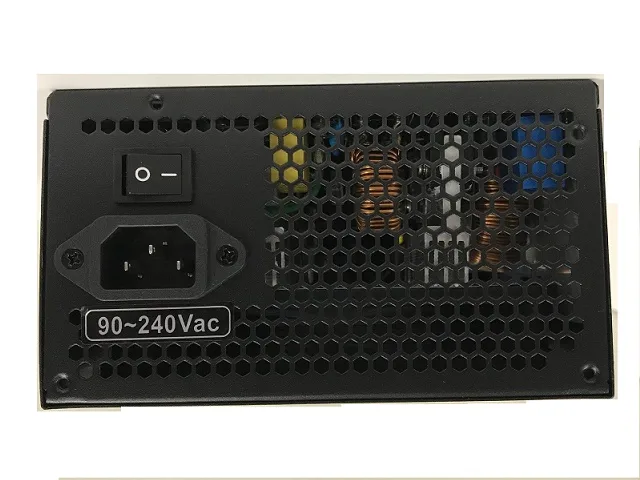

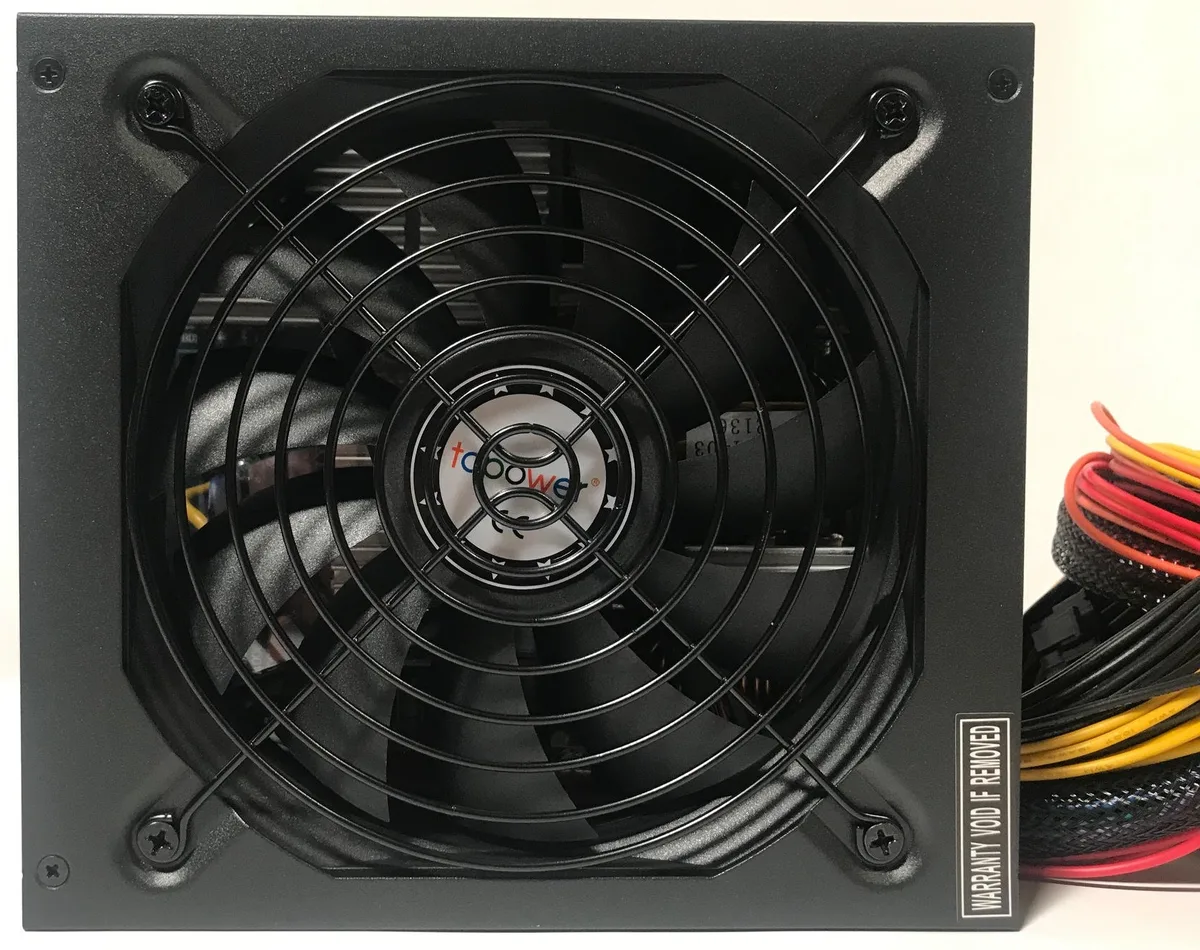

Rectangular black ATX power supply, single 135mm fan, 165mm long, non-modular cables visible

TOPOWER

TOPOWER TOP-1600WM1 1600W mining hardware

SKU CH-H644-G804E MPN TOP-1600WM1

Delivers 1600 W to mining rigs with 16 PCIe 6+2P connectors for up to eight GPUs, active PFC and a 135 mm fan

  • TypeATX 12V / EPS 12V
  • Maximum Power1600 W
  • Fans1
  • PFCActive
  • Main Connector20+4 Pin
  • +12V RailsSingle
  • Delivers 1600 W for multi-GPU mining rigs
  • Wide 100 – 240 V input suits global mains
  • Single +12 V rail rated at 128 A feeds all cards
  • Sixteen PCI-E 6+2P connectors power up to eight GPUs
  • 135 mm fan and active PFC keep thermals in check

1600W Mining Power Supply

This TOPOWER TOP-1600WM1 unit delivers 1600 W for cryptocurrency mining rigs. It supports up to eight graphics cards for coins such as BTC, ETH, LTC and XMR. The single +12 V rail provides 128 A for stable GPU loads. Active PFC handles input from 100 to 240 V at 50 or 60 Hz.

Non-modular ATX Installation

The supply uses a fixed 20+4 pin main connector and sixteen 6+2P PCI-Express leads. Its 165 mm length fits standard ATX mining chassis. A single 135 mm fan cools the unit. Cable routing must account for all sixteen PCIe plugs and eight SATA connectors. Ensure the case has enough depth for the non-modular harness.

Pre-purchase Compatibility Checks

Verify the motherboard accepts a 20+4 pin ATX connector and that the chassis clears 165 mm depth. Confirm the AC supply operates within 100 to 240 V range. Count the required PCIe 6+2P connections for each GPU. Check that the single +12 V rail design matches the rig power distribution plan.

Highlights

  • Delivers 1600 W for multi-GPU mining rigs
  • Wide 100 – 240 V input suits global mains
  • Single +12 V rail rated at 128 A feeds all cards
  • Sixteen PCI-E 6+2P connectors power up to eight GPUs
  • 135 mm fan and active PFC keep thermals in check

Specifications

BrandTOPOWER
SeriesMINING
ModelTOP-1600WM1
TypeATX 12V / EPS 12V
Maximum Power1600 W
Fans1
PFCActive
Main Connector20+4 Pin
+12V RailsSingle
PCI-Express Connector16 x 6+2P
SATA Power Connector8
SLIReady
CrossFireReady
Max PSU Length165 mm
ModularNo
Efficiency> 85%
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Power Rating1600W
+3.3V Max. Current20A
+5V Max. Current20A
+12V1 Max. Current128A
-12V Max. Current0.5A
+5VSB Max. Current3A
12V Power Connector1 x 4+4 Pin ATX/EPS 12V
Peripheral Connector6
Fans Total Quantity1
Top Fans Size135mm

Questions about this item

Will this power supply fit inside a standard ATX mining chassis?

The unit is 165 mm long and uses an ATX 12V form factor, so it fits most standard mining frames that accept ATX supplies.

Can I run eight graphics cards from the native connectors?

Yes, the supply provides sixteen 6+2-pin PCIe connectors, enough for eight dual-connector GPUs without adapters.

What AC voltage range does the unit accept for worldwide use?

The input range is 100 to 240 V at 50 or 60 Hz, so it works on mains power in most countries.
