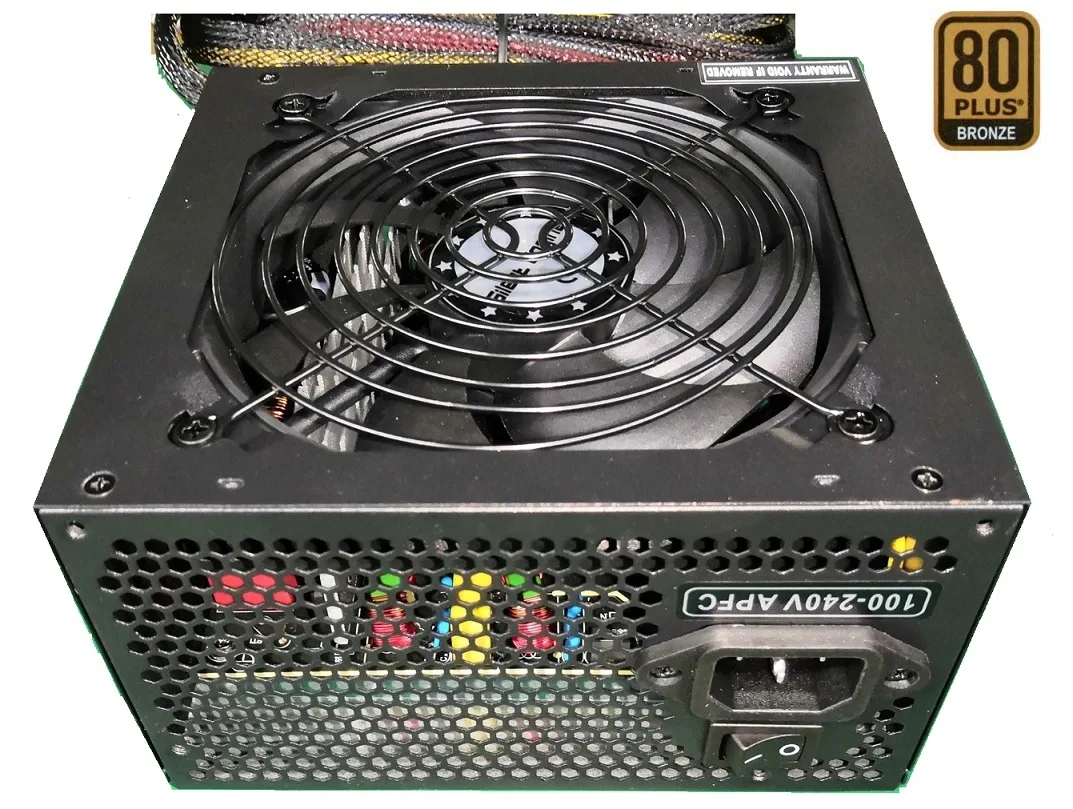

Rectangular metal PSU in black finish with single fan grille and fixed cable bundle emerging from one end

TOPOWER

TOPOWER TOP-500DB 500W ATX/EPS 80 PLUS Bronze power supply

SKU CH-G2RJ-1655J MPN TOP-500DB

A 500 W ATX/EPS unit with active PFC, 80 PLUS Bronze efficiency, a single 12 cm fan, two 6+2 pin PCIe connectors, six SATA power connectors and full protection circuits

  • TypeATX 12V / EPS 12V
  • Maximum Power500 W
  • Fans1
  • PFCActive
  • Main Connector20+4 Pin
  • PCI-Express Connector2 x 6+2 Pin
  • 80 PLUS Bronze certification cuts energy waste with 500 W output
  • Active PFC corrects power factor across 100-240 V input range
  • Single 12 cm fan cools the 150 x 140 x 86 mm chassis
  • Two 6+2 pin PCIe connectors plus six SATA power leads support multi-GPU builds
  • Over-voltage and overload protection safeguards components during surges

Power supply for mainstream builds

The TOPOWER TOP-500DB delivers 500 W from a single 12 cm fan unit measuring 150 x 140 x 86 mm. It suits standard ATX or EPS12V systems that need a straightforward, non-modular power source without extra cable management. Builders who want more output or fully modular cabling should look elsewhere.

Dual 6+2-pin PCIe connectors

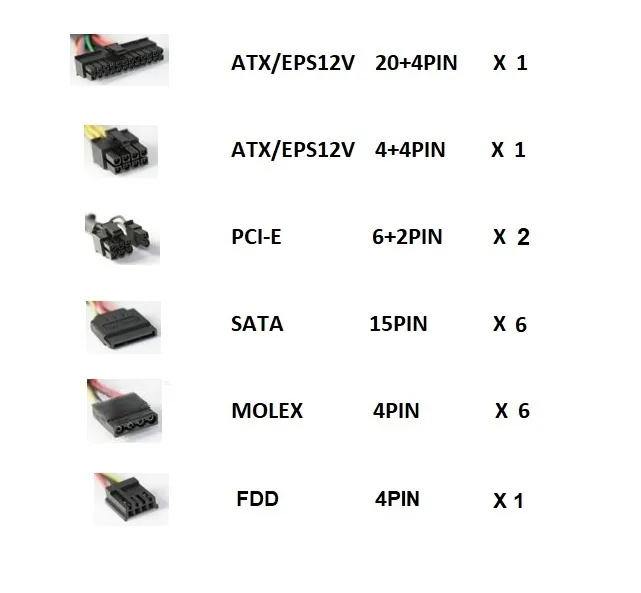

Two 6+2-pin PCIe cables provide the only native graphics power on this unit. A card that demands three such connectors or a single 12-pin plug cannot be powered without adapters, which adds clutter and risk. The fixed cable set also includes six SATA connectors and a 20+4-pin main plug.

Fixed cables mean planning ahead

Because the loom is not modular, every lead stays in the case whether used or not. Route the 140 mm deep housing first, then dress the 20+4-pin, PCIe and SATA runs before closing the side panel. Active PFC handles 100-240 V input at 47-63 Hz, so no voltage switch is needed.

Highlights

  • 80 PLUS Bronze certification cuts energy waste with 500 W output
  • Active PFC corrects power factor across 100-240 V input range
  • Single 12 cm fan cools the 150 x 140 x 86 mm chassis
  • Two 6+2 pin PCIe connectors plus six SATA power leads support multi-GPU builds
  • Over-voltage and overload protection safeguards components during surges

Specifications

BrandTOPOWER
SeriesBRONZE
ModelTOP-500DB
TypeATX 12V / EPS 12V
Maximum Power500 W
Fans1
PFCActive
Main Connector20+4 Pin
PCI-Express Connector2 x 6+2 Pin
SATA Power Connector6
SLIReady
Haswell SupportReady
CrossFireReady
Max PSU Length140 mm
ModularNo
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Power Rating500W
Dimensions150 x 140 x 86 MM
Frequency Range47 - 63 Hz
12V Power Connector1 x 4+4 Pin ATX/EPS 12V
Floppy Connector1
Peripheral Connector6
Fans Total Quantity1
Top Fans Size120mm
Over Load ProtectionYes
Short Circuit ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Shipping weight1.81 kg
Package size254 × 203 × 102 mm

Questions about this item

What does the 500 W rating deliver in a built system?

The 500 W rating is the maximum continuous DC output the unit can supply to all rails combined inside a working PC.

What does the 80 PLUS Bronze badge mean for the AC input?

80 PLUS Bronze certifies the supply meets defined efficiency levels at 20 %, 50 % and 100 % load across the 100‑240 V input range.

Will the 140 mm depth fit my case?

The power supply is 140 mm deep, 150 mm wide and 86 mm high, so check your case clearance against those dimensions.
