Rectangular silver ATX power supply, 140 mm fan visible on rear grille, fixed black cables emerging from side

TOPOWER

TOPOWER TOP-700WB1 700 W power supply

SKU CH-YB3Q-80W6Q MPN TOP-700WB1

700 W ATX power supply with 80 PLUS Bronze efficiency, active PFC, a 140 mm fan and eight SATA connectors

  • TypeATX 12V / EPS 12V
  • Maximum Power700 W
  • Fans1 x 140 mm
  • PFCActive
  • Main Connector20+4 Pin
  • PCI-Express Connector1 x 6 Pin, 2 x 6+2 Pin
  • Delivers 700 W continuous power for demanding builds
  • 80 PLUS Bronze certification reduces wasted energy and heat
  • Active PFC corrects power factor across 100–240 V input
  • 140 mm fan moves air quietly at lower speeds
  • 160 mm depth fits most standard ATX cases

Capacity and certification

The TOPOWER TOP-700WB1 delivers 700 W of continuous power through an ATX12V and EPS12V design. It carries 80 PLUS Bronze certification and uses Active PFC across a 100-240 V input range. The unit suits mid-range gaming PCs and workstation builds that need reliable output without modular cables.

Connector and clearance check

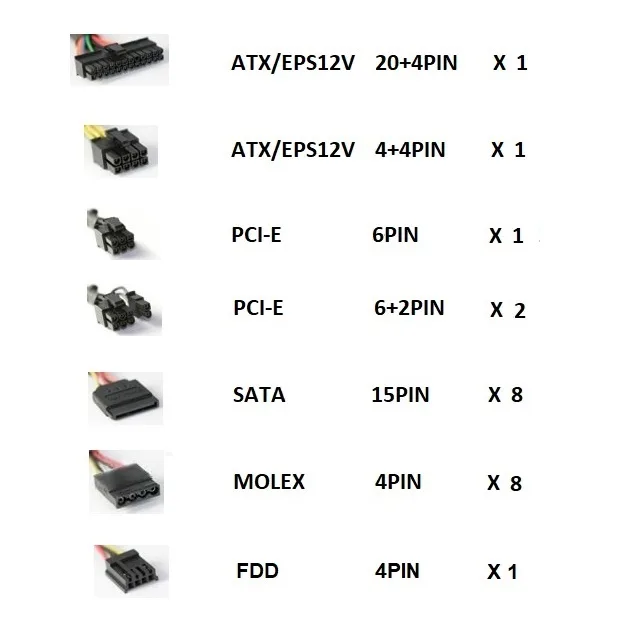

Verify that your motherboard accepts a 20+4 pin main connector and that the graphics card requires no more than one 6 pin and two 6+2 pin PCIe leads. Eight SATA power plugs are provided for drives and peripherals. The power supply measures 160 mm in depth, so confirm the case allows at least that length.

Non-modular upgrade path

This model replaces older non-modular units that lack 80 PLUS Bronze efficiency or sufficient PCIe connectors for dual-card SLI and CrossFire setups. The jump is worthwhile when moving from a lower-wattage design that cannot sustain 700 W or lacks Active PFC and Haswell-ready standby support.

Highlights

  • Delivers 700 W continuous power for demanding builds
  • 80 PLUS Bronze certification reduces wasted energy and heat
  • Active PFC corrects power factor across 100–240 V input
  • 140 mm fan moves air quietly at lower speeds
  • 160 mm depth fits most standard ATX cases

Specifications

BrandTOPOWER
SeriesBRONZE
ModelTOP-700WB1
TypeATX 12V / EPS 12V
Maximum Power700 W
Fans1 x 140 mm
PFCActive
Main Connector20+4 Pin
PCI-Express Connector1 x 6 Pin, 2 x 6+2 Pin
SATA Power Connector8
SLIReady
Haswell SupportReady
CrossFireReady
Max PSU Length160 mm
ModularNo
Energy-Efficient80 PLUS BRONZE Certified
Over Voltage ProtectionYes
Overload ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Power Rating700W
Dimensions150 x 160 x 86 MM
Frequency Range47 - 63 Hz
Floppy Connector1
Peripheral Connector8
Fans Total Quantity1
Top Fans Size140mm
Over Load ProtectionYes
Short Circuit ProtectionYes
Under Voltage ProtectionYes
Over Current ProtectionYes
Over Power ProtectionYes
Shipping weight2.27 kg
Package size254 × 203 × 102 mm

Questions about this item

What cables come attached to the TOPOWER TOP-700WB1 and what must I add?

The unit has a fixed 20+4 pin main connector, one 6 pin and two 6+2 pin PCIe connectors, and eight SATA power connectors. No modular cables are included because the PSU is non-modular.

Which version of the TOP-700WB1 should I pick for a build that needs 700 W?

This model is a single 700 W ATX12V/EPS12V unit with 80 PLUS Bronze certification and active PFC; there are no alternative capacities or versions listed.

What does the 700 W rating mean when the PSU is installed in a PC?

It can deliver up to 700 W of continuous DC power across all rails while meeting 80 PLUS Bronze efficiency at 100-240 V input, protected by over-voltage and overload circuits.
