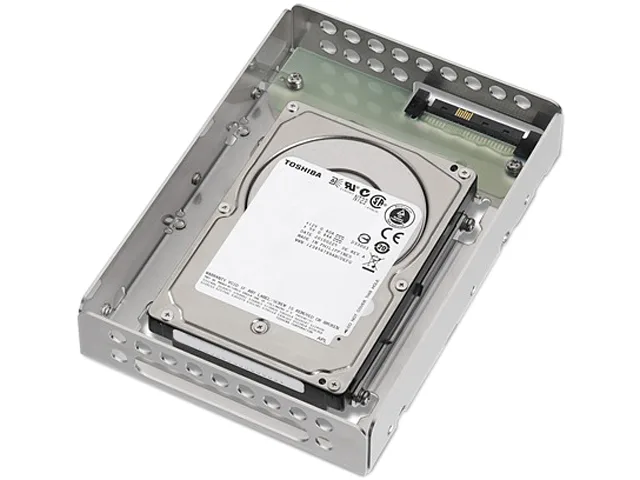

Silver 2.5-inch enterprise hard drive mounted in a 3.5-inch SAS LFF frame

Toshiba

Toshiba MBF230LRC 300GB 10025 RPM 16MB Cache SAS 6Gb/s 2.5" Enterprise Internal Hard Drive

SKU CH-KE48-28Q6E MPN MBF230LRC

A 2.5-inch enterprise hard drive in a 3.5-inch SAS frame delivering 300GB at 10025 RPM with 16MB cache and 6Gb/s SAS interface

  • InterfaceSAS 6Gb/s
  • Capacity300GB
  • RPM10025 RPM
  • Cache16MB
  • Features2.5 inch Enterprise class HDD in a 3.5-inch SAS LFF Frame En
  • Form Factor2.5"
  • Enterprise speed from 10025 RPM SAS drive
  • Lower power draw than 3.5 inch HDDs
  • 300GB capacity in 2.5 inch form factor
  • 16MB cache boosts data throughput
  • Fits 3.5 inch bays with included LFF frame

Enterprise SAS drive in 3.5-inch frame

The Toshiba MBF230LRC is a 300GB enterprise hard drive that spins at 10025 RPM with a 16MB cache. It uses a 6 Gbps SAS-2 interface and mounts a 2.5-inch mechanism inside a 3.5-inch SAS LFF frame. The design targets servers and storage arrays that require this specific form factor.

Suits SAS bays needing the LFF frame

This drive fits 3.5-inch hot-swap bays wired for SAS where a 2.5-inch enterprise unit is preferred for power efficiency. It is not suitable for systems that only accept native 3.5-inch mechanisms or for builds requiring a different interface or larger capacity.

6 Gbps SAS-2 interface

The single specification that decides compatibility is the 6 Gbps SAS-2 interface combined with the 3.5-inch LFF frame dimensions of 15mm height, 69.85mm width and 100.45mm length. The host must provide a matching SAS backplane and physical bay.

Highlights

  • Enterprise speed from 10025 RPM SAS drive
  • Lower power draw than 3.5 inch HDDs
  • 300GB capacity in 2.5 inch form factor
  • 16MB cache boosts data throughput
  • Fits 3.5 inch bays with included LFF frame

Specifications

BrandTOSHIBA
ModelMBF230LRC
InterfaceSAS 6Gb/s
Capacity300GB
RPM10025 RPM
Cache16MB
Features2.5 inch Enterprise class HDD in a 3.5-inch SAS LFF Frame
Environmental friendly: Best Power consumption efficiency compared to 3.5 inch HDD
6 Gbps SAS-2 interface
Form Factor2.5"
Height (maximum)15mm
Width (maximum)69.85 mm
Length (maximum)100.45 mm
Shipping weight0.64 kg
Package size145 × 102 × 25 mm

Questions about this item

How can I verify the drive spins at 10025 RPM after installation?

The SAS controller BIOS or operating system utilities will report the spindle speed; a healthy drive shows 10025 RPM with no SMART reallocated-sector warnings.

What comes in the box and what must I provide?

The drive ships in retail or OEM packing; you must supply a SAS 6Gb/s backplane or HBA, power and data cables, and a 3.5-inch bay or adapter for the 2.5-inch unit in its LFF frame.

Which capacity version should I choose for this model?

This MPN is the 300GB variant; select it when you need that exact capacity in a 2.5-inch enterprise drive mounted in a 3.5-inch SAS LFF frame.
