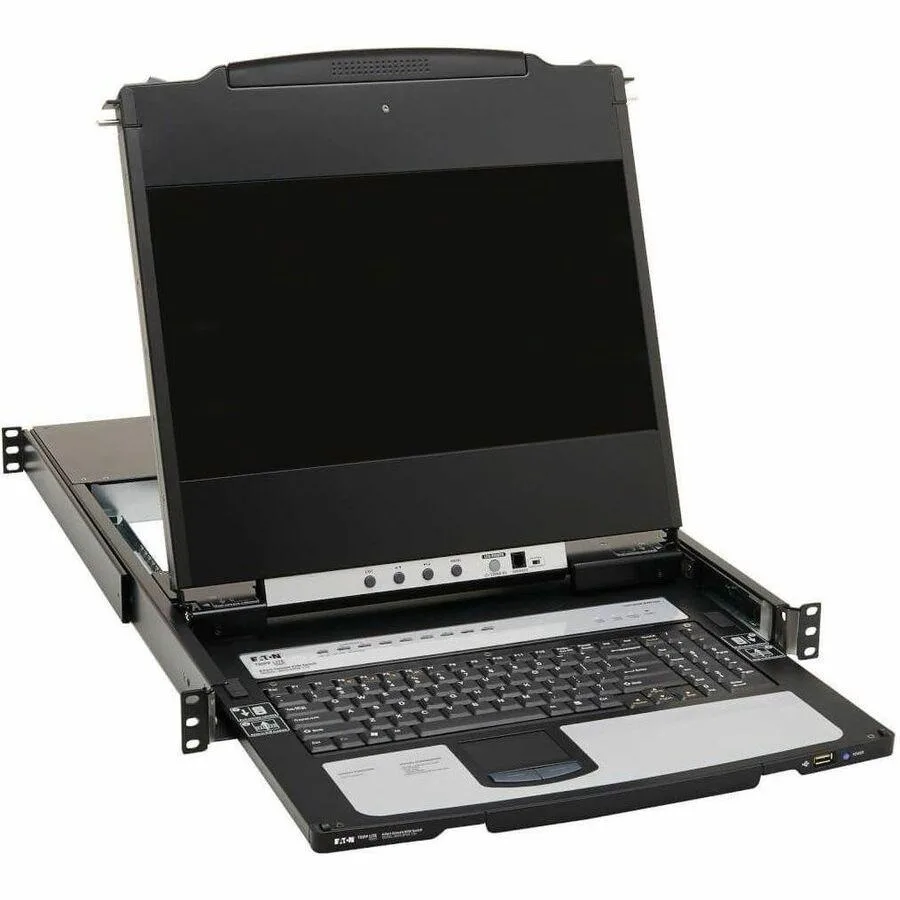

Tripp Lite 8-port DisplayPort KVM console with 17-inch LCD dual-rail 1U rack-mount

Tripp Lite

Tripp Lite B030DP0817D 8-Port DisplayPort KVM Console 17 in LCD rack server

SKU CH-T4XX-TMTGA MPN B030DP0817D

An 8-port DisplayPort KVM switch with a 17-inch LCD console for rack-mounted server management

  • TypeDesktop
  • 8-port KVM controls eight servers from one console
  • 17 in LCD fits a 1U rack with dual-rail design
  • 1920 x 1080 at 60 Hz maximum resolution per port
  • USB 2.0 keyboard and mouse ports for universal compatibility
  • Includes two 6 ft DisplayPort and two USB cables

8-Port DisplayPort KVM Console with 17 in LCD

The Tripp Lite B030DP0817D is an 8-port DisplayPort KVM switch console with a built-in 17 in LCD panel. It mounts in a 1U rack space using dual rails. The unit is designed for administrators who need local keyboard, video and mouse control of up to eight servers from a single console.

Suited for rack rooms limited to 1920 x 1080 at 60

This console suits environments where all connected servers output no higher than 1920 x 1080 at 60 Hz and use DisplayPort video with USB keyboard and mouse. It supports Windows, macOS, Linux, UNIX and Novell operating systems. Buyers who need higher resolutions, more than eight ports, or video interfaces other than DisplayPort should consider other solutions.

Maximum resolution 1920 x 1080 at 60 Hz

The single specification that determines compatibility is the maximum supported resolution of 1920 x 1080 at 60 Hz across all connected displays. Every server attached to this KVM must be configured to output at or below this resolution and refresh rate for the console to function correctly.

Highlights

  • 8-port KVM controls eight servers from one console
  • 17 in LCD fits a 1U rack with dual-rail design
  • 1920 x 1080 at 60 Hz maximum resolution per port
  • USB 2.0 keyboard and mouse ports for universal compatibility
  • Includes two 6 ft DisplayPort and two USB cables

Specifications

BrandTripp Lite
TypeDesktop
Shipping weight19.96 kg
Package size840 × 684 × 145 mm

Questions about this item

What cables and accessories come in the box with the B030DP0817D and what must I supply separately?

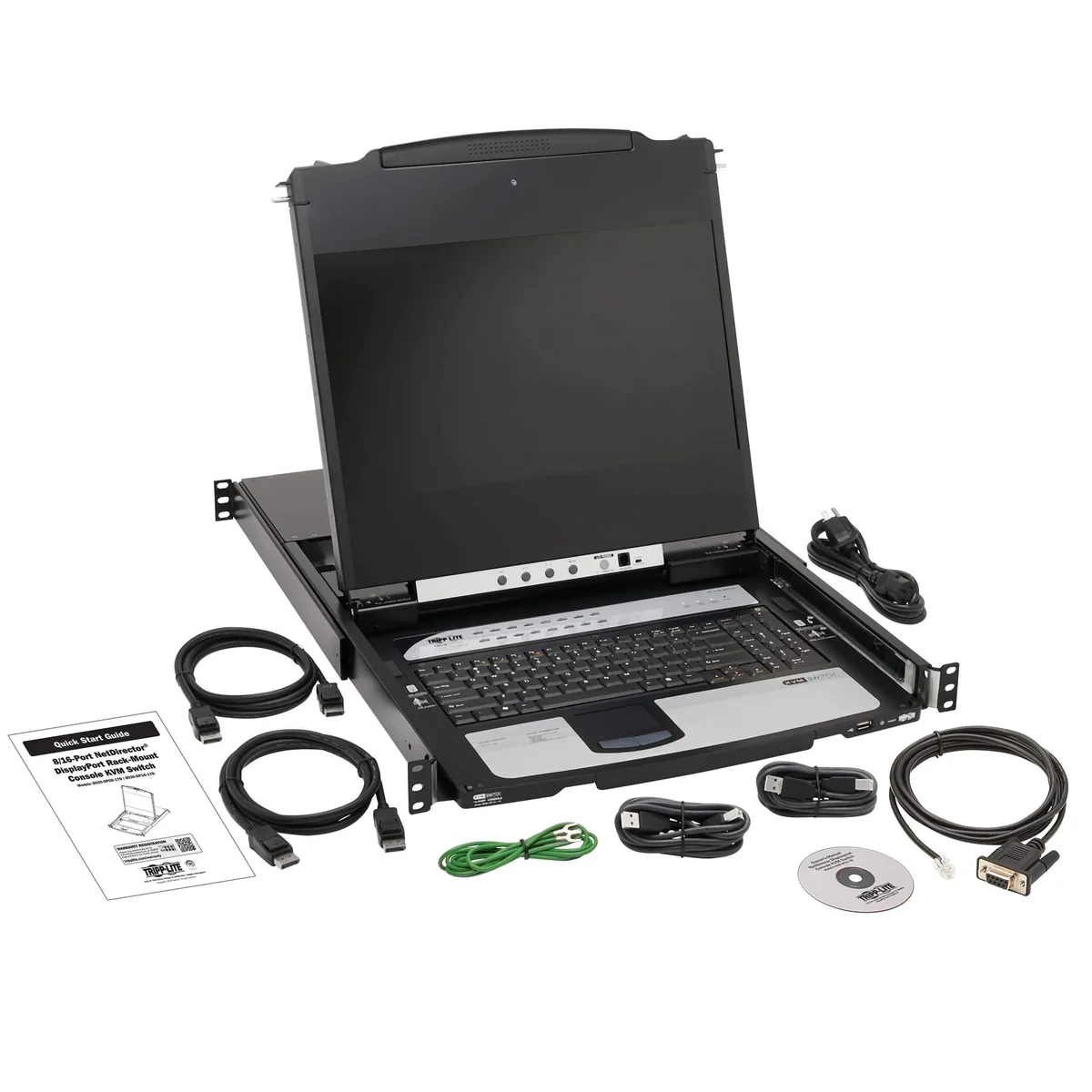

The package includes two 6 ft DisplayPort cables and two 6 ft USB 2.0 A/B cables for the first two ports; the remaining six ports require additional DisplayPort and USB 2.0 cables purchased separately, plus a DisplayPort graphics card, USB keyboard and mouse for each connected server.

How do I decide which of the eight ports to use for my servers?

All eight ports are identical DisplayPort KVM channels supporting up to 1920 x 1080 at 60 Hz; assign any server to any free port and switch between them via front-panel buttons, hot-key sequences or on-screen display.

What does the 1920 x 1080 at 60 Hz limit mean when the console is driving my rack servers?

Each connected server must output no higher than 1920 x 1080 resolution at 60 Hz; the 17 in LCD will display that signal natively, and higher server resolutions will either be downscaled or produce no image.
