Long silver metal power strip with 42 outlets and thick black cord

Tripp Lite

Tripp Lite PDU3V6L2120LV PDU 5.7kW 3-Phase 42 Outlets 208V L21-20P 6ft 70in 0U

SKU CH-DBZ6-C1JEY MPN PDU3V6L2120LV

Delivers 5.7kW three-phase power through 42 NEMA 5-15/20R 120V outlets from a 208V L21-20P input with a 6ft cord in a 70in 0U vertical form factor

  • TypeBasic
  • Rack Size0U
  • StyleVertical
  • Package IncludesPDU3V6L2120LV 5.7kW 208V 3-Phase Basic PDU with 120V Output
  • Input Voltage208V
  • Maximum Input Current16A
  • Distributes 5.7kW of 3-phase power to 42 outlets

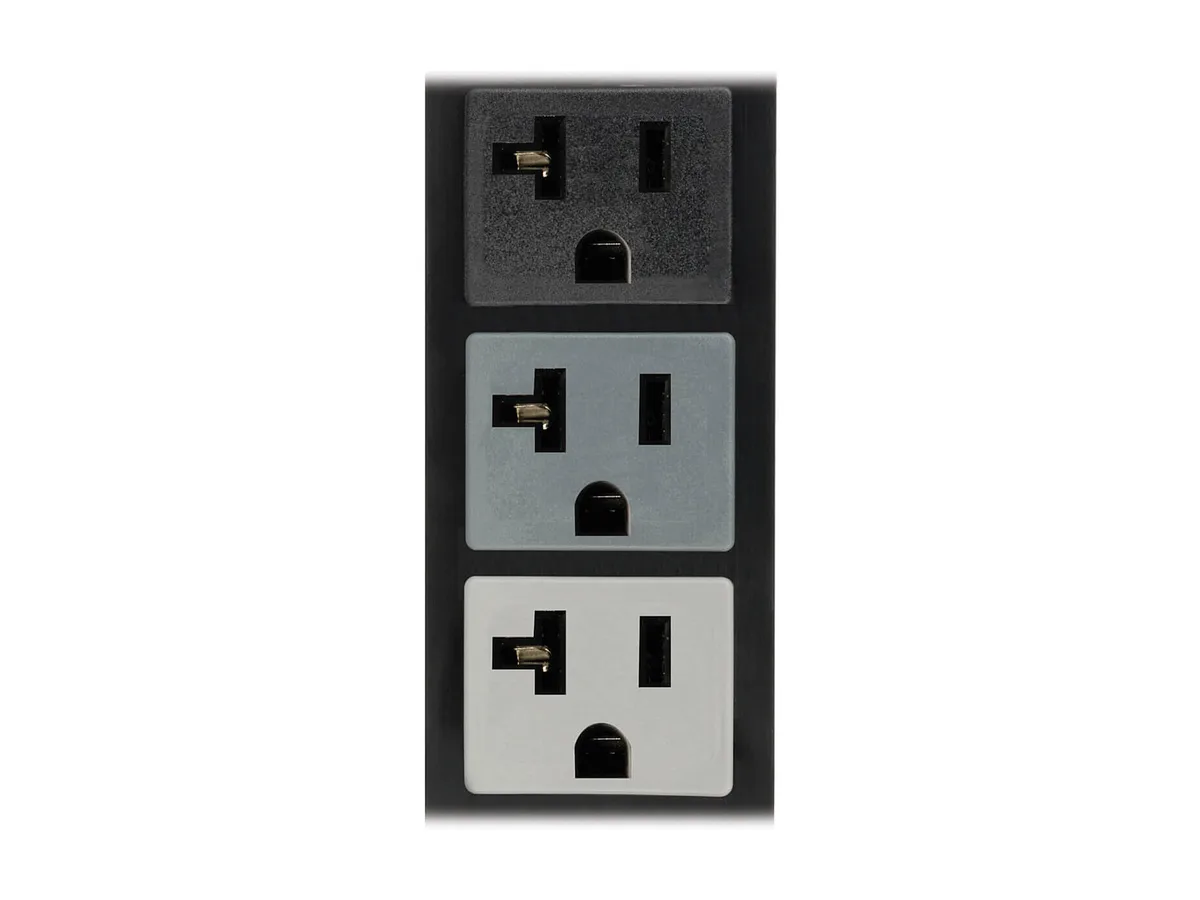

  • 42 NEMA 5-15/20R outlets accept 120V equipment plugs
  • Switchless design prevents accidental shutdowns of connected gear

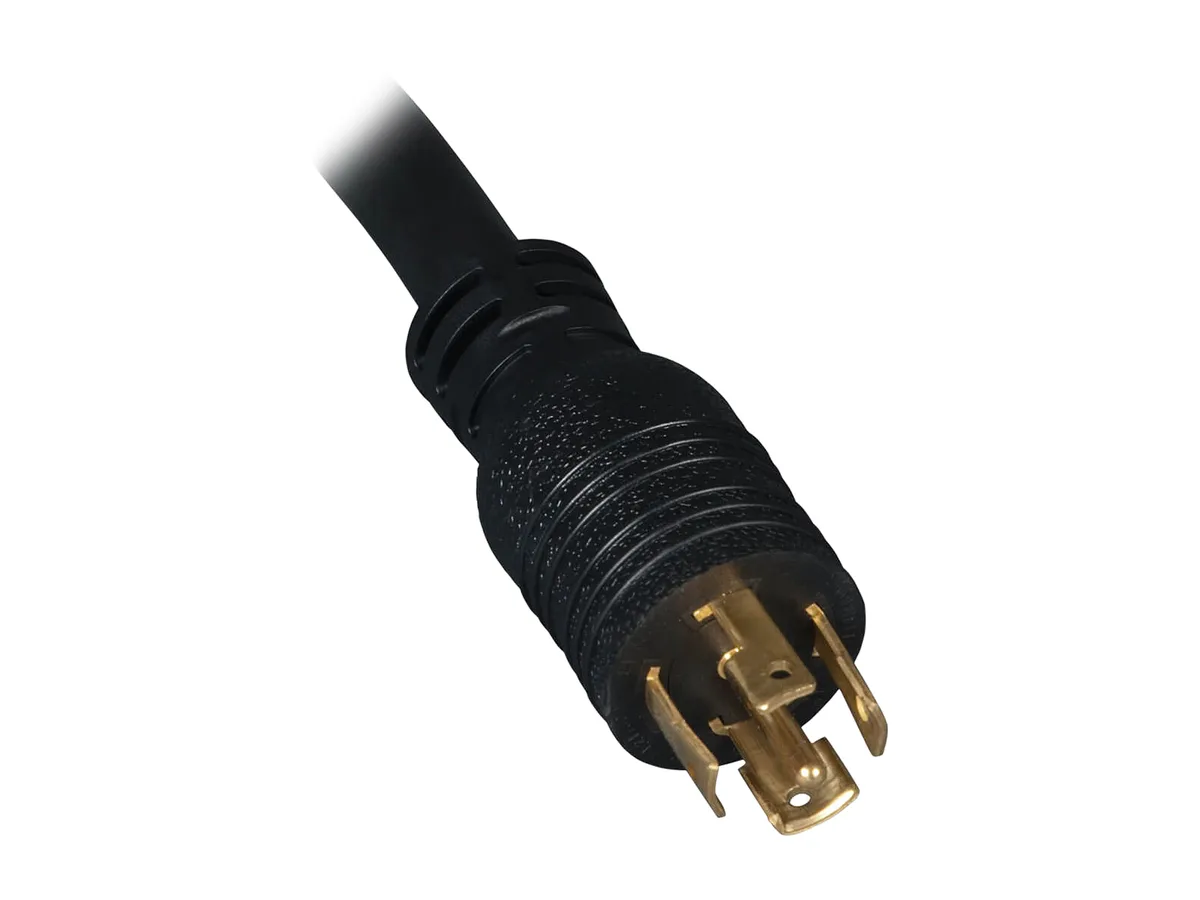

  • 6 ft cord with L21-20P plug connects to 208V source
  • 70 in 0U vertical form factor fits standard rack cabinets

Power Distribution Unit for Network Infrastructure

The Tripp Lite PDU3V6L2120LV is a basic vertical PDU that delivers 120V AC power to networking, telecom, security and audio/video equipment in data centres and network closets. It provides 42 NEMA 5-15/20R outlets fed from a 208V three-phase input for distributing utility, generator or UPS power to multiple loads.

Three-Phase Input Limits at 16 Amps

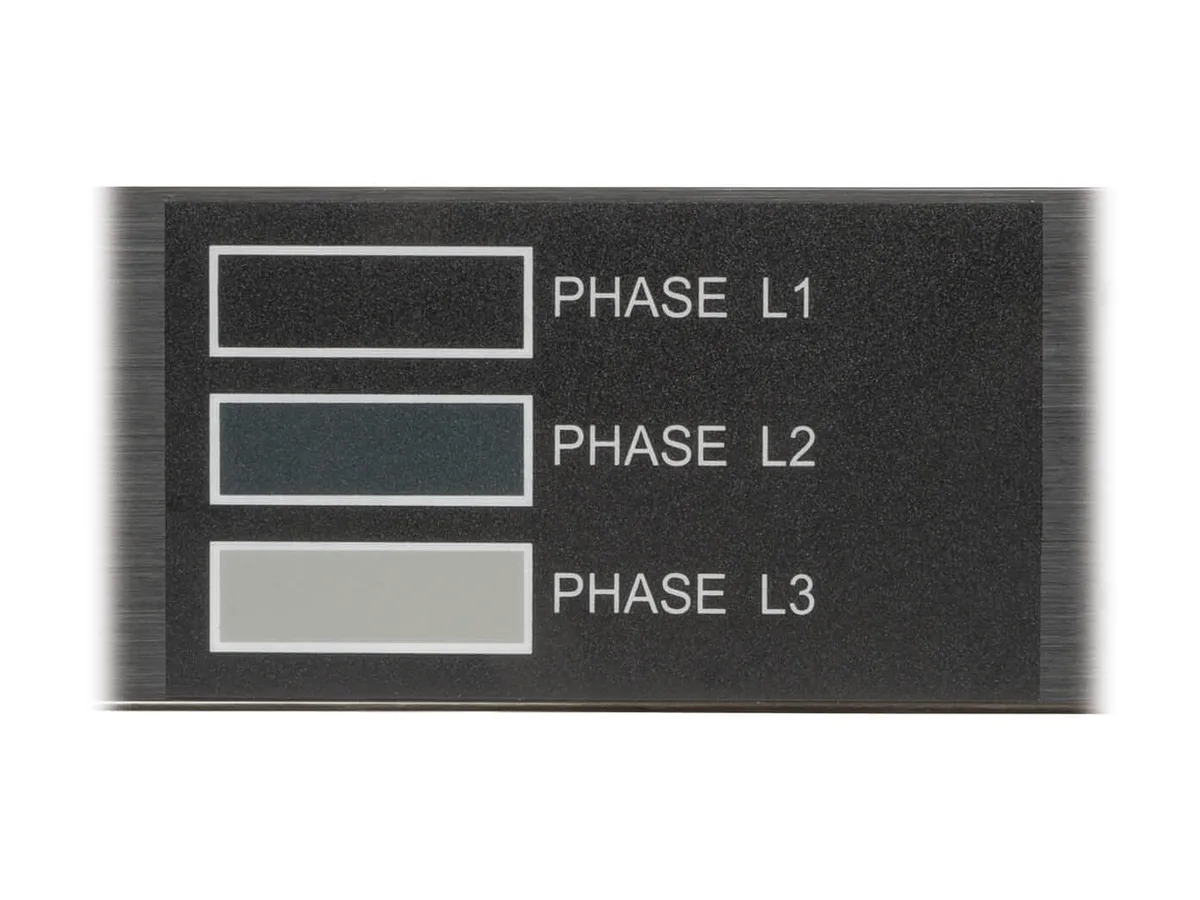

The unit accepts a NEMA L21-20P plug at 208V with a maximum input current of 16A, yielding a 5.7kW capacity across three single-phase output banks. Operation is rated for 50/60Hz frequency and ambient temperatures from 0°C to 40°C at elevations up to 3000 m, with no onboard overload protection included.

Zero-U Vertical Mount With Retention Brackets

Installation uses supplied rack-mounting hardware to fit a 70-inch 0U vertical space, while cable retention brackets secure connected cords. The switchless design prevents accidental shutdowns, but the six-foot input cord fixes placement relative to the source and the lack of circuit breakers means external protection must be provided.

Highlights

  • Distributes 5.7kW of 3-phase power to 42 outlets
  • 42 NEMA 5-15/20R outlets accept 120V equipment plugs
  • Switchless design prevents accidental shutdowns of connected gear
  • 6 ft cord with L21-20P plug connects to 208V source
  • 70 in 0U vertical form factor fits standard rack cabinets

Specifications

BrandTripp Lite
ModelPDU3V6L2120LV
TypeBasic
Rack Size0U
StyleVertical

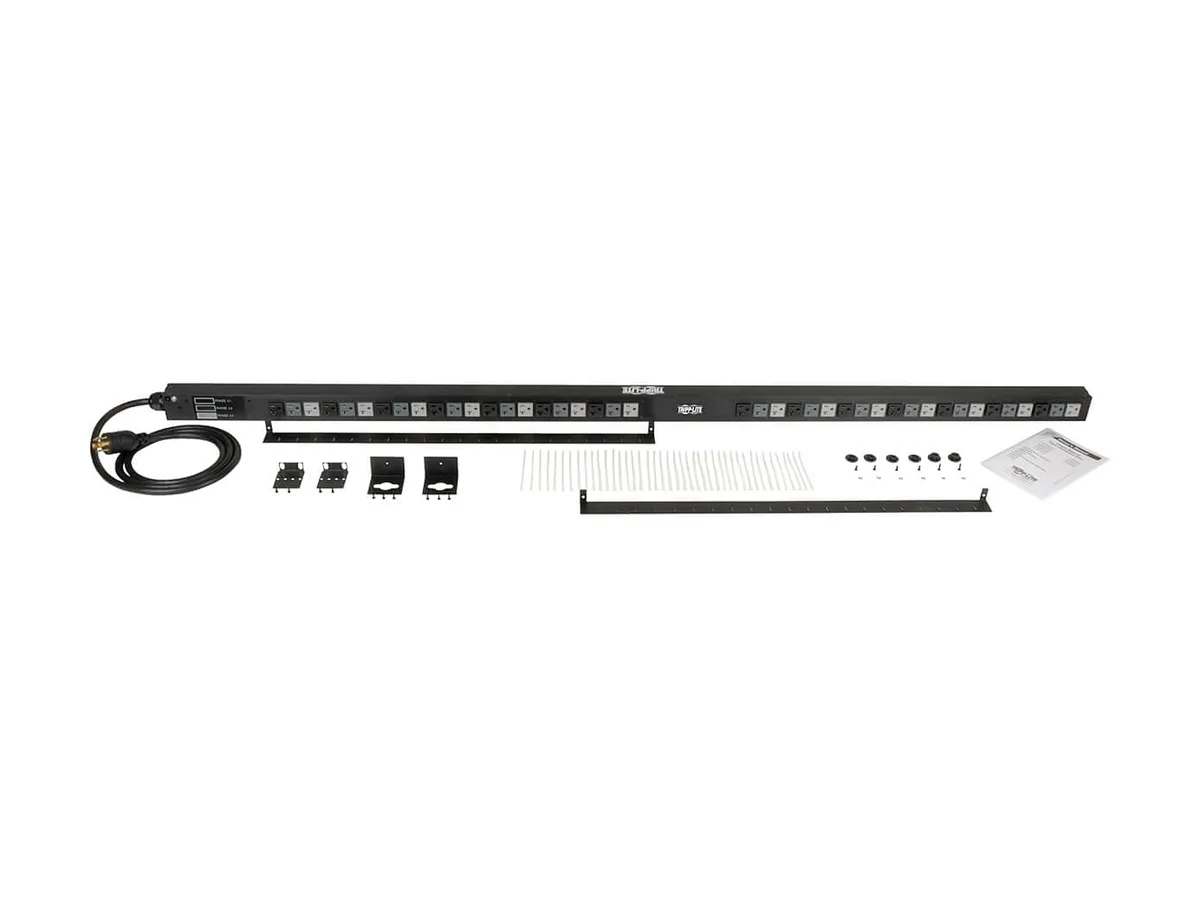

Package IncludesPDU3V6L2120LV 5.7kW 208V 3-Phase Basic PDU with 120V Output
Cable retention brackets with installation hardware
Rack-mounting hardware
Owner's manual
Input Voltage208V
Maximum Input Current16A
Input Connector(s)NEMA L21-20P
Cord Length6 ft.
Output Voltage120V
Output Frequency50/60Hz
Output Connector(s)(42) 5-15/20R
Overload ProtectionNo
Operating Environment0°C ~ 40°C
Operating Elevation0 - 3000 m
Storage Temperature-30°C ~ +60°C
FeaturesIdeal no-frills PDU for telecom, security, audio/video and other network applications
42 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment
Switchless design helps prevent accidental shutdowns that can lead to costly downtime
6 ft. power cord with NEMA L21-20P 3-phase input connects to AC source
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Dimensions70.00" x 2.20" x 1.71"
Weight12.70 lbs.
Shipping weight6.62 kg
Package size1930 × 173 × 137 mm

Questions about this item

How many outlets does this PDU provide and what type are they?

The unit supplies 42 NEMA 5-15/20R outlets, each delivering 120 V AC power to connected equipment.

What does the 5.7 kW rating mean for actual rack loads?

At 208 V three-phase input the PDU can draw up to 16 A per phase, giving a maximum continuous capacity of 5.7 kW across all three load banks.

Which input plug and cord length are used, and what voltage does it accept?

A 6 ft cord with a NEMA L21-20P plug connects to a 208 V three-phase source such as a UPS, generator or utility outlet.
