Tripp Lite
Tripp Lite PDUMVR20NETLX 1.9 kW Switched PDU 24x NEMA 5-15/20R L5-20P 0U
Distributes 120V AC power through 24 switched NEMA 5-15/20R outlets with remote monitoring via built-in LX Platform and a digital ammeter
- TypeSwitched
- Rack Size0U
- StyleVertical
- CertificationsTested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60
- ROHSYes
- Package IncludesPDUMVR20NETLX 1.9 kW Single-Phase Switched PDU Built-in LX P

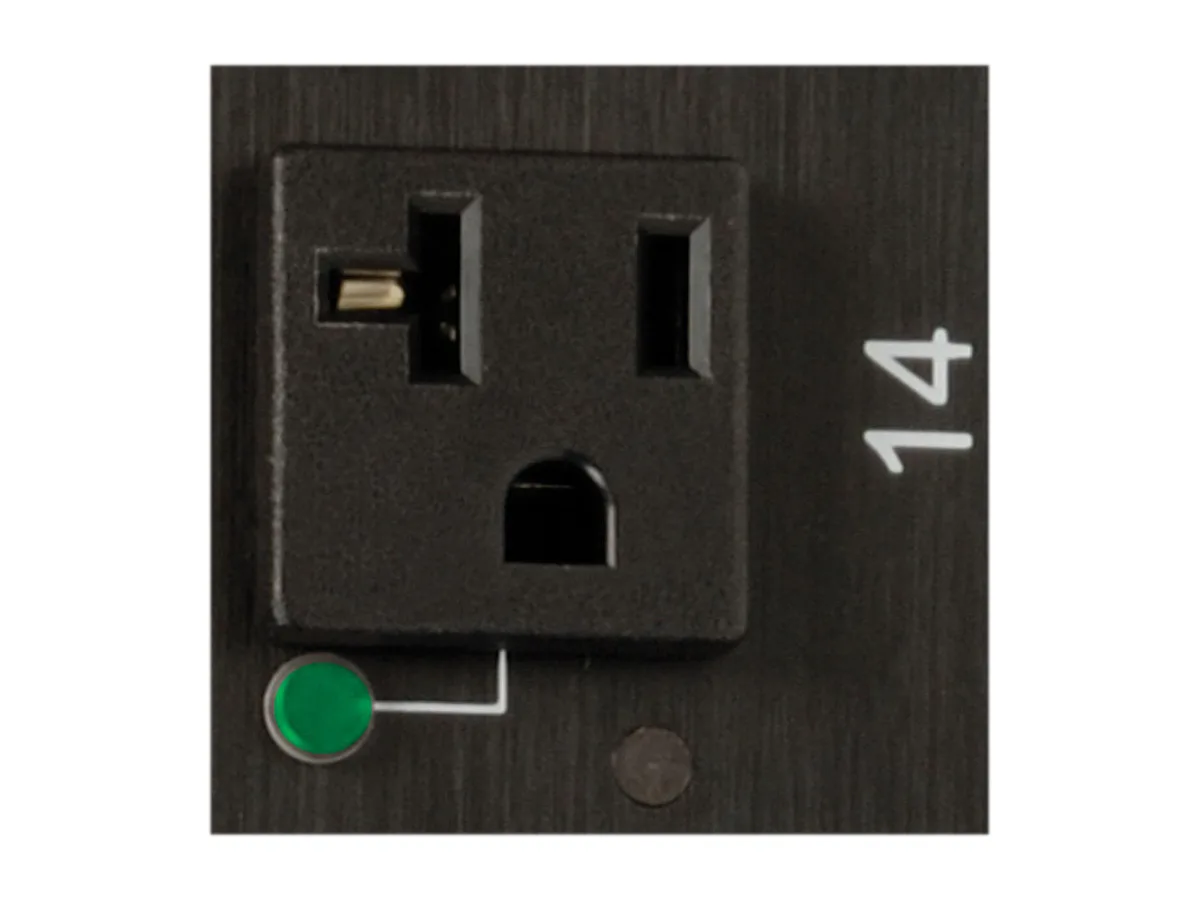

- 9 kW single-phase switched PDU with 24 controllable NEMA 5-15/20R outlets
- 70-inch 0U vertical form factor saves rack space for other equipment
- Built-in LX Platform interface enables Java-free remote management 24/7

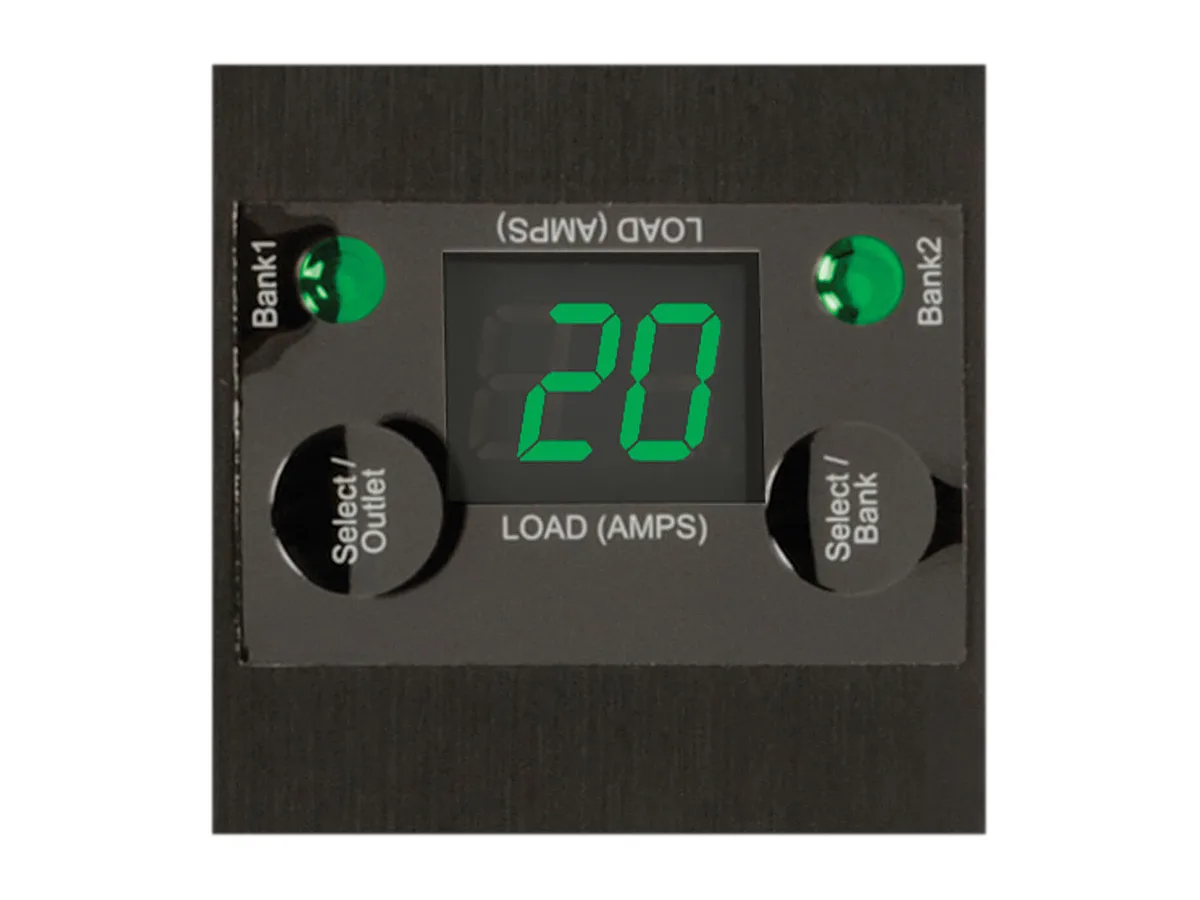

- Digital ammeter provides real-time on-site load monitoring at a glance

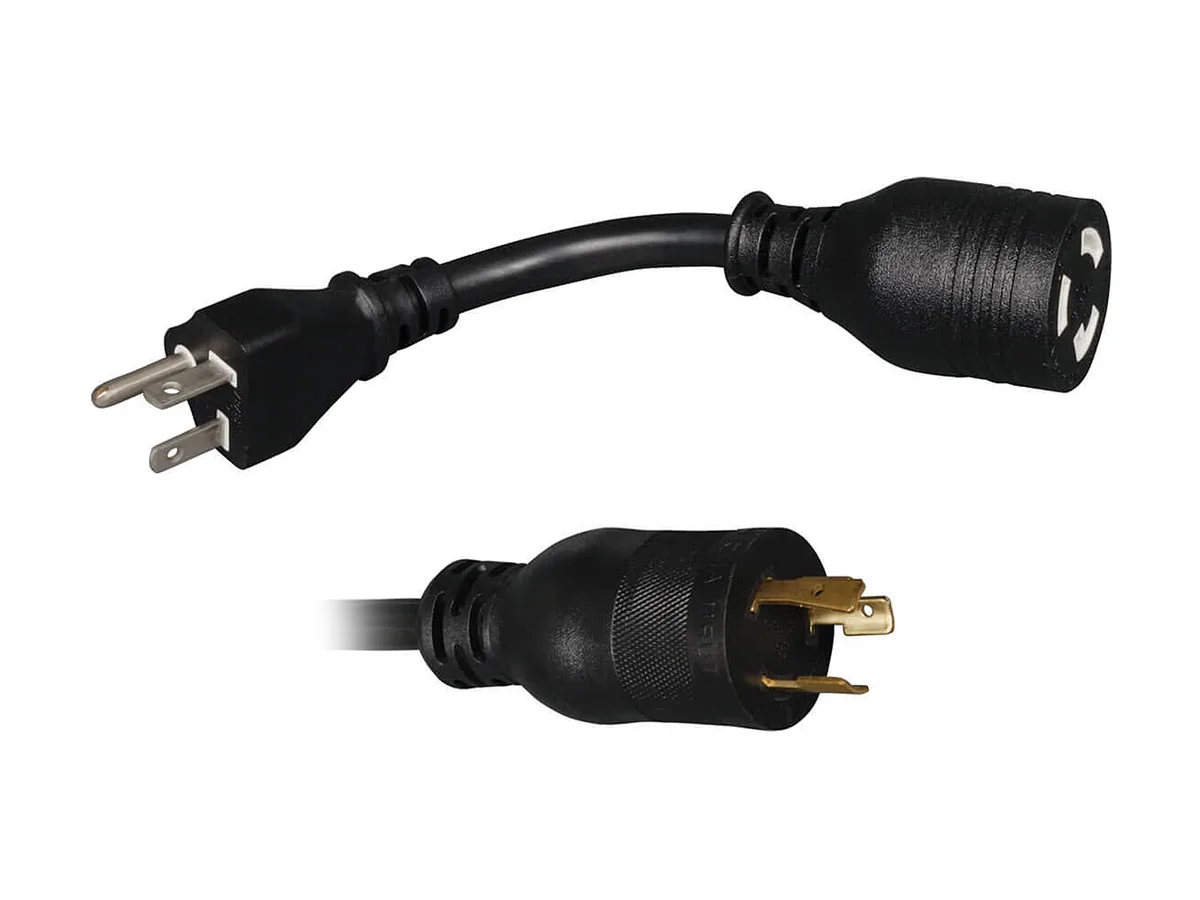

- 0 ft cord with NEMA L5-20P plug and 5-20P adapter for flexible input connection
Switched PDU for 120 V Racks
The Tripp Lite PDUMVR20NETLX is a 1.9 kW single-phase switched power distribution unit built for 120 V environments. It provides 24 NEMA 5-15/20R outlets in two load banks, each controllable via the built-in LX Platform interface. A 10.0 ft cord with an L5-20P plug and 5-20P adapter supplies input power. The 0U vertical form factor mounts in 70-inch racks without consuming rack units.
Suited for Remote Outlet Control at 120 V
Network administrators who need per-outlet switching, real-time load monitoring, and remote access over Ethernet, USB, or serial will benefit from the Java-free LX Platform. The digital ammeter allows on-site current checks. Facilities requiring input voltages other than 100 V, 120 V, or 127 V, or those needing outlet types beyond NEMA 5-15/20R, cannot use this unit.
20 A Maximum Input Current Decides Fit
The PDU draws up to 20 A from a single-phase source, limiting total connected load to 1.9 kW at 120 V. Installers must verify that the upstream circuit and connector match the L5-20P or 5-20P input. Exceeding the 20 A rating will trip the supply breaker, so the current budget is the primary specification for planning deployments.
Highlights
- 9 kW single-phase switched PDU with 24 controllable NEMA 5-15/20R outlets
- 70-inch 0U vertical form factor saves rack space for other equipment
- Built-in LX Platform interface enables Java-free remote management 24/7
- Digital ammeter provides real-time on-site load monitoring at a glance
- 0 ft cord with NEMA L5-20P plug and 5-20P adapter for flexible input connection
Specifications
| Brand | Tripp Lite |
|---|---|
| Model | PDUMVR20NETLX |
| Type | Switched |
| Rack Size | 0U |
| Style | Vertical |
| Certifications | Tested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011(Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant |
| ROHS | Yes |
| Package Includes | PDUMVR20NETLX 1.9 kW Single-Phase Switched PDU Built-in LX Platform interface NEMA 5-20P plug adapter Configuration cable Cord retention brackets 24 x Cable ties Rack-mounting hardware PDUMVROTATEBRKT mounting bracket accessory Owner's manual |
| Input Voltage | 100V, 120V, 127V |
| Maximum Input Current | 20A |
| Input Connector(s) | NEMA 5-20P; NEMA L5-20P |
| Cord Length | 10.0 Feet |
| Output Voltage | 100V, 120V, 127V |
| Output Frequency | 50/60Hz |
| Output Connector(s) | 24 x 5-15/20R |
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -15 - 60 Degree Celcius |
| Storage Relative Humidity | 5 - 95% |
| Features | Distributes, Monitors and Manages Network-Grade AC Power 24 NEMA 5-15/20R Switched Outlets Distribute AC Power Digital Ammeter Built-In LX Platform Interface Broad Communications Compatibility Essential Safety Features Easy 0U Installation in EIA-Standard 19.0" Racks TAA-Compliant |
| Dimensions | 2.20" x 2.04" x 70.00" |
| Weight | 9.60 lbs. |
| Shipping weight | 6.77 kg |
| Package size | 1925 × 155 × 115 mm |
Questions about this item
What does the 1.9 kW rating mean once the PDU is installed in a rack?
The 1.9 kW rating is the maximum continuous power the unit can deliver at 120 V single-phase, so the combined draw of all connected equipment must stay at or below that level.
What network interface does the built-in LX Platform use and what speed does it cap at?

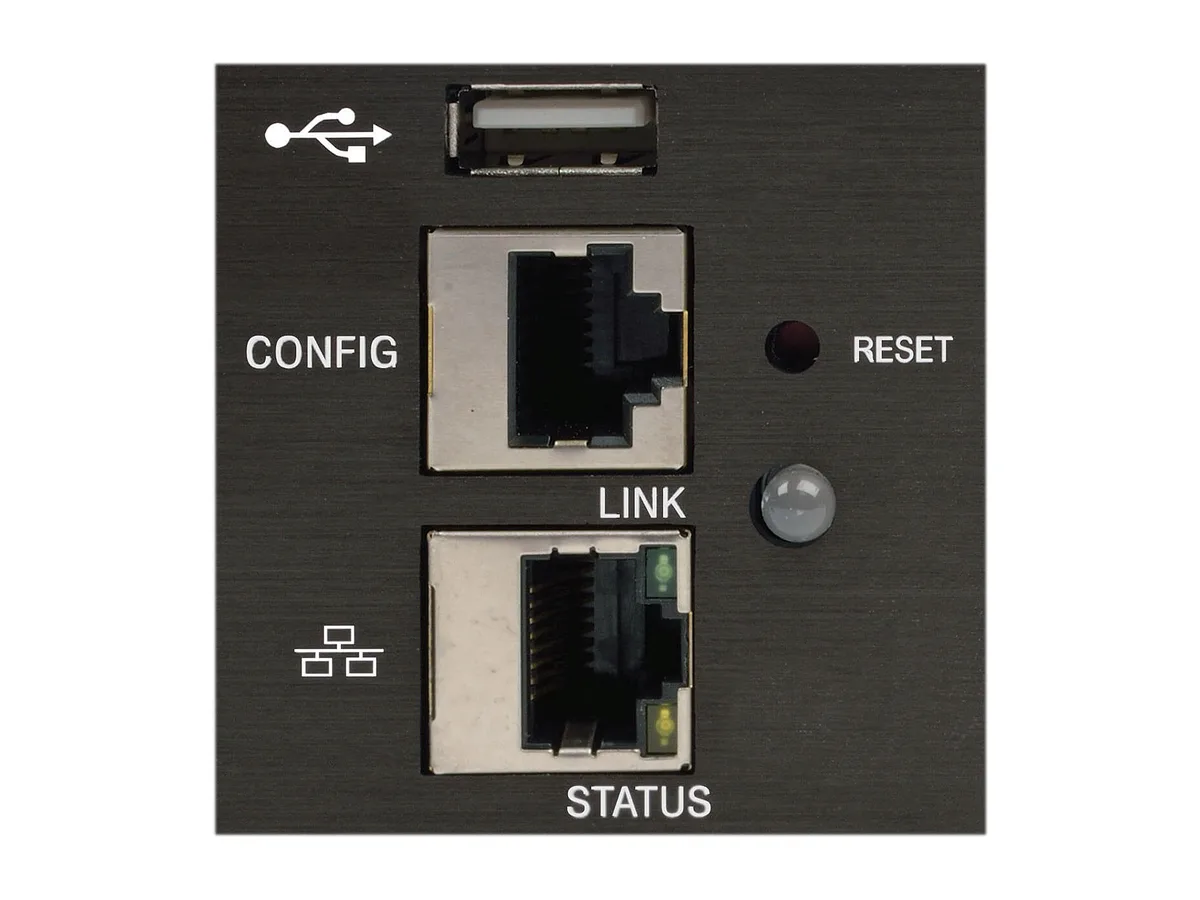

The LX Platform connects through a 10/100 Ethernet port, limiting management traffic to 100 Mbps.
What does the 0U vertical form factor require for mounting in a cabinet?
The 70-inch 0U chassis mounts vertically alongside the rack rails using the included PDUMVROTATEBRKT brackets and hardware, occupying zero horizontal rack units.
