TRYX PANORAMA WB White 6.67" AMOLED 2K 60Hz L-P0CL-DS0M-G0W liquid cooler

Enthusiast Water Block with AMOLED

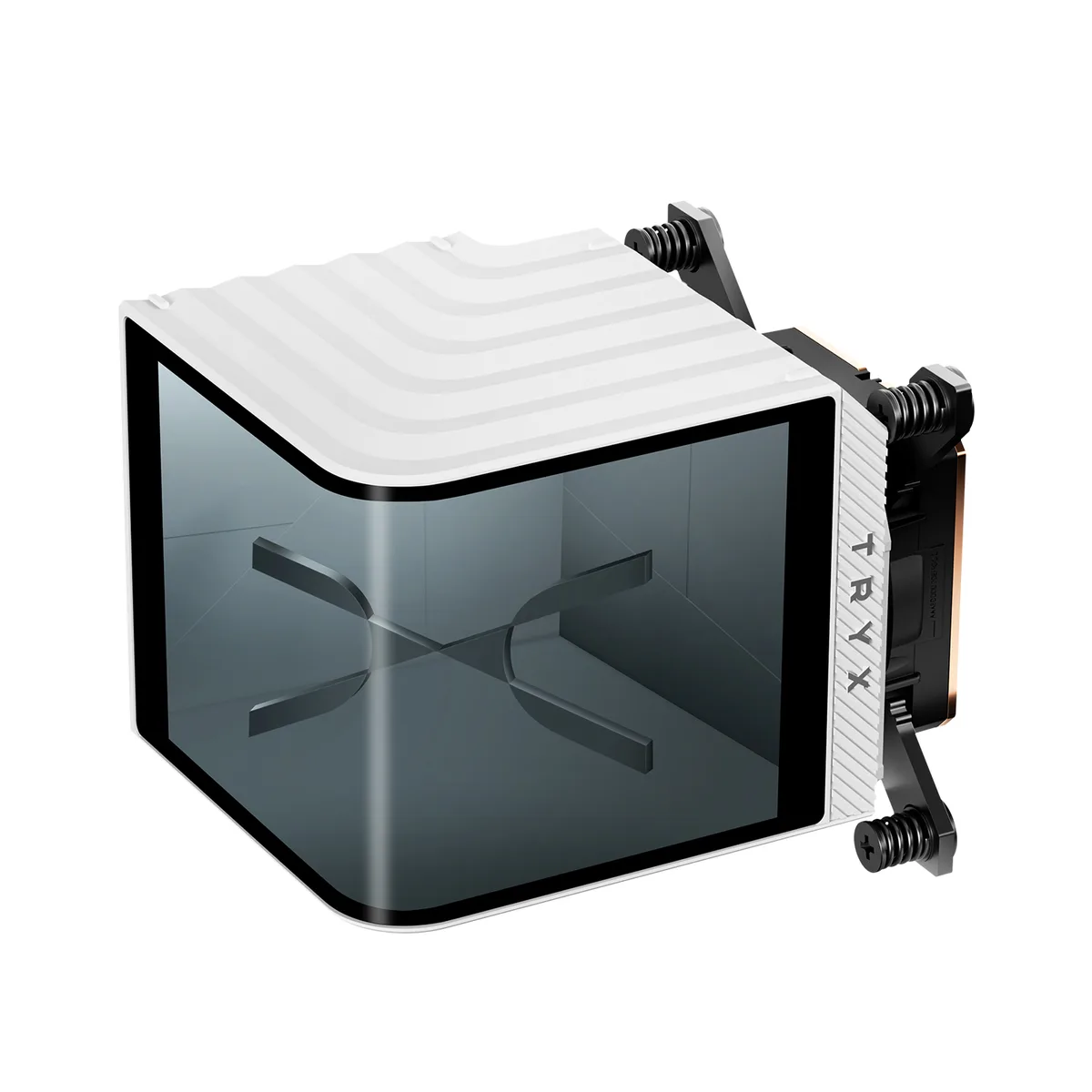

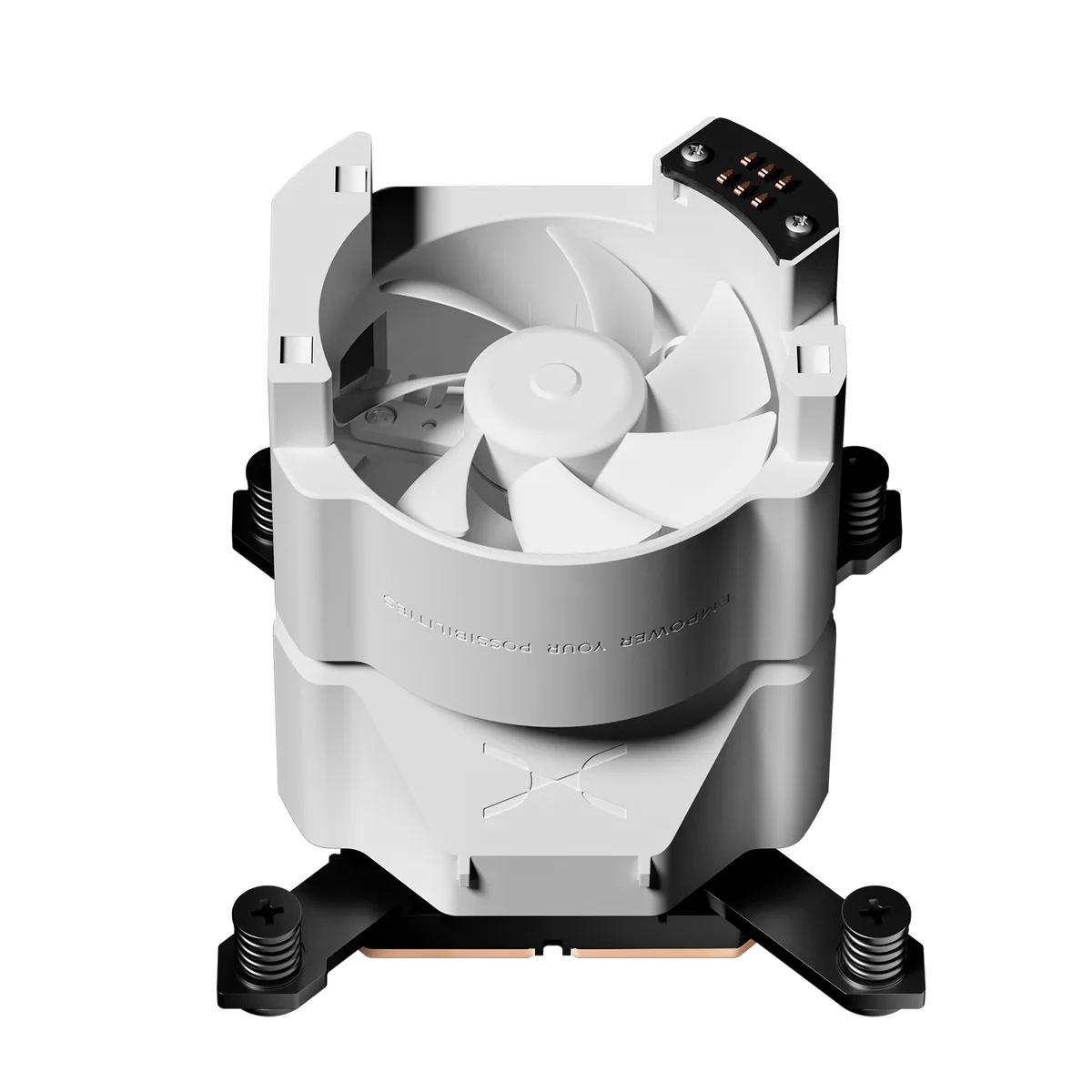

The TRYX PANORAMA WB White is a CPU water block built for custom-loop builders who want a visual centrepiece. It integrates a 6.67-inch 2K AMOLED curved screen running at 60Hz that can show customisable anamorphic content and real-time system data. The block mounts on Intel LGA 1851, 1700, 1200 and 115X sockets as well as AMD AM4 and AM5 platforms. An integrated VRM fan adds targeted airflow for motherboard power delivery during heavy loads.

G1/4 Thread and Rotary Fitting Constraints

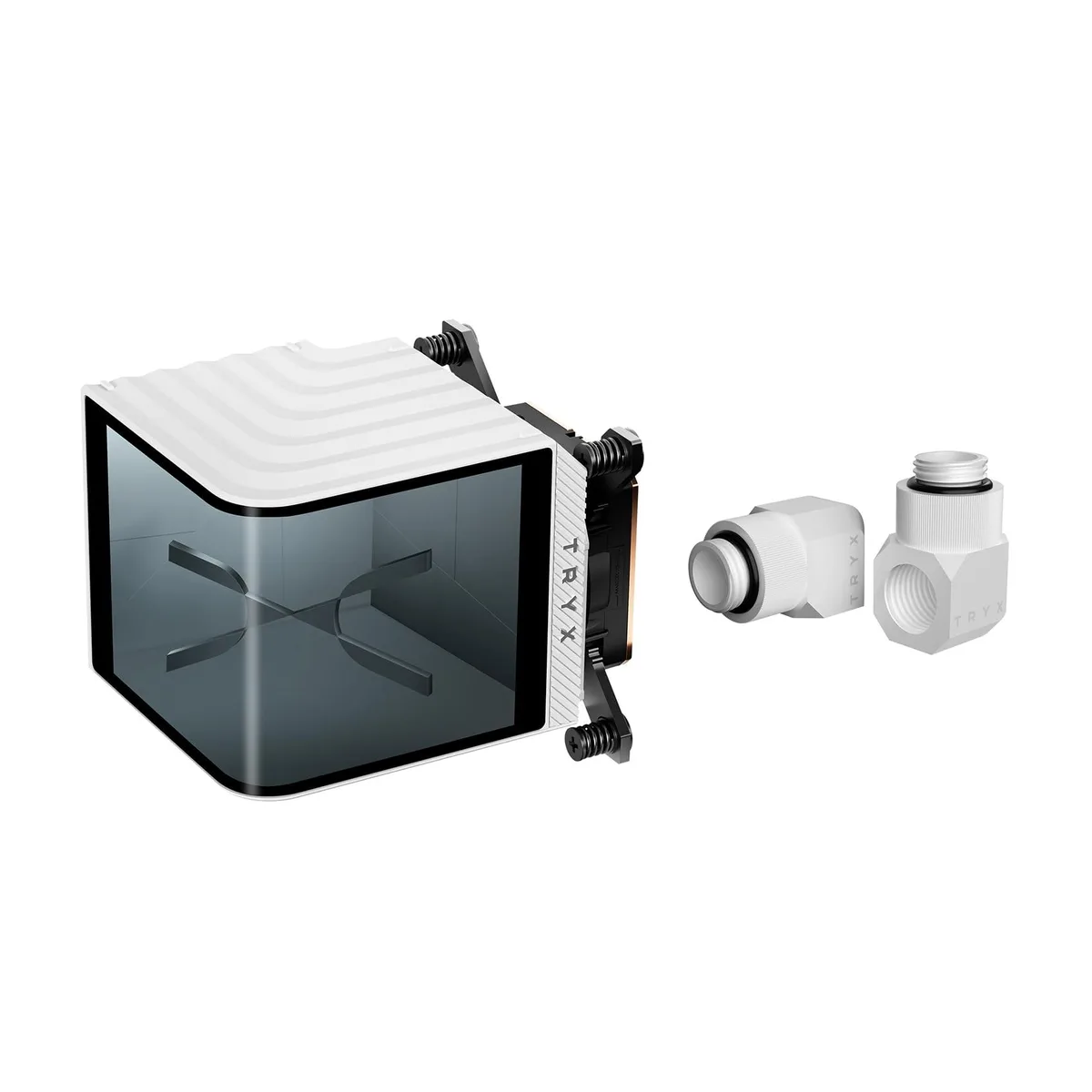

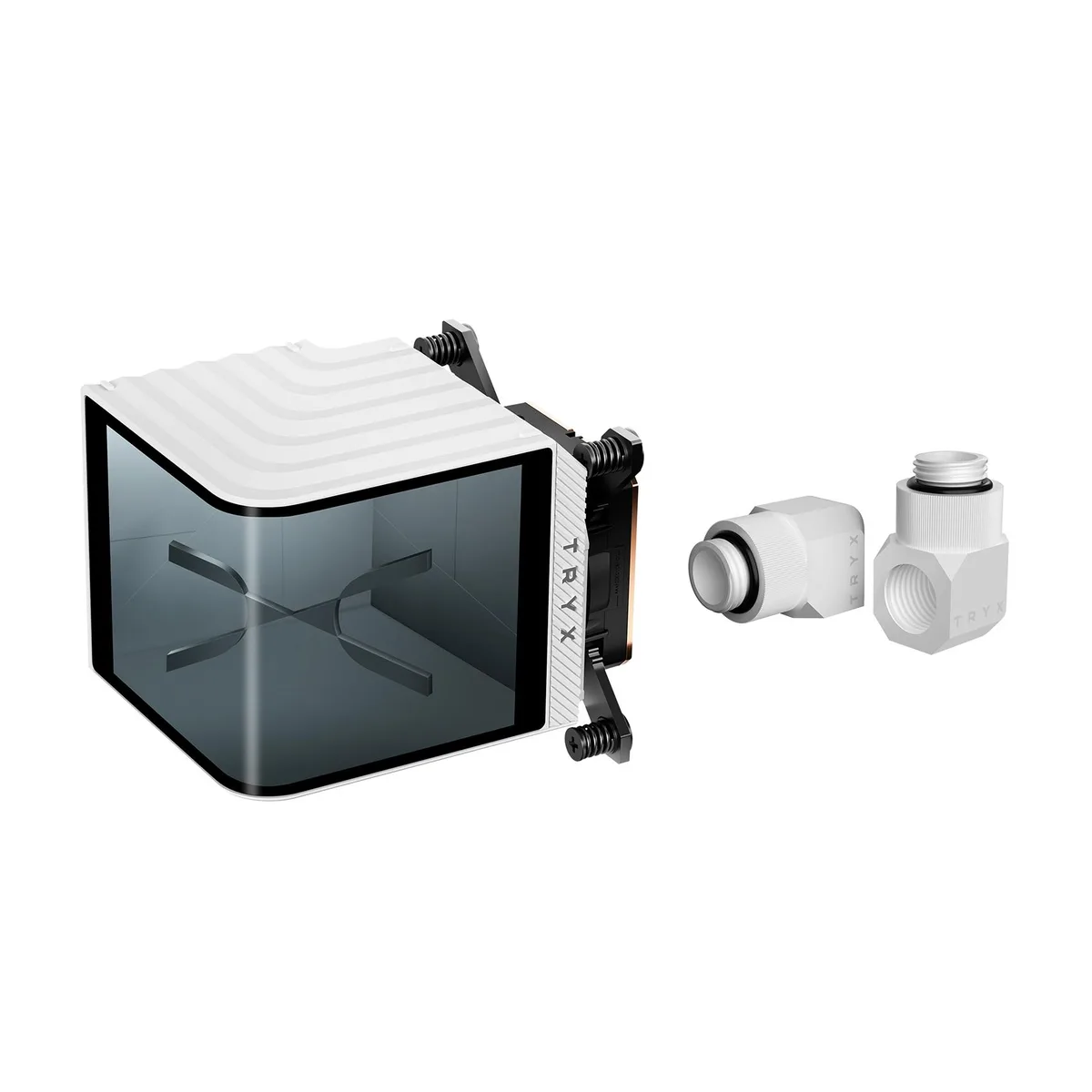

The block uses standard G1/4" threaded ports for loop integration. Its premium 90° rotary fittings are crafted from H57-class brass with 360° rotation and anti-slip texture, allowing flexible tube routing without stress on the cold plate. The adjustable mounting bracket accommodates the listed socket patterns, but the fixed port orientation and fitting profile may limit clearance in extremely tight chassis zones or with unusually bulky reservoir placements.

Microchannel Cold Plate and Thermal Headroom

The copper cold plate measures 55.5 by 55.5 by 1.7 mm and uses a jet microchannel design with a 0.1 mm gap to maximise coolant contact. This architecture handles high heat flux from modern desktop CPUs under sustained workloads and overclocking. Thermal capacity will eventually be limited by the external radiator surface area and pump flow rate chosen for the rest of the loop, not by the block itself.
