Silver 1U rack-mount gateway with front drive bays and port array

Ubiquiti Networks

Ubiquiti Networks Dream Machine Pro Max 10G Cloud Gateway firewall appliance

SKU CH-MZJV-EJVC6

Rack-mountable 10GbE gateway with eight 1GbE LAN ports, dual 10G SFP+ links, 2.5GbE WAN, built-in 128 GB SSD and two 3.5" NVR drive bays for 200+ UniFi devices and 2,000 clients

  • TypeWired
  • Form FactorRack Mountable
  • Speed10GbE
  • Ports8 x 1GbE RJ45, 1 x 2.5GbE RJ45, 2 x 10G SFP+
  • Simultaneous Sessions2000
  • WAN Ports(1) 2.5 GbE RJ45 port (1) 10G SFP+ port

Model Dream Machine Pro Max

Show 1 more configurations
  • Dream Machine Beast

Struck-through versions exist but are not stocked here.

  • 10 Gbps gateway handles 200+ UniFi devices and 2000+ clients
  • 5 Gbps IDS/IPS throughput inspects traffic without slowing the network
  • Dual 10G SFP+ and 2.5G WAN ports deliver redundant high-speed uplinks
  • Two 3.5" drive bays with RAID protect NVR recordings from disk failure
  • 128 GB onboard SSD stores detection footage instantly without extra drives

10G Cloud Gateway for Large Deployments

The Ubiquiti Dream Machine Pro Max is a rack-mountable 10GbE Cloud Gateway designed for networks that need high-throughput routing and unified management. It supports 200 plus UniFi devices and 2000 plus simultaneous clients while delivering 5Gbps IDS/IPS throughput. The appliance includes a built-in 128GB SSD for NVR detection recordings and two 3.5-inch drive bays with RAID data protection for video storage.

Suited for High-Capacity Sites, Not Small Offices

This gateway fits administrators who require redundant WAN with failover and load balancing, plus integrated Network Video Recorder storage in a single 1U chassis. It provides WireGuard, L2TP and OpenVPN server functions alongside one-click Teleport and Identity VPN for remote access. Sites that only need basic routing for fewer than 100 devices or that lack 10GbE uplink infrastructure will not use the available headroom.

Deciding Spec: 5Gbps IDS/IPS Throughput

The single figure that determines fit is the 5Gbps intrusion prevention throughput combined with two 10G SFP+ ports and one 2.5GbE WAN port. If the internet connection or internal backbone cannot saturate 5Gbps of inspected traffic, the extra capacity goes unused. Buyers whose WAN links top out at gigabit speeds should evaluate whether the inspection throughput and port mix justify the investment.

Highlights

  • 10 Gbps gateway handles 200+ UniFi devices and 2000+ clients
  • 5 Gbps IDS/IPS throughput inspects traffic without slowing the network
  • Dual 10G SFP+ and 2.5G WAN ports deliver redundant high-speed uplinks
  • Two 3.5" drive bays with RAID protect NVR recordings from disk failure
  • 128 GB onboard SSD stores detection footage instantly without extra drives

Specifications

BrandUbiquiti Networks
SeriesGateways
ModelDream Machine Pro Max
Part NumberUDM-Pro-Max
TypeWired
Form FactorRack Mountable
Speed10GbE
Ports8 x 1GbE RJ45, 1 x 2.5GbE RJ45, 2 x 10G SFP+
Simultaneous Sessions2000
WAN Ports(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
LAN Ports(8) GbE RJ45 ports
(1) 10G SFP+ port
LEDsEthernet: Green: link/activity
SFP+: Green: link/activity
HDD: White: disk activity
Amber: disk error
RPS: Blue: ready
VPNWireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
Throughput5 Gbps
Temperature-10° to 40° C (14° to 104° F)
Humidity5 to 95% noncondensing
FeaturesPerformance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click
Dimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
Weight4.7 kg (10.4 lb)
Shipping weight5.90 kg
Package size521 × 406 × 127 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 10G SFP+ WAN port connect directly to my existing 1GbE switch?

The 10G SFP+ WAN port requires a compatible 10G transceiver or a 1G SFP module to link with a 1GbE switch; the eight 1GbE LAN ports accept standard RJ45 cables directly.

How can I confirm the IDS/IPS engine is inspecting traffic at the rated 5 Gbps throughput?

In the UniFi controller, open the Threat Management dashboard; active signature count, blocked-event counters and real-time throughput graphs show the engine processing traffic up to 5 Gbps.

Does the package include drives for the two 3.5" NVR bays or must I buy them separately?

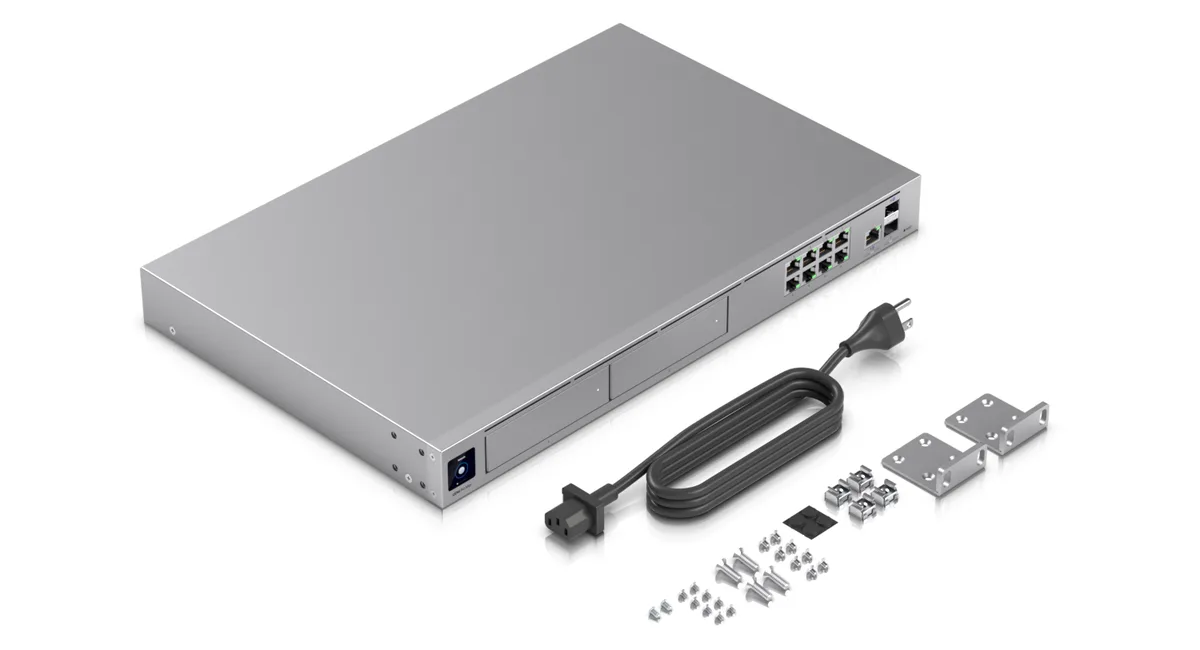

The box contains the gateway, power adapter, cable and mounting accessories only; 3.5" hard drives for the NVR bays are not included and must be purchased separately.
