Small white metal bullet camera with fixed 1.68mm lens

Uniview

Uniview IPC2105SB-ADF16KM-I0 5MP network camera 1.68mm lens

SKU CH-0KP4-F4GNC MPN IPC2105SB-ADF16KM-I0

5MP bullet camera captures 2880×1620 video at 30fps with a 1.68mm lens giving a 180° view, smart IR to 20m, Ultra 265 compression, IP67 weather protection and PoE power

  • Bundled Camera Number1 Camera
  • Camera Type5MP Bullet Camera
  • Network CameraYes
  • TypeBullet Camera
  • Connection TypeRJ45
  • Mounting LocationYes
  • 5MP CMOS sensor captures 2880 x 1620 detail at 30fps
  • Ultra 264 and H.265 compression cut storage needs without quality loss
  • 180° horizontal viewing angle covers wide scenes with a single camera
  • Smart IR illuminates up to 20m (66ft) for clear night footage
  • IP67-rated metal housing withstands dust and water in outdoor installations

What this camera is and who it is for

The Uniview IPC2105SB-ADF16KM-I0 is a 5MP bullet network camera with a 1.68mm fixed lens delivering a 180° horizontal view. It records at 2880 x 1620 resolution at 30fps using Ultra 265, H.265 or MJPEG compression. Built-in Smart IR illuminates up to 20m and a microphone captures audio. IP67 rating suits outdoor installation.

What to verify before ordering

Your network must provide PoE IEEE 802.3 af or a DC 12V supply with ±25% tolerance. The camera connects via a single RJ45 port and supports IPv4, IPv6 and the listed streaming protocols. Recording locally requires a microSD card up to 256 GB. ONVIF compatibility should be confirmed with your recorder or VMS.

What the bundled items change

The package includes one camera unit with a 3-axis bracket for flexible wall or ceiling mounting. No additional lenses, cables or software licences are supplied. The fixed 1.68mm focal length cannot be changed after installation. Smart intrusion prevention with target classification reduces false alarms from leaves or animals without extra configuration tools.

Highlights

  • 5MP CMOS sensor captures 2880 x 1620 detail at 30fps
  • Ultra 264 and H.265 compression cut storage needs without quality loss
  • 180° horizontal viewing angle covers wide scenes with a single camera
  • Smart IR illuminates up to 20m (66ft) for clear night footage
  • IP67-rated metal housing withstands dust and water in outdoor installations

Specifications

BrandUniview
Part NumberIPC2105SB-ADF16KM-I0
Bundled Camera Number1 Camera
Camera Type5MP Bullet Camera
Network CameraYes
TypeBullet Camera
Connection TypeRJ45
Mounting LocationYes
Micro SD SlotYes
Networking ProtocolIPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x,
SNMP, QoS
ONVIFYes
Sensor & DetectorCMOS
Pixels5 MP
HD ResolutionOther
MAX Resolution2880 x 1620
Frame Rate30fps
Lens TypeFixed Focal Lens
Shutter ControlAuto/Manual, 1 ~ 1/100000s
Power over EthernetYes
PowerDC 12V±25%
Humidity=95% RH (non-condensing)
Temperature-30°C ~ 60°C (-22°F ~ 140°F)

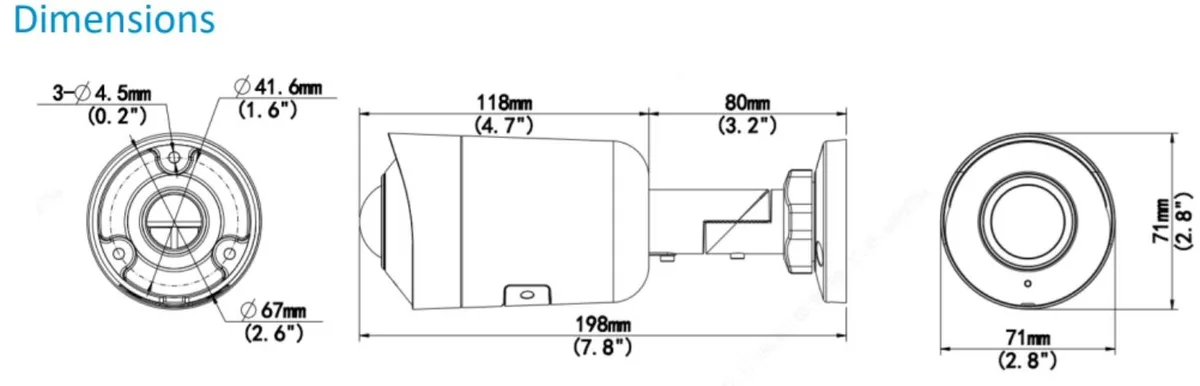

Dimension198× 71 × 71mm (7.8” × 2.8” × 2.8”)
Weight0.42kg (0.93lb)
Package ContentsSecurity Camera
Shipping weight0.42 kg
Package size198 × 71 × 71 mm

Questions about this item

Does the IPC2105SB-ADF16KM-I0 include a Micro SD card or must I buy one separately?

The camera has a Micro SD slot that supports cards up to 256 GB; no card is included in the box.

Which resolution and frame-rate combination should I select for the widest 180° horizontal view?

The 5 MP 2880 x 1620 mode at 30 fps uses the full 1.68 mm lens angle, delivering the 180° field of view.

What does the 120 dB true WDR figure mean when the camera faces a bright doorway?

It lets the sensor capture detail in both the sunlit exterior and the darker interior simultaneously, preventing blown-out highlights or crushed shadows.
