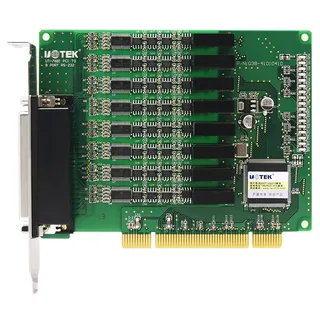

Green PCI expansion card with eight DB9 ports via HDR78 breakout cable

UOTEK

UOTEK UT-768I 8-Port PCI RS-232 Opto-Isolated Serial Card

SKU CH-2TQ5-706VS

Adds eight opto-isolated RS-232 ports via a universal PCI slot with 2500Vrms isolation and ±15KV electrostatic protection

  • ConnectorsHDR78 Female
  • InterfacePCI
  • Temperature-40~85°C
  • 8 RS-232 ports via single HDR78 connector
  • 2500Vrms opto-isolation protects industrial equipment
  • ±15KV electrostatic protection shields each serial port
  • 300-921.6kbps data rates with full modem signals
  • Operates from -40°C to 85°C in harsh environments

Industrial 8-Port PCI Serial Card

The UOTEK UT-768I adds eight RS-232 ports through a single 32-bit universal PCI slot. It targets industrial automation, POS and ATM systems that must connect multiple legacy serial devices such as modems, printers or scanners to a modern motherboard.

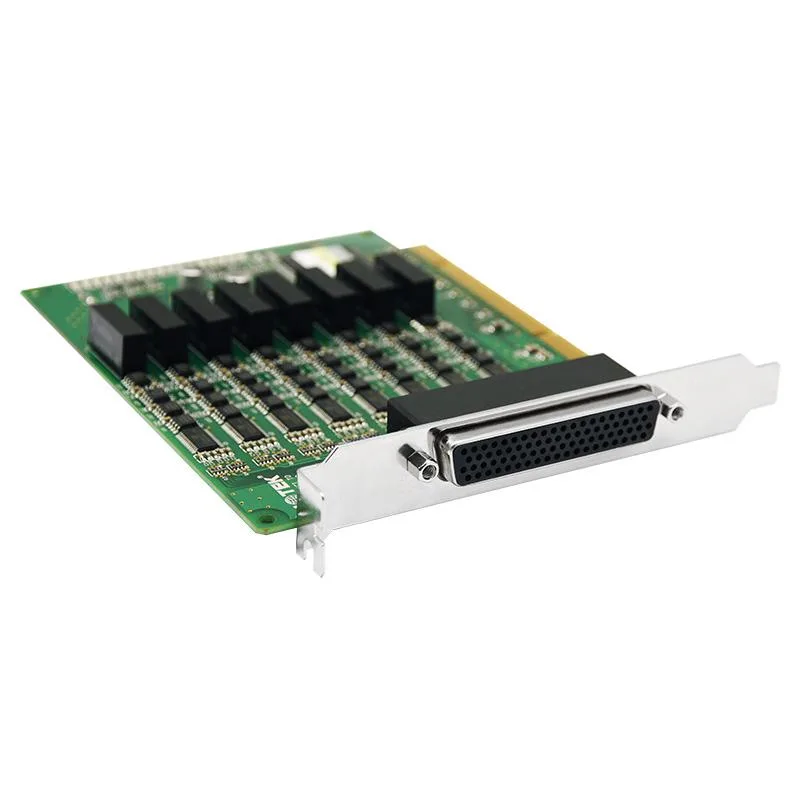

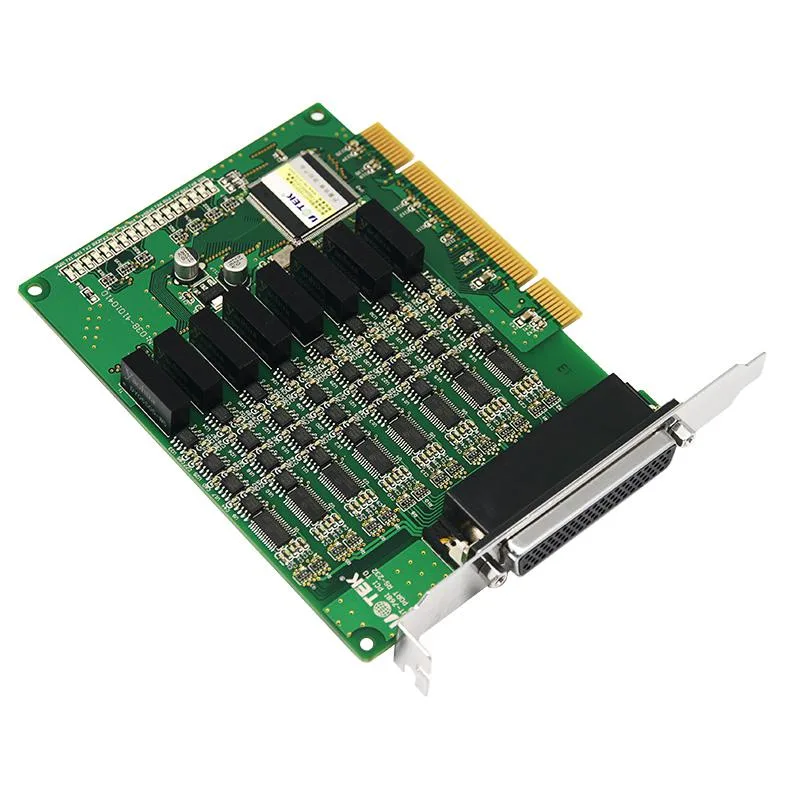

HDR78 Breakout with Opto-Isolation

A single HDR78 female connector carries all eight channels, each protected by a dedicated DC/DC isolation module rated at 2500 Vrms. The card operates on both 3.3 V and 5 V PCI buses, freeing the builder from voltage-matching concerns while the ±15 kV electrostatic protection shields connected equipment.

Sustained Operation Across Extreme Temperatures

Rated for continuous use from -40 °C to 85 °C, the card maintains stable throughput up to 921.6 kbps per port with full hardware flow control. Opto-isolation prevents ground-loop noise from degrading data integrity during long cable runs in electrically noisy factories or outdoor kiosks.

Highlights

  • 8 RS-232 ports via single HDR78 connector
  • 2500Vrms opto-isolation protects industrial equipment
  • ±15KV electrostatic protection shields each serial port
  • 300-921.6kbps data rates with full modem signals
  • Operates from -40°C to 85°C in harsh environments

Specifications

BrandUOTEK
ModelUT-768I
ConnectorsHDR78 Female
InterfacePCI
Temperature-40~85°C

Questions about this item

How many RS-232 ports does the UT-768I provide and what is the maximum data rate per port?

The card provides eight RS-232 ports, each capable of data rates up to 921.6 kbps.

What isolation and electrostatic protection does the card offer for continuous operation?

It features 2500 Vrms opto-isolation with a dedicated DC/DC module and ±15 kV electrostatic protection on each interface.

What type of PCI slot and bracket connector are required to install this card?

The card fits a 32-bit universal PCI slot (3.3 V or 5 V) and uses an HDR78 female bracket connector for the eight ports.
