Rectangular 2U rack tower unit in black metal finish with front display and ventilation grilles

Vertiv

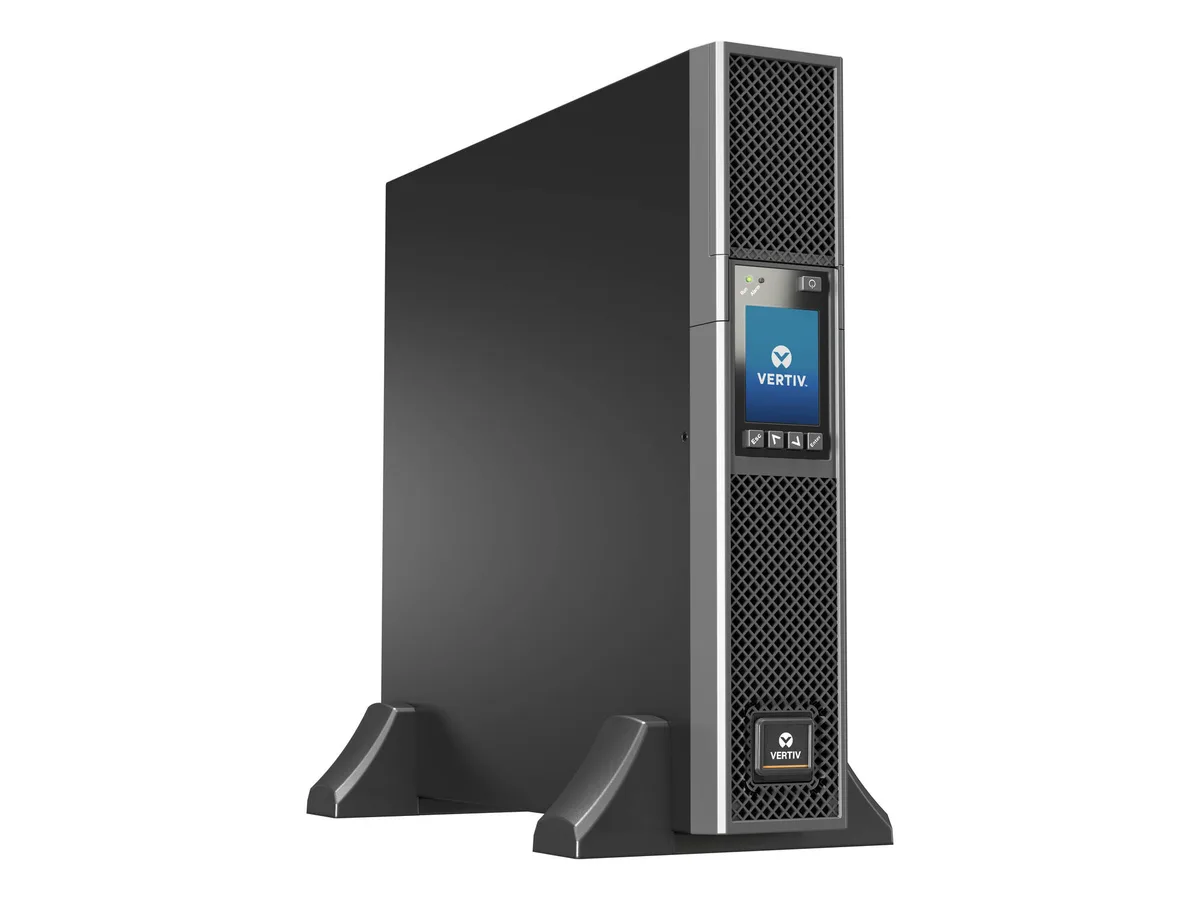

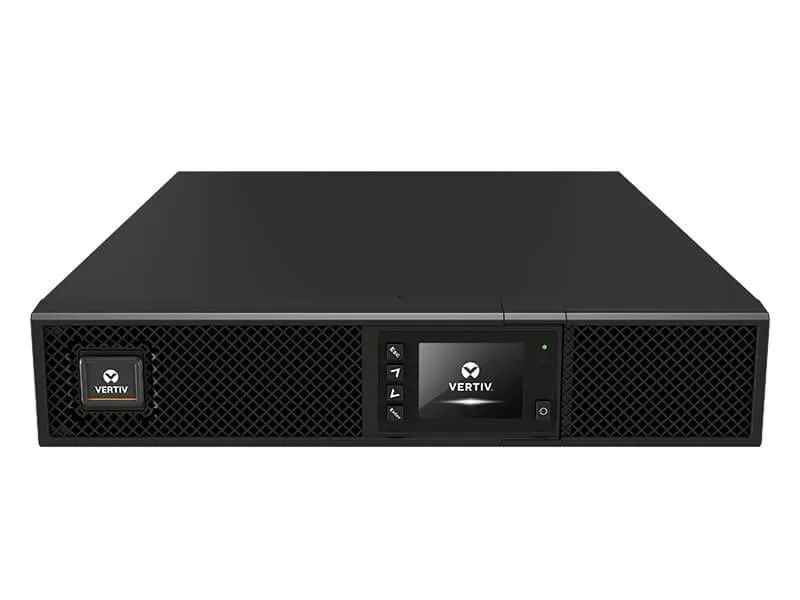

Vertiv GXT5-3000LVRT2UXLTAAN UPS 3000VA 2700W 120V 2U

SKU CH-3NRZ-AFS3Q MPN GXT5-3000LVRT2UXLTAAN

Double-conversion 3000VA UPS delivers 2700W with .9 power factor, seven outlets and rack-tower 2U form factor

  • International Version120V
  • Input Voltage Range60-150V
  • Input ConnectionNEMA L5-30P
  • VA Rating3000VA
  • Watts2700W
  • Output Voltage110/115/120/125VAC; (user-configurable); +/-3%

Option GXT5-3000LVRT2UXLTAAN

Struck-through versions exist but are not stocked here.

  • Double-conversion topology delivers clean power with .9 output power factor
  • 3000VA/2700W capacity supports dense rack loads from a 2U frame
  • Seven outlets: one NEMA L5-30R plus six NEMA 5-20R for flexible distribution
  • User-configurable output at 110/115/120/125VAC ±3% matches varied equipment needs
  • Energy Star 2.0 certified efficiency lowers operating cost over 5-year battery life

3000VA Double-Conversion UPS

The Vertiv GXT5-3000LVRT2UXLTAAN is a new online double-conversion uninterruptible power supply rated at 3000VA and 2700W with a 0.9 output power factor. It accepts 120V input through a NEMA L5-30P plug and operates across a 60-150V input window. The 2U rack/tower chassis measures 3.4" x 16.9" x 21.3" and weighs 66 lbs.

Suited for 120V rack environments

This unit fits facilities running 110V, 115V, 120V or 125V output, user-configurable within +/-3%. It provides seven outlets: one NEMA L5-30R and six NEMA 5-20R. Included RDU101 card, USB, serial and EPO ports plus temperature, leak and humidity sensors support managed infrastructure. Buyers whose power infrastructure delivers voltages outside the 60-150V input range or who require output voltages other than the four selectable 120V-class settings should evaluate other platforms.

NEMA L5-30P input requirement

The single specification that decides fit is the NEMA L5-30P input plug paired with the 60-150VAC input voltage range. Sites without a matching 30A 120V receptacle or with nominal voltage outside this window cannot connect the UPS without additional electrical work. Energy Star 2.0 certification and a five-year lead-acid battery life complete the compliance profile.

Highlights

  • Double-conversion topology delivers clean power with .9 output power factor
  • 3000VA/2700W capacity supports dense rack loads from a 2U frame
  • Seven outlets: one NEMA L5-30R plus six NEMA 5-20R for flexible distribution
  • User-configurable output at 110/115/120/125VAC ±3% matches varied equipment needs
  • Energy Star 2.0 certified efficiency lowers operating cost over 5-year battery life

Specifications

BrandVertiv
ModelGXT5-3000LVRT2UXLTAAN
International Version120V
Input Voltage Range60-150V
Input ConnectionNEMA L5-30P
VA Rating3000VA
Watts2700W
Output Voltage110/115/120/125VAC; (user-configurable); +/-3%
Outlets7
Outlet Type1 x NEMA L5-30R, 6 x NEMA 5-20R
Dimensions3.4" x 16.9" x 21.3"
Weight66 lbs.
Shipping weight35.02 kg
Package size716 × 566 × 262 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 3.4-inch height fit a standard 2U rack opening?

Yes, the 3.4-inch height matches a 2U form factor for standard rack rails.

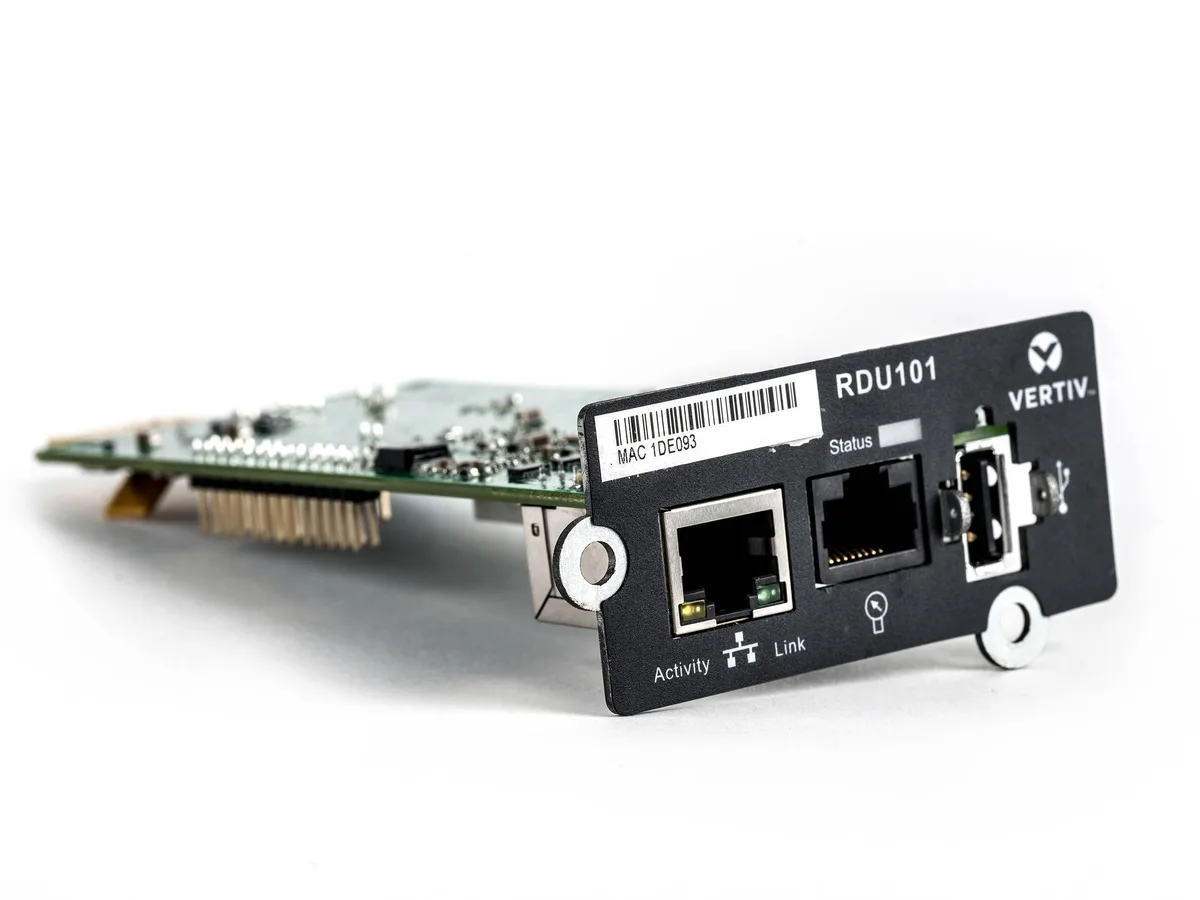

How do I connect the RDU101 card, and what step is often missed?

Insert the RDU101 card into the intelligent slot on the rear panel and secure it with the captive screws; the step often missed is configuring the network settings through the USB or serial port before placing the UPS into service.

When should the lead-acid batteries be replaced?

The battery life is rated for 5 years; plan replacement around that interval or sooner if the self-test indicates reduced capacity.
