VIEWERA V151HV3 15" 1024x768 75Hz monitor
A 15-inch 1024x768 TFT LCD monitor with 75 Hz refresh, 7 ms response, built-in speakers, tilt-adjustable stand and VESA 75×75 mm mounting
- Cabinet ColorBlack
- Screen Size15"
- WidescreenNA
- Maximum Resolution1024 x 768
- Resolution1024 x 768
- 3D ReadyNA
- Sharp 1024 x 768 detail on a 15" screen
- Smooth motion with 75 Hz refresh and 7 ms response
- Wide 170° horizontal and 160° vertical viewing angles
- Rich colour from 16.2 million colours and 2000:1 contrast
- Flexible connectivity via HDMI, VGA, S-Video and composite inputs
Compact 15-inch monitor for legacy and embedded use
The VIEWERA V151HV3 is a 15-inch TFT LCD panel with a native 1024 x 768 resolution and a 75 Hz refresh rate. It suits industrial equipment, point-of-sale terminals or older PCs that require a 4:3 format. Built-in speakers provide basic audio without extra cabling.

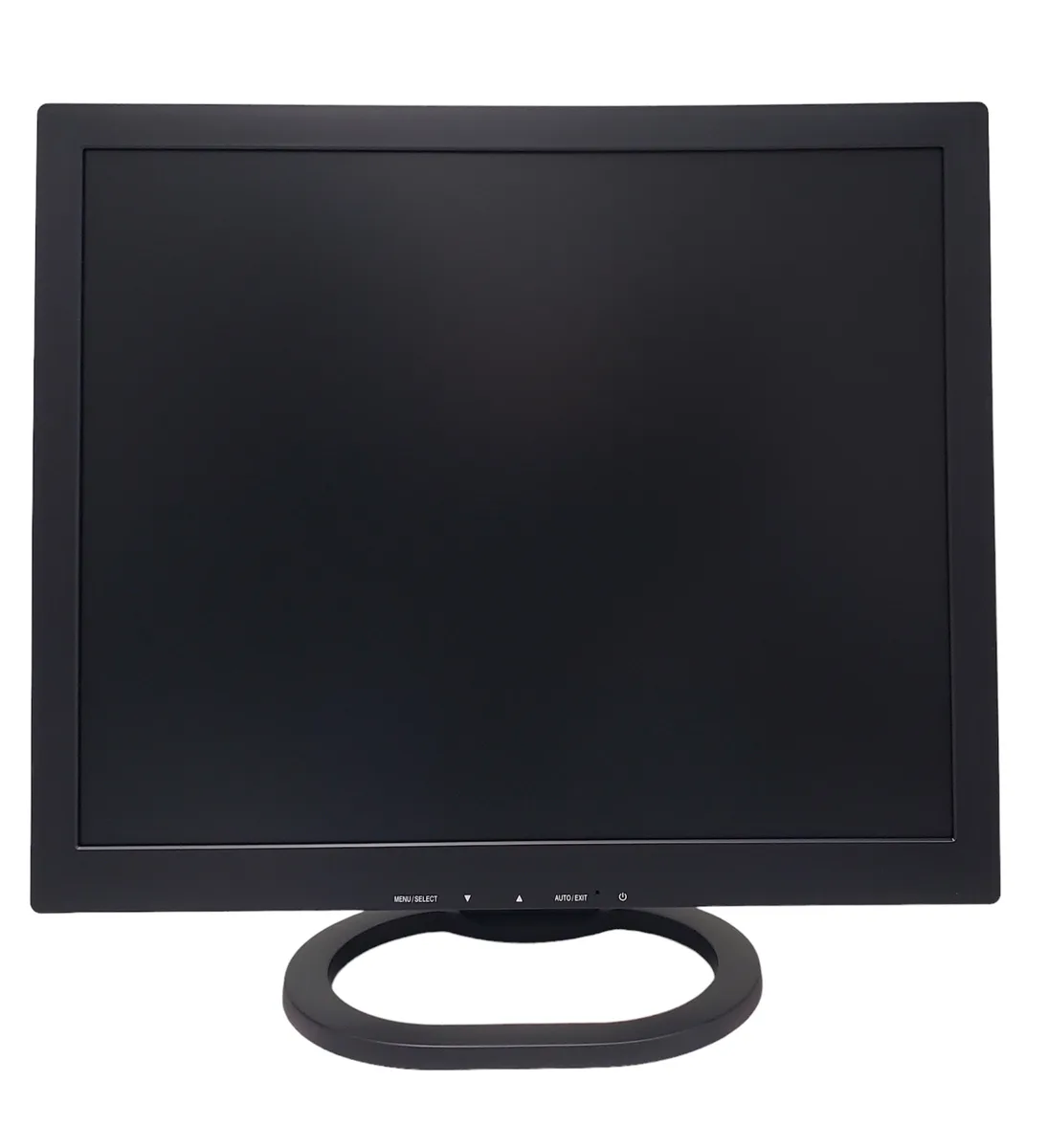

Black cabinet with tilt stand

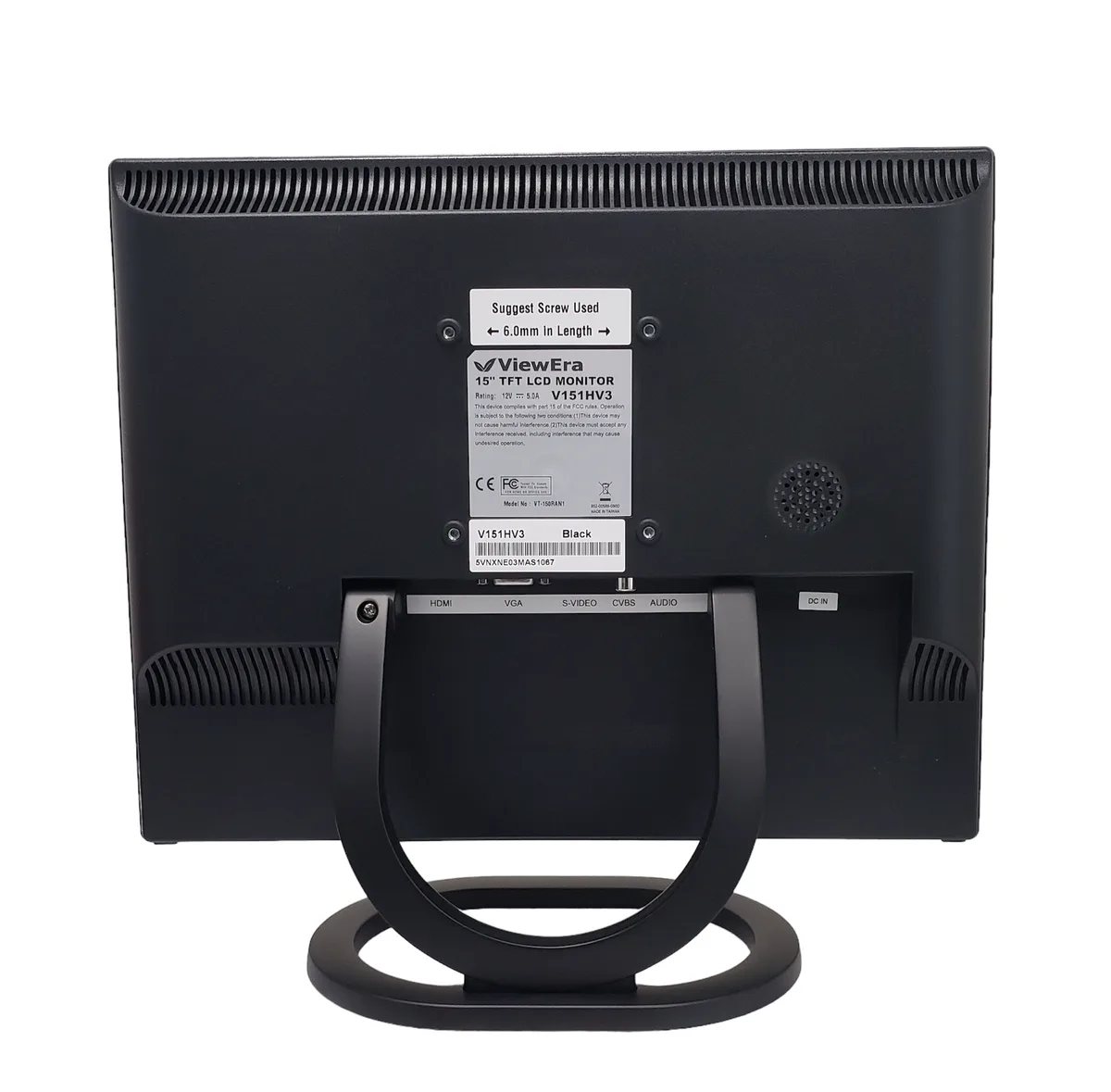

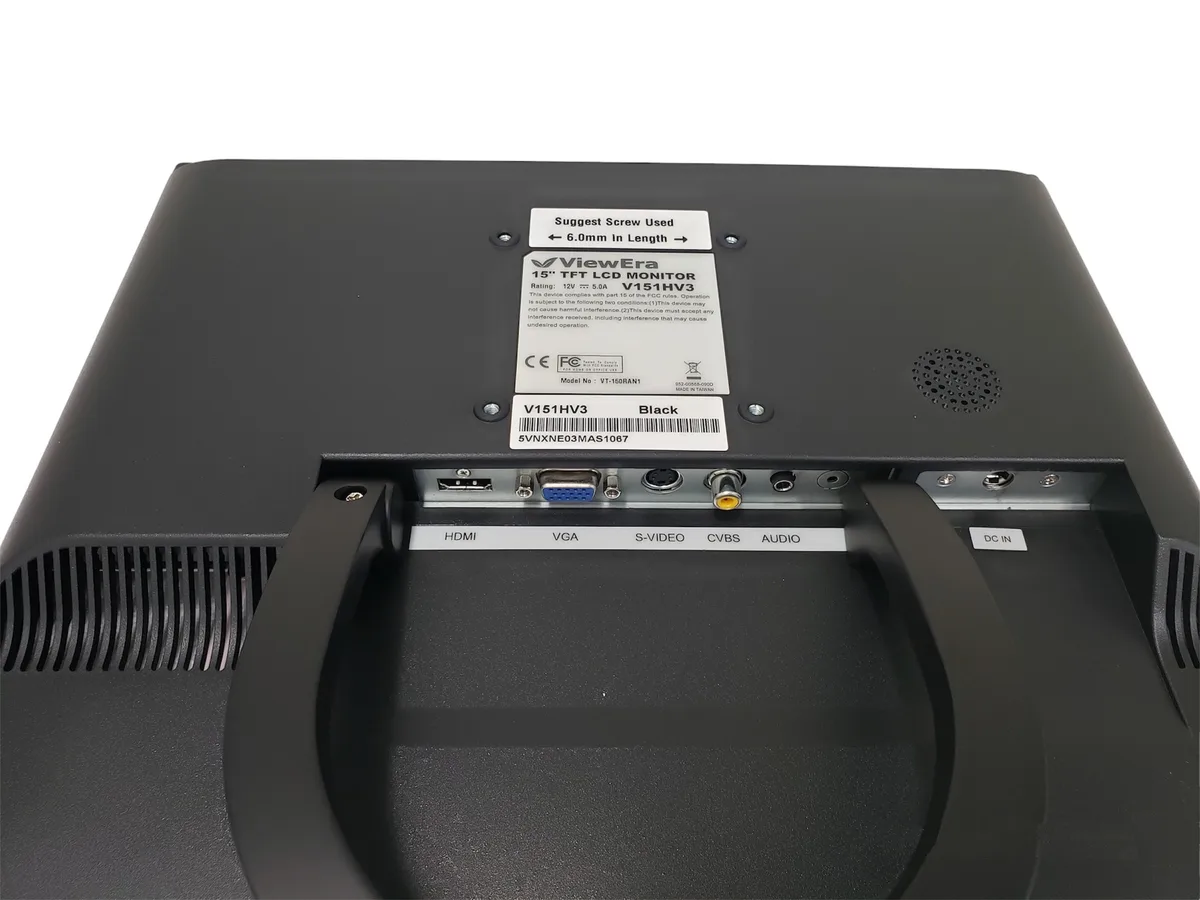

The flat-panel display offers 300 cd/m² brightness and a 2000:1 contrast ratio across 170° horizontal and 160° vertical viewing angles. Connectivity includes one HDMI port, one 15-pin D-Sub, S-Video and composite RCA inputs. The stand tilts for ergonomic positioning or the unit can be wall-mounted.
7 ms response time suits office and monitoring tasks
Pixel transitions are rated at 7 ms, which is adequate for general productivity, CCTV viewing and legacy software. The panel shows 16.2 million colours at the fixed 1024 x 768 resolution. Buyers who need faster motion handling or higher pixel density should consider other models.
Highlights
- Sharp 1024 x 768 detail on a 15" screen
- Smooth motion with 75 Hz refresh and 7 ms response
- Wide 170° horizontal and 160° vertical viewing angles
- Rich colour from 16.2 million colours and 2000:1 contrast
- Flexible connectivity via HDMI, VGA, S-Video and composite inputs
Specifications
| Brand | ViewEra |
|---|---|
| Model | V151HV3 |
| Part Number | V151HV3 |
| Cabinet Color | Black |
| Screen Size | 15" |
| Widescreen | NA |
| Maximum Resolution | 1024 x 768 |
| Resolution | 1024 x 768 |
| 3D Ready | NA |
| Refresh Rate | 75Hz |
| Viewing Angle | 170° (H) / 160° (V) |
| Monitor Pixel Density | 0.297(H) mm 0.297(V) mm |
| Display Colors | 16.2 Million |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 2000:1 |
| Aspect Ratio | NA |
| Response Time | 7 ms |
| Panel | Active Matrix, TFT LCD |
| Adaptive Sync Technology | NA |
| Curved Surface Screen | Flat Panel |
| Video Ports | VGA Input: 15 Pin D-Sub Video Input: Analog: S-Video, Composite (RCA) Video Digital: HDMI |
| USB Ports | NA |
| D-Sub | 1 |
| DVI | NA |
| Video | S-Video, Composite |
| HDMI | 1 |
| Thunderbolt 3 | NA |
| DisplayPort | NA |
| USB 2.0 | NA |
| USB 3.0 | NA |
| Power Supply | AC Input: 100-240V~1.8A, 50-60 Hz DC DC Output: 12V/5.0A |
| Power Consumption | 15 Watts (Max.) |
| Stand Adjustments | Tilt |
| 3D Glasses Included | NA |
| Built-in Speakers | Yes |
| Built-in Webcam | NA |
| HDCP Support | NA |
| VESA Compatibility - Mountable | 75 x 75mm |
| Dimensions | Dimensions(Pack Size) 16.07 (W) x 16.46(H) x 5.32 (D)inch [408(W) x 418(H) x 135(D) mm] Dimensions(Set Size) 13.59 (W) x 12.563(H) x 5.55 (D)inch [345(W) x 319(H) x 141(D) mm] Dimensions(Without Stand) 13.59(W) x 10.875(H) x 1.22(D)inch [ 345(W) x 276(H) x 31(D) mm] |
| Weight | Net: 5.6 lbs(2.54 Kg) / Gross: 8.25 lbs (3.75 Kg) |
| Temperature Range | Operating Conditions Temperature: 0 ~ 50 ?[ 32 ~ 122 ?] Storage Conditions Temperature: -20 ~ 60 ?[-4 ~ 140?] |
| Humidity Range | Operating Conditions Humidity: 10% ~ 90%(%RH) Storage Conditions Humidity: 10% ~ 90%(%RH) |
| Shipping weight | 3.74 kg |
| Package size | 418 × 408 × 135 mm |
Questions about this item
Does the 75 Hz refresh rate apply to the HDMI input on the V151HV3?
The V151HV3 lists a single 75 Hz refresh rate and provides one HDMI port alongside VGA, S-Video and composite inputs.
What VESA pattern does the V151HV3 use for wall mounting?
The V151HV3 is VESA mountable with a 75 x 75 mm hole pattern.
How is the V151HV3 powered and what voltage does the external supply deliver?
The monitor uses an external AC adapter that accepts 100-240 V at 50-60 Hz and outputs 12 V at 5.0 A.
