VIEWERA V172BN2 17" monitor, 1280x1024, BNC, D-Sub
A 17 inch SXGA security monitor with BNC loop-through and VGA input, 5 ms response, 250 cd/m² brightness, 1000:1 contrast, 170°/160° viewing angles, built-in 2 W speaker and 75 mm VESA mount
- Cabinet ColorBlack
- Screen Size17"
- Maximum Resolution1280 x 1024
- Resolution1280 x 1024
- Viewing Angle170° (H) / 160° (V)
- Display Colors16.7 Million
- SXGA 1280 x 1024 resolution fits legacy security layouts
- 170° horizontal and 160° vertical viewing keeps images clear off-axis

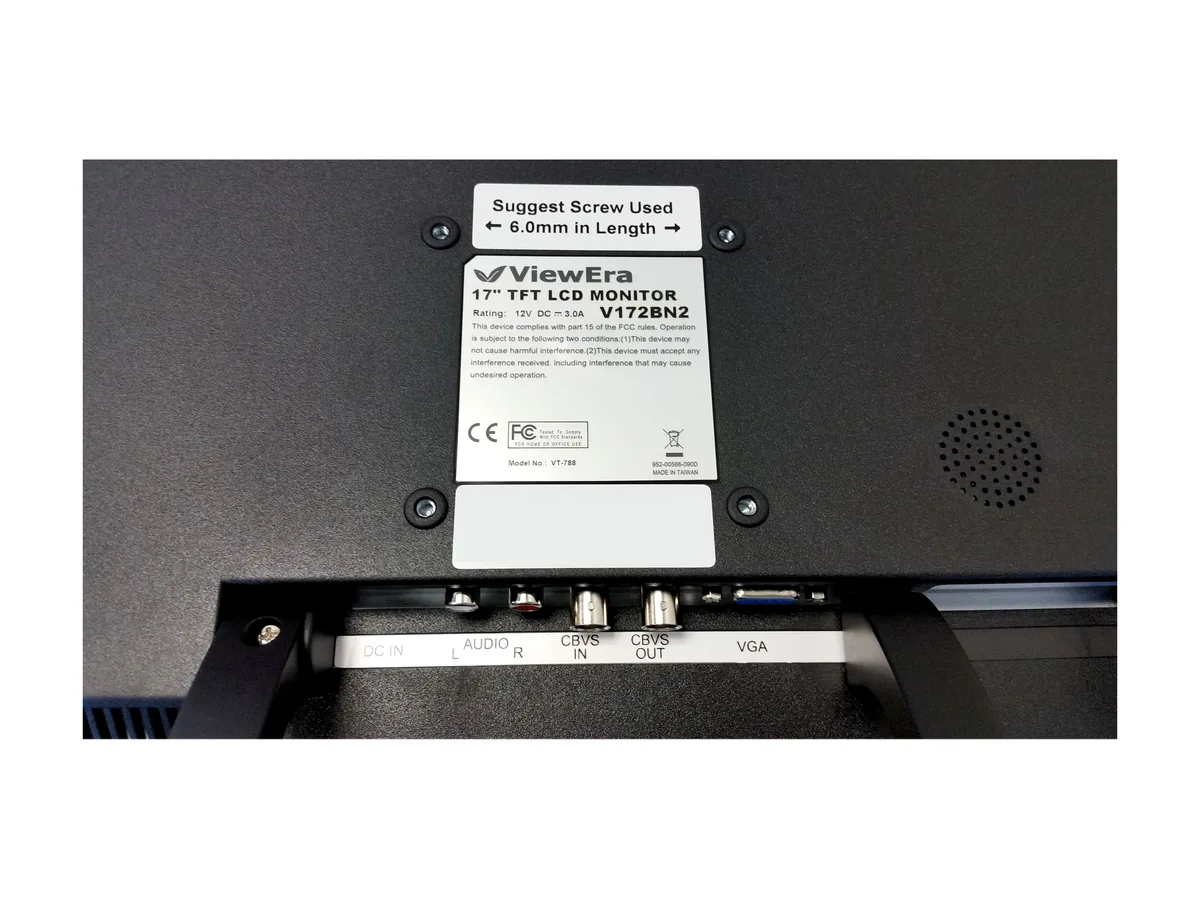

- BNC loop-through and D-Sub inputs connect analogue cameras directly
- 5 ms response reduces motion blur on fast-moving scenes

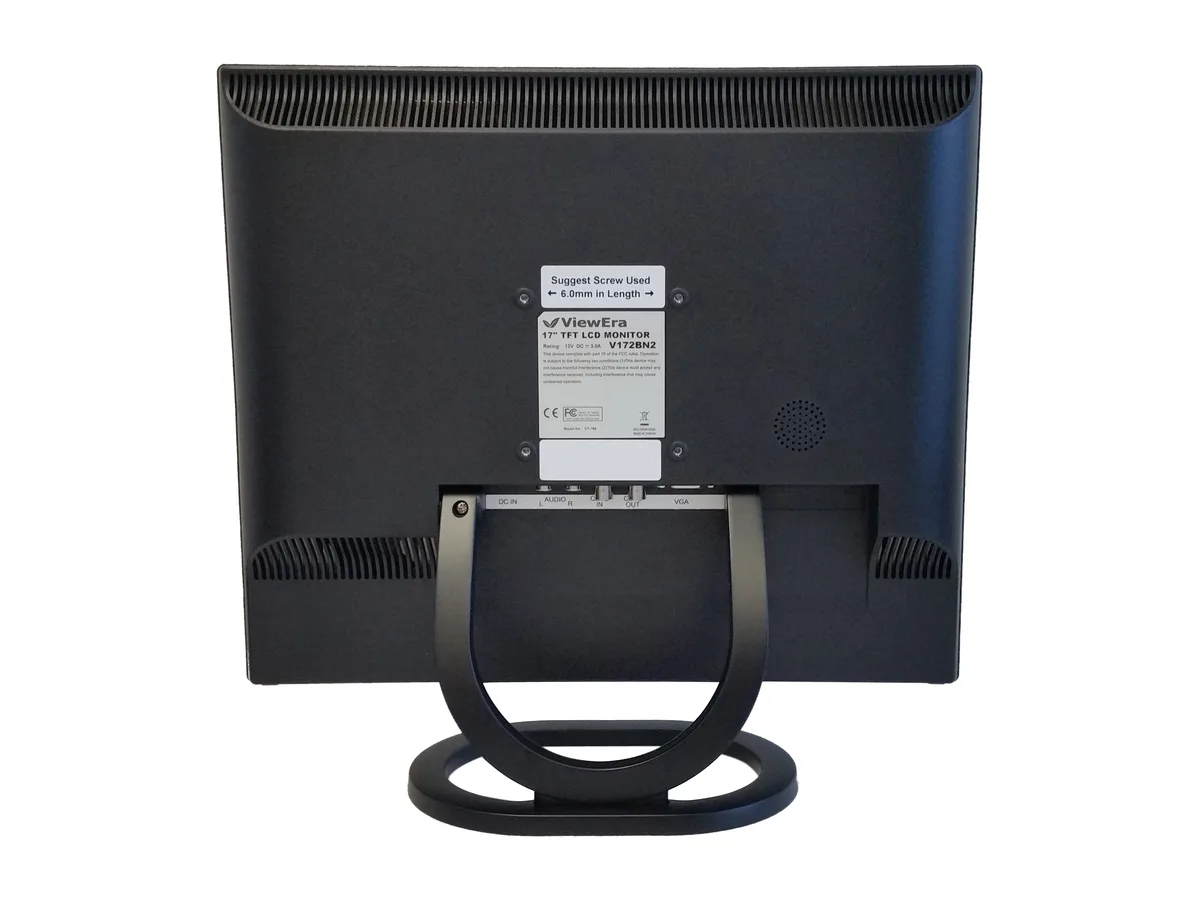

- VESA 75 x 75 mount and tilt stand suit wall or desk placement

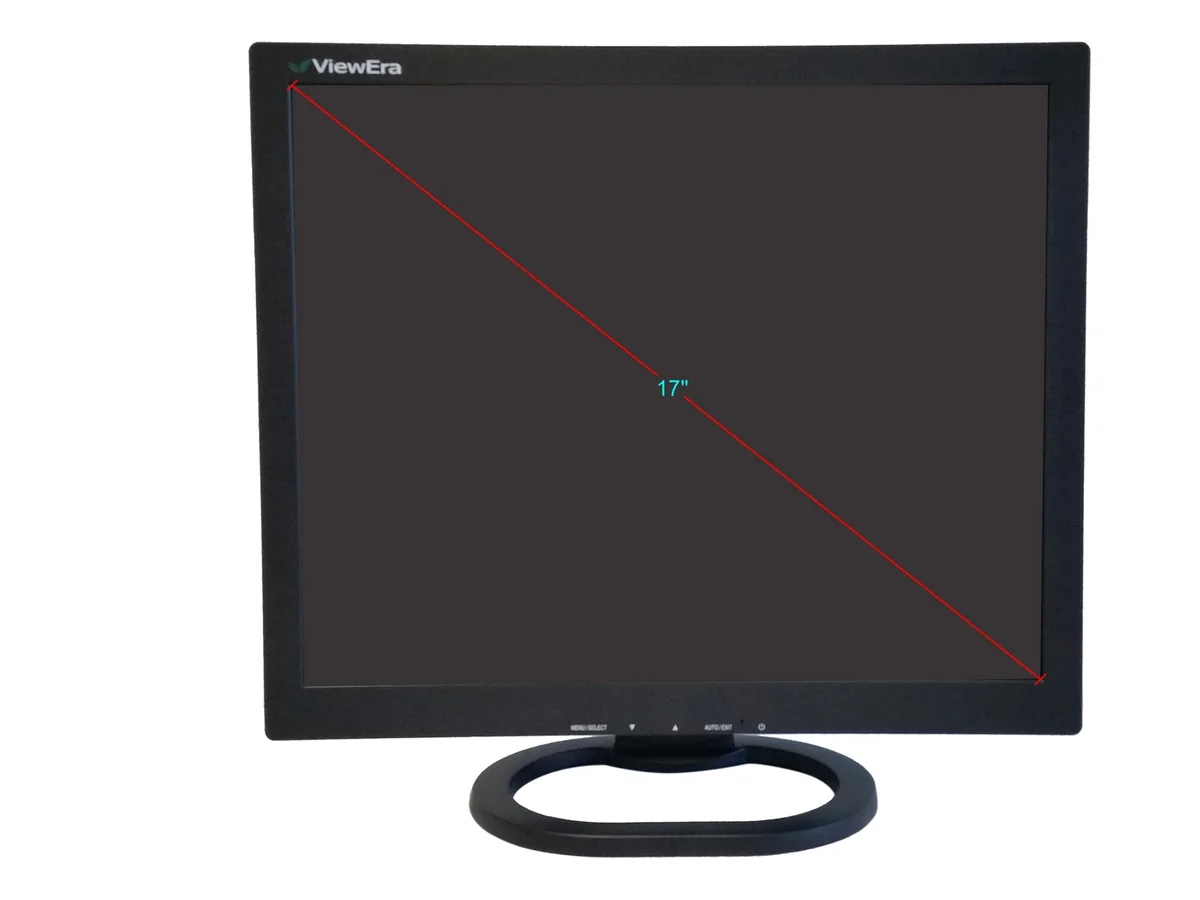

Purpose-built 17-inch security display
The VIEWERA V172BN2 is a 17-inch flat-panel monitor with a 1280 x 1024 SXGA resolution and a 5 ms response time. It provides 250 cd/m2 brightness and a 1000:1 contrast ratio across 16.7 million colours. Horizontal and vertical viewing angles reach 170° and 160° respectively, while the panel operates at a vertical refresh rate of 50 to 75 Hz.
Suited to analogue CCTV and legacy PC installations
Installers who need both a D-Sub and a BNC loop-through connector on the same screen will find the combination convenient for daisy-chaining cameras or recorders. VESA 75 x 75 mm mounting and a tilt-only stand keep the unit simple to deploy on walls or brackets. Buyers who require digital inputs such as HDMI or DisplayPort, higher pixel densities, or a fully adjustable ergonomic stand should consider other models.
Handles standard-definition surveillance
The native 1280 x 1024 grid displays 4:3 analogue video without scaling artefacts, and the 5 ms response keeps motion readable in typical security feeds. Built-in 2 W speakers provide basic audio monitoring where a separate speaker is impractical. The panel runs from a 100–240 V supply drawing up to 40 W maximum. It is not designed for colour-critical imaging, fast-paced gaming, or multi-monitor productivity setups that demand higher resolutions or faster refresh rates.
Highlights
- SXGA 1280 x 1024 resolution fits legacy security layouts
- 170° horizontal and 160° vertical viewing keeps images clear off-axis
- BNC loop-through and D-Sub inputs connect analogue cameras directly
- 5 ms response reduces motion blur on fast-moving scenes
- VESA 75 x 75 mount and tilt stand suit wall or desk placement
Specifications
| Brand | ViewEra |
|---|---|
| Model | V172BN2 |
| Cabinet Color | Black |
| Screen Size | 17" |
| Maximum Resolution | 1280 x 1024 |
| Resolution | 1280 x 1024 |
| Viewing Angle | 170° (H) / 160° (V) |
| Display Colors | 16.7 Million |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Response Time | 5 ms |
| Panel | Active Matrix, TFT LCD |
| Display Type | SXGA |
| Vertical Refresh Rate | 50~75Hz |
| Curved Surface Screen | Flat Panel |
| Video Ports | 1 x D-Sub |
| Input Video Compatibility | Analog RGB |
| Connectors | D-Sub, BNC |
| D-Sub | 1 |
| Video | BNC connector |
| Power Supply | 100 - 240V 1.8A, 50 - 60Hz DC |
| Power Consumption | 40W (Max.) |
| User Controls | Power, Menu, Down, Up, Auto Image Adjustment |
| Regulatory Approvals | FCC-B, CE |
| Stand Adjustments | Tilt |
| Built-in Speakers | 1 x 2W |
| VESA Compatibility - Mountable | 75 x 75mm |
| Features | The ViewEra V172BN2 17" TFT-LCD security monitors produce fast response time of 5 ms plus wide viewing angle of 170°(H) /160°(V), high contrast ratio of 1000:1 (typ) and brightness of 250 cd/m2 (typ). The V172BN2 delivers resolution of 1280x1024 SXGA, uses 3D comb filter and 3D De-Interlace to get a sharp and vivid picture, supports BNC connector for security application and integrates one speaker of 2 watts. In addition, V172BN2 can do looping with one BNC Video IN and one BNC Video OUT. The base stand and slim frame design makes the monitor look compact and simple. The V172BN2 prov |
| Dimensions | 14.25" x 14.80" x 5.55" w/ stand 12.40" x 14.80" x 1.89" w/o stand |
| Weight | 6.60 lbs. |
| Package Contents | Power adapter, power cord, VGA cable, audio cable, User manual |
| Shipping weight | 4.26 kg |
| Package size | 457 × 429 × 157 mm |
Questions about this item
Will the 17-inch 1280x1024 screen fit a 75x75 mm VESA mount?
Yes, the monitor is VESA compatible with a 75 x 75 mm pattern for wall or arm mounting.
Can I connect both a PC via VGA and a CCTV camera via BNC at the same time?
The unit provides one D-Sub port and one BNC connector, so both sources can be cabled simultaneously.
Does the monitor include speakers for audio monitoring?
Built-in stereo speakers rated at 1 x 2 W are integrated into the cabinet.
