VIEWERA

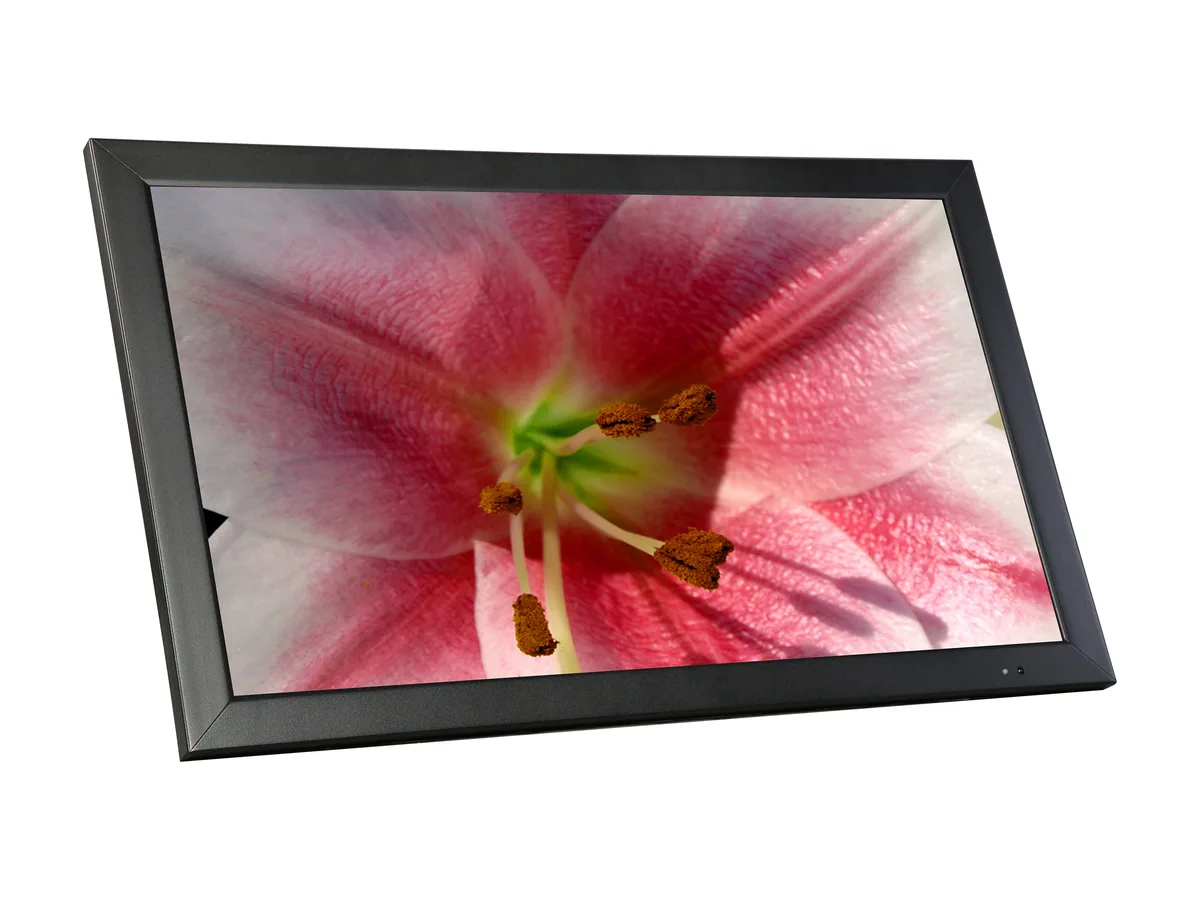

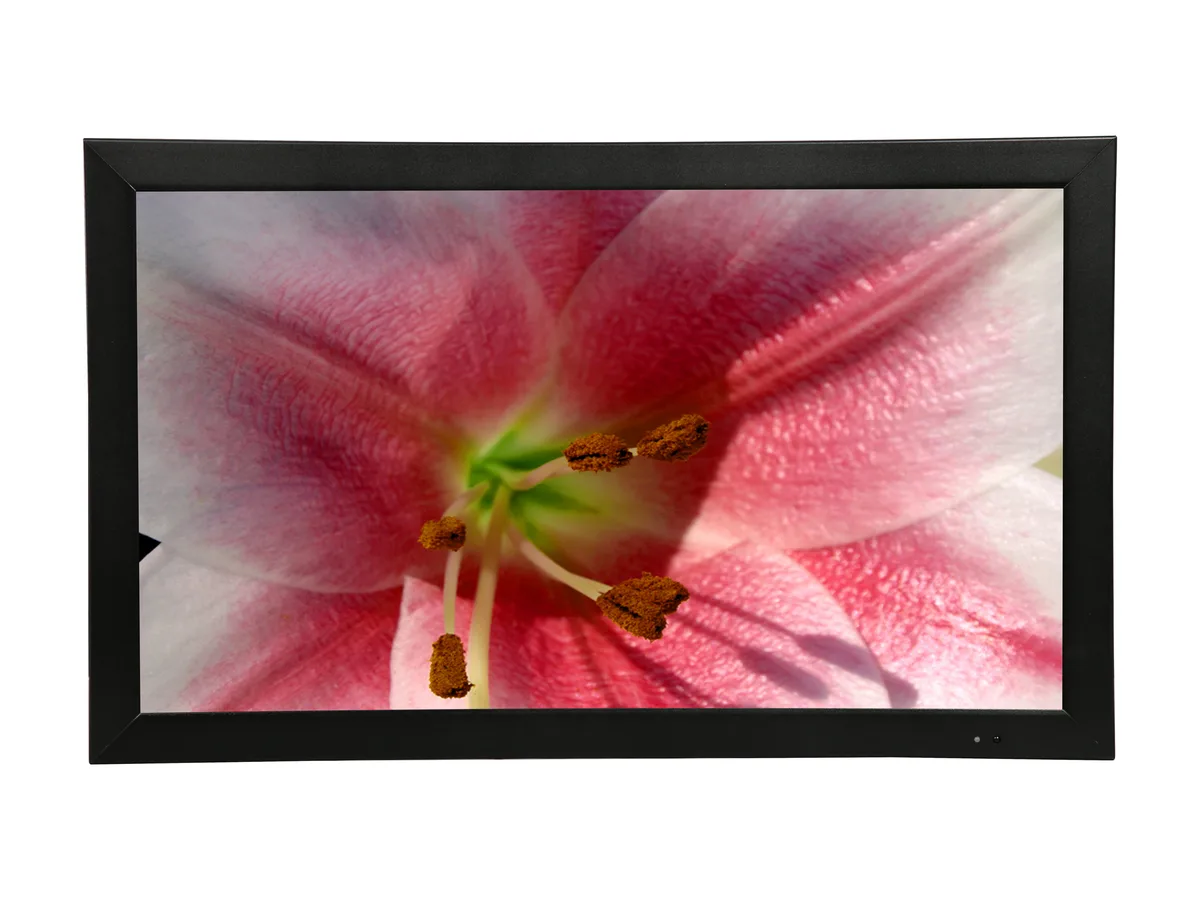

VIEWERA V215HBM 21.5" FHD Monitor
A 21.5 inch FHD security monitor with anti-glare panel, two HDMI, VGA, BNC in/out, USB and built-in speakers
- Cabinet ColorBlack
- Screen Size22" (Actual size 21.5")
- Glare ScreenAnti-glare
- WidescreenYes
- Resolution1920 x 1080
- Viewing Angle170° (H) / 160° (V)
- Sharp 1920 x 1080 FHD resolution for clear detail
- 5 ms response keeps motion smooth in video
- 1000:1 contrast ratio adds depth to dark scenes
- Two HDMI plus VGA and BNC connect multiple sources
- Anti-glare coating and wide 170°/160° viewing angles reduce eye strain
Purpose and audience
The VIEWERA V215HBM is a 21.5 inch Full HD security monitor built with a metal cabinet and an anti-glare TFT LCD panel. It targets installers and operators who need continuous viewing in control rooms, retail counters or industrial workstations. The 16.7 million colour display and 170° horizontal viewing angle keep images legible from multiple positions.
Fit and alternatives

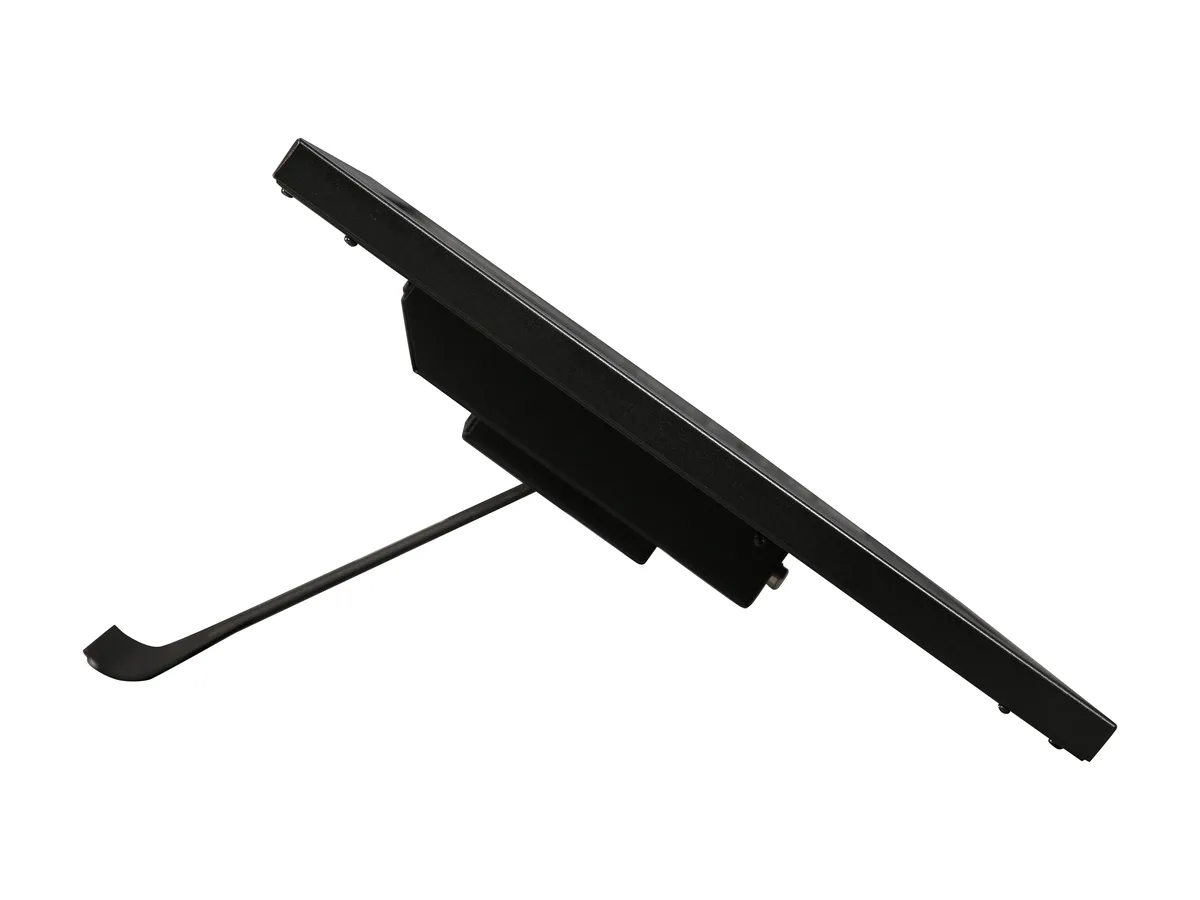

This model suits users who require both modern HDMI and legacy BNC video loops on a single screen. The built-in speakers and tilt-adjustable stand simplify desk deployment, while VESA mounting supports wall or arm installations. Buyers needing higher refresh rates, curved panels or USB-C connectivity should evaluate other products.
Deciding specification
The vertical refresh range of 56 to 75 Hz determines whether the monitor matches the source timing of legacy CCTV recorders or modern PC outputs. If the connected device operates outside this window, the image will not display correctly. Confirm the source refresh rate before purchase.
Highlights
- Sharp 1920 x 1080 FHD resolution for clear detail
- 5 ms response keeps motion smooth in video
- 1000:1 contrast ratio adds depth to dark scenes
- Two HDMI plus VGA and BNC connect multiple sources
- Anti-glare coating and wide 170°/160° viewing angles reduce eye strain
Specifications
| Brand | ViewEra |
|---|---|
| Model | V215HBM |
| Cabinet Color | Black |
| Screen Size | 22" (Actual size 21.5") |
| Glare Screen | Anti-glare |
| Widescreen | Yes |
| Resolution | 1920 x 1080 |
| Viewing Angle | 170° (H) / 160° (V) |
| Monitor Pixel Density | 0.248mm x 0.248mm |
| Display Colors | 16.7 Million |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Aspect Ratio | 16:9 |
| Response Time | 5 ms |
| Panel | Active Matrix, TFT LCD |
| Display Type | FHD |
| Horizontal Refresh Rate | 31 - 80 KHz |
| Vertical Refresh Rate | 56 - 75 Hz |
| Curved Surface Screen | Flat Panel |

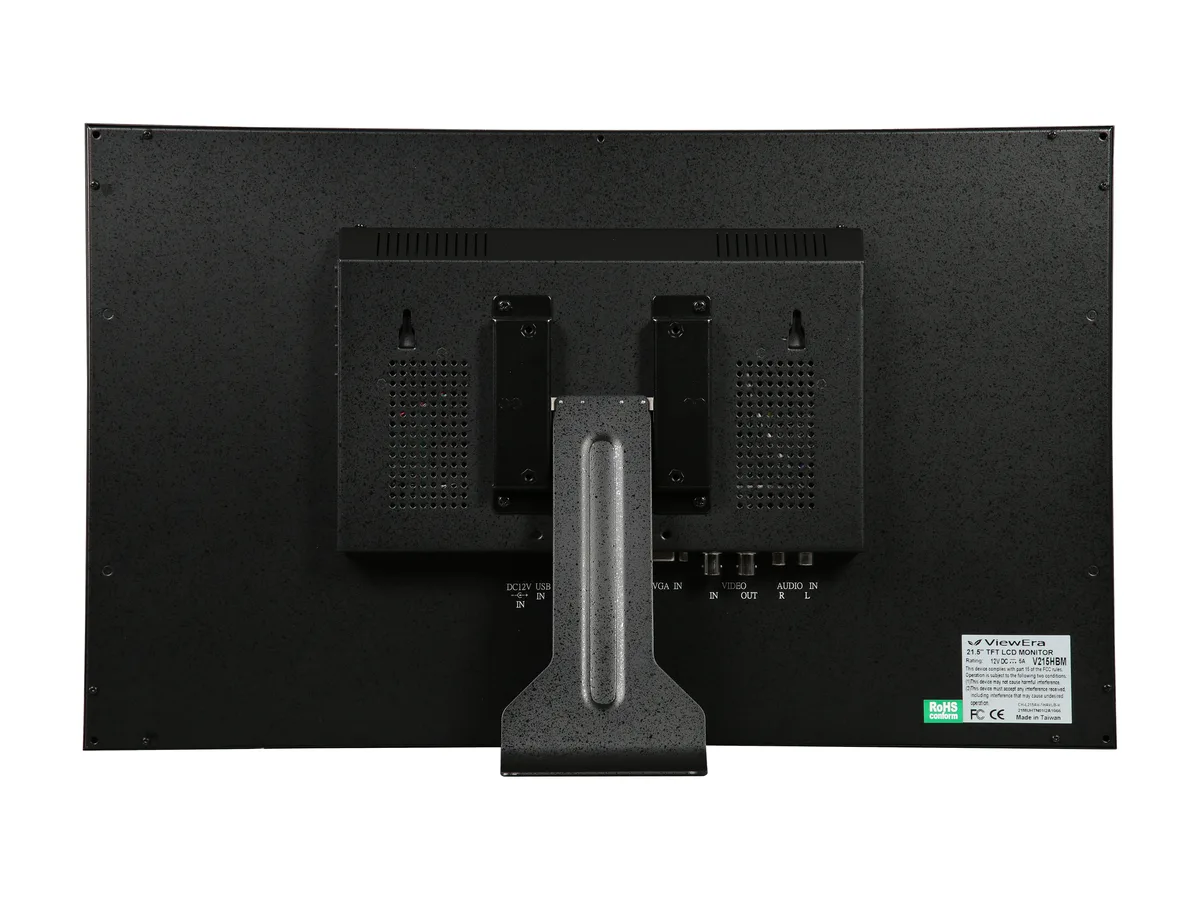

| Video Ports | 1 x D-Sub / 2 x HDMI |
| USB Ports | 1 x USB 2.0 Type-A Downstream |
| Input Video Compatibility | Analog RGB, Digital |
| Connectors | 2 x HDMI In, 1 x VGA In, 1 x USB In, 1 x BNC In 1 x BNC Out |
| D-Sub | 1 |
| HDMI | 2 |
| USB 2.0 | 1 |
| Power Supply | AC Input: 100-240V, 50-60Hz |
| Power Consumption | 45W (max.) |
| User Controls | Contrast, Brightness, Auto Sizing, Duration, Halftone, Sleep, Reset, HUE, Saturation, Sharpness, Black Light, Color Tone, Blue Screen, Scale, NR, Picture Mode, Sound Mode, Bass, Treble, Balance, Language |
| Regulatory Approvals | CE, FCC, RoHS |
| VESA Compatibility - Mountable | VESA 75 / 100 |
| Features | The ViewEra V215HBM 21.5" wide screen Metal Case TFT-LCD/LED security monitors produce fast response time of 5 ms plus wide viewing angle of 170°(H) /160°(V) , high contrast ratio of 1000:1 (typ) and brightness of 250 cd/m2 (typ). The V215HBM delivers resolution of 1920x1080, uses 3D comb filter and 3D De-Interlace to get a sharp and vivid picture, supports HDMI and BNC connector for security application and integrates two speakers of 2 watts. In addition, V215HBM can do looping with one BNC Video IN and one BNC Video OUT, support PIP Control Function (PC/Video). It also come with on |
| Dimensions | 12.68" x 20.87" x 2.37" |
| Weight | 10.05 lbs. |
| Package Contents | Accessories: Power adapter, Power cord, VGA cable, Audio cable, Remote control, User manual |
| Shipping weight | 6.49 kg |
| Package size | 622 × 495 × 178 mm |
Questions about this item
How do I mount the V215HBM on a VESA arm and which step is often missed?
Remove the tilt-adjustable stand by unscrewing the four VESA bolts hidden beneath the stand neck, then attach the 100 x 100 mm mount; the step most people miss is keeping those four screws for the arm bracket.
What part of the V215HBM will need replacement first during long-term use?
The LED backlight is rated for typical panel lifetime; when brightness drops noticeably below 250 cd/m² the entire panel assembly is the serviceable unit.
What limit appears first when the V215HBM runs continuously at full brightness?
Sustained 45 W power draw heats the metal case until thermal throttling dims the backlight to protect the 1,000:1 contrast ratio.
