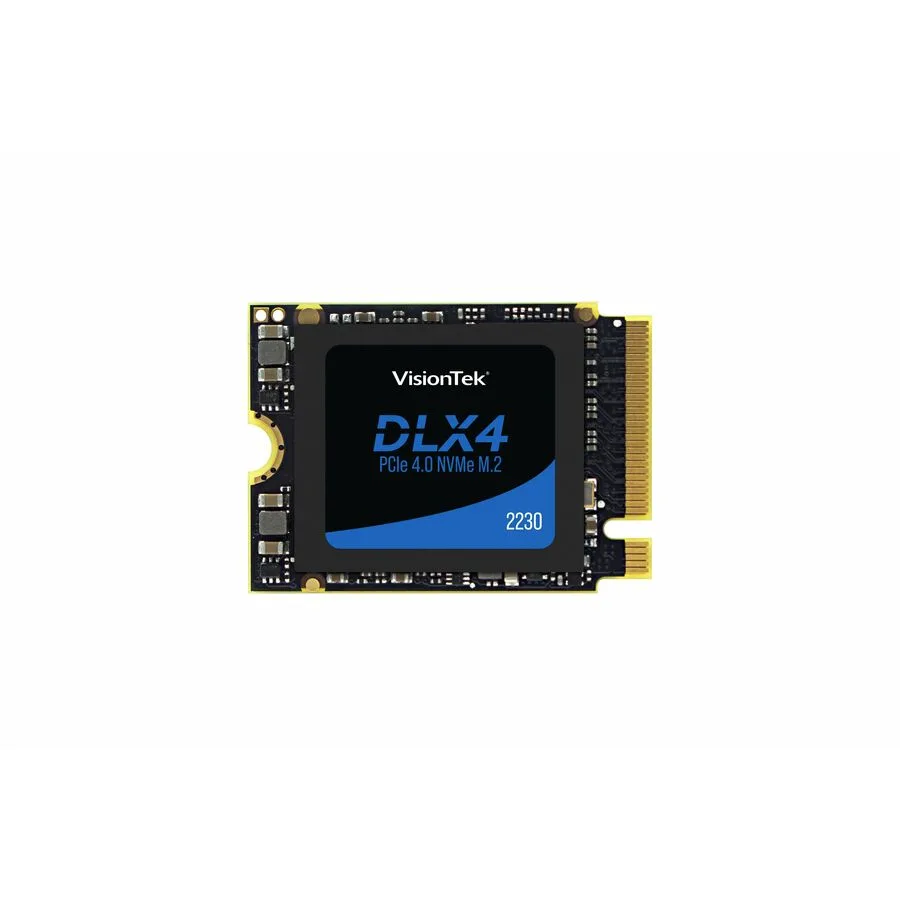

Small green circuit board with gold edge connector and black controller chip

VisionTek

VisionTek 901560 DLX4 2 TB M.2 2230 NVMe internal SSD

SKU CH-7616-9BZPA MPN 901560

M.2 2230 2 TB NVMe drive with 4985 MB/s reads, 4775 MB/s writes and 1000 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4
  • M.2 2230 form factor fits slim laptops and handheld PCs
  • PCIe 4.0 x4 NVMe 1.4 delivers 4985 MB/s sequential read and 4775 MB/s sequential write
  • 195K random read and 289K random write IOPS accelerate everyday workloads
  • 1000 TBW endurance rating supports heavy write cycles
  • TCG Opal 2.0 encryption secures data at rest

VisionTek DLX4 2 TB M.2 2230 NVMe SSD

The VisionTek DLX4 is a 2 TB internal solid-state drive built in the M.2 2230 form factor. It connects through a PCI Express 4.0 x4 interface using the NVMe 1.4 protocol. The drive is intended for consumer systems that need compact, high-capacity storage.

Sustained performance

Under continuous workloads the Innogrit IG5220 controller manages heat and write amplification through Dynamic and Static Wear Leveling, Garbage Collection and Global Wear Leveling. SLC cache and Data Shaping help absorb bursts before the 3D NAND settles to steady-state throughput. The drive draws 4.75 W active and 0.3 W idle while operating between 0 °C and 70 °C.

PCIe 4.0 x4 practical limits

The PCIe 4.0 x4 link caps sequential transfer at 4985 MB/s read and 4775 MB/s write. Random 4 KB performance reaches 195 K IOPS read and 289 K IOPS write. Endurance is rated at 1000 TBW with a 1,500,000-hour MTBF. TCG Opal Encryption 2.0 and 256-bit AES protect data at rest without host software overhead.

Highlights

  • M.2 2230 form factor fits slim laptops and handheld PCs
  • PCIe 4.0 x4 NVMe 1.4 delivers 4985 MB/s sequential read and 4775 MB/s sequential write
  • 195K random read and 289K random write IOPS accelerate everyday workloads
  • 1000 TBW endurance rating supports heavy write cycles
  • TCG Opal 2.0 encryption secures data at rest

Specifications

BrandVisionTek
SeriesDLX4
ModelDLX4
Part Number901560
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
ControllerInnogrit IG5220
EncryptionTCG Opal Encryption 2.0
Max Sequential Read4985 MB/s
Max Sequential Write4775 MB/s
4KB Random Read195K IOPS
4KB Random Write289K IOPS
Terabytes Written (TBW)1000TB
MTBF1,500,000 hours
Features3D NAND Technology, Data Shaping, Dynamic and Static Wear Leveling, ECC Recovery LDPC, Garbage Collection technology, Global Wear Leveling, Host Memory Buffer (HMB), Low-Density Parity Check, SLC cache, StaticDataRefresh Technology
Power Consumption (Idle)0.3W (Idle)
Power Consumption (Active)4.75W (Active)
Operating Temperature0-70°C
Storage Temperature-40-85°C
Operating Humidity5 - 95%
Max Shock Resistance1500G/0.5ms
Max Vibration Resistance2-500Hz, 3.1G
Weight7g
Shipping weight0.11 kg
Package size133 × 102 × 10 mm

Questions about this item

How much power does the VisionTek DLX4 2 TB draw when active all day?

The drive uses 4.75 W during active operation and 0.3 W at idle, with an operating temperature range of 0-70 °C.

What slot and key does the M.2 2230 DLX4 need on my motherboard?

It requires an M.2 2230 slot wired for PCI-Express 4.0 x4 and NVMe 1.4 protocol.

Will the DLX4 run at PCIe 4.0 speeds in my older PCIe 3.0 system?

The drive is backward compatible with PCIe 3.0 x4 slots, though sequential speeds will be limited to the 3.0 bus ceiling.
