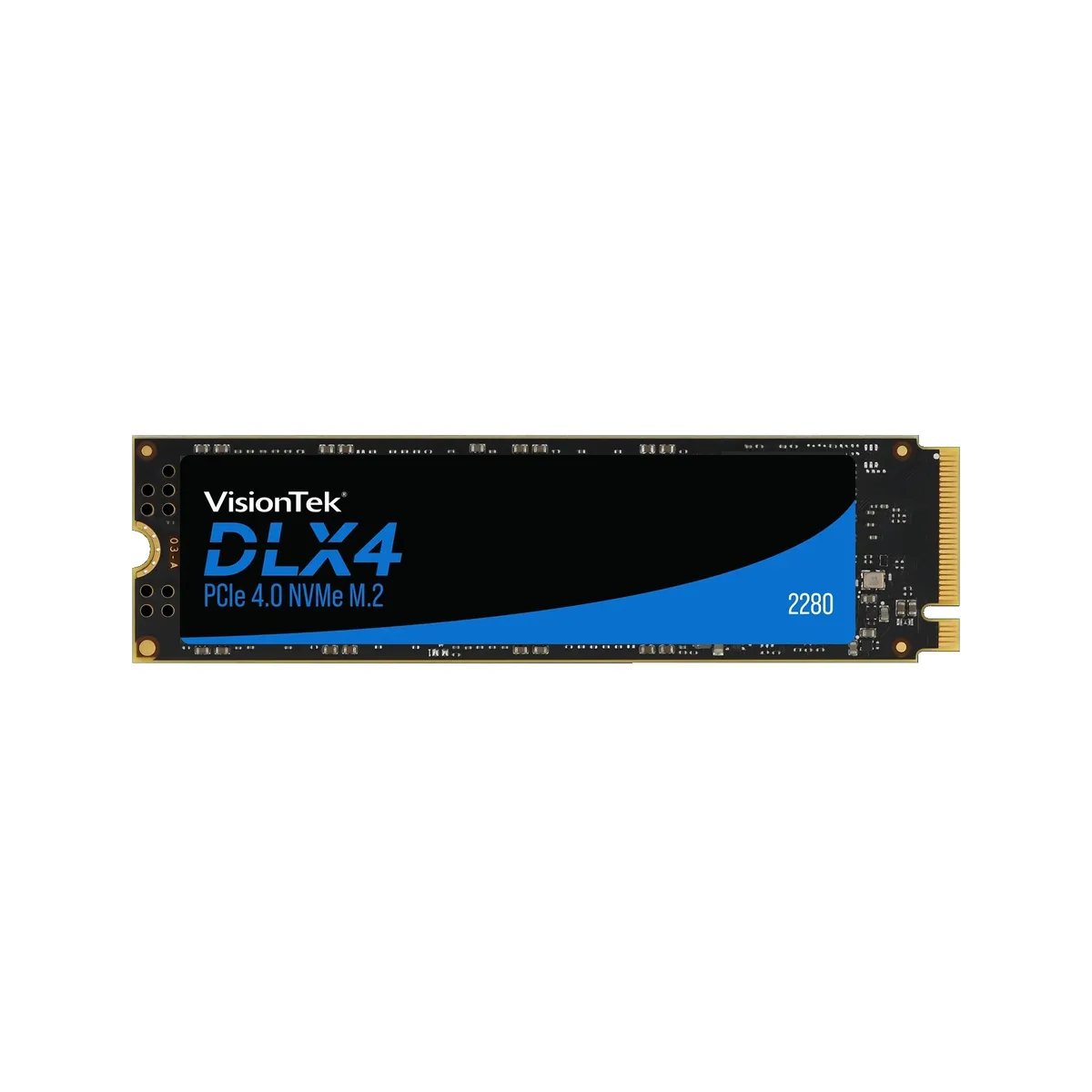

A small rectangular green circuit board M.2 2280 SSD with black chips and gold edge connector

VisionTek

VisionTek 901565 DLX4 1 TB internal SSD

SKU CH-P1G4-GHCF5 MPN 901565

M.2 2280 PCIe 4.0 x4 drive with 1 TB 3D NAND, 5200 MB/s read, 4370 MB/s write, 500 TBW and 256-bit AES encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer

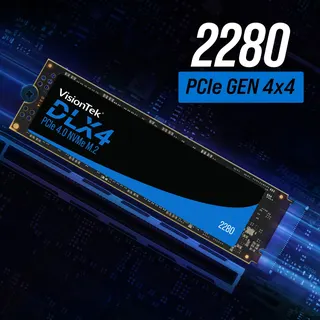

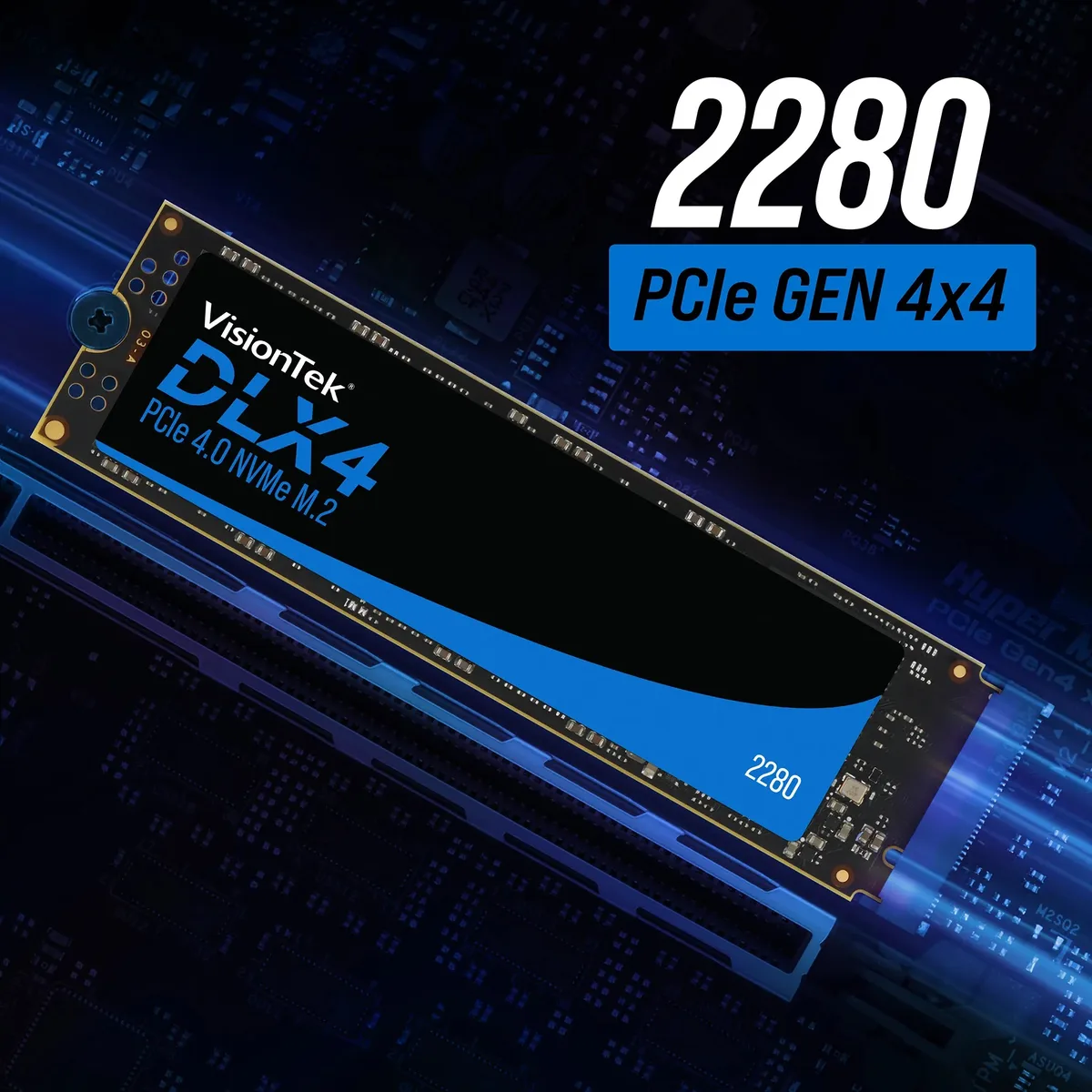

  • Form FactorM.2 2280
  • Capacity1TB

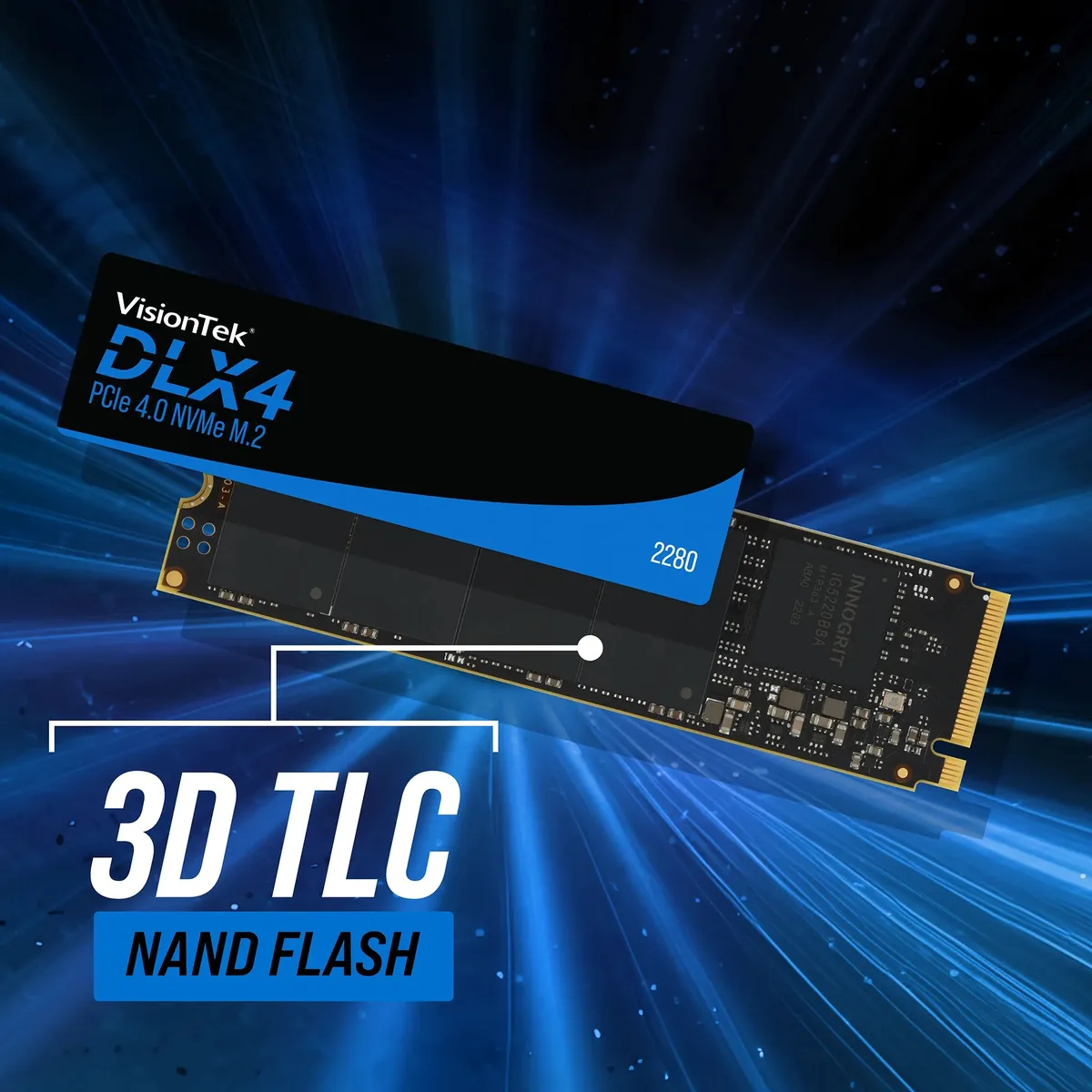

  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4
  • Fast sequential reads up to 5200 MB/s for quick file access
  • Sustained sequential writes up to 4370 MB/s for large transfers
  • Responsive random performance with 195K read and 289K write IOPS
  • 256-bit AES encryption protects stored data
  • Rated for 500 TB written and 1,500,000 hours MTBF

VisionTek DLX4 1 TB consumer SSD

The VisionTek DLX4 1 TB is an internal solid state drive built for consumer workloads. It uses the M.2 2280 form factor and connects through a PCI-Express 4.0 x4 link. The drive carries the model number 901565 and is based on 3D NAND components.

500 TBW endurance and 5200 MB/s sequential headroom

The drive is rated for 500 TB of writes and delivers up to 5200 MB/s sequential read with 4370 MB/s sequential write. Random performance reaches 195K IOPS read and 289K IOPS write. Sustained heavy workloads will eventually hit the controller thermal ceiling because the module ships without a heatsink.

NVMe 1.4 protocol over PCIe 4.0 x4 lane limits

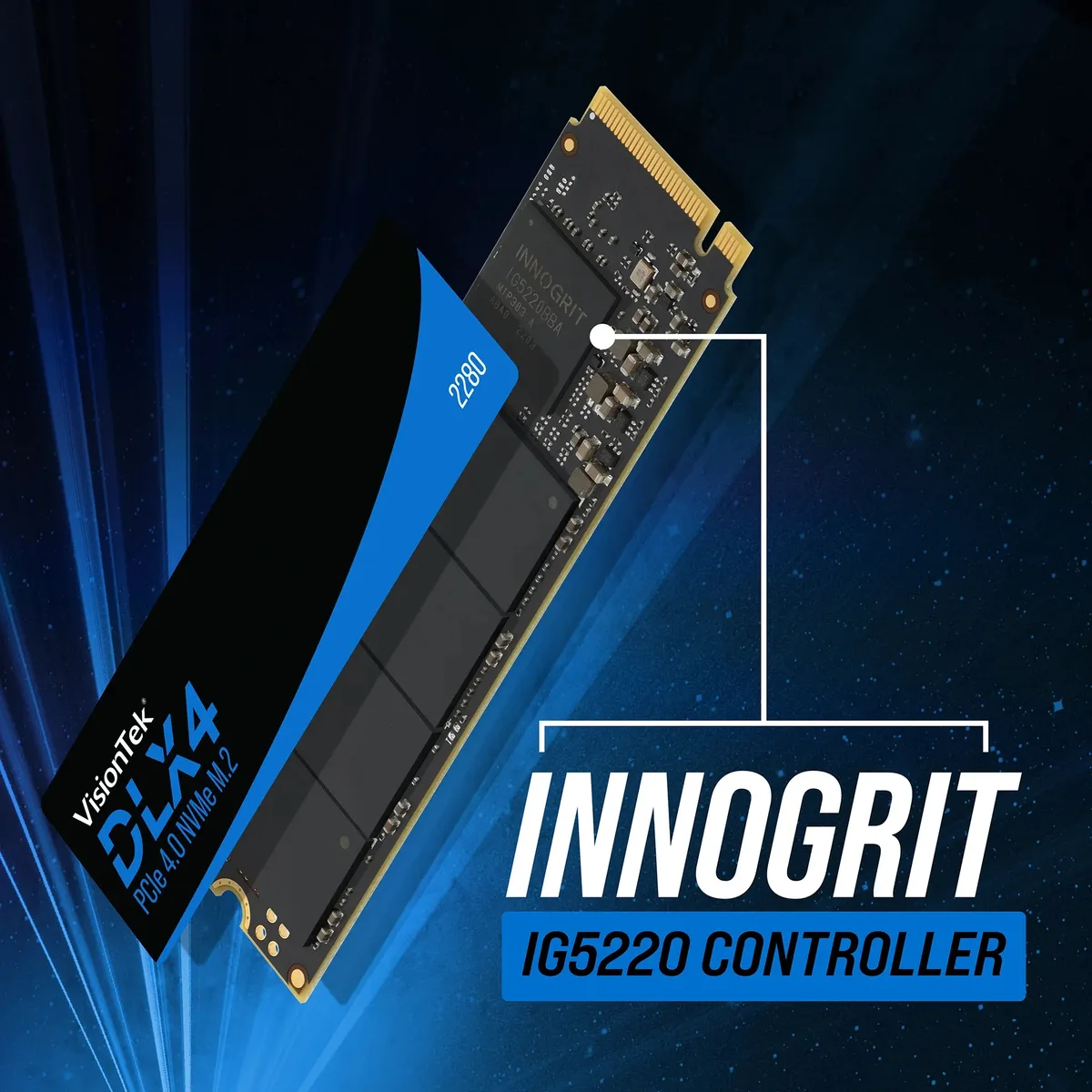

The NVMe 1.4 protocol runs over four PCIe 4.0 lanes, capping theoretical bandwidth at the interface maximum. Real-world throughput depends on host platform lane allocation and thermal conditions. The Innogrit IG5220 controller manages encryption with 256-bit AES compliance.

Highlights

  • Fast sequential reads up to 5200 MB/s for quick file access
  • Sustained sequential writes up to 4370 MB/s for large transfers
  • Responsive random performance with 195K read and 289K write IOPS
  • 256-bit AES encryption protects stored data
  • Rated for 500 TB written and 1,500,000 hours MTBF

Specifications

BrandVisionTek
SeriesDLX4
Model901565
Part Number901565
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
ControllerInnogrit IG5220
Encryption256-bit AES Compliant Data Encryption
Max Sequential ReadUp to 5200 MB/s
Max Sequential WriteUp to 4370 MB/s
4KB Random Read195K IOPS
4KB Random Write289K IOPS
Terabytes Written (TBW)500TB
MTBF1,500,000 hours
HeatSinkwithout HeatSink
Power Consumption (Idle)0.3W
Power Consumption (Active)4.75W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating Humidity5-95%
Max Shock Resistance1500G/0.5ms
Max Vibration Resistance2-500Hz, 3.1G
Width80.0 mm
Depth22.0 mm
Weight7g
Shipping weight0.45 kg
Package size112 × 97 × 10 mm

Questions about this item

Will the DLX4 1 TB M.2 2280 fit and run in a motherboard that only has PCIe 3.0 slots?

Yes, the drive is backward compatible and will operate at PCIe 3.0 speeds when installed in a PCIe 3.0 M.2 slot, though sequential speeds will be limited to the slot's maximum bandwidth.

How can I verify the 901565 is delivering the rated 5200 MB/s read and 4370 MB/s write after installation?

Run a benchmark tool such as CrystalDiskMark using the NVMe 1.4 protocol on a PCIe 4.0 x4 link; results should approach the published sequential figures and show random read/write IOPS near 195K and 289K.

Does the VisionTek 901565 package include a heatsink or mounting screw, or must I buy them separately?

The drive ships without a heatsink; a motherboard M.2 standoff and screw are typically required for installation and are not included in the box.
