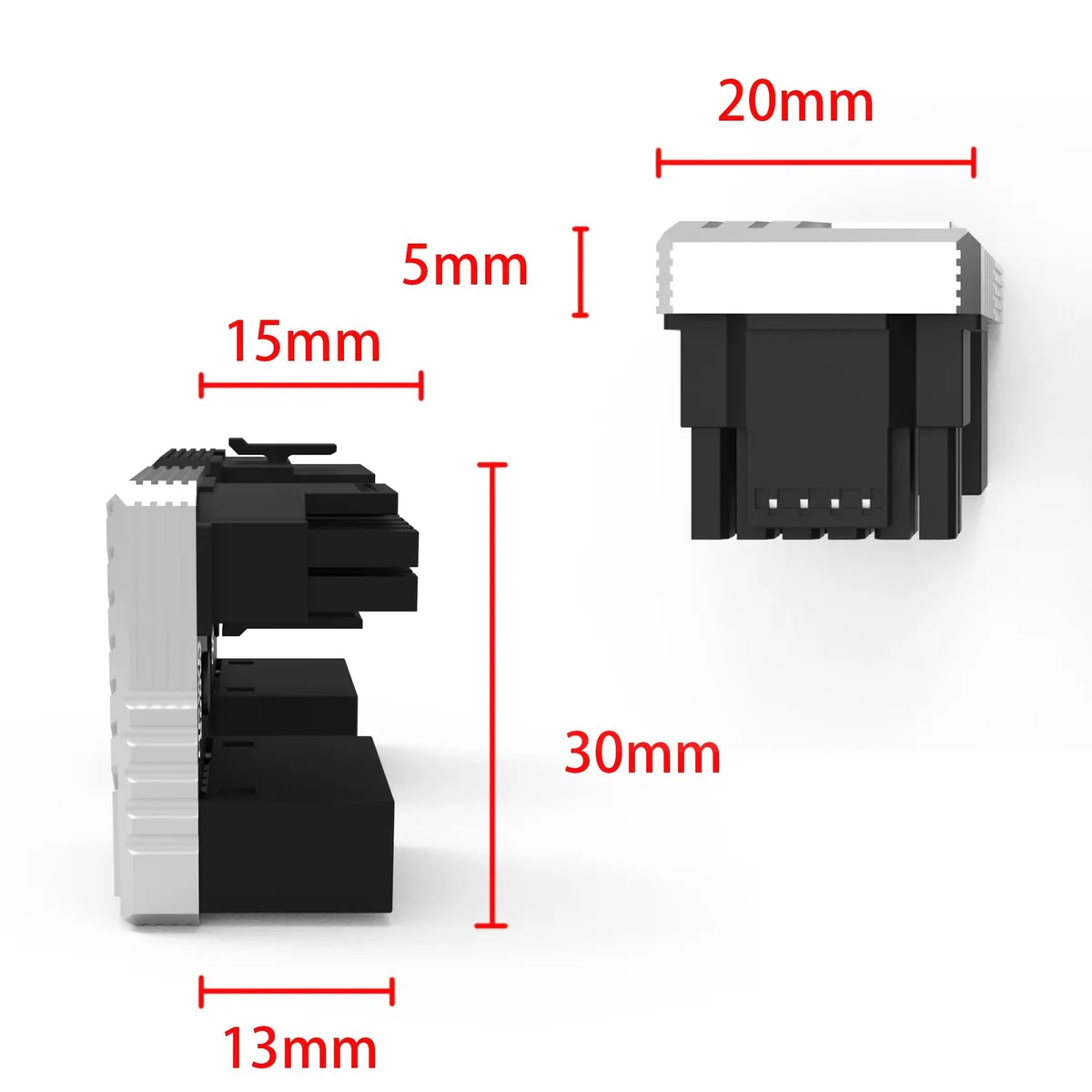

Black 16-pin PCIe 5.0 180-degree U-turn adapter male to female with aluminium shell

Vszerda

Vszerda 16 Pin PCIe 5.0 180 Degree 12VHPWR Male to Female U-Turn Adapter Connector F Black

SKU CH-QRRZ-7SNGK

A 180-degree angled 12VHPWR adapter with 16-pin male-to-female connectors that reduces cable strain and improves airflow in tight builds

  • 180° U-turn design reduces cable strain on GPU port
  • PCIe 5.0 12VHPWR 16-pin male-to-female connector fits modern graphics cards
  • Aluminium shell with thermal pad conducts heat away from terminals
  • Zero-bend installation prevents poor contact in tight case spaces

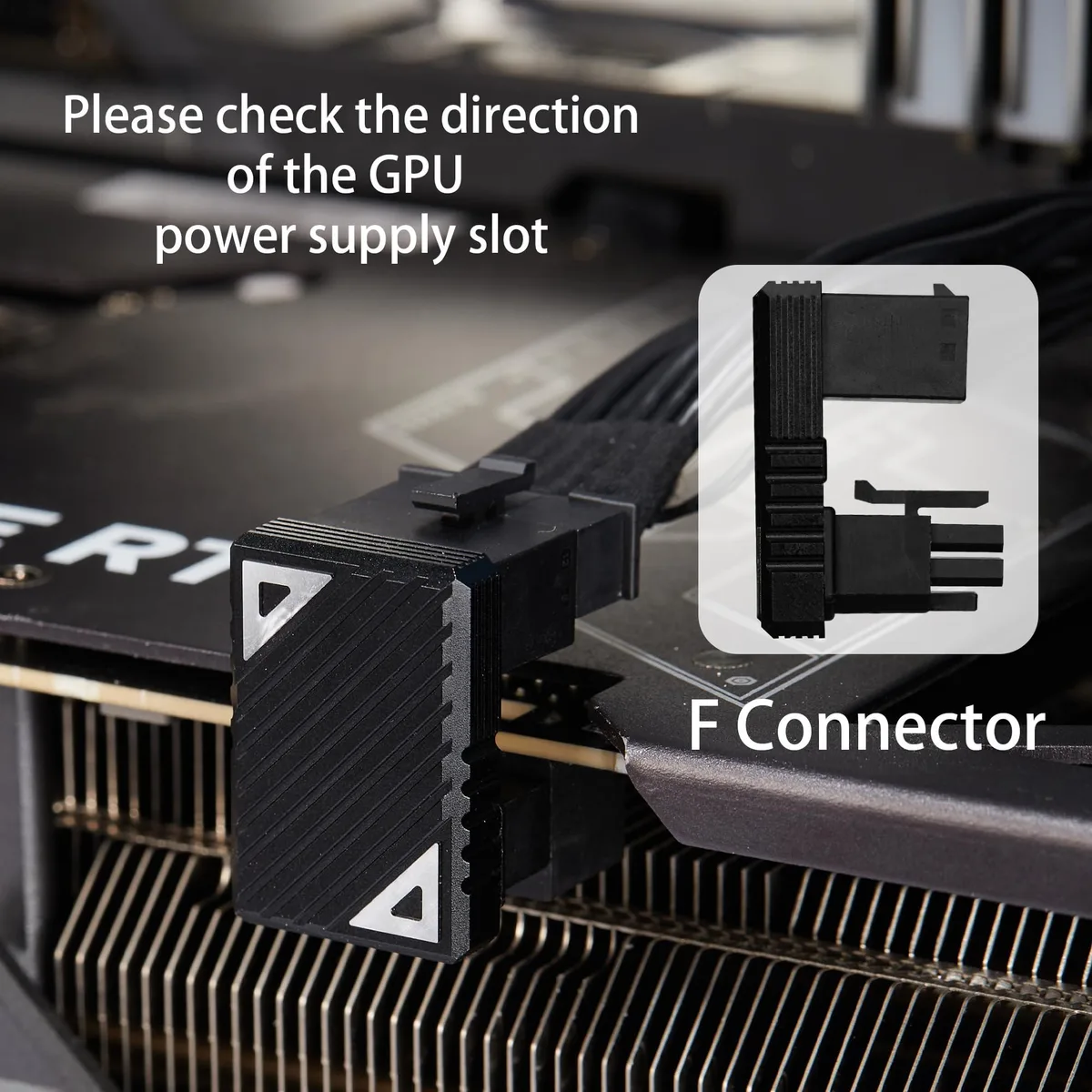

  • Choose F-type or Z-type orientation to match your card's power-slot direction

180 Degree 12VHPWR Adapter

This 16 pin PCIe 5.0 male to female U-turn connector redirects the power cable at a right angle. It suits builders fitting high-end graphics cards into compact cases where straight connectors press against side panels. The F-type orientation matches specific GPU port layouts shown in the product images.

Aluminium Shell Thermal Management

An aluminium housing with an integrated thermal pad draws heat away from the connector terminals during normal operation. This passive dissipation reduces local temperature buildup without adding active cooling noise. The rigid shell also supports the cable weight, preventing the port from sagging over time.

Rigid U-Turn Prevents Cable Strain

The fixed 180 degree bend eliminates sharp bends at the GPU power socket, protecting both the cable and the card's input pins from fatigue. Installation requires no tools; the adapter seats directly between the PSU lead and the graphics card. Buyers must verify the F connector variant matches their card's port orientation before ordering.

Highlights

  • 180° U-turn design reduces cable strain on GPU port
  • PCIe 5.0 12VHPWR 16-pin male-to-female connector fits modern graphics cards
  • Aluminium shell with thermal pad conducts heat away from terminals
  • Zero-bend installation prevents poor contact in tight case spaces
  • Choose F-type or Z-type orientation to match your card's power-slot direction

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the 180 degree 12VHPWR adapter and what step do people often miss?

Align the 16 pin male plug with the GPU socket, seat it fully until the latch clicks, then route the existing cable into the female side; the common mistake is not confirming the card slot direction matches the F or Z connector variant before purchase.

What maintenance or replacement will this adapter need over time?

No scheduled maintenance is required; inspect the 12+4 pin contacts and the aluminum shell thermal pad during routine PC cleaning and replace the adapter only if you see discoloration, melting or physical damage.

What limit appears first when the adapter runs under sustained load?

The 180 degree U turn design reduces cable bending stress, so the first limit is typically the thermal capacity of the aluminum shell and pad to dissipate heat from the 16 pin connection during prolonged high current draw.
