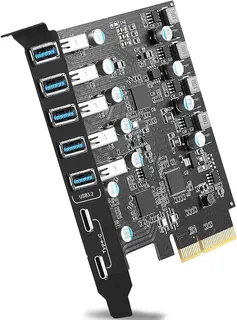

PCIe expansion card with five USB-A and two USB-C ports

Vszerda

Vszerda 7 Port PCIe USB 3.2 Card 5×A 2×C 20 Gbps

SKU CH-AS9B-4GBJ8

Adds seven USB 3.2 ports — five Type-A and two Type-C — sharing 20 Gbps bandwidth with up to 30 W charging per Type-C port

  • Add seven USB 3.2 ports to your desktop via one PCIe slot
  • Each USB-C port delivers up to 30 W charging power
  • Five USB-A ports supply up to 7.5 W each for peripherals
  • Shared 20 Gbps bandwidth across all ports for fast transfers
  • Works with Windows 7 through 11, Linux and macOS 10.8.2+

Seven USB 3.2 Ports on One PCIe Card

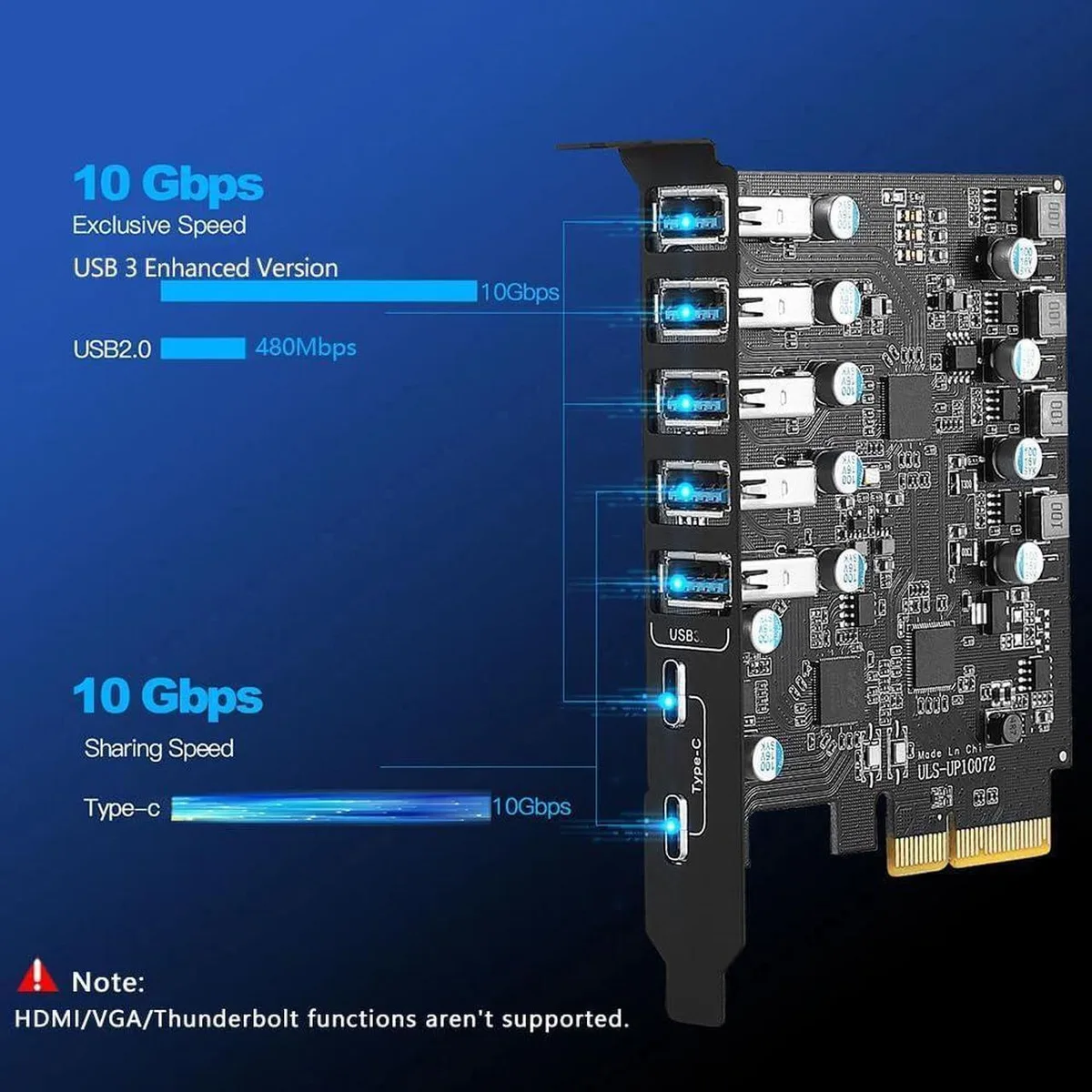

This PCIe expansion card adds seven USB 3.2 Gen 2 ports to a desktop computer: five Type-A and two Type-C. It suits builders who need many high-speed connections for external drives, cameras, VR headsets and peripherals without using front-panel headers. The card draws power from the slot, so no extra cables are required.

Upgrade from Fewer or Slower Ports

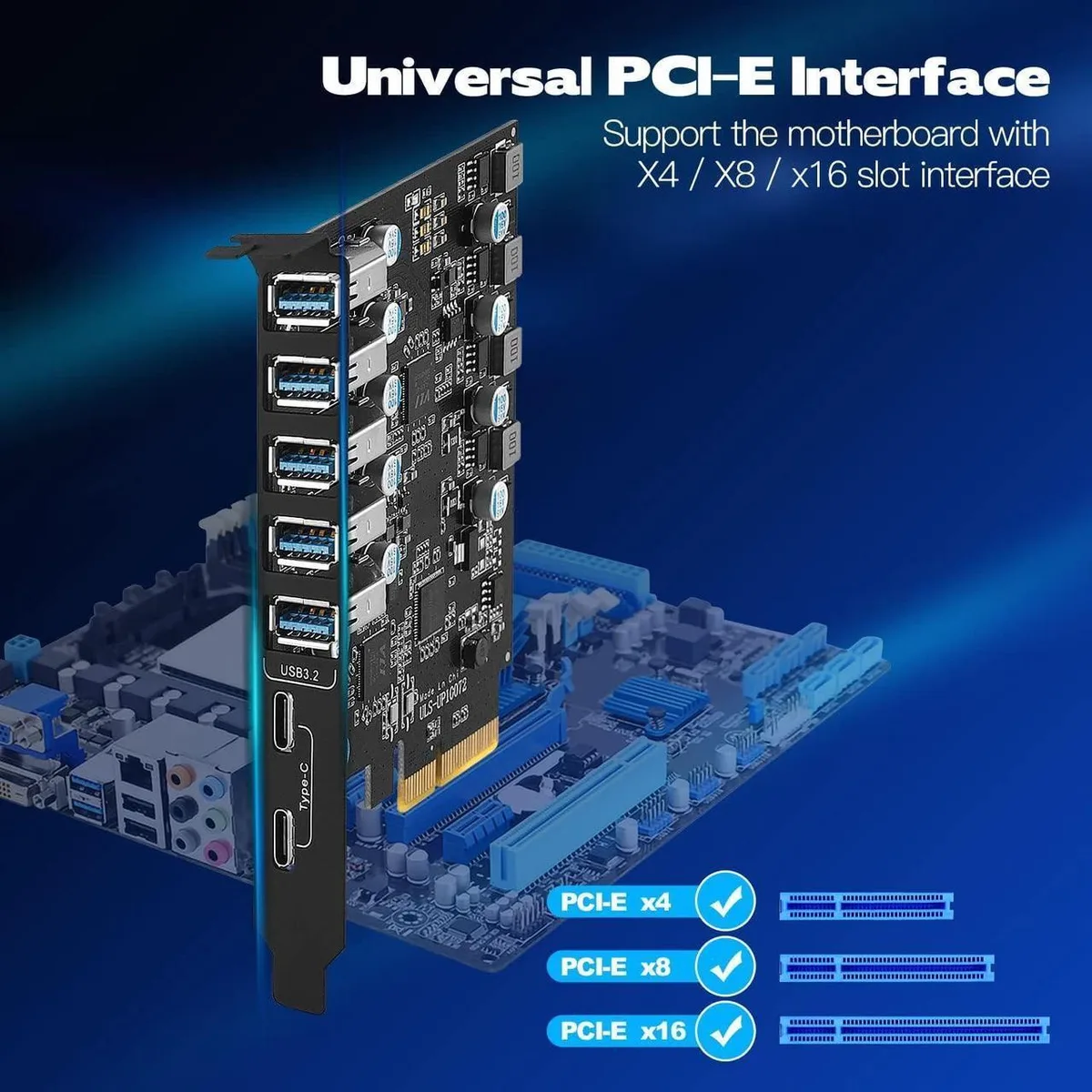

The board replaces a single-port bracket or an older USB 3.0 card by delivering up to 10 Gbps per port and a shared 20 Gbps total bandwidth. The jump is worthwhile when several devices transfer large files simultaneously or when Type-C charging up to 30 W per port is needed. It fits x1, x4, x8 or x16 slots and works with PCIe 2.0 and 3.0 platforms.

Simple Slot Installation

Installation is a matter of inserting the card into a free PCIe slot and securing the bracket; no external power connector is used. Driver installation is required only on Windows 7, Vista, XP or Server 2008, while Windows 10, 11, Linux and macOS 10.8.2 and later recognise the card automatically. An over-current protection chip and IEC 61000-4-2 ESD compliance guard the system and attached devices.

Highlights

  • Add seven USB 3.2 ports to your desktop via one PCIe slot
  • Each USB-C port delivers up to 30 W charging power
  • Five USB-A ports supply up to 7.5 W each for peripherals
  • Shared 20 Gbps bandwidth across all ports for fast transfers
  • Works with Windows 7 through 11, Linux and macOS 10.8.2+

Specifications

No published specifications for this item yet.

Questions about this item

What PCIe slot sizes will this card fit into?

The card fits PCI Express x1, x4, x8 or x16 sockets and is compatible with PCIe 3.0 and 2.0 motherboards.

Does the card need a driver on Windows 10?

Windows 10 does not need a driver; Windows XP, Vista, 7 and Server 2008 require driver installation.

What power can the USB-C ports supply for charging?

Each USB-C port supports up to 30 W of power delivery for charging phones, tablets or laptops.
