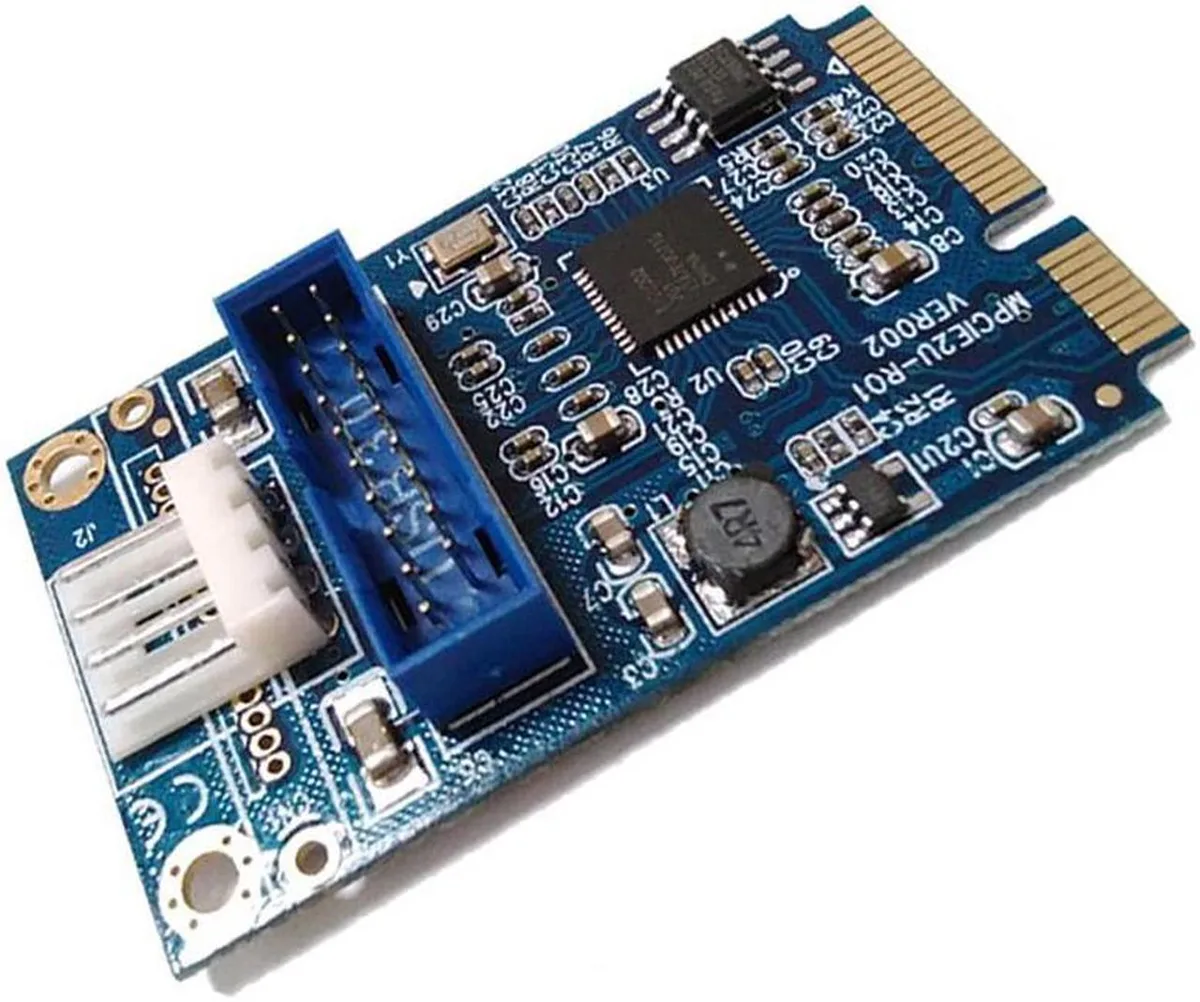

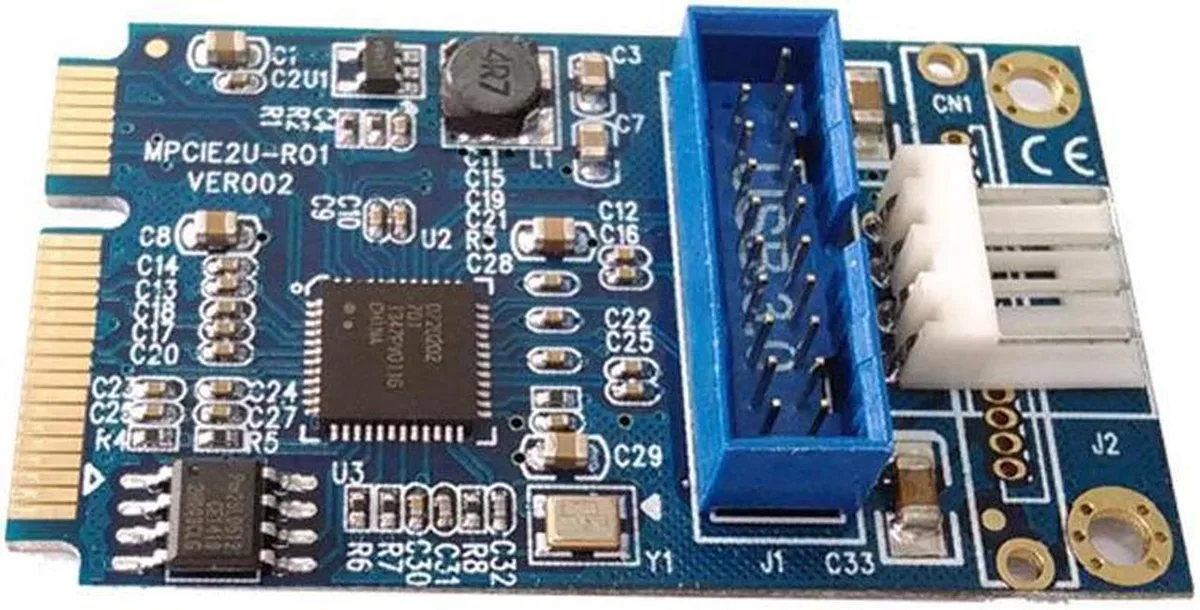

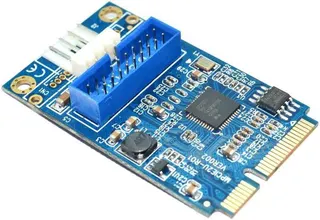

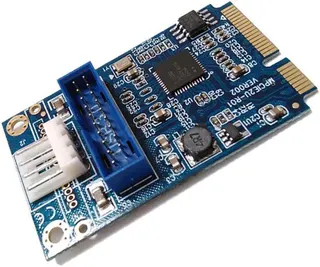

Green circuit board with Mini PCIe edge connector and 20-pin USB header, Molex power socket, NEC chip

Vszerda

Vszerda Mini PCIe to Dual USB 3.0 20-pin Expansion Card with Molex Power

SKU CH-VGAB-7A3YS

Adds two USB 3.0 headers via Mini PCIe using NEC UPD720202 chipset with Molex power

  • Adds two USB 3.0 ports via Mini PCIe slot
  • Delivers up to 5 Gbps data transfer speed
  • Powered by Molex 4-pin connector from PSU
  • Uses NEC UPD720202 chipset for reliable performance
  • Compatible with Windows XP through 8 and Linux systems

Converts Mini PCIe to Dual USB 3.0 Headers

This Vszerda add-on card adapts a single Mini PCI Express slot into two USB 3.0 motherboard headers, identified as 20-pin or 19-pin connectors. It uses the NEC UPD720202 chipset and draws auxiliary power through a Molex 4-pin SP4 connector from the power supply. The board complies with PCI Express 2.0 and xHCI 1.0 specifications.

For Embedded Builds Needing Front-Panel USB 3.0

Suits embedded or micro systems that have a spare Mini PCIe slot and require additional front-panel USB 3.0 ports running at 5 Gbps. Not for builders who only have an M.2 or mSATA slot, because the card cannot work in those interfaces. Also not for setups that cannot supply a Molex 4-pin power lead from the PSU.

Mini PCIe Slot Is Mandatory

The card functions exclusively in a Mini PCI Express slot; it will not operate in an mSATA or M.2 socket. Verify the motherboard provides this exact slot type before purchase.

Highlights

  • Adds two USB 3.0 ports via Mini PCIe slot
  • Delivers up to 5 Gbps data transfer speed
  • Powered by Molex 4-pin connector from PSU
  • Uses NEC UPD720202 chipset for reliable performance
  • Compatible with Windows XP through 8 and Linux systems

Specifications

No published specifications for this item yet.

Questions about this item

What does the Vszerda card include and what must I supply?

The card converts a Mini PCIe slot to a USB 3.0 20-pin header for two ports. You must provide a Molex 4-pin (SP4) power cable from the PSU because the Mini PCIe slot lacks 5 V power.

Which header version should I check for on my motherboard?

The adapter uses a USB 3.0 20-pin header, which is the same physical connector sometimes labelled USB 3.0 19-pin. Verify your board has this header before purchase.

What does the 5 Gbps headline speed mean in practice?

The NEC UPD720202 chipset delivers up to 5 Gbps over USB 3.0 and remains backwards compatible with USB 2.0, 1.1 and 1.0 devices. Hot-swap is supported under Windows XP, Vista, 7, 8, 2003 and Linux.
