Green circuit board with silver metal bracket, two blue USB-C ports and five blue USB-A ports along the rear edge

Vszerda

Vszerda USB 3.2 PCIe Expansion Card 7 Port (2× USB-C, 5× USB-A) 10 Gbps

SKU CH-J8T3-Y5DAJ

Adds seven USB 3.2 ports — two Type-C and five Type-A — over a single PCIe x1 slot with up to 10 Gbps per port

  • Adds seven USB ports via one PCIe x1 slot
  • Up to 10 Gbps per port with 20 Gbps total bandwidth
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • Backward compatible with USB 2.0 and 1.1 devices
  • Data-only ports — no PD charging or video output

7-Port USB 3.2 Gen 2 Expansion Card

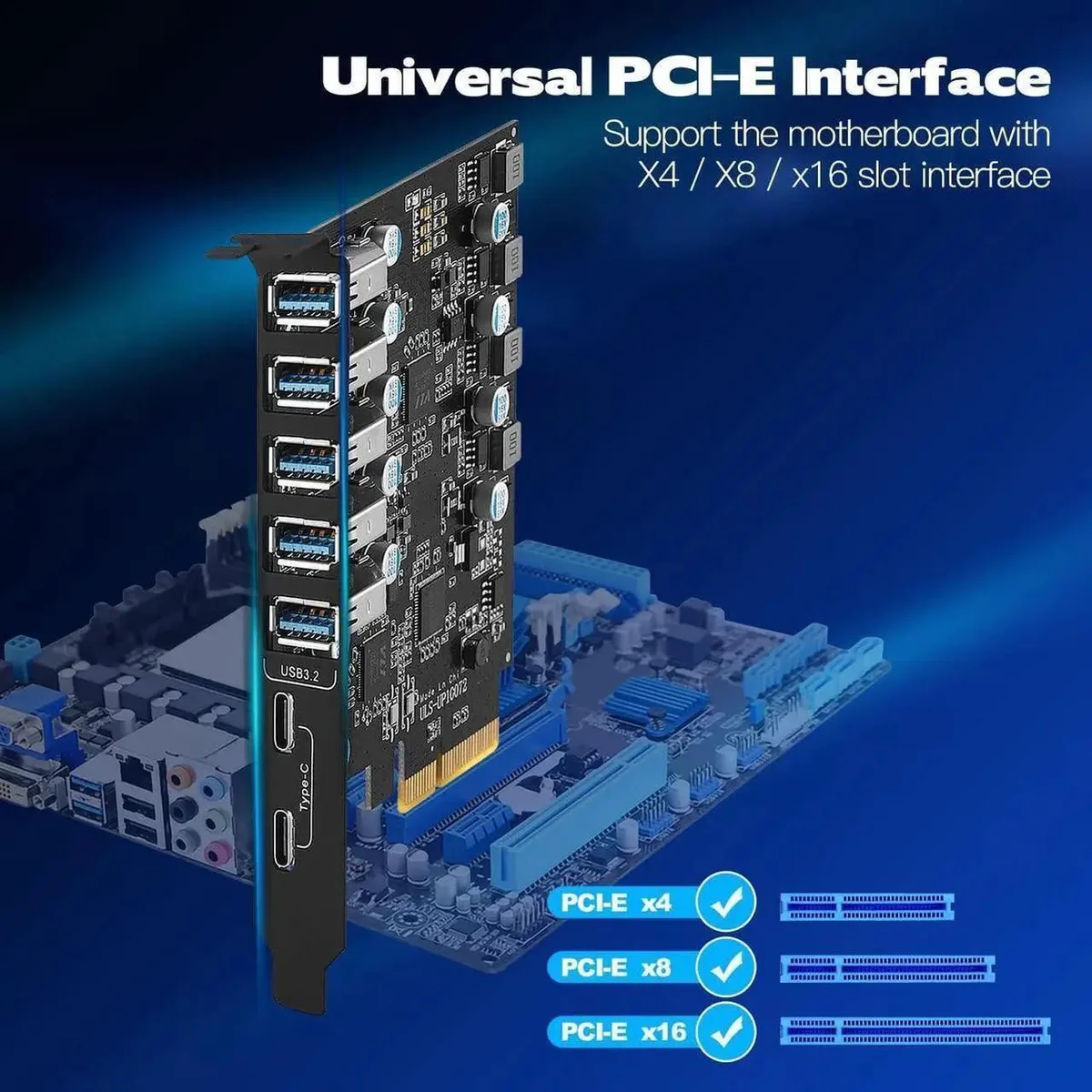

This PCIe add-in card adds seven USB 3.2 Gen 2 ports to a desktop computer. Two ports use the USB-C connector and five use USB-A. The card installs in any PCI Express x1, x4, x8 or x16 slot and draws power from the slot itself.

For adding many high-speed peripherals.

Builders who need to connect multiple external drives, cameras, VR headsets or other USB 3.x devices will benefit from the 20 Gbps total bandwidth split across two 10 Gbps controllers. The card does not support Power Delivery charging, DisplayPort alt-mode video output or Thunderbolt protocol, so users who need fast charging or video-over-USB should look at a different solution.

Bandwidth split: two 10 Gbps controllers

One USB-C port and three USB-A ports share a 10 Gbps controller, while the remaining one USB-C and two USB-A ports share a second 10 Gbps controller, giving 20 Gbps aggregate throughput. Each individual port can reach 10 Gbps when used alone.

Highlights

  • Adds seven USB ports via one PCIe x1 slot
  • Up to 10 Gbps per port with 20 Gbps total bandwidth
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • Backward compatible with USB 2.0 and 1.1 devices
  • Data-only ports — no PD charging or video output

Specifications

No published specifications for this item yet.

Questions about this item

Does the PCIe x1 link limit the 10 Gbps ports on this card?

The x1 slot carries PCIe 3.0 at about 8 Gbps, so a single 10 Gbps port can saturate the link; simultaneous use of both 10 Gbps groups will share that bandwidth.

What slot and bracket space does this Vszerda card require?

It fits any PCI Express x1, x4, x8 or x16 socket and occupies one standard rear bracket.

What is the correct order for installing the card and its driver?

Shut down the PC, unplug the power cord, wait two minutes, insert the card, then power on; Windows 10/11 and Mac OS 10.8.2+ load the driver automatically, while Windows XP/Vista/7 need the supplied driver installed after boot.
