White rectangular router with six foldable external antennas standing upright

Wavlink

Wavlink WL-WN536E4 4G LTE AC1200 wireless router

SKU CH-087B-SDM4Q MPN WL-WN536E4

A 4G LTE router with six 5 dBi antennas delivering AC1200 dual-band Wi-Fi, up to 150 Mbps cellular download and four gigabit LAN ports

  • StandardsIEEE 802.11b/g/n/a/ac
  • WiFi Generation4G LTE
  • Wireless StandardIEEE 802.11ac
  • SecurityOPEN, WPA2-PSK, WPA3/WPA2 MIX
  • WPAWPA3
  • WAN Ports1 x 10/100/1000M

Class 4G LTE

Struck-through versions exist but are not stocked here.

Wireless Speed AC1200

Struck-through versions exist but are not stocked here.

  • 4G LTE download up to 150 Mbps with Nano SIM slot
  • AC1200 dual-band Wi-Fi delivers 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
  • Six 5 dBi omnidirectional antennas cover up to 1500 sq ft
  • Three operating modes — router, 4G router, or mix — via 1000 Mbps WAN and four 1000 Mbps LAN ports
  • WPA3/WPA2 encryption secures up to 64 simultaneous device connections

Dual-Band 4G LTE Router with Nano SIM Slot

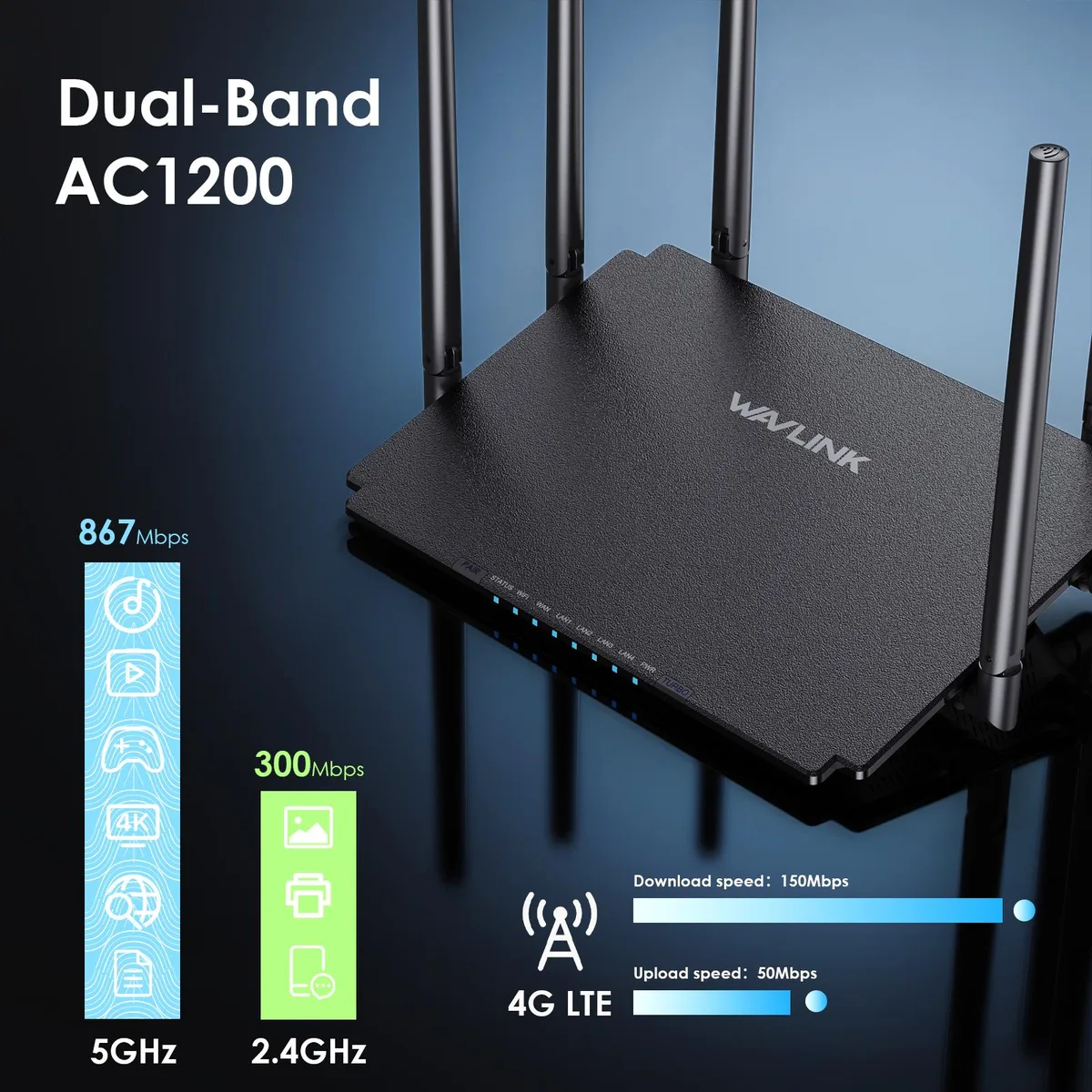

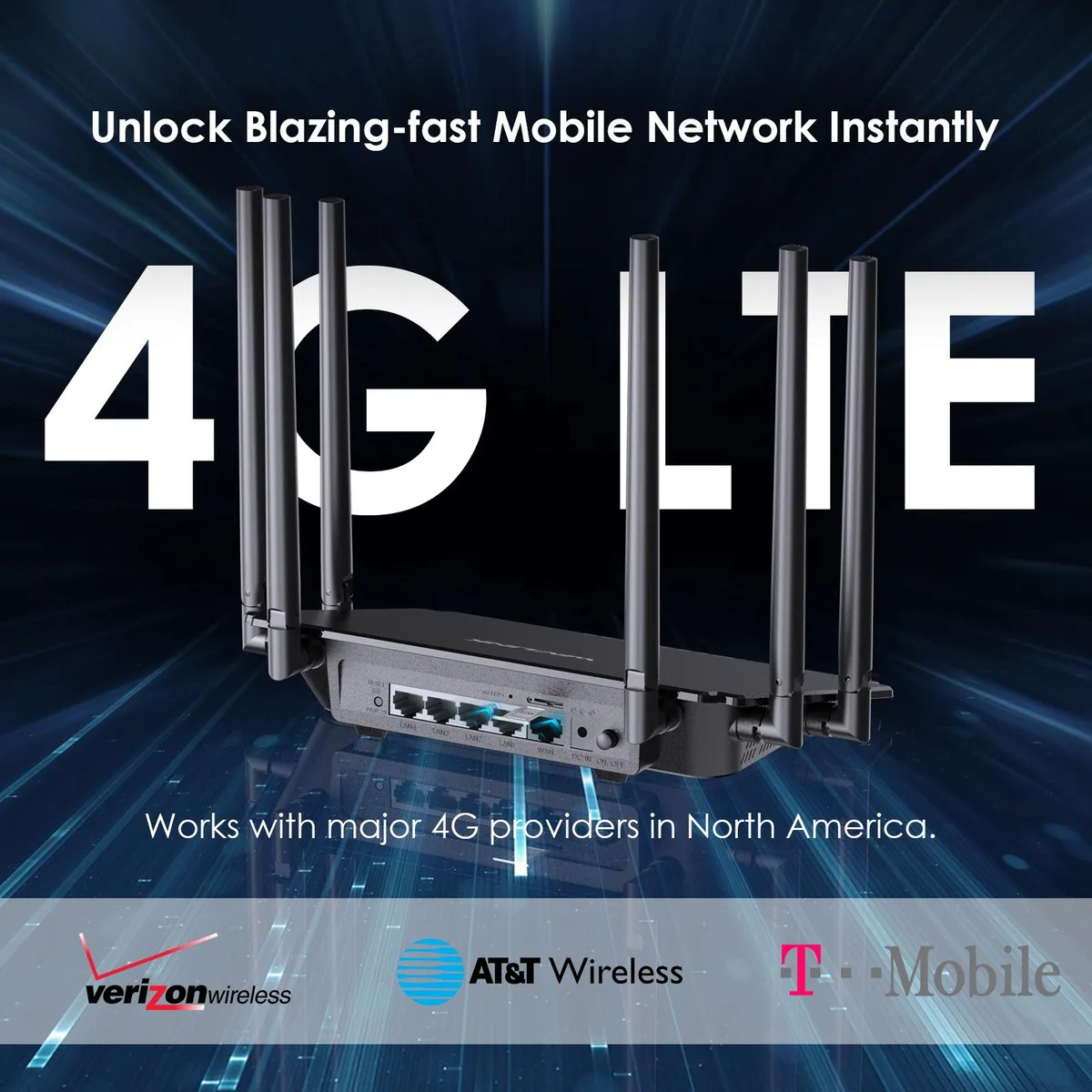

The Wavlink WL-WN536E4 is a dual-band wireless router that adds 4G LTE connectivity through a Nano SIM card slot. It delivers AC1200 wireless speeds with 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band. Six 5dBi omnidirectional antennas provide wide coverage for home or mobile use. The unit includes one Gigabit WAN port and four Gigabit LAN ports for wired connections.

Suits users needing mobile broadband backup

This router suits households and small offices that want a failover connection or a primary link where fixed-line broadband is unavailable. It supports up to 64 simultaneous device connections with WPA3/WPA2 mixed security. Buyers who require faster 4G throughput beyond 150Mbps download or 50Mbps upload should look at higher-category LTE or 5G hardware. It also does not serve users who only need a basic Wi-Fi extender without cellular capability.

LTE Cat 4 modem capped at 150Mbps download

The integrated LTE Cat 4 modem sets the maximum cellular throughput at 150Mbps down and 50Mbps up on FDD LTE networks. This figure decides whether the router meets your bandwidth needs for streaming, video calls or backup duty. Wireless performance reaches 1200Mbps combined across both bands when the backhaul can supply it. The router operates in router, 4G router or mix mode to match the available uplinks.

Highlights

  • 4G LTE download up to 150 Mbps with Nano SIM slot
  • AC1200 dual-band Wi-Fi delivers 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz
  • Six 5 dBi omnidirectional antennas cover up to 1500 sq ft
  • Three operating modes — router, 4G router, or mix — via 1000 Mbps WAN and four 1000 Mbps LAN ports
  • WPA3/WPA2 encryption secures up to 64 simultaneous device connections

Specifications

BrandWavlink
ModelWL-WN536E4
Part Number1 x WAN(1000Mbps); 4 x LAN(1000Mbps); 1 x 4G Nano SIM Card Slot; 1 x DC in
StandardsIEEE 802.11b/g/n/a/ac
WiFi Generation4G LTE
Wireless StandardIEEE 802.11ac
SecurityOPEN, WPA2-PSK, WPA3/WPA2 MIX
WPAWPA3
WAN Ports1 x 10/100/1000M
LAN Ports4 x 10/100/1000M
LEDs4 x LAN, 1x WAN, 1x WiFi, 1x Power, 1x Status
Buttons1 x Power On/Off; 1 x Reset(6s); 1x Pair(2s); 1x Turbo
Wireless Data RatesAC1200
Antenna2 x 2.4G 5dBi Omni Directional Antennas
2 x 5G 5dBi Omni Directional Antennas
2 x 4G LTE 5dBi Omni Directional Antennas
Operation ModeWireless Router Mode
Weight508g/17.9oz
Features- AC1200 Dual-Band 4G LTE Gigabit WiFi Router
- 300Mbps/2.4GHz, 867Mbps/5GHz
- 4G LTE Speed: Max 150Mbps download, 50Mbps upload (FDD LTE)
- 6 x 5dBi antennas provide omnidirectional stable signal and superior wireless/4G coverage
- Provides 10/100/1000Mbps Auto-Negotiation Ethernet WAN/LAN ports
Package Contents1 x AC1200 Dual-Band 4G LTE WiFi Router
1 x Power Adapter
1 x Ethernet Cable
1 x SIM Card Eject Pin
1 x Quick Start Guide

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the Wavlink WL-WN536E4 and do I need to buy a SIM card separately?

The package includes the router, a power adapter, an Ethernet cable, a SIM eject pin and a quick start guide. A Nano SIM card with an active data plan is not included and must be purchased from a mobile carrier.

Which 4G LTE speed tier does the WL-WN536E4 support and how does it compare to the Wi-Fi bands?

The router uses LTE Cat 4 with a maximum of 150 Mbps download and 50 Mbps upload. Wi-Fi delivers up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, so local wireless is faster than the cellular link.

What does the AC1200 rating mean for real-world throughput on this router?

AC1200 is the combined theoretical peak of 300 Mbps on 2.4 GHz plus 867 Mbps on 5 GHz. Actual speeds will be lower due to overhead, interference and the 150 Mbps 4G WAN limit when using cellular.
