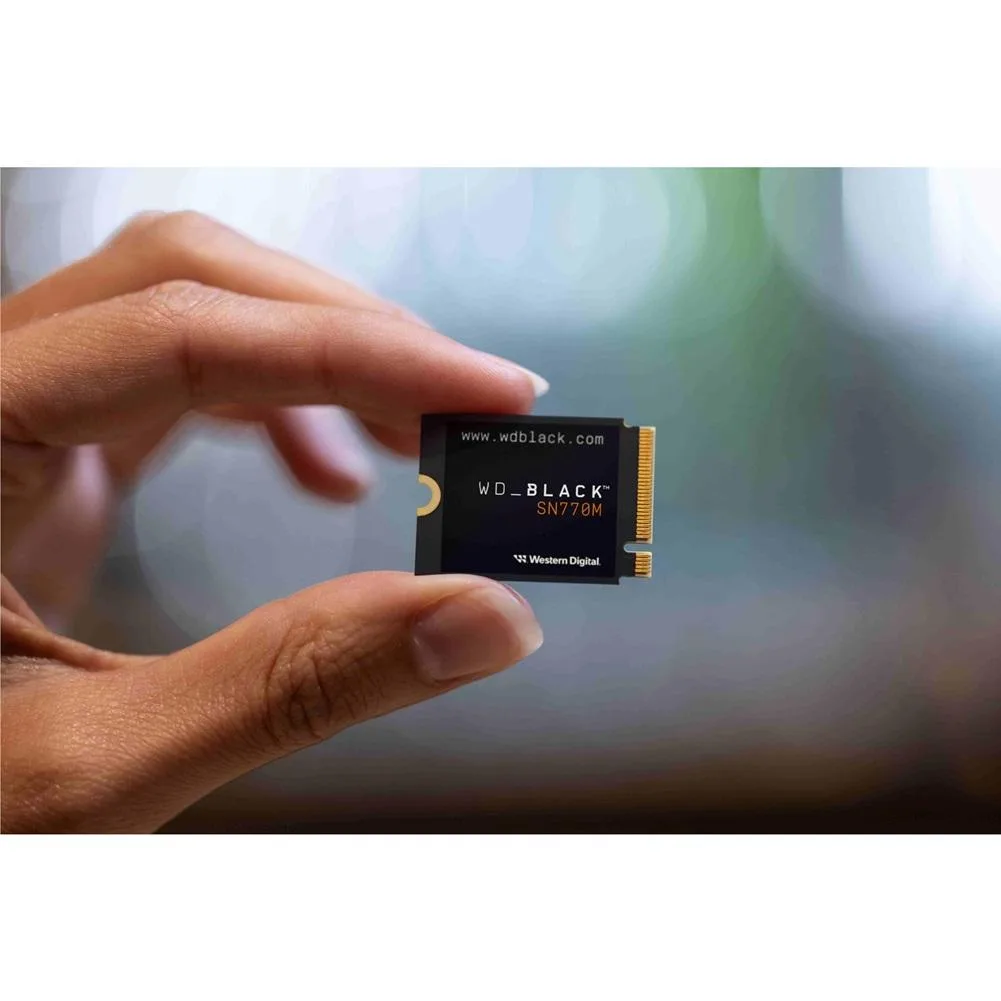

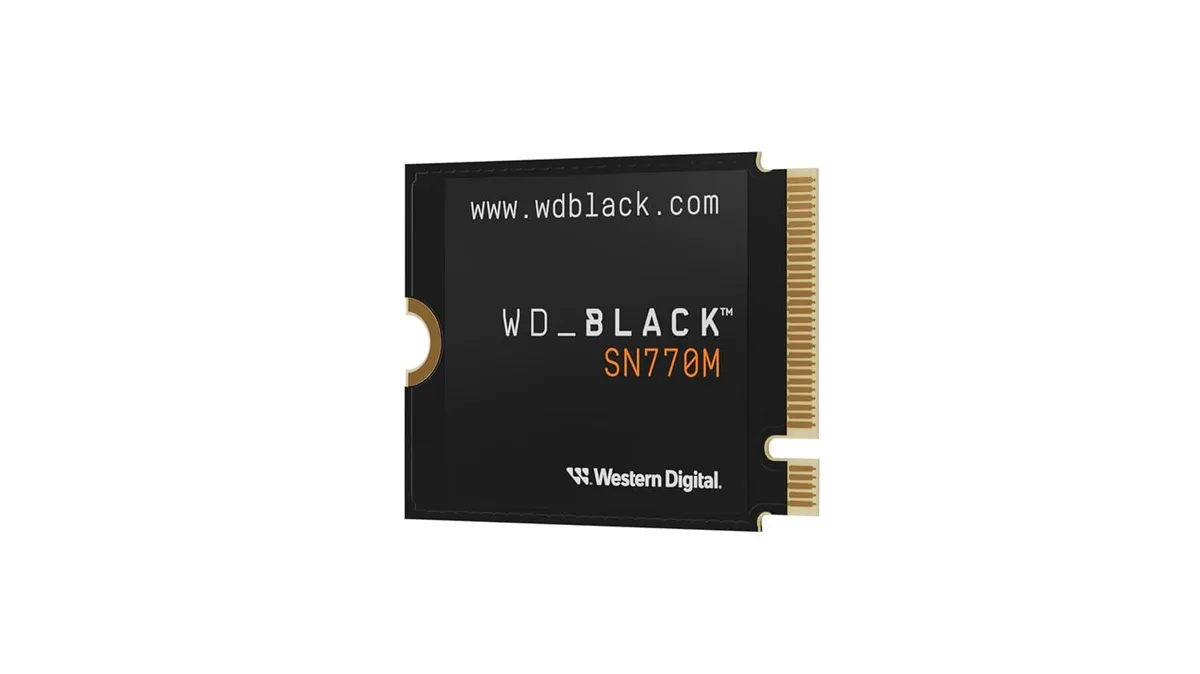

Small rectangular M.2 2230 SSD with black circuit board and silver label, .9 by 1.2 inches

Western Digital

Western Digital SN770M WDS200T3X0G 2 TB internal SSD

SKU CH-66DY-FZQ72 MPN WDS200T3X0G

M.2 2230 internal SSD delivering 2 TB capacity with sequential speeds up to 5150 MB/s read and 4850 MB/s write for notebooks and gaming consoles

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2230
  • Capacity2TB
  • InterfacePCI-Express 4.0 x4
  • Max Sequential ReadUp to 5150 MBps
  • 2 TB capacity stores large game libraries and media projects
  • Up to 5150 MB/s sequential read cuts load times for games and apps
  • Up to 4850 MB/s sequential write speeds large file saves and transfers
  • 650000 random read IOPS and 800000 random write IOPS keep multitasking responsive
  • M.2 2230 form factor fits thin notebooks and gaming consoles

Built for tight spaces

The Western Digital SN770M WDS200T3X0G is a 2 TB internal SSD in the M.2 2230 form factor. It targets notebooks and gaming consoles that cannot accommodate longer modules. The PCIe 4.0 x4 interface delivers up to 5150 MB/s read and 4850 MB/s write speeds.

Straightforward drop-in

Installation follows the standard M.2 slot procedure: insert at an angle, press down, and secure with the single screw. The 2230 length fits shallow sockets without modification. The most common issue is a missing standoff or a screw that is too short for the motherboard threading.

PCIe 4.0 x4 ceiling

Sequential throughput caps at 5150 MB/s read and 4850 MB/s write on a PCIe 4.0 x4 link. Random performance reaches 650000 IOPS read and 800000 IOPS write. On a PCIe 3.0 slot the drive will operate at the lower bus limit, reducing maximum transfer rates accordingly.

Highlights

  • 2 TB capacity stores large game libraries and media projects
  • Up to 5150 MB/s sequential read cuts load times for games and apps
  • Up to 4850 MB/s sequential write speeds large file saves and transfers
  • 650000 random read IOPS and 800000 random write IOPS keep multitasking responsive
  • M.2 2230 form factor fits thin notebooks and gaming consoles

Specifications

BrandWestern Digital
ModelSN770M
Part NumberWDS200T3X0G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2230
Capacity2TB
InterfacePCI-Express 4.0 x4
Max Sequential ReadUp to 5150 MBps
Max Sequential WriteUp to 4850 MBps
Shipping weight0.05 kg
Package size135 × 102 × 25 mm

Questions about this item

How can I confirm the drive is delivering the 5150 MB/s read and 4850 MB/s write speeds after installation?

Run a benchmark tool such as CrystalDiskMark on the NVMe drive and compare the sequential read and write results to the 5150 MB/s and 4850 MB/s figures; matching numbers indicate the PCIe 4.0 x4 link is operating correctly.

What comes in the box with the WDS200T3X0G and what must I source separately?

The package contains the M.2 2230 SSD only; you will need to provide a compatible M.2 slot with PCIe 4.0 x4 support and, if your device requires it, a retaining screw.

Should I choose the 2 TB SN770M or a different capacity for my notebook or gaming console?

The 2 TB model delivers 5150 MB/s read and 4850 MB/s write with 650000 IOPS random read and 800000 IOPS random write; select this capacity if you need that performance tier and the 2 TB space, otherwise pick a lower or higher capacity variant that matches your storage budget.
