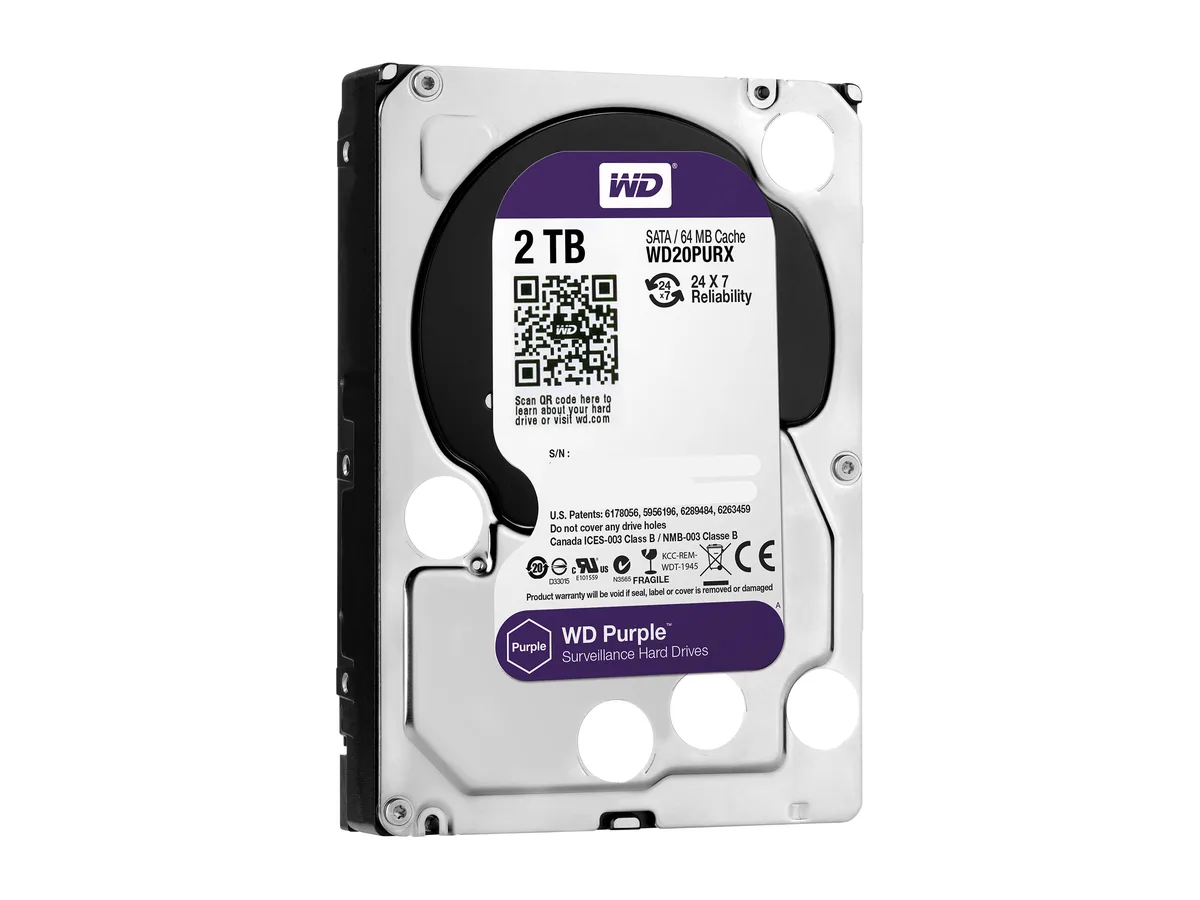

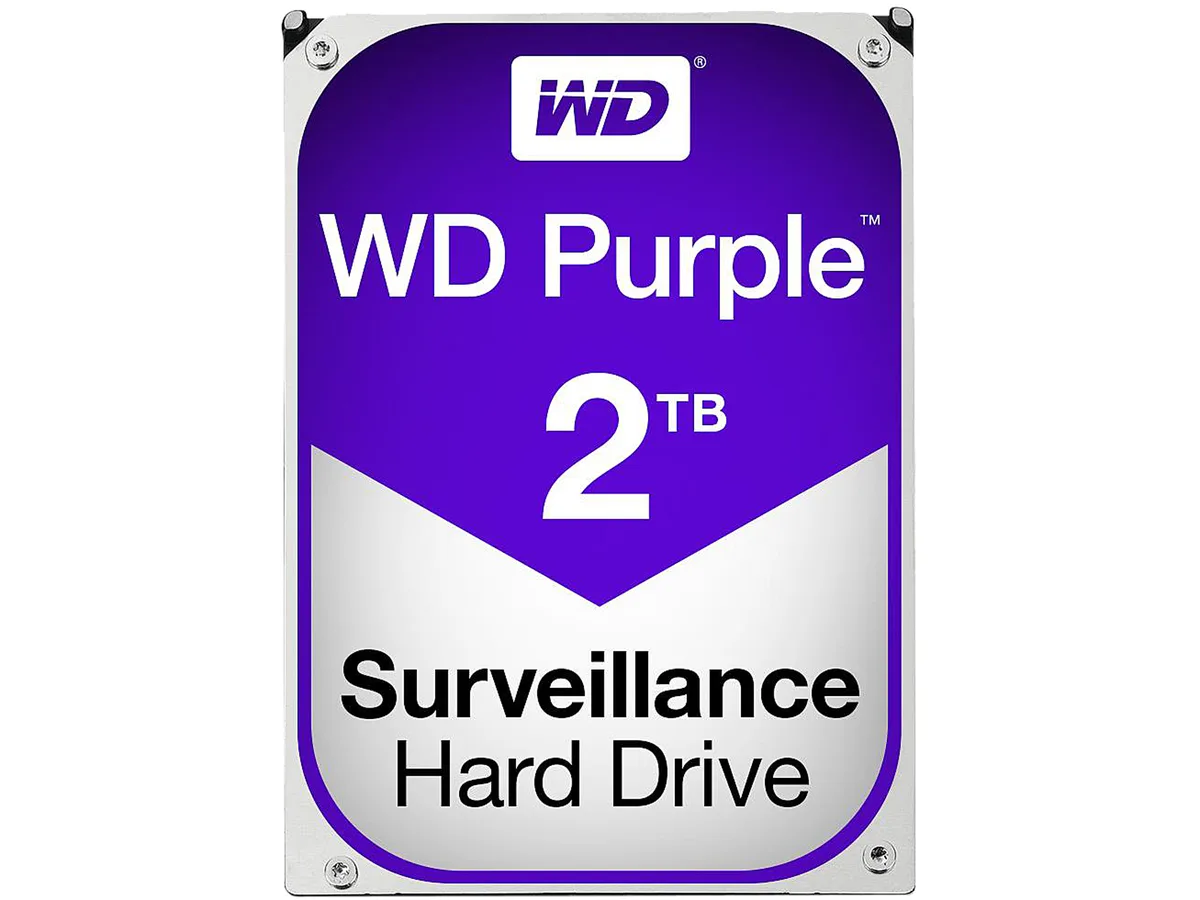

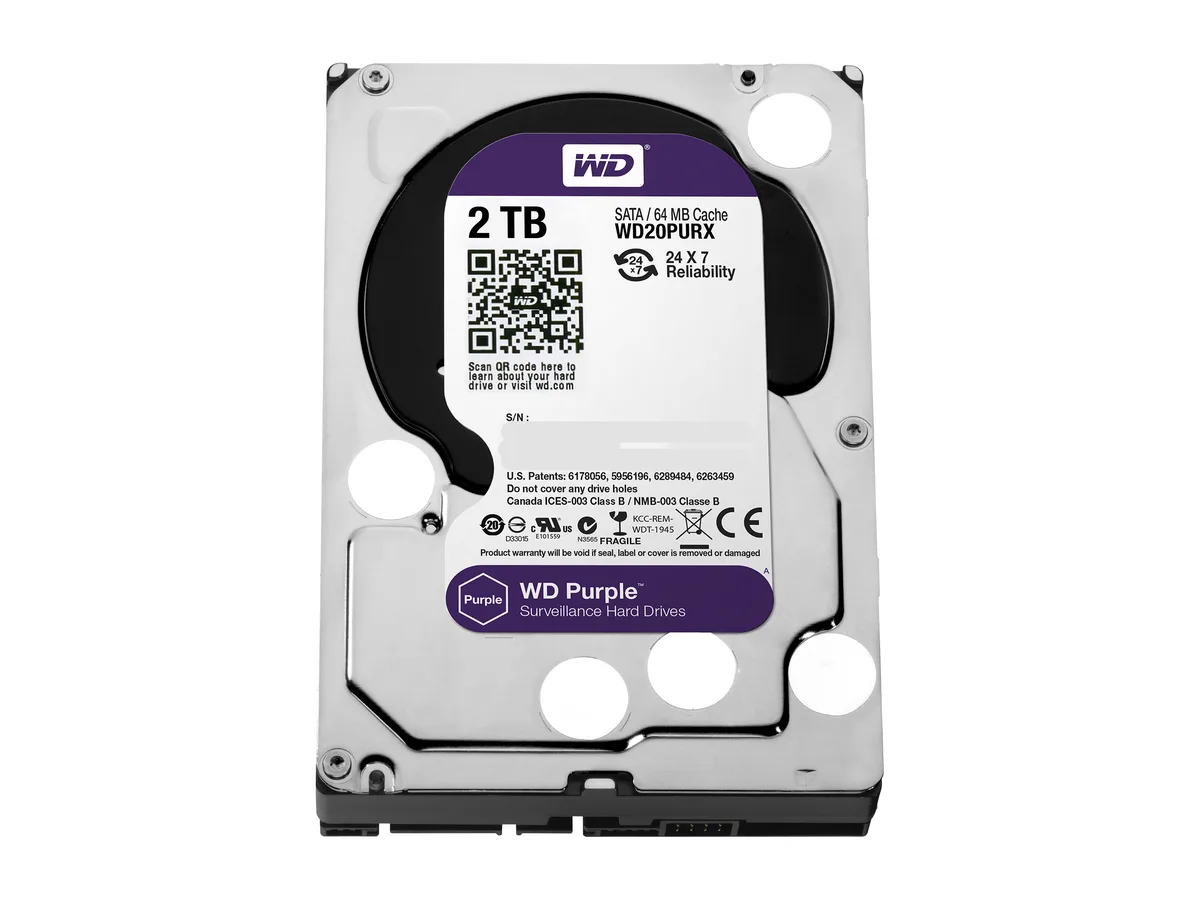

3.5 inch bare SATA hard drive with purple label

Western Digital

Western Digital WD20PURX 2TB 3.5" SATA 5400 RPM 64MB internal hard drive

SKU CH-B4XQ-6NBF2 MPN WD20PURX

A 2 TB 3.5-inch SATA drive built for 24/7 surveillance with 64 MB cache and support for up to 32 HD cameras

  • PackagingBare Drive
  • InterfaceSATA 6.0Gb/s
  • Capacity2TB
  • RPM5400 RPM
  • Cache64MB
  • FeaturesBuilt for 24/7 surveillance AllFrame technology for better p

Options 2TB

  • Built for 24/7 surveillance workloads with 180TB/year rating
  • Supports up to 32 HD cameras via AllFrame technology
  • 64MB cache and 5400 RPM tuned for write-intensive streaming
  • SATA 6.0Gb/s interface fits standard 3.5" surveillance bays
  • Engineered for multi-bay systems with TLER and ATA streaming support

WD Purple 2TB Surveillance Drive

The Western Digital WD20PURX is a 2TB 3.5 inch internal hard drive built for 24/7 surveillance workloads. It uses a SATA 6.0Gb/s interface, spins at 5400 RPM and includes a 64MB cache. AllFrame technology helps improve streaming performance across multiple cameras.

Ideal for multi-camera NVR systems

This drive suits installers running up to 32 HD cameras in write-intensive, low bit-rate environments. It supports workloads up to 180TB per year and handles more than eight drive bays. Builders needing faster random access for operating systems or general desktop storage should consider a different drive class.

Fits standard 3.5 inch drive bays

The bare drive measures 147.00mm long, 101.60mm wide and 26.10mm high, matching common surveillance chassis. A SATA data cable and a SATA power connector are required to operate it. Using this drive for surveillance recording frees up separate storage for archives or backups.

Highlights

  • Built for 24/7 surveillance workloads with 180TB/year rating
  • Supports up to 32 HD cameras via AllFrame technology
  • 64MB cache and 5400 RPM tuned for write-intensive streaming
  • SATA 6.0Gb/s interface fits standard 3.5" surveillance bays
  • Engineered for multi-bay systems with TLER and ATA streaming support

Specifications

BrandWD
SeriesPurple
ModelWD20PURX
PackagingBare Drive
InterfaceSATA 6.0Gb/s
Capacity2TB
RPM5400 RPM
Cache64MB
FeaturesBuilt for 24/7 surveillance
AllFrame technology for better performance
Designed to support up to 32 HD cameras
UsageFor Video Surveillance
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.60mm
Length (maximum)147.00mm
Shipping weight0.73 kg
Package size210 × 160 × 109 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does my system need to provide for this 3.5" SATA 6.0Gb/s drive to work?

A free 3.5" drive bay, a SATA data cable, and a SATA power connector from the power supply.

Can I mix this surveillance drive with older desktop drives in the same enclosure?

Yes, each drive runs on its own SATA link; the 5400 RPM spindle and 64MB cache operate independently of other drives.

How do I confirm the 2TB capacity and AllFrame technology are active after installation?

The BIOS or OS disk utility will show the full 2TB capacity, and SMART data will report the drive model WD20PURX with its 180TB/year workload rating.
