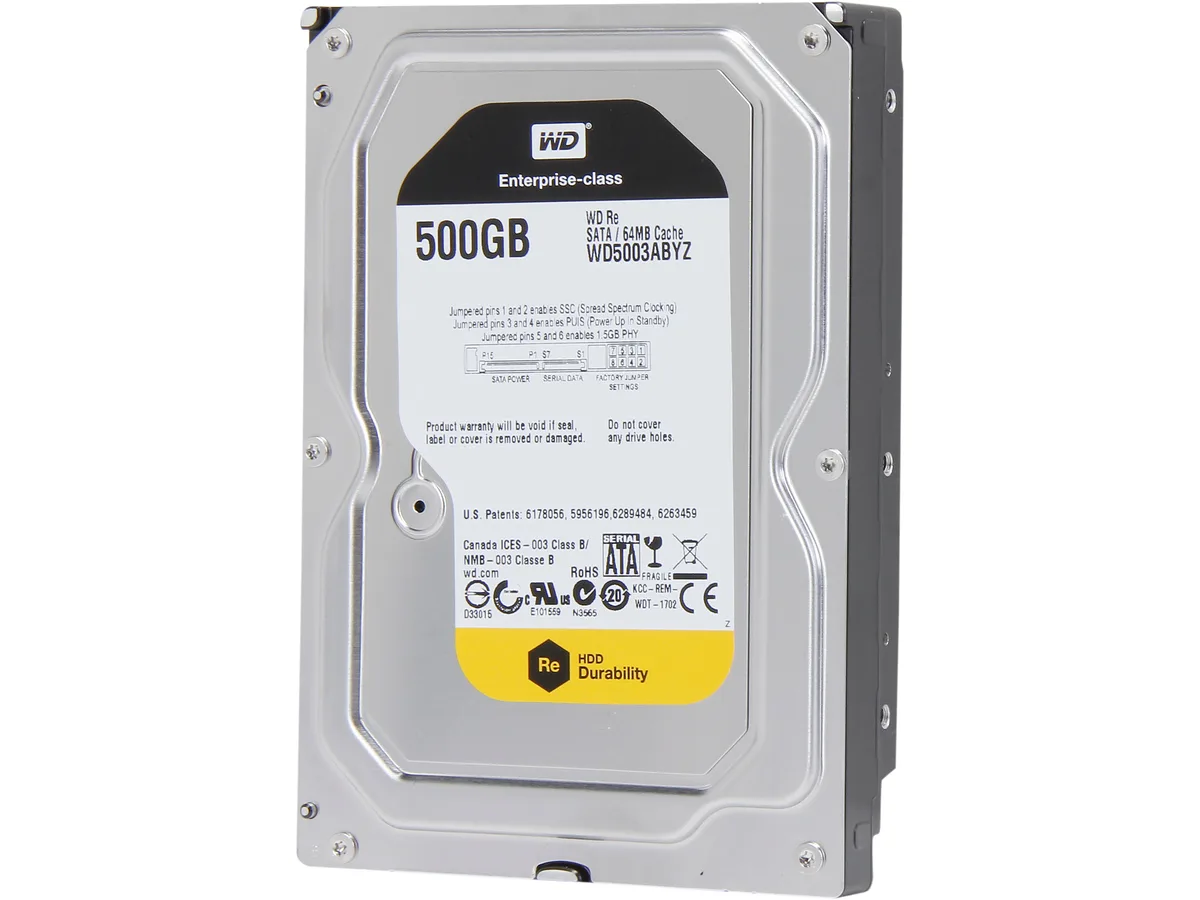

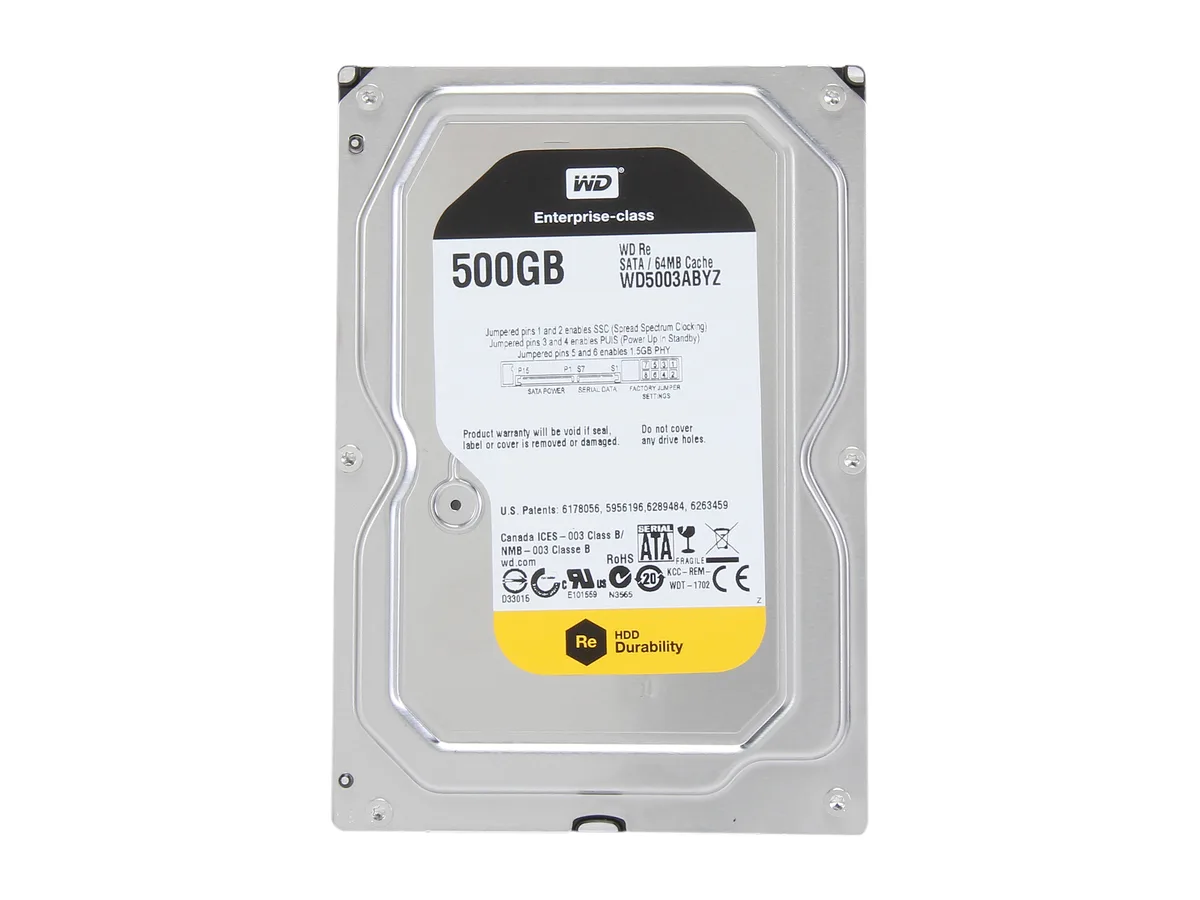

Silver 3.5-inch internal hard drive bare unit

Western Digital

Western Digital WD5003ABYZ 500GB 7200 RPM 64MB SATA 3.5" internal hard drive

SKU CH-H8J0-F2W63 MPN WD5003ABYZ

Enterprise-grade 3.5" SATA drive delivers 500GB at 7200 RPM with 64MB cache and 1.2M-hour MTBF for 24x7 workloads

  • PackagingBare Drive
  • InterfaceSATA 6.0Gb/s
  • Capacity500GB
  • NAND Flash Memory TypeEnterprise
  • RPM7200 RPM
  • Cache64MB

Options 500GB

  • Enterprise reliability with 1.2M hour MTBF for 24x7 operation
  • High performance 171MB/s sustained transfer rates for business-critical apps
  • Dual processor design delivers twice the processing power for maximum throughput
  • Enhanced RAFF vibration protection corrects linear and rotational vibration in real time
  • 500GB 7200 RPM SATA 6.0Gb/s with 64MB cache for nearline storage

Enterprise 500GB nearline drive

The WD RE series WD5003ABYZ is a 500GB 3.5 inch SATA hard drive built for 24x7 enterprise workloads. It spins at 7200 RPM with a 64MB cache and a 6.0Gb/s interface. Rated for up to 100% duty cycle, it targets servers and storage arrays needing sustained throughput.

Bare drive packaging

The package contains the hard drive only, with no screws, cables or manuals supplied. Installers must source mounting hardware and data cables separately. This keeps the box minimal but requires extra parts before the drive can be used.

Standard 3.5 inch SATA fit

The drive uses the common 3.5 inch form factor with a maximum height of 26.10mm, width of 101.60mm and length of 147.00mm. It fits standard drive bays and connects via a regular SATA data and power cable. Vibration protection helps maintain performance in multi-drive chassis where resonance can be an issue.

Highlights

  • Enterprise reliability with 1.2M hour MTBF for 24x7 operation
  • High performance 171MB/s sustained transfer rates for business-critical apps
  • Dual processor design delivers twice the processing power for maximum throughput
  • Enhanced RAFF vibration protection corrects linear and rotational vibration in real time
  • 500GB 7200 RPM SATA 6.0Gb/s with 64MB cache for nearline storage

Specifications

BrandWD
SeriesRE
ModelWD5003ABYZ
PackagingBare Drive
InterfaceSATA 6.0Gb/s
Capacity500GB
NAND Flash Memory TypeEnterprise
RPM7200 RPM
Cache64MB
FeaturesHigh capacity nearline drive
Massive capacities up to 6TB suit even the most demanding datacenter, enterprise server, or cloud storage needs.
Designed for high-intensity applications
Designed to handle workloads up to 550TB per year - among the highest workload capability of any 3.5-inch hard drive - delivering both performance and reliability to any datacenter environment.
Multi-axis shock sensor
Automatically detects the subtlest shock events and compensates to protect the data.
Vibration Protection
Enhanced RAFF technology includes sophisticated electronics to monitor the drive an
UsageFor Enterprise Storage
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.60mm
Length (maximum)147.00mm
Shipping weight0.52 kg
Package size146 × 102 × 25 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What workload rating and MTBF indicate how long the WD RE 500GB drive will last in 24x7 use?

The drive is rated for up to 100% duty cycle and carries a 1.2 million hour MTBF for continuous operation.

What sustained sequential transfer rate limits throughput during long transfers?

Sustained sequential data rates reach 171MB/s on the SATA 6.0Gb/s interface.

How much heat and power should I expect when the 7200 RPM drive runs all day?

Enhanced RAFF technology corrects linear and rotational vibration in real time while dual processors manage performance for 24x7 operation.
