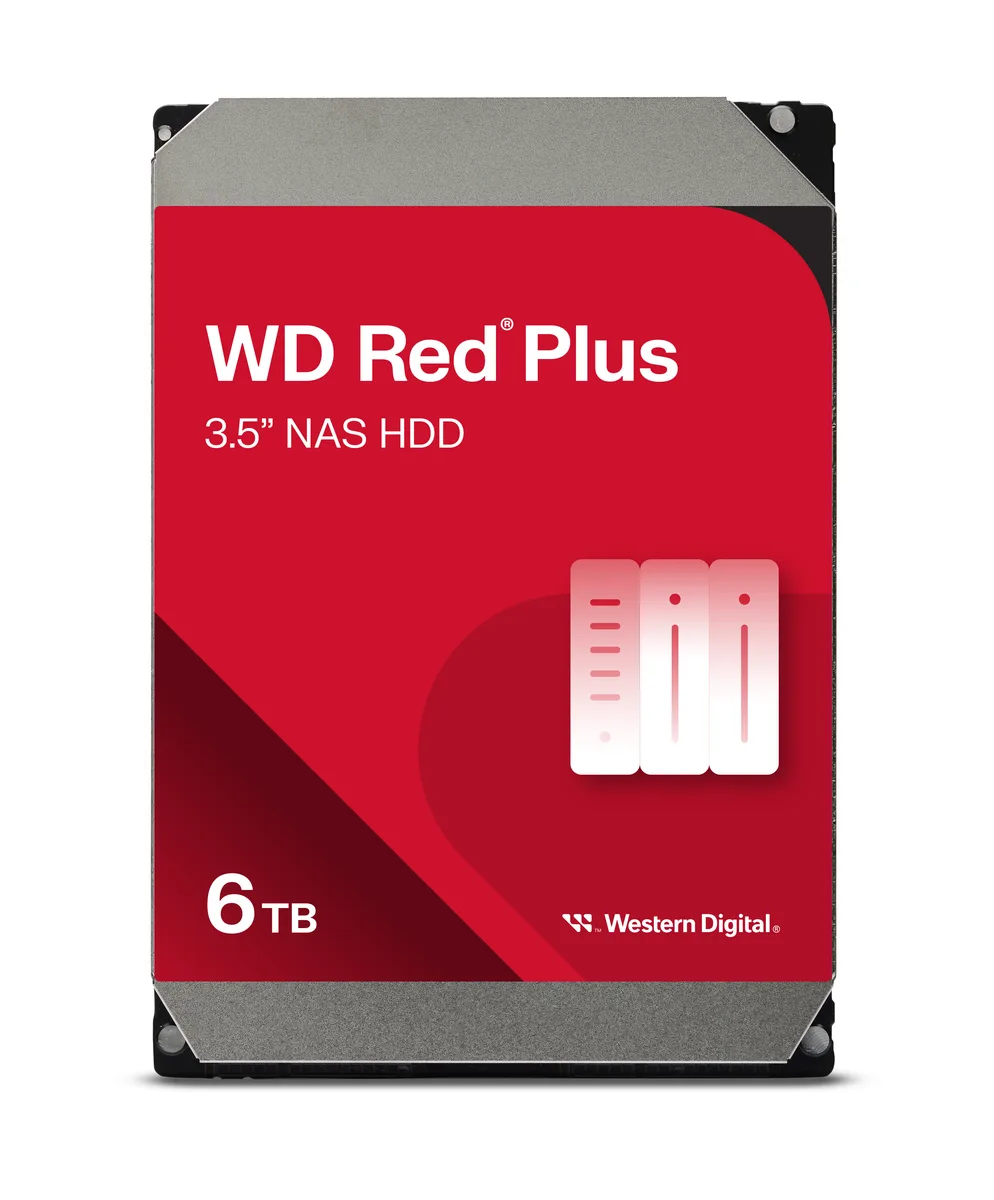

Silver rectangular 3.5 inch internal hard drive with circuit board visible on underside

Western Digital

Western Digital WD60EFPX 6TB 5400 RPM 256MB SATA 3.5" internal hard drive

SKU CH-TZ06-KS21Q MPN WD60EFPX

6 TB 3.5" SATA drive with 256 MB cache and CMR recording, built for 24/7 NAS workloads up to 180 TB per year

  • InterfaceSATA 6.0Gb/s
  • Capacity6TB
  • NAND Flash Memory TypeHard Drive
  • Recording TechnologyCMR
  • RPM5400 RPM
  • Cache256MB

Capacity 6TB

Show 4 more configurations
  • 6TB capacity stores large media libraries and backups
  • CMR recording technology provides consistent write performance for RAID arrays
  • 256MB cache accelerates frequent data access in NAS workloads
  • NASware firmware optimises drive behaviour for 24/7 multi-bay operation
  • 180TB/year workload rating supports intensive small-business storage demands

6 TB CMR drive for NAS

The Western Digital WD60EFPX is a 6 TB desktop hard drive built with CMR recording technology and a 256 MB cache. It spins at 5400 RPM over a SATA 6.0 Gb/s interface and is designed for 24/7 operation in small to medium NAS enclosures. The 3.5 inch form factor fits standard drive bays in home-office and business systems.

Check SATA ports and bay clearance

Verify that your NAS or server has a free SATA data port and a matching power connector before ordering. The drive measures 147.00 mm long, 101.60 mm wide and 26.10 mm high, so confirm the bay can accept a 3.5 inch unit of that height. Ensure the system firmware and RAID controller support drives up to 6 TB capacity.

Low power draw for cooler operation

WD Red Plus drives are engineered to use less power than previous models, helping to reduce heat inside a fully populated chassis. The 5400 RPM spindle speed keeps acoustic output low during continuous background workloads. NASware firmware tunes drive parameters for RAID environments, promoting stable performance and lower operating temperatures in 24/7 use.

Highlights

  • 6TB capacity stores large media libraries and backups
  • CMR recording technology provides consistent write performance for RAID arrays
  • 256MB cache accelerates frequent data access in NAS workloads
  • NASware firmware optimises drive behaviour for 24/7 multi-bay operation
  • 180TB/year workload rating supports intensive small-business storage demands

Specifications

BrandWD
SeriesRed Plus
ModelWD60EFPX
InterfaceSATA 6.0Gb/s
Capacity6TB
NAND Flash Memory TypeHard Drive
Recording TechnologyCMR
RPM5400 RPM
Cache256MB
FeaturesTackle Intensity with WD Red® Plus
Packed with power to handle NAS environments in home offices up to medium-sized businesses, WD Red Plus is ideal for helping protect, archive, and share valuable data in NAS systems with up to 8 bays. WD Red Plus NAS drives give you the flexibility, versatility, and confidence you need for your important home and work files.
For Small or Medium Businesses
WD Red® Plus drives deliver the speed and capacity business customers require to store, protect, and share increasing amounts of data with a growing number of NAS users. For NAS systems with up to
UsageFor NAS systems
Form Factor3.5"
Height (maximum)26.10mm
Width (maximum)101.60mm
Length (maximum)147.00mm
Shipping weight0.57 kg
Package size146 × 102 × 25 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the WD60EFPX come with any cables or mounting hardware in the box?

The drive is supplied as a bare 3.5" unit; SATA data and power cables plus mounting screws are not included and must be sourced separately.

Should I choose this 6TB model or a different capacity from the 1-14TB range for my NAS?

Pick the 6TB version when you need roughly six terabytes of CMR storage in a single bay; scale up to 14TB for more capacity per slot or down to 1TB for lighter workloads.

What does the 180 TB/yr workload rating mean for daily use in my NAS?

It means the drive is engineered to sustain a total of 180 terabytes of read and write activity per year in a 24/7 multi-bay NAS without exceeding its design limits.
