WMtec
WMtec X99 server motherboard LGA2011-3 dual Xeon DDR3 ECC 256GB
Dual-socket X99 board with four-channel DDR3 ECC memory up to 256 GB, three PCIe 3.0 x16 slots, M.2 NVMe support and dual gigabit LAN
- CPU TypeDual Intel Xeon
- Dual Xeon support scales multi-threaded workloads
- Four-channel DDR3 ECC REG up to 256 GB
- Three PCIe 3.0 x16 slots for GPU or storage add-in cards
- NVMe M.2 plus eight SATA 3.0 ports for fast storage arrays
- Dual Realtek RTL8111H Gigabit LAN for redundant network links
Dual LGA2011-3 Server Board

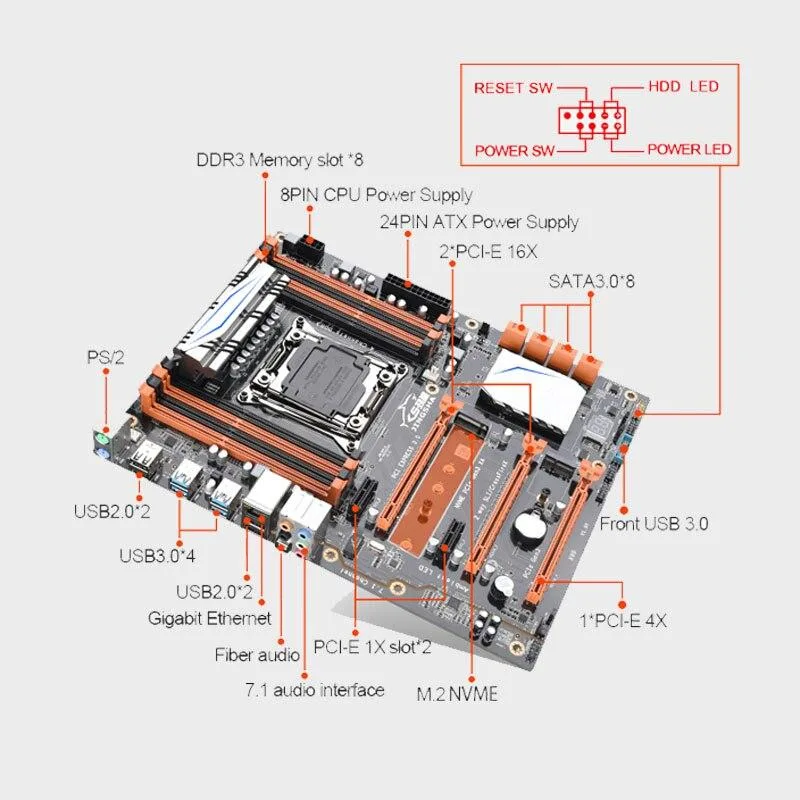

The WMtec X99 motherboard accepts two Intel Xeon processors in LGA2011-3 sockets and provides eight DDR3 slots that support ECC REG memory up to 256 GB. It includes three PCIe 3.0 x16 slots, two PCIe x1 slots, one M.2 NVMe interface, eight SATA 3.0 ports, dual Realtek RTL8111H Gigabit LAN and a Realtek ALC898 7.1-channel audio codec. Power is delivered through a 24-pin ATX and an 8-pin ATX connector.
Suits Multi-Threaded Workloads
This board targets builders who need high core counts and large memory capacity for virtualization, rendering or compute clusters. The eight DDR3 channels and dual-socket design favour memory-heavy tasks. Buyers who want more storage connectivity than eight SATA ports and a single M.2 NVMe slot should look elsewhere. Systems requiring newer memory types or different socket standards are not compatible.
Eight DDR3 ECC REG Slots Up To 256 GB
The memory subsystem is the decisive specification: eight slots accept DDR3 ECC REG modules at 800, 1066, 1333 or 1600 MHz with a 256 GB ceiling; 1866 MHz modules are not supported. Matching this requirement determines whether the board fits the intended build.
Highlights
- Dual Xeon support scales multi-threaded workloads
- Four-channel DDR3 ECC REG up to 256 GB
- Three PCIe 3.0 x16 slots for GPU or storage add-in cards
- NVMe M.2 plus eight SATA 3.0 ports for fast storage arrays
- Dual Realtek RTL8111H Gigabit LAN for redundant network links
Specifications
| CPU Type | Dual Intel Xeon |
|---|
Questions about this item
Should I populate all eight DDR3 slots or start with four modules?
The board has eight DDR3 slots in a quad-channel layout; filling all eight lets you reach the 256 GB ceiling, while four modules still run in quad-channel but at half the maximum capacity.
What does the 256 GB DDR3 limit mean for a dual-Xeon build?
With two supported Xeon E5 v3 CPUs installed, the four memory channels can address up to 256 GB of registered ECC DDR3 at 800, 1066, 1333 or 1600 MHz; 1866 MHz modules are not supported.

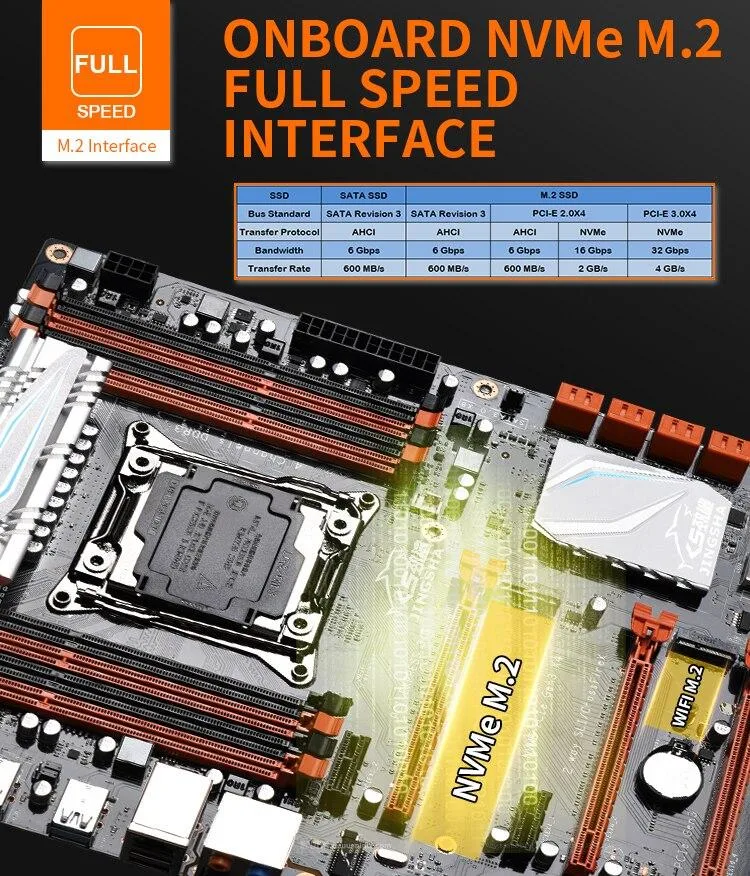

How fast will an M.2 NVME drive actually run on the single M.2 slot?
The single M.2 NGFF slot is wired for PCIe 3.0 x4, so an NVME SSD can deliver full PCIe 3.0 x4 bandwidth rather than being limited to SATA speeds.
