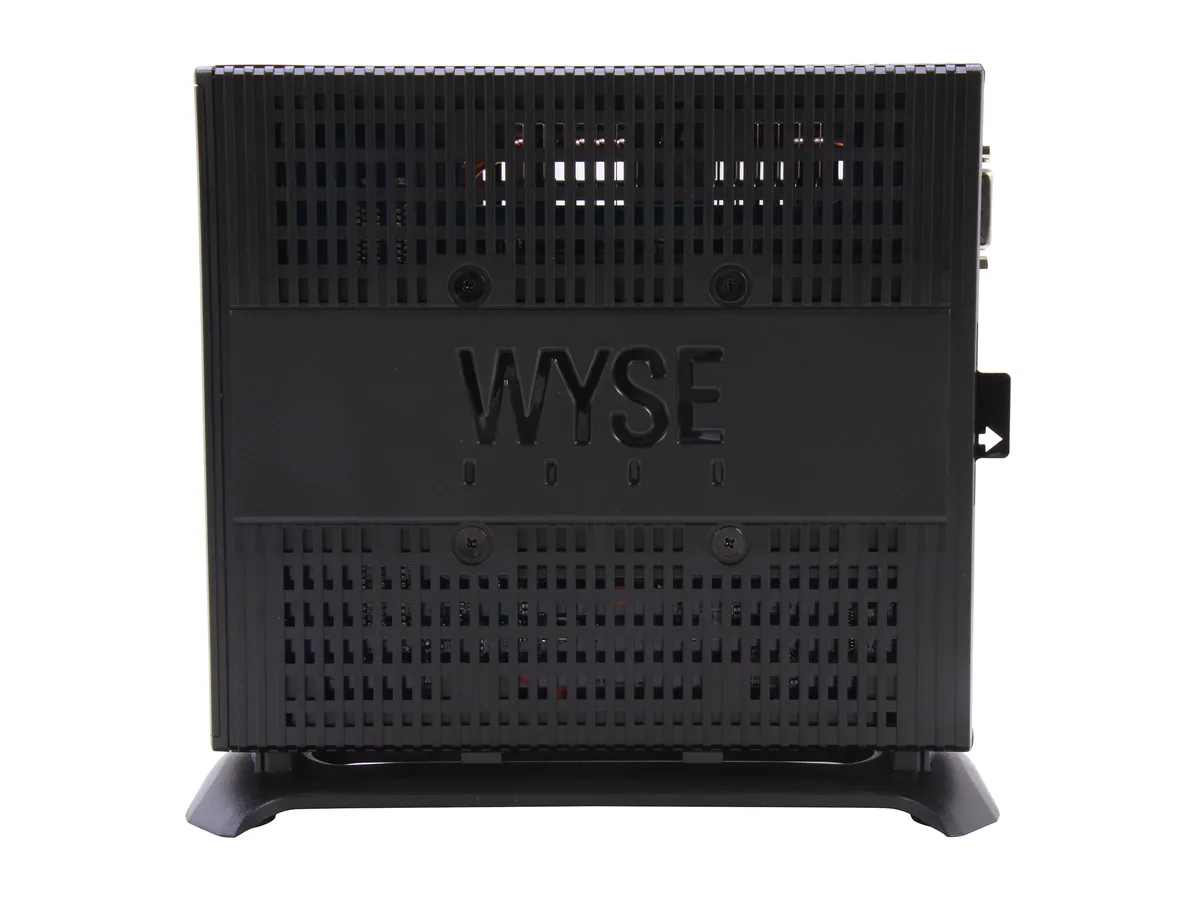

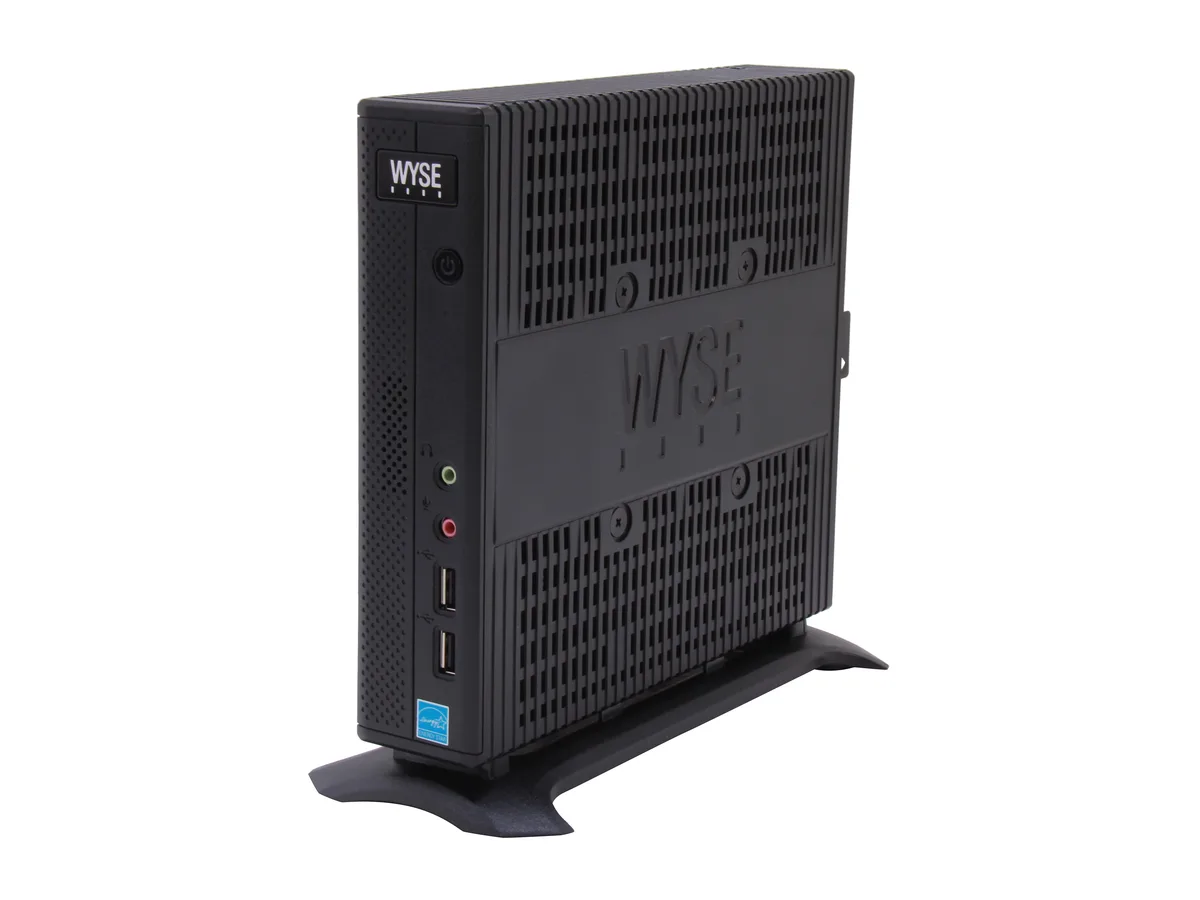

Compact thin-client box in matte black finish with front USB ports and rear DisplayPort DVI and Ethernet connections

Wyse Technology

Wyse Technology 909686-01L AI edge system dual-core AMD G-T56N 1.65GHz 2GB RAM 4GB flash

SKU CH-R859-95NY4 MPN 909686-01L

Thin client with dual-core AMD G-T56N 1.65GHz processor, 2GB DDR3 RAM, 4GB flash, AMD Radeon HD 6320 graphics, Gigabit Ethernet, six USB ports including two USB 3.0.

  • TypeThin Client
  • CPU TypeDual-core AMD G-T56N 1.65GHz
  • Installed Memory Size2GB RAM / 4GB Flash
  • Memory TypeDDR3
  • Hard Drive (Installed)No Hard Drive
  • GPU TypeAMD Radeon HD 6320 graphics (integrated with APU)
  • Dual-core AMD G-T56N 1.65GHz processor delivers responsive thin-client performance
  • AMD Radeon HD 6320 integrated graphics handles 2D, 3D and HD video workloads
  • 2GB DDR3 RAM and 4GB flash storage provide a solid-state foundation with no moving parts
  • Six USB ports including two SuperSpeed USB 3.0 and four USB 2.0 connect peripherals flexibly
  • Energy Star 5.0 Phase V compliant 100-240 VAC power supply ensures efficient worldwide operation

Wyse Z90D7 thin client with AMD G-T56N

The Wyse 909686-01L is a compact thin client built around a dual-core AMD G-T56N processor running at 1.65 GHz. It ships with 2 GB of DDR3 memory and 4 GB of internal flash storage. Integrated AMD Radeon HD 6320 graphics drive one DisplayPort and one DVI-I port, with a DVI-to-VGA adapter included. Six USB ports provide peripheral connectivity and Gigabit Ethernet handles wired networking. Windows Embedded Standard 7 comes pre-installed.

Suited for managed VDI endpoints.

This unit fits environments that boot from a central image and rely on server-side compute, such as call centres, kiosks or classroom labs. The 2 GB memory and 4 GB flash limit local application installs and data retention. Buyers who need more system memory, internal drive bays or a current operating system should look at other form factors. The legacy OS also restricts compatibility with modern management agents.

2 GB DDR3 soldered memory decides capacity

The installed 2 GB of DDR3 is not upgradeable, so the device cannot exceed this amount. Any deployment that requires additional RAM for local caching, multiple concurrent sessions or heavier client-side processing will hit a hard ceiling. Verify that your virtual desktop profile fits within this limit before committing to volume rollout.

Highlights

  • Dual-core AMD G-T56N 1.65GHz processor delivers responsive thin-client performance
  • AMD Radeon HD 6320 integrated graphics handles 2D, 3D and HD video workloads
  • 2GB DDR3 RAM and 4GB flash storage provide a solid-state foundation with no moving parts
  • Six USB ports including two SuperSpeed USB 3.0 and four USB 2.0 connect peripherals flexibly
  • Energy Star 5.0 Phase V compliant 100-240 VAC power supply ensures efficient worldwide operation

Specifications

BrandWyse
Model909686-01L (Z90D7)
TypeThin Client
CPU TypeDual-core AMD G-T56N 1.65GHz
Installed Memory Size2GB RAM / 4GB Flash
Memory TypeDDR3
Hard Drive (Installed)No Hard Drive
GPU TypeAMD Radeon HD 6320 graphics (integrated with APU)
Ethernet Controller10/100/1000 Gigabit Ethernet

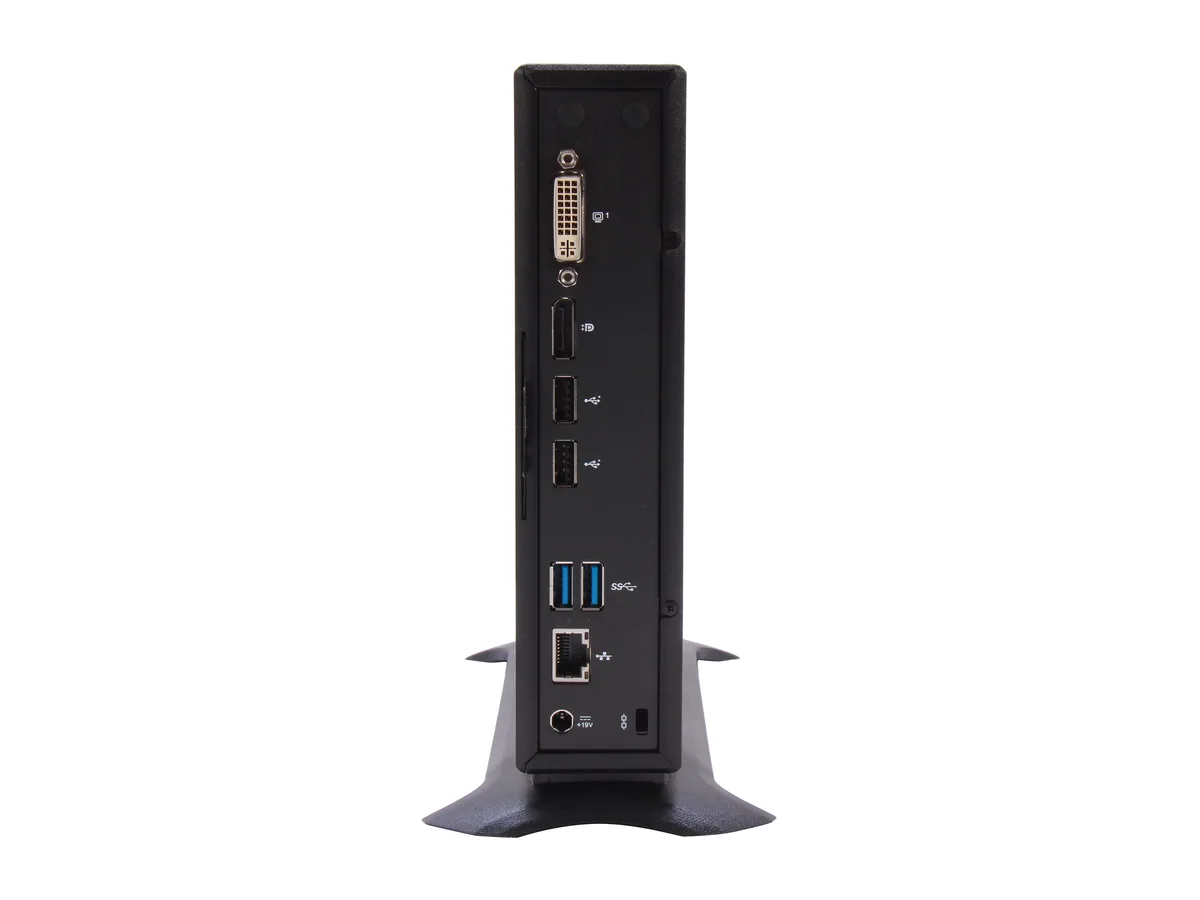

Other portsOne DisplayPort (optional DisplayPort to DVI-D adapter available, sold separately)
One DVI-I port, DVI to VGA (DB-15) adapter included
Six total USB ports: Four USB 2.0 ports (two front, two rear) and two SuperSpeed USB 3.0 ports on rear (backwards-compatible with USB 2.0)
Audio:
Output: 1/8-inch mini jack, full 16-bit stereo, 48KHz sample rate; Digital audio out, internal mono speaker
Input: 1/8-inch mini jack, 8-bit microphone
SecurityBuilt-in Kensington security slot (cable sold separately)
Operating SystemWindows Embedded Standard 7
Power CharacteristicsWorldwide auto-sensing 100-240 VAC, 50/60 Hz. Energy Star V.5.0 Phase V compliant power supply
Dimensions8.85" x 7.87" x 1.85"
Weight2.42 lbs.
FeaturesExtreme performance: Dual-core AMD G-T56N 1.65 GHz processor provides incredible speed and power
Brilliant graphics: The best 2D or 3D graphics, HD video and embedded Windows applications
Full-featured: Integrated Windows Media Player and Internet Explorer, plus full support for embedded Windows applications.
Shipping weight4.29 kg
Package size505 × 284 × 168 mm

Questions about this item

What resolution does the Gigabit Ethernet port actually deliver?

The 10/100/1000 Gigabit Ethernet controller negotiates up to 1000 Mbps; real-world throughput depends on the switch, cabling and network load.

What are the exact dimensions for the VESA mount?

The unit measures 8.85" x 7.87" x 1.85" and weighs 2.42 lbs; it includes a built-in Kensington security slot for cable locking.

How do I install Windows Embedded Standard 7 and what step is often missed?

The OS ships pre-installed on the 4GB flash; the common oversight is skipping the first-boot licence activation and write-filter configuration.
