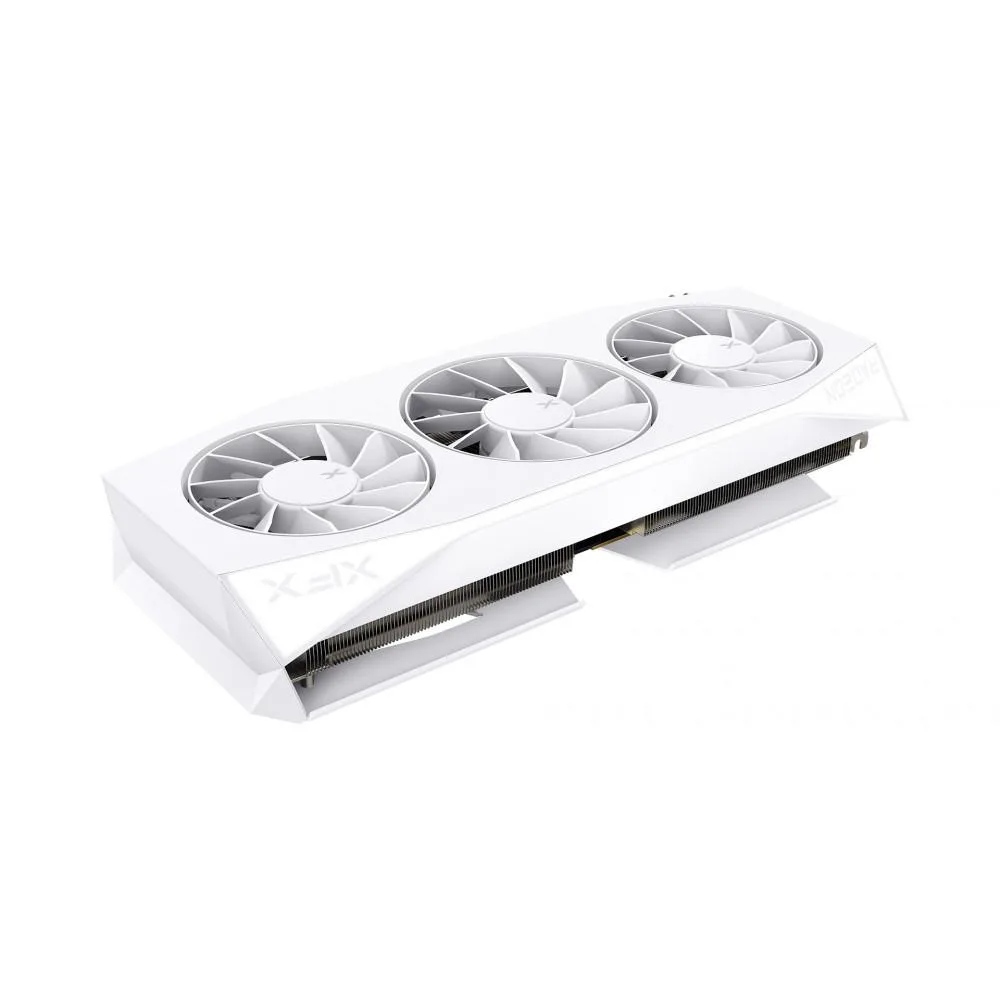

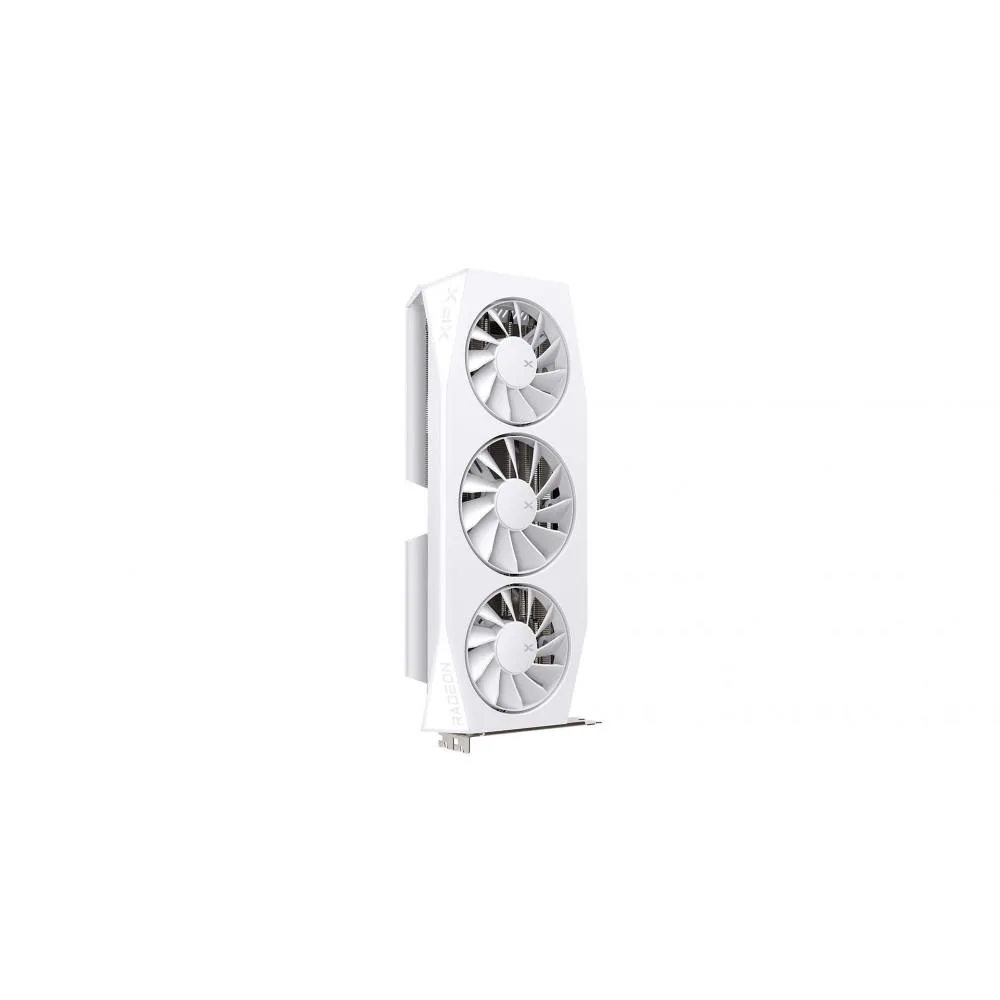

White triple-fan graphics card with LED light bar, triple-slot cooler, 320mm length

XFX

XFX Mercury Radeon RX 9060 XT OC 16GB graphics card

SKU CH-B02D-V6SD2

White triple-fan Radeon RX 9060 XT with 16GB GDDR6, 3320 MHz boost clock and RDNA 4 architecture for 1440p gaming

  • InterfacePCI Express 5.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Core Clock1900 MHz

Option RX 9060 XT 16GB

  • RX 9060 XT 16GB
  • RX 9060 XT 8GB

Struck-through versions exist but are not stocked here.

Edition Mercury OC White

  • Mercury
  • Mercury OC
  • Mercury OC White
  • SWIFT OC WHITE
  • SWIFT Dual Fan

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR6 memory supports high-resolution textures
  • Boost clock up to 3320 MHz for responsive 1440p gaming
  • Triple-fan cooler with PTM7950 TIM keeps temperatures in check
  • PCIe 5.0 x16 interface provides high-speed system connectivity
  • White shroud with LED light bar adds a clean aesthetic

Built for 1440p Gaming with RDNA 4

The XFX Mercury Radeon RX 9060 XT OC 16GB targets gamers and content creators who want strong 1440p performance. It uses the AMD RDNA 4 architecture with 2048 stream processors, 32 compute units and 32 ray tracing cores. The card delivers up to 27.2 TFLOPS of FP32 compute power through a PCI Express 5.0 x16 interface.

Thermals Noise and Power in Normal Use

A triple-fan cooler with a large heatsink and PTM7950 thermal interface material keeps temperatures controlled. The white fanshroud houses three fans that move air through the triple-slot frame measuring 320mm by 127mm by 53mm. PCIe 5.0 x16 supplies slot power before the auxiliary connectors provide the rest.

Accessories and Software Impact

The box contains the graphics card and an XFX LED light bar for optional illumination. AMD Adrenalin software enables FidelityFX Super Resolution 4 upscaling and HYPR-RX latency reduction. One HDMI 2.1 and two DisplayPort 2.1 outputs drive up to three displays simultaneously.

Highlights

  • 16 GB GDDR6 memory supports high-resolution textures
  • Boost clock up to 3320 MHz for responsive 1440p gaming
  • Triple-fan cooler with PTM7950 TIM keeps temperatures in check
  • PCIe 5.0 x16 interface provides high-speed system connectivity
  • White shroud with LED light bar adds a clean aesthetic

Specifications

BrandXFX
SeriesEagle
InterfacePCI Express 5.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Core Clock1900 MHz
Game Clock2780 MHz
Boost Clock3320 MHz
Shader Clock1900 MHz
Stream Processors2048
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support3
HDMI1
DisplayPort2
ColorWhite
Max Resolution7680 x 4320
RoHS CompliantYes
CoolerTriple Fans
Recommended PSU Wattage450W
Power Connector8-Pin
Card Dimensions (L x H)320 x 127 mm
Slot Width2 Slots

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install this triple-slot, 320mm-long card into my case?

Align the PCIe 5.0 x16 edge connector with the motherboard slot, secure the two rear brackets, and connect the required 12VHPWR power cable. The step often missed is verifying 320mm clearance and triple-slot space before mounting.

What maintenance will the PTM7950 thermal interface and triple fans need later?

The PTM7950 phase-change material is rated for the card’s lifespan and does not require replacement. Periodically clean dust from the three fans and large heatsink fins using compressed air to maintain airflow.

At what point does the 128-bit memory bus become the bottleneck in sustained 1440p loads?

The 128-bit GDDR6 interface delivers 322 GB/s bandwidth. In extended 1440p sessions with high-resolution textures, this bus width saturates before the GPU compute units, limiting further frame-rate gains.
