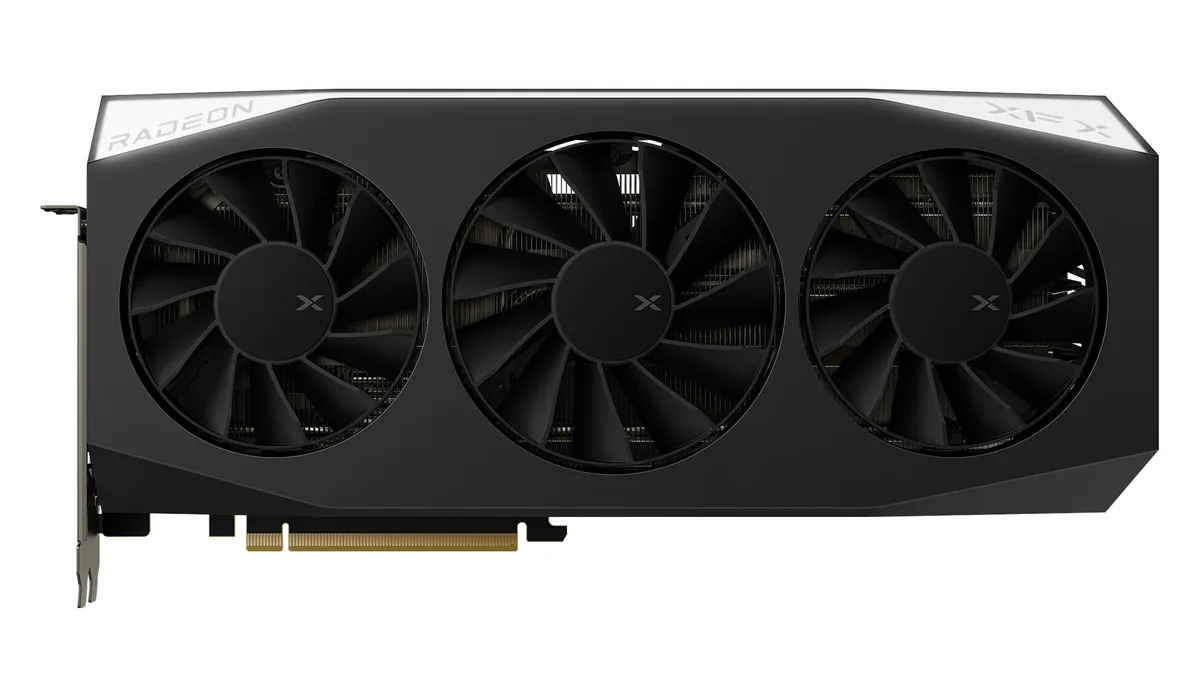

XFX Mercury Radeon RX 9060 XT 16GB graphics card with triple fans and silver finish

XFX

XFX Mercury RX-96TMERCBA Radeon RX 9060 XT 16GB graphics card

SKU CH-EB88-A06C3 MPN RX-96TMERCBA

Delivers 16 GB GDDR6 on a 128-bit bus with 2048 stream processors and a 3320 MHz boost clock for 1440p gaming

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Core Clock1900 MHz

Option RX 9060 XT 16GB

  • RX 9060 XT 16GB
  • RX 9060 XT 8GB

Struck-through versions exist but are not stocked here.

Edition Mercury

  • Mercury
  • Mercury OC
  • Mercury OC White
  • SWIFT OC WHITE
  • SWIFT Dual Fan

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR6 memory supports high-resolution textures
  • Boost clock reaches 3320 MHz for responsive gaming
  • PCI Express 5.0 x16 interface provides high bandwidth
  • Triple-fan cooler manages 182 W thermal design power
  • HDMI 2.1 and two DisplayPort 2.1 outputs drive up to three displays

Mercury 16GB RDNA 4 card

The XFX Mercury Radeon RX 9060 XT is a PCI Express 5.0 graphics card built on AMD RDNA 4 architecture. It targets gamers and creators who want 16GB of GDDR6 memory on a 128-bit bus for 1440p gaming and content workloads.

16GB 128-bit GDDR6 headroom

The 16GB frame buffer at 20 Gbps effective clock handles modern 1440p titles with high texture settings and supports multi-monitor productivity across three displays. The 128-bit interface and 2048 stream processors limit sustained 4K raster performance in memory-heavy scenes.

182W TDP triple-fan cooling

A 182W thermal design power is managed by a triple-fan cooler that keeps GPU temperatures controlled under typical gaming loads. The card requires a 550W or greater power supply and fits standard PCIe x16 slots in Windows 10 or 11 64-bit and Linux systems.

Highlights

  • 16 GB GDDR6 memory supports high-resolution textures
  • Boost clock reaches 3320 MHz for responsive gaming
  • PCI Express 5.0 x16 interface provides high bandwidth
  • Triple-fan cooler manages 182 W thermal design power
  • HDMI 2.1 and two DisplayPort 2.1 outputs drive up to three displays

Specifications

BrandXFX
SeriesMercury
ModelRX-96TMERCBA
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Core Clock1900 MHz
Game Clock2780 MHz
Boost Clock3320 MHz
Stream Processors2048
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
Multi-Monitor Support3
HDMI1 x HDMI 2.1
DisplayPort2 x DisplayPort 2.1
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Operating Systems SupportedSupported operating systems include Linux®, Windows 10/11. 64-bit operating system required. ‍👉Check gaming pc with Windows 11 Pro
Thermal Design Power182W
System RequirementsPCI Express compatible motherboard with one x16 PCIe slot
Minimum 550W or greater power supply
- NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements.
Minimum 8GB of system memory. Recommended 16GB.
Recommended PSU Wattage550W
Power Connector8-Pin
Form FactorATX
Max GPU Length320 mm
Card Dimensions (L x H)32 x 12.7 x 5.3 cm
Slot Width2 Slots
Shipping weight1.77 kg
Package size445 × 226 × 124 mm

Questions about this item

Will the PCI Express 5.0 x16 interface run at full speed on my PCIe 4.0 motherboard?

The card is backward compatible and will operate at PCIe 4.0 x16 speeds on a 4.0 motherboard, delivering full performance for the Radeon RX 9060 XT GPU.

How can I verify the boost clock of 3320 MHz is being reached during gameplay?

Use AMD Software or a monitoring overlay to observe the GPU frequency; it should report up to 3320 MHz under load when power and thermal limits allow.

Does the box include the two 8-pin power cables needed for the 182W TDP?

The package contains the Mercury triple-fan graphics card and documentation; power cables are supplied with your power supply unit, not the card.
