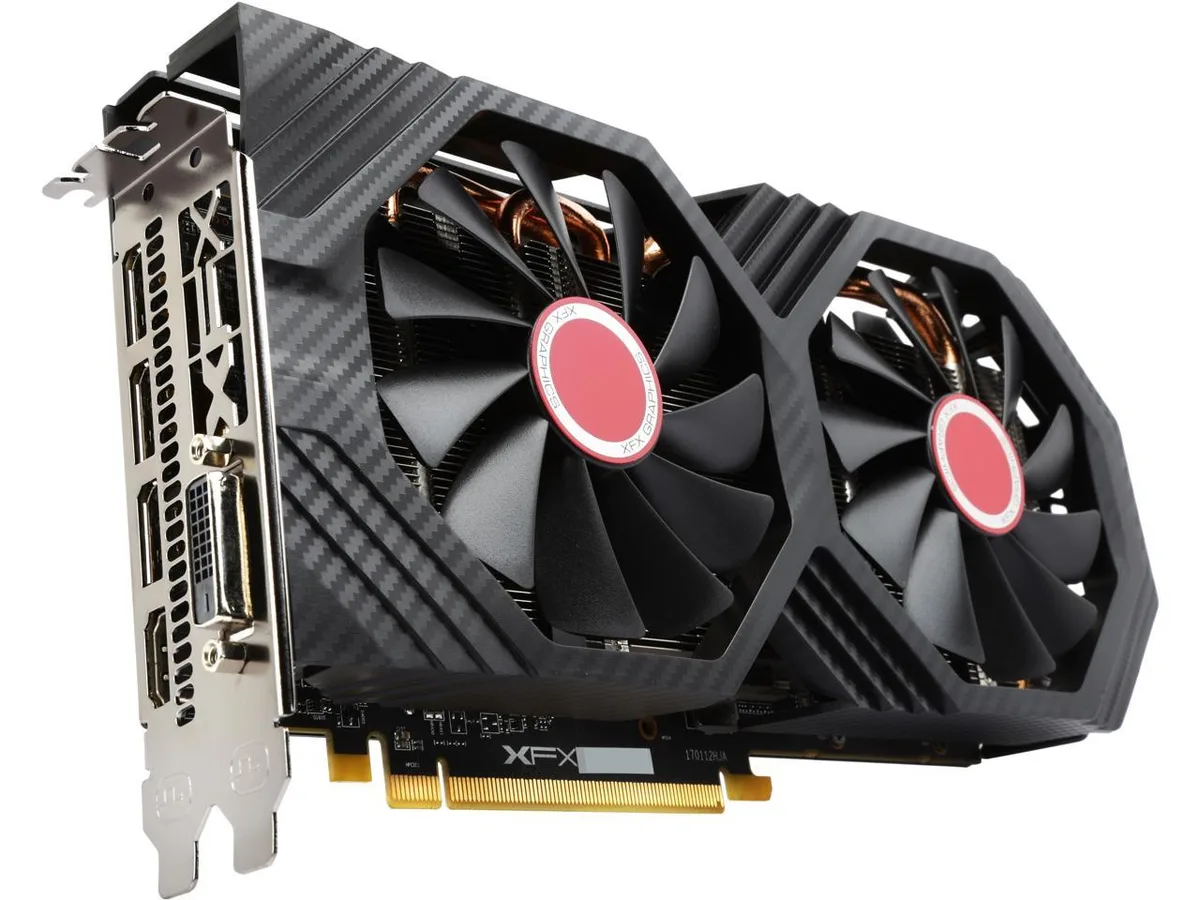

XFX Radeon RX 580 XXX Edition graphics card with dual-fan cooler and metal backplate

XFX

XFX Radeon RX 580 XXX Edition 8GB GDDR5 graphics card

SKU CH-DYK1-1Y335

An 8 GB GDDR5 graphics card with 2304 stream processors, a 256-bit bus and core clocks of 1366 MHz or 1386 MHz OC+, driving up to 4096×2160 via HDMI 2.0b, three DisplayPort 1.4 and one DL-DVI-D

  • InterfacePCI Express 3.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 500 Series
  • GPURadeon RX 580
  • Core ClockTrue: 1366 MHz OC+: 1386 MHz
  • Stream Processors2304
  • 8GB GDDR5 memory on a 256-bit bus for high-bandwidth 1440p gaming
  • Boost clock up to 1386 MHz for responsive frame rates in DirectX 12 titles
  • 2304 stream processors deliver strong compute performance for modern workloads
  • Three DisplayPort 1.4 and HDMI 2.0b outputs drive 4K displays at 4096 x 2160
  • PCI Express 3.0 interface ensures broad motherboard compatibility

8GB GDDR5 graphics card

The XFX Radeon RX 580 XXX Edition delivers 8GB of GDDR5 memory across a 256-bit bus for 1080p and 1440p gaming. It targets players who want solid frame rates in modern titles without moving to a higher tier. The Polaris architecture provides 2304 stream processors and DirectX 12 support. A dual BIOS switch lets you choose between True and OC+ clock profiles.

Dual BIOS clock profiles

The True profile runs the core at 1366 MHz with memory at 8 GHz while the OC+ profile raises them to 1386 MHz and 8.1 GHz respectively. Switching between them changes boost behaviour and power draw without software installation. This gives immediate control over noise and thermals for different workloads. No extra utilities are required to toggle the setting.

PCI Express 3.0 and multi-display outputs

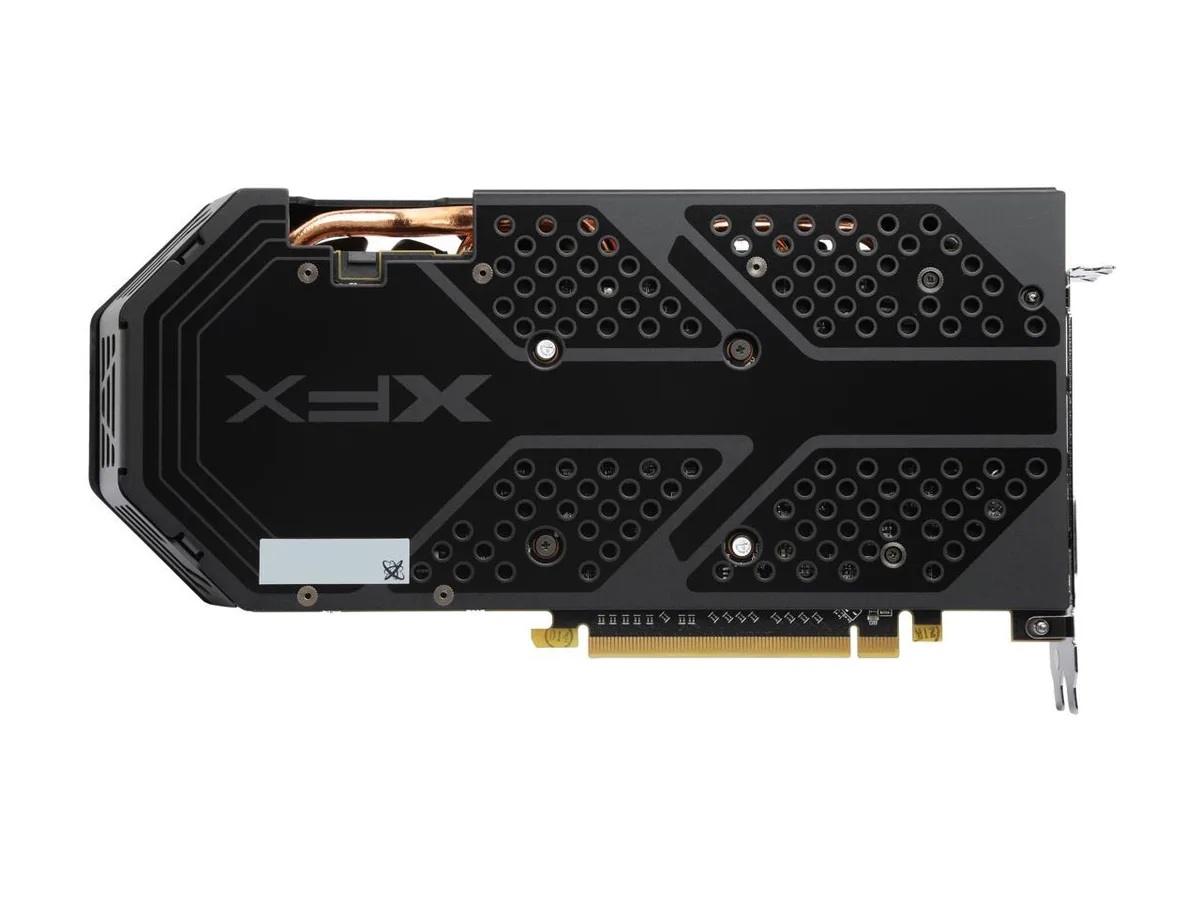

A PCI Express 3.0 x16 slot provides the host connection while one HDMI 2.0b, three DisplayPort 1.4 and one dual-link DVI-D port drive up to four monitors. The mix covers modern high-refresh panels and legacy displays simultaneously. Eyefinity spans the desktop across all outputs at up to 4096 x 2160 resolution. The metal backplate adds rigidity and protects the PCB during handling.

Highlights

  • 8GB GDDR5 memory on a 256-bit bus for high-bandwidth 1440p gaming
  • Boost clock up to 1386 MHz for responsive frame rates in DirectX 12 titles
  • 2304 stream processors deliver strong compute performance for modern workloads
  • Three DisplayPort 1.4 and HDMI 2.0b outputs drive 4K displays at 4096 x 2160
  • PCI Express 3.0 interface ensures broad motherboard compatibility

Specifications

BrandXFX
ModelRX-580P8DFD6
InterfacePCI Express 3.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 500 Series
GPURadeon RX 580
Core ClockTrue: 1366 MHz OC+: 1386 MHz
Stream Processors2304
Effective Memory ClockTrue: 8 GHz OC+: 8.1 GHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.5
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
DVI1 x DL-DVI-D
Max Resolution4096 x 2160
RoHS CompliantYes
Eyefinity SupportYes
CrossFireX SupportYes
TrueAudio SupportYes
Virtual Reality ReadyYes
Thermal Design Power185W
System RequirementsMinimum Power Supply Requirement: 500W XFX Recommended Power Supply: XFX 550W PSU
Power Connector8-Pin
Dual-Link DVI SupportedYes
Features3 Years with Registration at XFX Microsoft Windows 10 Support FinFET 14nm Technology GCN 4th Generation Architecture AMD Virtual Super Resolution (VSR) AMD Relive AMD Chill AMD LiquidVR Technology AMD FreeSync 2 Technology AMD Frame Rate Target Control (FRTC) AMD Eyefinity multi-display technology AMD App Acceleration AMD XConnect Ready AMD Radeon Crimson Software AMD WattMan AMD APP Acceleration Dolby TrueHD and DTS-HD Master Audio Support Up to 6 displays supported (may require the use of MST Hubs) Advanced GDDR5 Memory Technology Vulkan and Mantle Ready. Next Generation APIs OpenC
Max GPU Length270 mm
Card Dimensions (L x H)10.63" x 4.88"
Slot Width2 Slots
Package ContentsAccessories: 8-pin to 6-pin power cable Driver Disk Installation Guide Installation DVD

Questions about this item

Will the 8 GB GDDR5 frame buffer need replacing for newer games?

The 8 GB GDDR5 memory is fixed on the board and cannot be upgraded; if a title demands more video memory you would need a different card.

What limits the Radeon RX 580 during long gaming sessions?

The GPU hits its 1386 MHz OC+ boost ceiling and the 256-bit memory bus saturates at 8.1 GHz, so sustained load is capped by those clocks.

How loud and hot does the card get when it runs all day?

The Polaris core on 14 nm FinFET draws enough power to need active cooling; expect the dual fans to spin up noticeably under continuous 1386 MHz load.
