Black dual-fan Radeon graphics card with silver accents

XFX

XFX RX-56XT6DF46 Radeon RX 5600 XT graphics card

SKU CH-90HD-A80DW MPN RX-56XT6DF46

Refurbished Radeon RX 5600 XT graphics card with 6GB GDDR6 memory, 1620 MHz boost clock and PCI Express 4.0 interface

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Boost Clock1620 MHz
  • Stream Processors2304
  • Boost clock of 1620 MHz drives high frame rates
  • 6 GB GDDR6 on a 192-bit bus feeds the GPU at 14 Gbps
  • PCI Express 4.0 interface doubles host bandwidth headroom

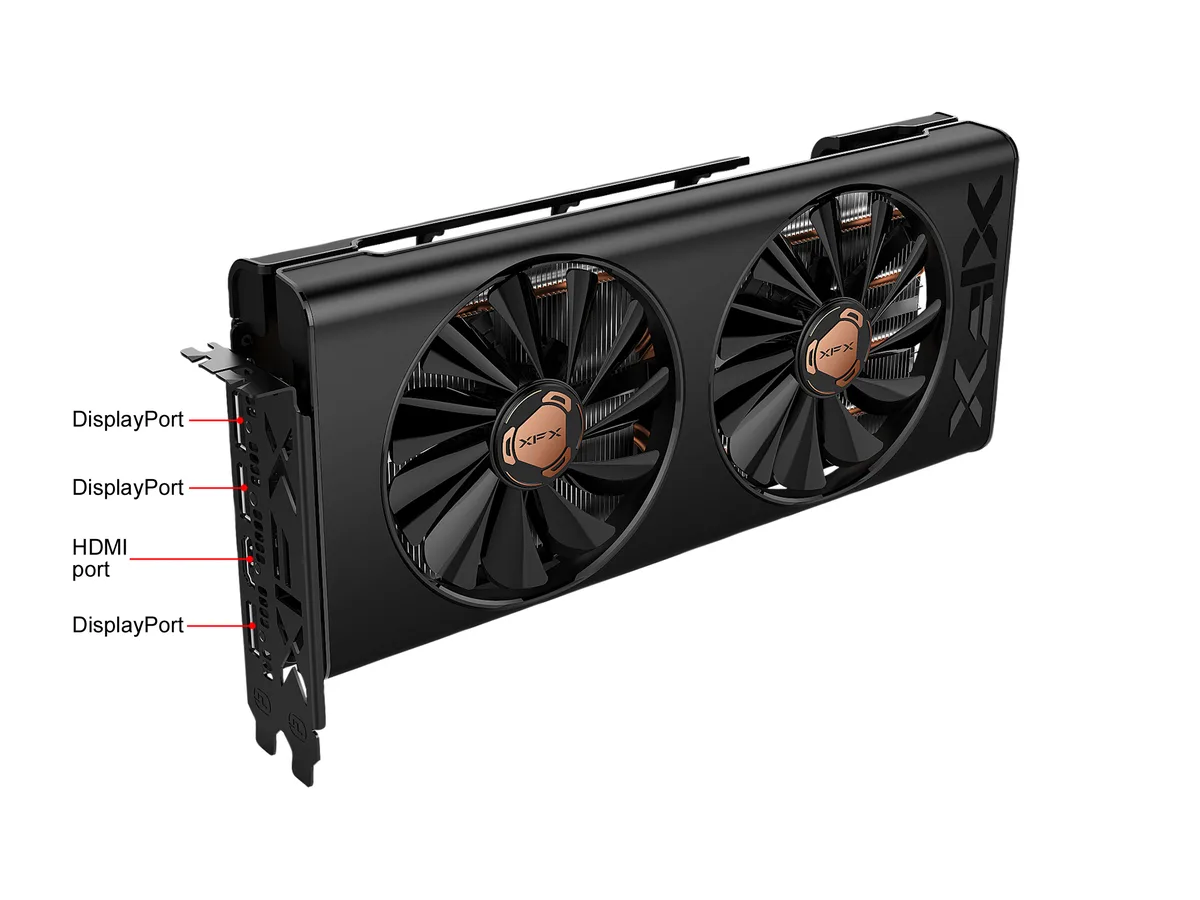

  • Three DisplayPort 1.4 and one HDMI 2.0b ports support 7680 x 4320 multi-monitor setups
  • RDNA architecture on 7 nm process with 2304 stream processors enables DirectX 12 and VR readiness

XFX Radeon RX 5600 XT 6GB GDDR6

The XFX Radeon RX 5600 XT is a PCI Express 4.0 graphics card built on AMD RDNA architecture. It delivers 6GB GDDR6 memory across a 192-Bit bus with 2304 stream processors. The card targets 1080p and 1440p gaming for users who want solid frame rates without stepping into a higher power bracket.

Sustained load on the 160W TDP design

Under continuous load the boost clock reaches 1620 MHz while the memory runs at an effective 14 Gbps. The double-fan cooler manages the 160W thermal design power without relying on a single burst profile. A 450W power supply is the minimum requirement; the vendor recommends a 500W unit for stable operation over long sessions.

Compatibility checklist before ordering

Verify that your motherboard provides a PCI Express 4.0 slot and that your case can accommodate a dual-slot card with a single 8-pin power connector. The output panel offers one HDMI 2.0b and three DisplayPort 1.4 connections for up to 7680 x 4320 resolution. Confirm your PSU meets the 450W baseline and includes the required 8-pin lead.

Highlights

  • Boost clock of 1620 MHz drives high frame rates
  • 6 GB GDDR6 on a 192-bit bus feeds the GPU at 14 Gbps
  • PCI Express 4.0 interface doubles host bandwidth headroom
  • Three DisplayPort 1.4 and one HDMI 2.0b ports support 7680 x 4320 multi-monitor setups
  • RDNA architecture on 7 nm process with 2304 stream processors enables DirectX 12 and VR readiness

Specifications

BrandXFX
ModelRX-56XT6DF46
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Boost Clock1620 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power160W
System RequirementsMinimum Power Supply Requirement: 450W
XFX Recommended Power Supply: XFX 500W PSU
Recommended PSU Wattage450W
Power Connector1 x 8-Pin
FeaturesRDNA architecture
Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft Windows 10 Support
Microsoft DirectX 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software 2020
AMD WattMan
HDMI 2.0b
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
Up to 6 displays supported (may require the use of MST Hubs)
OpenGL 4.5 Support
OpenCL Support ‍👉Check gaming pc with Windows 11 Pro
Max GPU Length280 mm
Card Dimensions (L x H)11.02" x 5.83"
Slot Width2 Slots
Shipping weight1.22 kg
Package size343 × 244 × 84 mm

Questions about this item

How loud or hot does the THICC II PRO cooler get during all-day gaming?

The double-fan THICC II PRO cooler manages the 160W thermal design power, so sustained loads stay within the card's rated heat envelope without excessive noise.

What power supply and connector must I already have to run this card?

A 450W supply with one 8-pin PCIe power connector is the minimum; XFX recommends a 500W unit for headroom.

Will the PCI Express 4.0 interface work properly in my older PCIe 3.0 motherboard?

Yes, the PCI Express 4.0 x16 interface is backward compatible and will operate at PCIe 3.0 speeds on older boards without any configuration.
