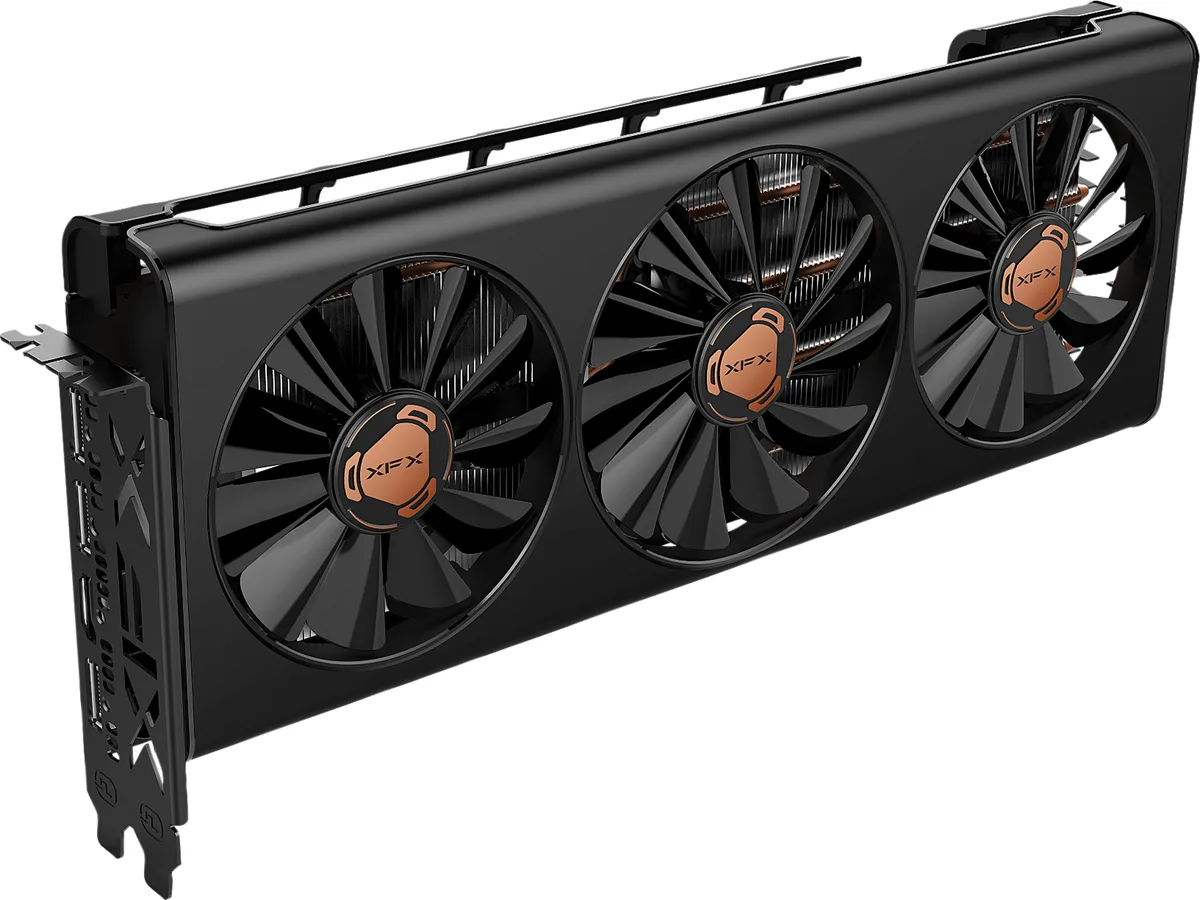

Black triple-fan graphics card with silver accents, PCIe bracket showing one HDMI and three DisplayPort outputs

XFX

XFX RX-56XT6TF48 Radeon RX 5600 XT graphics card

SKU CH-A76A-ERH28 MPN RX-56XT6TF48

Refurbished Radeon RX 5600 XT with 6GB GDDR6, 1750 MHz boost clock, triple-fan cooler and three DisplayPort 1.4 plus one HDMI 2.0b outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Boost Clock1750 MHz
  • Stream Processors2304
  • 6GB GDDR6 memory at 14 Gbps feeds high-resolution textures
  • Boost clock reaches 1750 MHz for responsive 1440p frame rates
  • 2304 stream processors handle parallel workloads in modern titles
  • PCI Express 4.0 interface doubles host bandwidth over 3.0
  • Triple-fan cooler keeps the 160W GPU within thermal limits

XFX Radeon RX 5600 XT 6GB Graphics Card

This refurbished GPU delivers 2304 stream processors and a boost clock of 1750 MHz. It targets 1080p and 1440p gaming with 6GB of GDDR6 memory on a 192-bit interface. The card suits builders seeking Radeon performance in a triple-fan thermal design.

PCIe 4.0 Slot and Dual Power Connectors Required

Verify that your motherboard provides a PCI Express 4.0 x16 slot for full bandwidth. The board draws up to 160W and needs both an 8-pin and a 6-pin power connector from the PSU. A minimum 450W unit is specified, with 500W recommended for headroom.

Triple-Fan Cooler Fits Standard ATX Builds

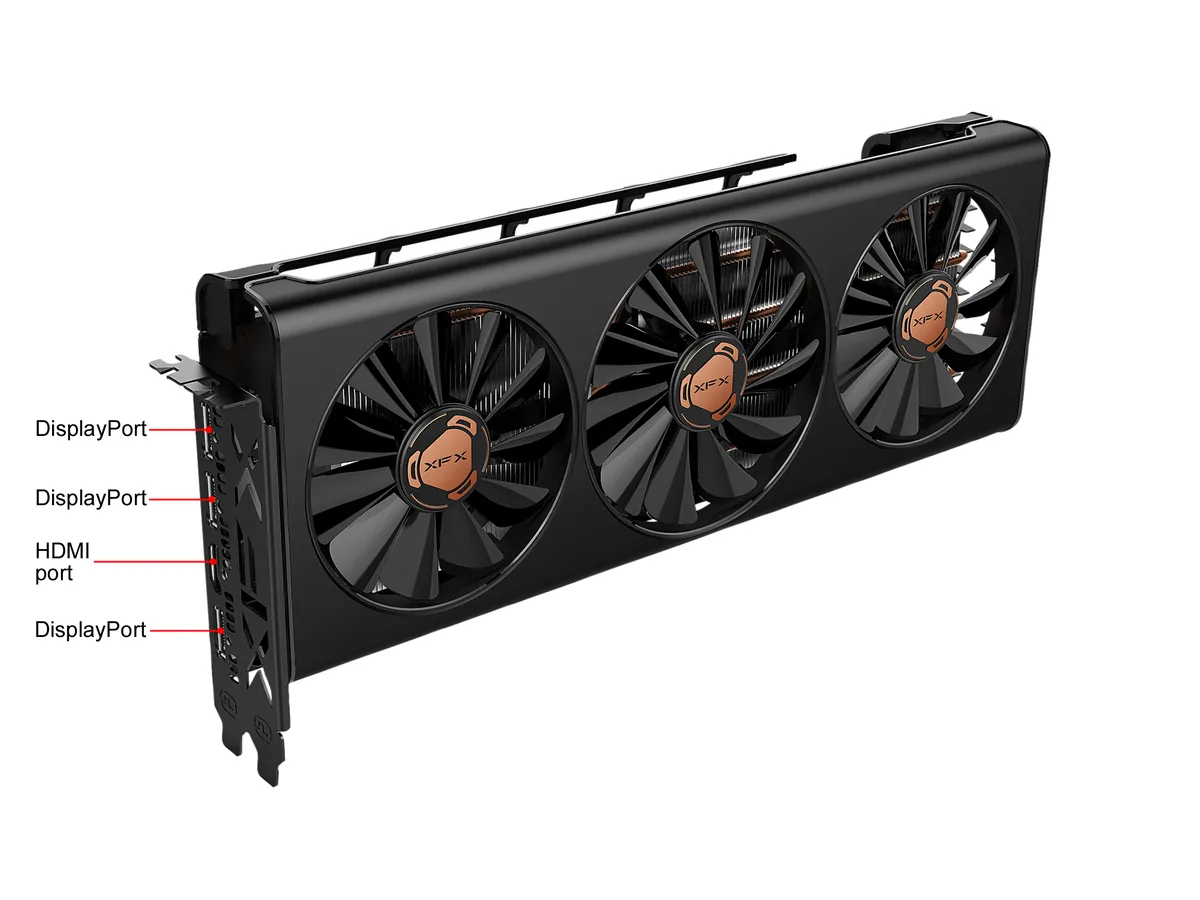

The cooler occupies a typical dual-slot footprint and exhausts heat into the case, so ensure your chassis has adequate airflow. One HDMI 2.0b and three DisplayPort 1.4 outputs drive up to four displays at 7680 x 4320. Eyefinity and VR readiness free you from single-monitor constraints.

Highlights

  • 6GB GDDR6 memory at 14 Gbps feeds high-resolution textures
  • Boost clock reaches 1750 MHz for responsive 1440p frame rates
  • 2304 stream processors handle parallel workloads in modern titles
  • PCI Express 4.0 interface doubles host bandwidth over 3.0
  • Triple-fan cooler keeps the 160W GPU within thermal limits

Specifications

BrandXFX
ModelRX-56XT6TF48
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Boost Clock1750 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power160W
System RequirementsMinimum Power Supply Requirement: 450W
XFX Recommended Power Supply: XFX 500W PSU
Recommended PSU Wattage450W
Power Connector1 x 8-Pin, 1 x 6-pin
FeaturesRDNA architecture
Advanced 7nm GPU
PCI Express 4.0 Support
Radeon Image Sharpening
FidelityFX
Radeon Anti-Lag
Microsoft Windows 10 Support
Microsoft DirectX 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Relive
AMD FreeSync 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity multi-display technology
AMD Radeon Adrenalin Software 2020
AMD WattMan
HDMI 2.0b
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
Up to 6 displays supported (may require the use of MST Hubs)
OpenGL 4.5 Support
OpenCL Support ‍👉Check gaming pc with Windows 11 Pro
Max GPU Length326 mm
Card Dimensions (L x H)12.83" x 5.83"
Slot Width2 Slots
Shipping weight1.36 kg
Package size363 × 234 × 84 mm

Questions about this item

What comes in the box with the XFX RX-56XT6TF48 and what extra cables or adapters do I need to buy?

The card is sold as a refurbished unit. It includes the graphics card with its triple-fan cooler. You must supply a power supply of at least 450 W with one 8-pin and one 6-pin connector. Display cables are not included.

Which memory configuration should I choose for the RX 5600 XT?

This model is offered only with 6 GB of GDDR6 on a 192-bit bus running at 14 Gbps. There are no alternative capacities or speeds for this SKU.

What does the 1750 MHz boost clock mean for actual frame rates at 1440p?

The 1750 MHz boost clock is the peak frequency the 2304 stream processors can reach under load. Real-world 1440p performance depends on the game, driver settings and the rest of your system.
