XFX Radeon 5700 graphics card with three fans and a backplate, silver finish

XFX

XFX RX-57XL863D Radeon 5700 8GB GDDR6 graphics card

SKU CH-8ZMD-8DJD2 MPN RX-57XL863D

Deluxe triple-fan Radeon 5700 with 8GB GDDR6 on a 256-bit bus, PCIe 4.0 x16, 2304 stream processors, 1750MHz boost, 14Gbps memory, HDMI plus three DisplayPort outputs up to 4096×2160.

  • Memory Size8GB
  • Memory TypeGDDR6
  • Deluxe triple-fan cooler keeps temperatures low
  • 2304 stream processors deliver strong compute performance
  • 8GB GDDR6 memory on a 256-bit bus supports high-resolution textures
  • PCI Express 4.0 x16 interface provides high bandwidth
  • HDMI and three DisplayPort outputs drive up to 4096x2160 resolution

XFX Radeon 5700 8GB graphics card

The XFX Radeon 5700 8GB graphics card targets gamers and creators who need strong 1440p performance. It uses the Radeon 5700 GPU with 2304 stream processors and a 1750 MHz boost clock. The 8GB GDDR6 memory runs at 14 Gbps across a 256-bit bus. A PCI Express 4.0 x16 interface connects the card to modern platforms.

Deluxe triple-fan cooler thermals

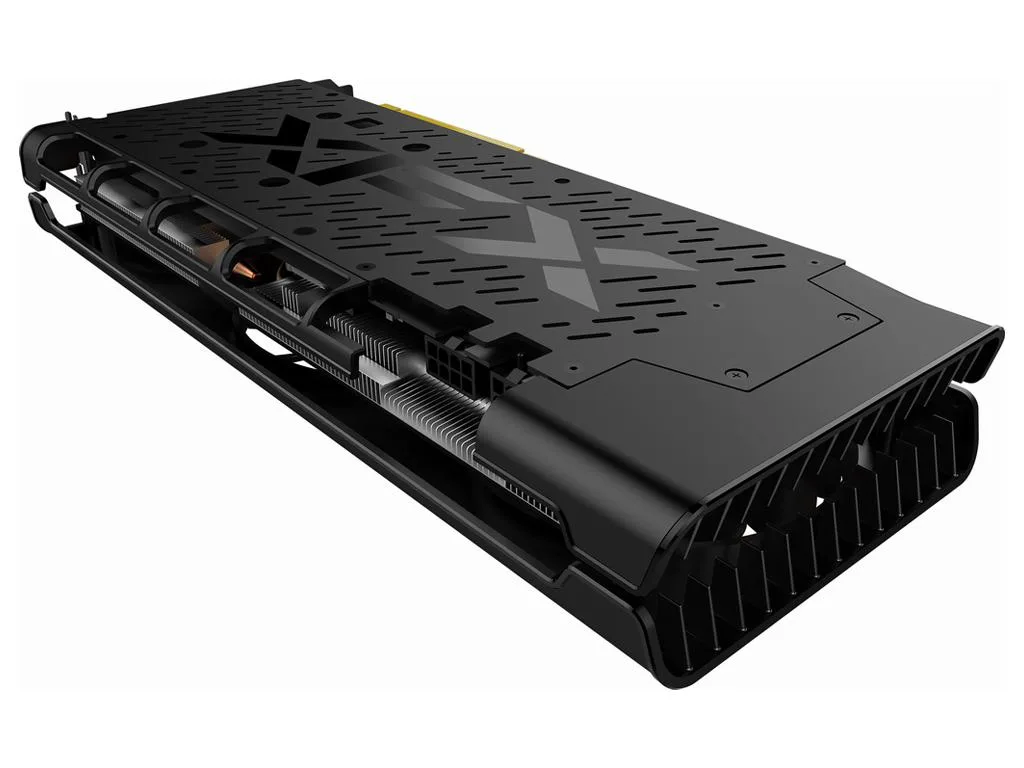

The Deluxe triple-fan cooler with backplate manages the 170 W design power in typical gaming loads. Three fans move air through a heatsink while the metal backplate adds structural rigidity and helps dissipate heat. An 8-pin plus 6-pin power connector feeds the board and a 550 W power supply is recommended. DirectX 12 and OpenGL 4.5 support are standard.

8GB GDDR6 memory capacity

The 8 GB GDDR6 frame buffer is the specification that determines suitability for high-resolution textures and multitasking workloads. At 14 Gbps on a 256-bit bus it delivers ample bandwidth for 1440p and entry-level 4K gaming. Outputs include one HDMI and three DisplayPort connectors supporting up to 4096 x 2160 resolution. CrossFire and HDCP are also supported.

Highlights

  • Deluxe triple-fan cooler keeps temperatures low
  • 2304 stream processors deliver strong compute performance
  • 8GB GDDR6 memory on a 256-bit bus supports high-resolution textures
  • PCI Express 4.0 x16 interface provides high bandwidth
  • HDMI and three DisplayPort outputs drive up to 4096x2160 resolution

Specifications

Memory Size8GB
Memory TypeGDDR6

Questions about this item

How do I install the XFX RX-57XL863D into a PCI Express 4.0 x16 slot and connect the 8+6pin power cables correctly?

Align the card with the PCI Express 4.0 x16 slot, press firmly until the retention clip clicks, then attach both the 8-pin and 6-pin connectors from the power supply; the step most people miss is plugging in the 6-pin alongside the 8-pin, leaving the card underpowered.

What maintenance will the Deluxe triple fan cooler and backplane need over time?

Use compressed air to clear dust from the three fans and heatsink fins every few months; the backplane only needs a light wipe, and no liquid cleaning or disassembly is required for normal upkeep.

At what point does the 170W design power limit throttle sustained performance?

When the GPU hits its 170W design power ceiling under prolonged load, the boost clock of 1750MHz will drop to stay within that limit, so adequate case airflow and a 550W supply are essential to delay throttling.
