XFX

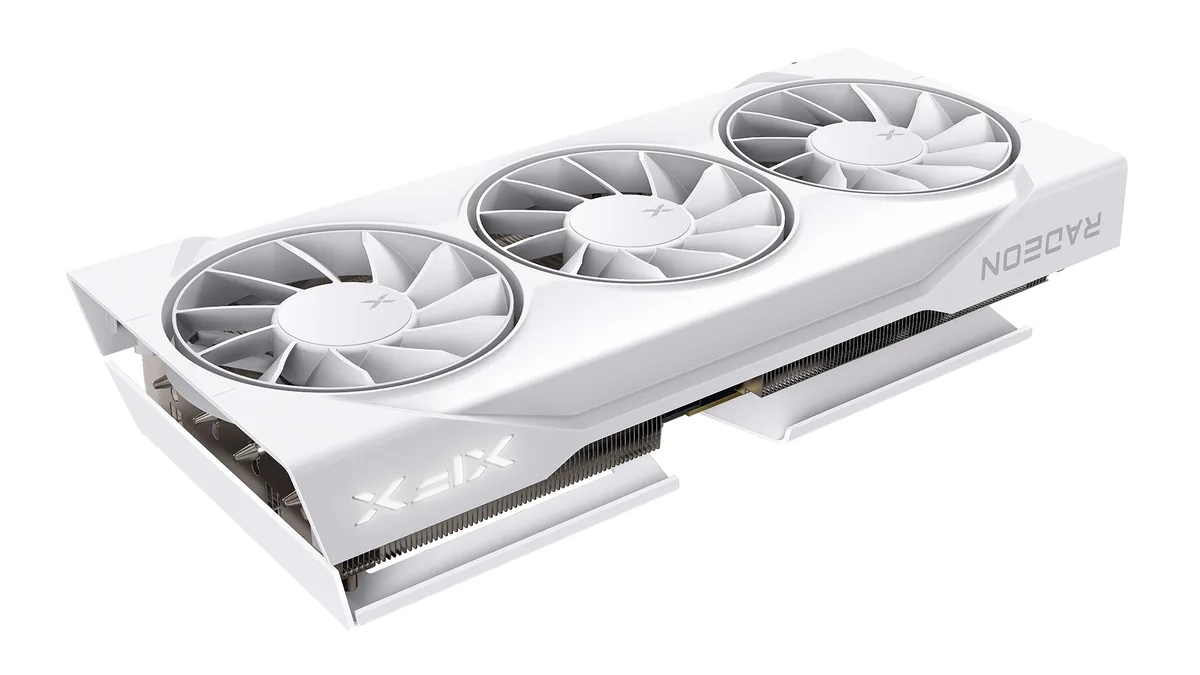

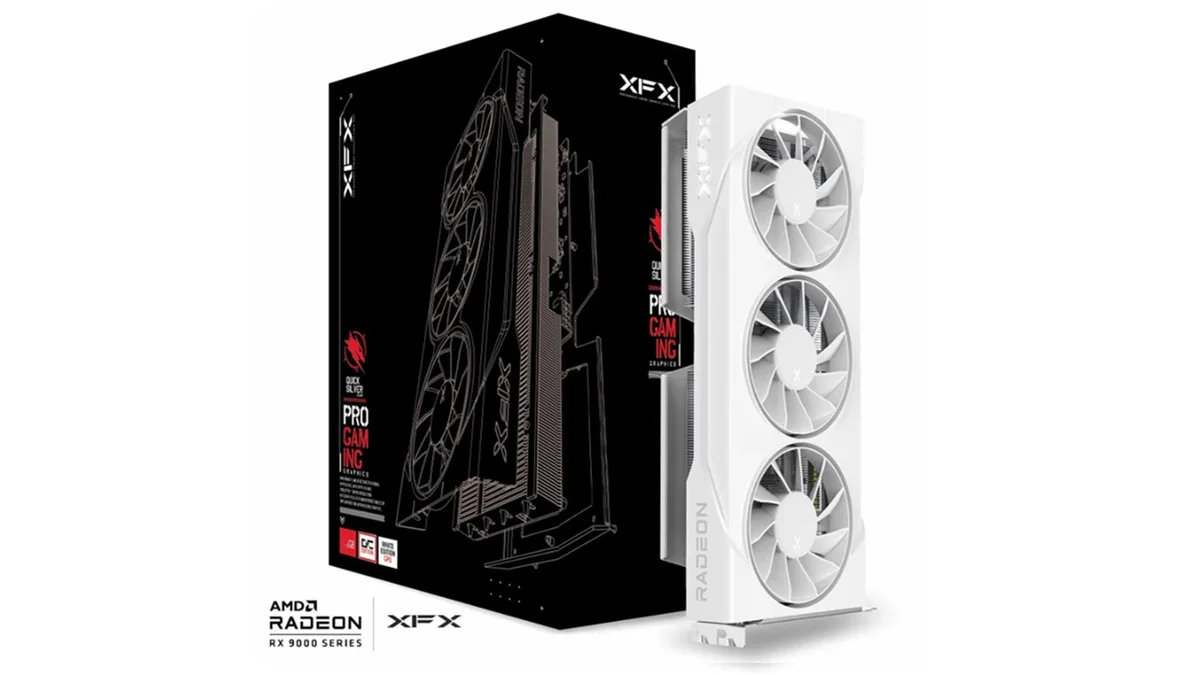

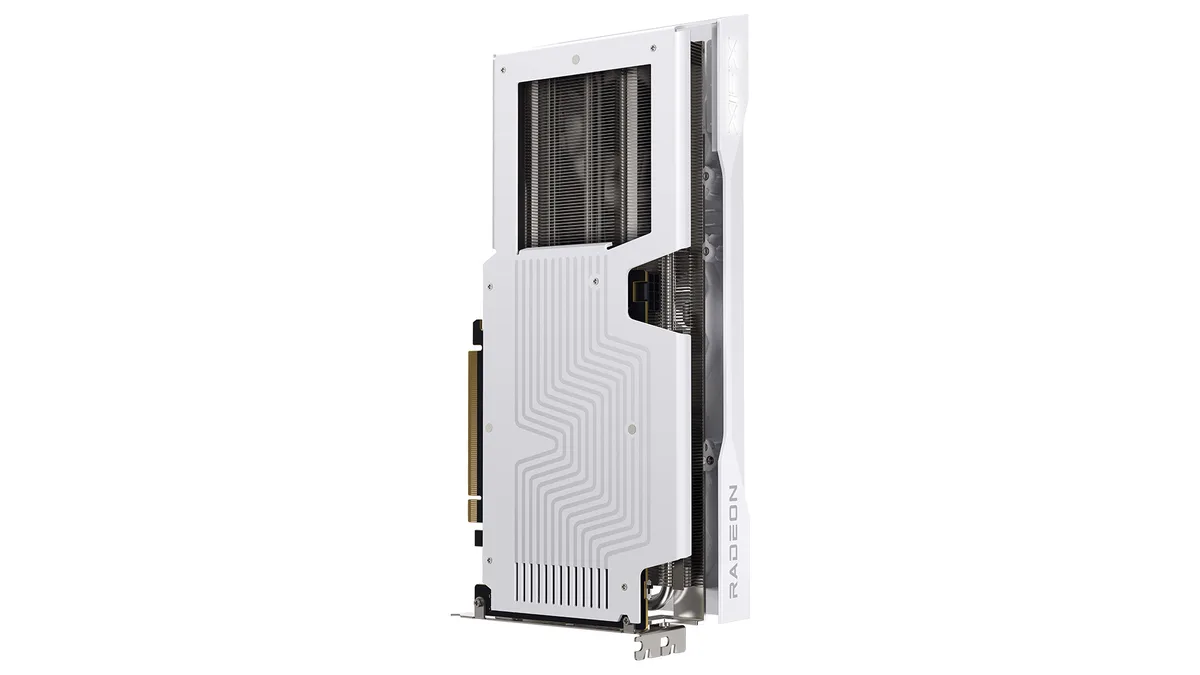

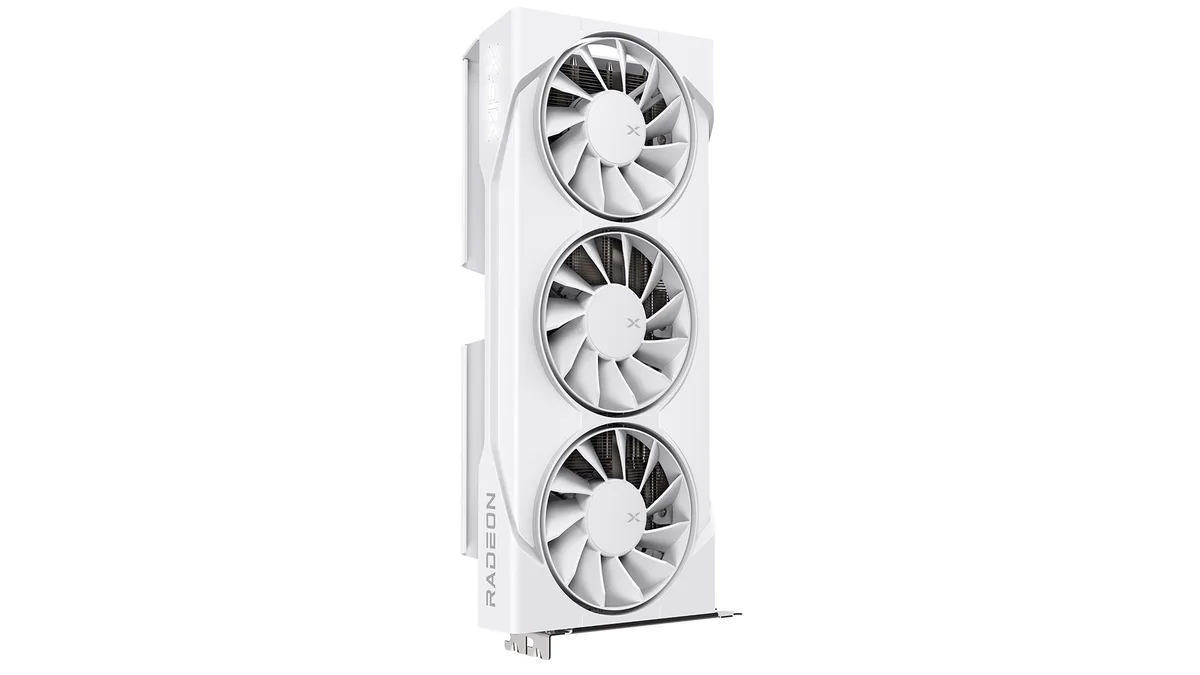

XFX RX-96TS316W7 Radeon RX 9060 XT 16GB graphics card
Refurbished 16 GB GDDR6 graphics card with triple-fan cooling, PCIe 5.0 x16 interface and 2048 stream processors for 1440p gaming
- InterfacePCI Express 5.0 x16
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 9000 Series
- GPURadeon RX 9060 XT
- Core Clock1900 MHz
- Game Clock2780 MHz
- 16GB GDDR6 memory gives headroom for high-resolution textures
- Boost clock reaches 3320 MHz for responsive frame rates
- Triple-fan cooler keeps thermals in check under load
- PCI Express 5.0 x16 interface provides full bandwidth to the CPU
- HDMI 2.1 plus two DisplayPort 2.1 outputs drive multiple 4K displays
XFX SWIFT Radeon RX 9060 XT 16GB
This XFX SWIFT Radeon RX 9060 XT 16GB graphics card targets gamers and creators who need a 16GB frame buffer on a 128-bit GDDR6 interface. The triple-fan cooler in white suits builds that value both thermal headroom and a clean aesthetic. It plugs into a PCI Express 5.0 x16 slot and drives displays over one HDMI 2.1 and two DisplayPort 2.1 connectors.
Check motherboard slot power and PSU headroom
Verify the board has a free PCI Express 5.0 x16 slot and that the case can accommodate a triple-fan card. The unit draws a thermal design power of 182W and the vendor recommends a minimum 550W supply for a typical system. A 64-bit operating system such as Windows 10, Windows 11 or Linux is required for driver support.
Sustained load behaviour at 182W TDP
Under continuous load the GPU runs at its 2780 MHz game clock rather than the 3320 MHz boost peak. The 20000 MHz effective memory clock feeds the 2048 stream processors steadily across the 128-bit bus. The triple-fan assembly is sized to dissipate the 182W thermal design power without throttling during extended sessions.
Highlights
- 16GB GDDR6 memory gives headroom for high-resolution textures
- Boost clock reaches 3320 MHz for responsive frame rates
- Triple-fan cooler keeps thermals in check under load
- PCI Express 5.0 x16 interface provides full bandwidth to the CPU
- HDMI 2.1 plus two DisplayPort 2.1 outputs drive multiple 4K displays
Specifications
| Brand | XFX |
|---|---|
| Series | SWIFT |
| Model | RX-96TS316W7 |
| Interface | PCI Express 5.0 x16 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 9000 Series |
| GPU | Radeon RX 9060 XT |
| Core Clock | 1900 MHz |
| Game Clock | 2780 MHz |
| Boost Clock | 3320 MHz |
| Stream Processors | 2048 |
| Effective Memory Clock | 20000 MHz (20 Gbps) |
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 2 x DisplayPort 2.1 |
| Color | White |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Operating Systems Supported | Supported operating systems include Linux, Windows 10/11. 64-bit operating system required. 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 182W |
| System Requirements | PCI Express compatible motherboard with one x16 PCIe slot Minimum 550W or greater power supply - NOTE: Minimum recommended system power supply wattage is based on the specific graphics card and the typical power requirements of other system components. Your system may require more or less power. OEM and other pre-assembled PCs may have different power requirements. Minimum 8GB of system memory. Recommended 16GB. |
| Recommended PSU Wattage | 550W |
| Features | 32 AMD RDNA 4 Compute Units(with RT+AI Accelerators) 32MB AMD Infinity Cache technology DisplayPort 2.1 AMD Radiance Display Engine AMD Radeon Boost technology AMD Radeon Anti-Lag technology 16GB GDDR6 on 128-Bit Memory Bus PCI Express 5.0 ready AMD FidelityFX technologies AMD FidelityFX Super Resolution technology Microsoft DirectX 12 Ultimate Microsoft DirectStorage Vulkan Optimized AMD smart technologies AMD Software: Adrenalin Edition application AMD Noise Suppression AMD Privacy View AMD Radeon Super Resolution technology AMD Link AMD Freesync technology |
| Max GPU Length | 290 mm |
| Card Dimensions (L x H) | 290 x 124 mm |
| Slot Width | 2 Slots |
| Shipping weight | 1.54 kg |
| Package size | 394 × 226 × 127 mm |
Questions about this item
Does the XFX SWIFT RX 9060 XT 16GB card come with any cables or adapters in the box?
The card ships as a refurbished graphics unit only. You will need a PCI Express 5.0 x16 slot and a power supply rated at 550W or greater with the required PCIe power connectors. No video cables or adapters are included.
Is the 16GB GDDR6 version the only memory option for this XFX SWIFT model?
Yes. This specific RX-96TS316W7 SKU is built with 16GB of GDDR6 on a 128-Bit interface running at 20 Gbps. There is no alternative capacity or memory type listed for this model.
What does the 3320 MHz boost clock actually deliver in a system with a PCIe 5.0 x16 slot?
The 3320 MHz boost clock is the peak GPU frequency the card can reach under load. With 2048 stream processors and 16GB of 20 Gbps GDDR6, it supports DirectX 12 Ultimate gaming at high refresh rates over HDMI 2.1 or DisplayPort 2.1.
