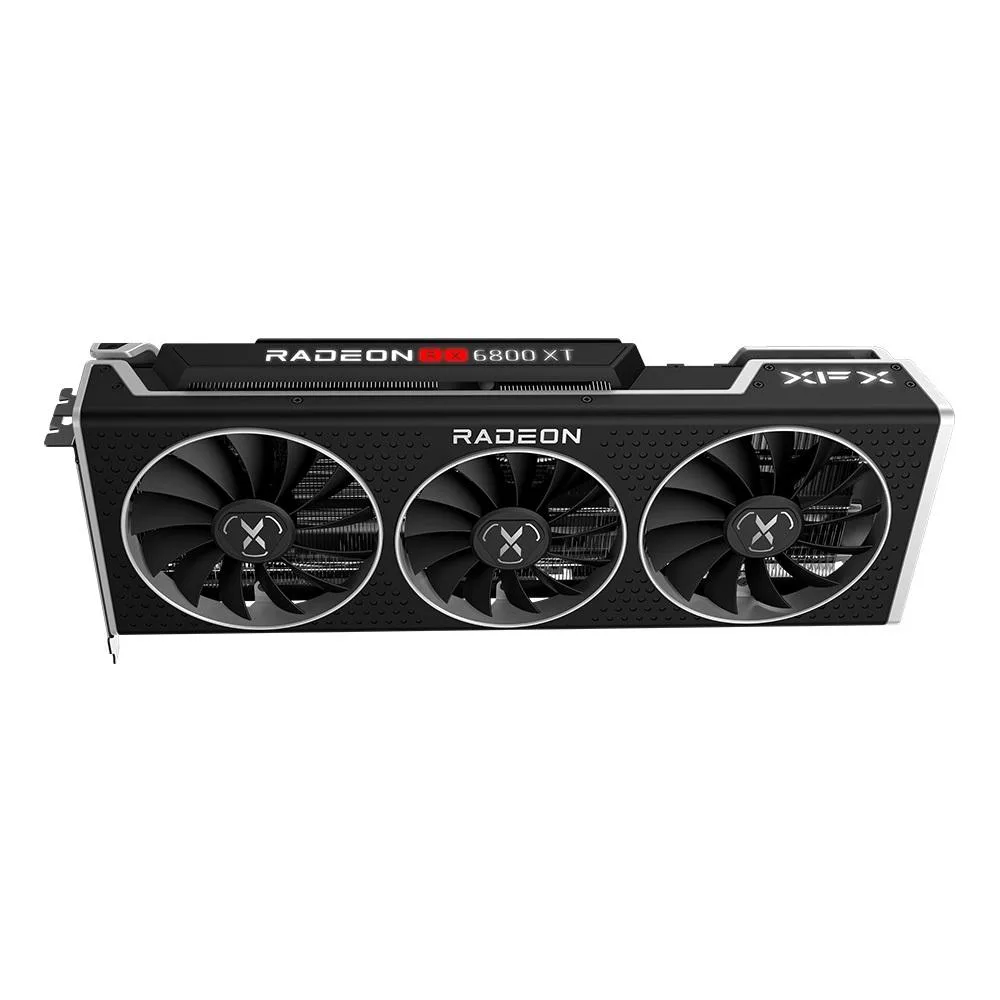

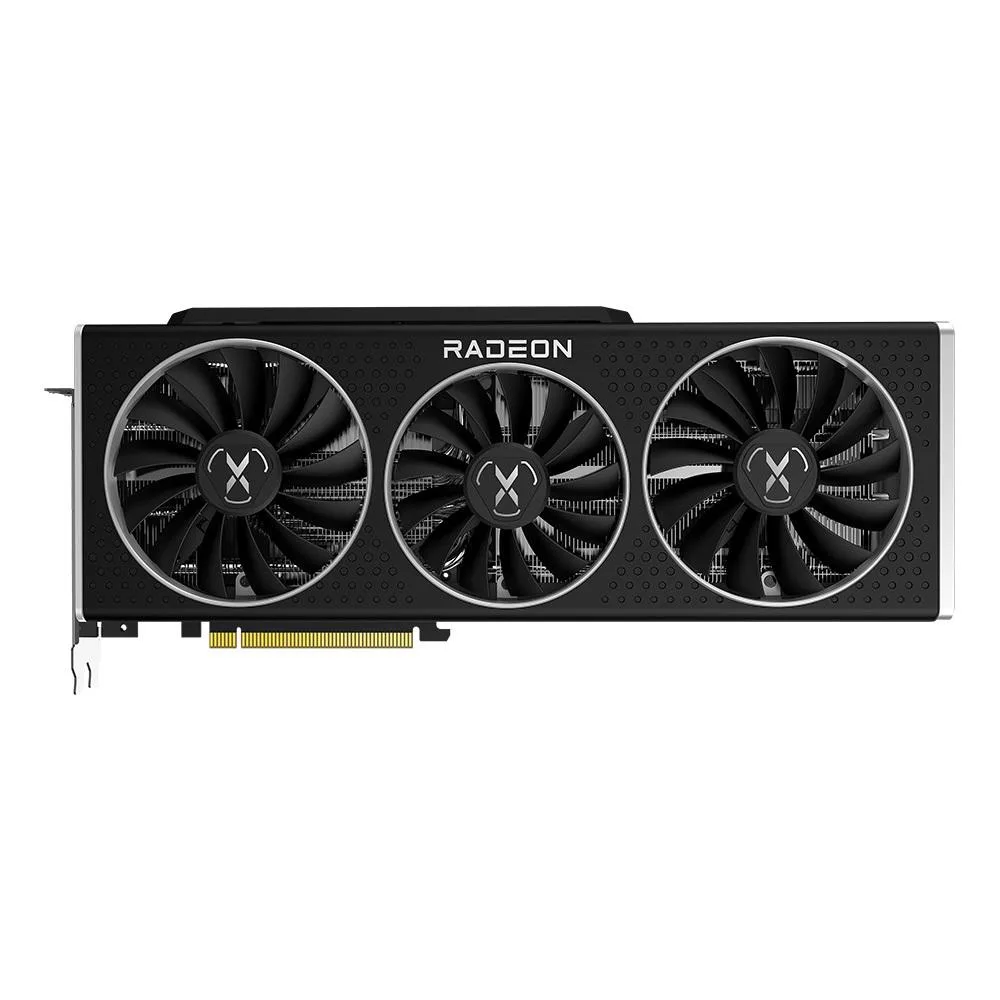

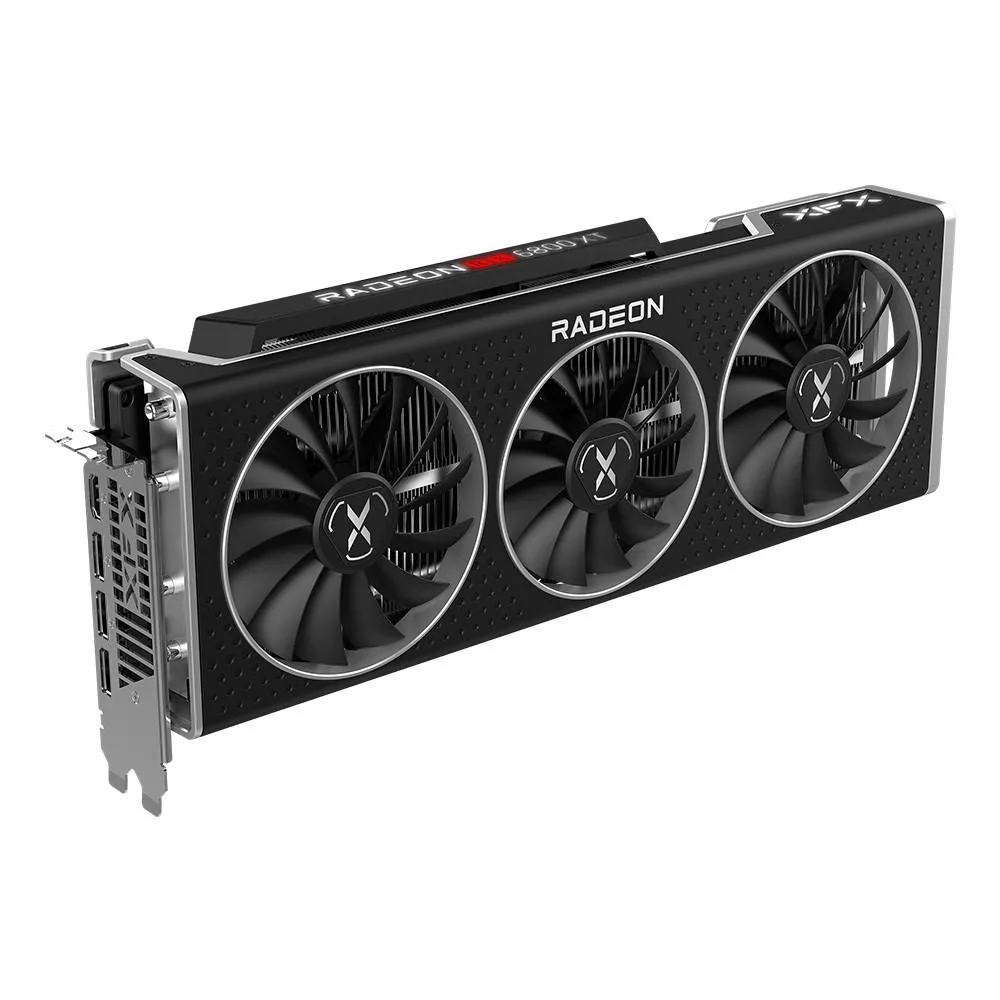

Triple-fan graphics card in black and silver finish

XFX

XFX Speedster MERC 319 Radeon RX 6800 XT CORE 16GB graphics card

SKU CH-5NT5-9X0A7

RDNA 2 GPU with 16 GB GDDR6 on a 256-bit bus, triple-fan cooler, 2250 MHz boost clock and four display outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Core Clock1825 MHz
  • Game Clock2015 MHz
  • 16 GB GDDR6 memory handles large textures at 16000 MHz
  • Boost clock reaches 2250 MHz for peak frame rates
  • 4608 stream processors deliver parallel compute power
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • HDMI 2.1 plus three DisplayPort 1.4 outputs drive four displays

16GB GDDR6 for 4K gaming

The XFX Speedster MERC 319 Radeon RX 6800 XT CORE delivers 16GB of GDDR6 memory across a 256-bit interface. It targets enthusiasts who want high frame rates at 4K resolution in modern titles. The AMD RDNA 2 architecture provides 4608 stream processors for rasterisation and ray-tracing workloads. A PCI Express 4.0 link ensures full bandwidth to current platforms.

Triple-slot cooler fits standard ATX cases

Installation follows the usual PCI Express 4.0 x16 slot procedure with two 8-pin power connectors. The 319-length triple-slot design clears most mid-tower cases but can block adjacent PCIe slots on tighter boards. Ensure the power supply cables reach without sharp bends and that case airflow feeds the three axial fans directly. Driver installation is standard through AMD Adrenalin software.

Game Clock 2015 MHz sustained under load

The card runs at a 2015 MHz Game Clock during typical gaming sessions rather than the 2250 MHz boost figure seen in short bursts. Thermal headroom from the MERC 319 cooler keeps clocks stable during extended play. Memory operates at 16000 MHz effective across the 256-bit bus without throttling. Outputs include one HDMI 2.1 and three DisplayPort 1.4 connectors for multi-monitor setups.

Highlights

  • 16 GB GDDR6 memory handles large textures at 16000 MHz
  • Boost clock reaches 2250 MHz for peak frame rates
  • 4608 stream processors deliver parallel compute power
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • HDMI 2.1 plus three DisplayPort 1.4 outputs drive four displays

Specifications

BrandXFX
SeriesMERC319
ModelRX-68XTA6VB
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Core Clock1825 MHz
Game Clock2015 MHz
Boost Clock2250 MHz
CUDA Cores4608
Effective Memory Clock16000 MHz
Memory Size16GB
Memory Interface256bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4
Max Resolution4096×2160
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerTriple Fans
System RequirementsMinimum Power Supply Requirement: 750W
XFX Recommended Power Supply XFX: 850W PSU
Recommended PSU Wattage750W
Power Connector2 x 8-Pin
FeaturesAMD RDNA 2 Architecture
DirectX 12 Ultimate
Hardware Raytracing
FidelityFX
Radeon Anti-Lag
Microsoft Windows 10 Support
Microsoft DirectX 12 Support
7nm Technology
GDDR6 Memory
PCI Express 4.0 Support
AMD FreeSync Technology*
DisplayPort 1.4 with DSC
HDMI 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon Image Sharpening*
Radeon Anti-Lag*
Radeon Software
Game Driver Optimizations
OpenGL Support
OpenCL Support
* Not compatible with Windows 7. For more information on Radeon technologies, visit: AMD.com/gamingdetails
*"Game Clock" is the expected GPU clock when running in typical
Max GPU Length340 mm
Card Dimensions (L x H)13.39" x 5.43"
Slot Width2.7 Slot

Questions about this item

How can I verify the card is running at its 2250 MHz boost clock after installation?

Use AMD Radeon Software or a tool like GPU-Z to monitor the real-time frequency while a demanding game runs; the reading should approach 2250 MHz when thermals and power allow.

What cables or adapters are included in the box versus what I must source myself?

The box contains the graphics card and a quick-install guide; you must provide a PCIe 4.0 motherboard slot, a power supply with the required 8-pin connectors, and your own HDMI 2.1 or DisplayPort 1.4 cables.

Which version of this model should I pick if I need 16 GB of video memory?

This SKU is the single 16 GB GDDR6 configuration with a 256-bit bus, so there is no alternative capacity to choose from.
