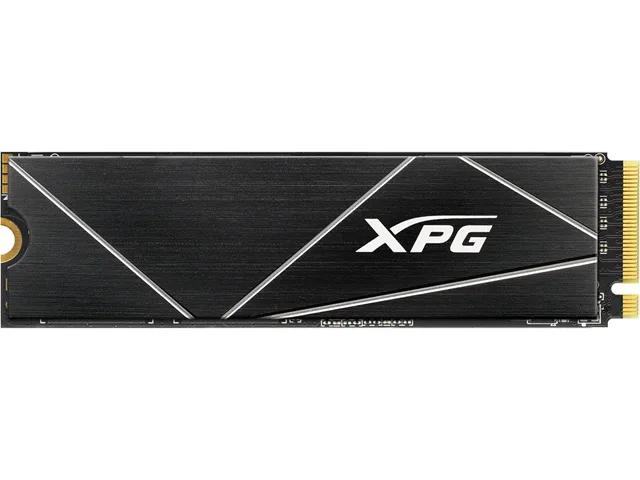

Rectangular M.2 2280 SSD with silver metallic enclosure and thin blade profile

XPG

XPG GAMMIX S70 Blade 1TB internal SSD AGAMMIXS70B-1T-CS

SKU CH-8S2S-63HXG MPN AGAMMIXS70B-1T-CS

M.2 2280 1TB internal SSD with PCIe 4.0 interface, up to 7400 MBps sequential read and 5500 MBps write, 740 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4, NVMe 1.4

Options 1TB

  • Sequential reads up to 7400 MBps speed up game loads
  • Sequential writes up to 5500 MBps accelerate large file saves
  • Random 4K performance up to 740000 IOPS keeps multitasking responsive
  • 740 TB written rating supports heavy daily workloads
  • 2000000 hour MTBF indicates long-term reliability

XPG GAMMIX S70 Blade 1TB NVMe SSD

The XPG GAMMIX S70 Blade 1TB is an internal solid state drive built for desktop PCs, laptops and the PlayStation 5. It uses the M.2 2280 form factor and connects through a PCIe 4.0 x4 interface with NVMe 1.4 protocol. The drive is designed for gaming and high-performance consumer workloads.

Sustained performance under heavy load

The drive is rated for up to 7400 MBps sequential read and up to 5500 MBps sequential write on PC and laptop platforms. On PlayStation 5 the maximum sequential read is up to 6100 MBps. Random 4KB performance reaches up to 740000 IOPS for both read and write. Endurance is specified at 740 TBW with an MTBF of 2000000 hours.

Thin metal build fits tight slots

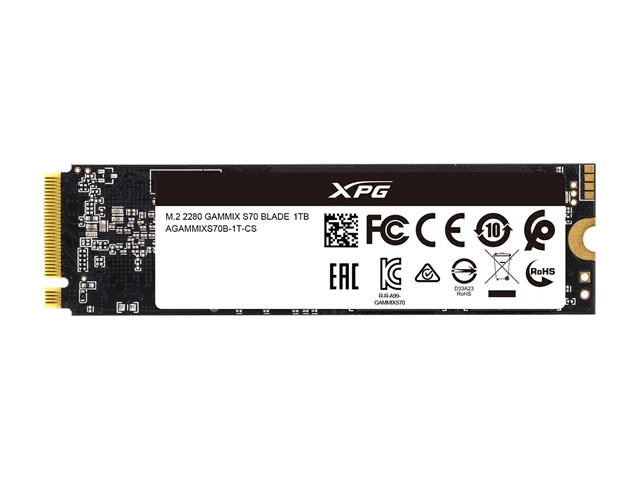

The enclosure uses a metallic construction and measures 3.15 inches long by .87 inches wide by .14 inches thick, weighing .4 ounces. This slim profile allows installation in shallow M.2 slots found in thin laptops and the PS5 expansion bay. The single-sided component layout simplifies mounting in constrained spaces.

Highlights

  • Sequential reads up to 7400 MBps speed up game loads
  • Sequential writes up to 5500 MBps accelerate large file saves
  • Random 4K performance up to 740000 IOPS keeps multitasking responsive
  • 740 TB written rating supports heavy daily workloads
  • 2000000 hour MTBF indicates long-term reliability

Specifications

BrandXPG
SeriesGAMMIX S70 Blade
ModelAGAMMIXS70B-1T-CS
Part NumberAGAMMIXS70B-1T-CS
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4, NVMe 1.4
ProtocolPCIe
ConnectorPCIe
ControllerInnogrit IG5236A1
Cache1 unknown_modifier
Max Sequential ReadUp to 7400 MBps (PC/laptop)
Up to 6100 MBps (PS5)
Max Sequential WriteUp to 5500 MBps
4KB Random ReadUp to 740,000 IOPS
4KB Random WriteUp to 740,000 IOPS
Terabytes Written (TBW)740TB
MTBF2,000,000 hours
HeatSinkwith HeatSink
FeaturesUltra-fast PCIe Gen4x4 interface
Compliant with NVMe 1.4
Work with PS5
High-temperature resistant aluminum heatsink which is able to reduce temperatures by up to 20%
Capacity up to 2TB
SLC Caching and DRAM cache buffer
Advanced LDPC ECC Technology
E2E Data Protection and RAID Engine
AES 256-bit encryption support
Compact M.2 2280 form factor - ideal for gaming and high-end desktops
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height4.30mm (with heatsink)
3.30mm (without heatsink)
Width22.00mm
Depth80.00mm
Weight10.00g (with heatsink)
7.00g (without heatsink)
Package ContentSSD
Shipping weight0.03 kg
Package size129 × 103 × 16 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot does the XPG GAMMIX S70 Blade 1TB get during sustained all-day workloads?

The drive is rated for up to 7400 MBps sequential read on PC and 6100 MBps on PS5, with a 740 TBW endurance rating and 2,000,000 hour MTBF, indicating thermal design for continuous operation.

What motherboard slot and keying does the AGAMMIXS70B-1T-CS require to function?

It requires an M.2 2280 slot with PCIe 4.0 x4 electrical connection and NVMe 1.4 protocol support. The controller is an Innogrit IG5236A1 using 3D NAND.

Will the GAMMIX S70 Blade 1TB run at full PCIe 4.0 x4 speed in an older PCIe 3.0 M.2 slot?

The drive uses PCIe 4.0 x4 and NVMe 1.4. In a PCIe 3.0 x4 slot it will operate at PCIe 3.0 speeds, limited by the slot bandwidth rather than the drive capability.
