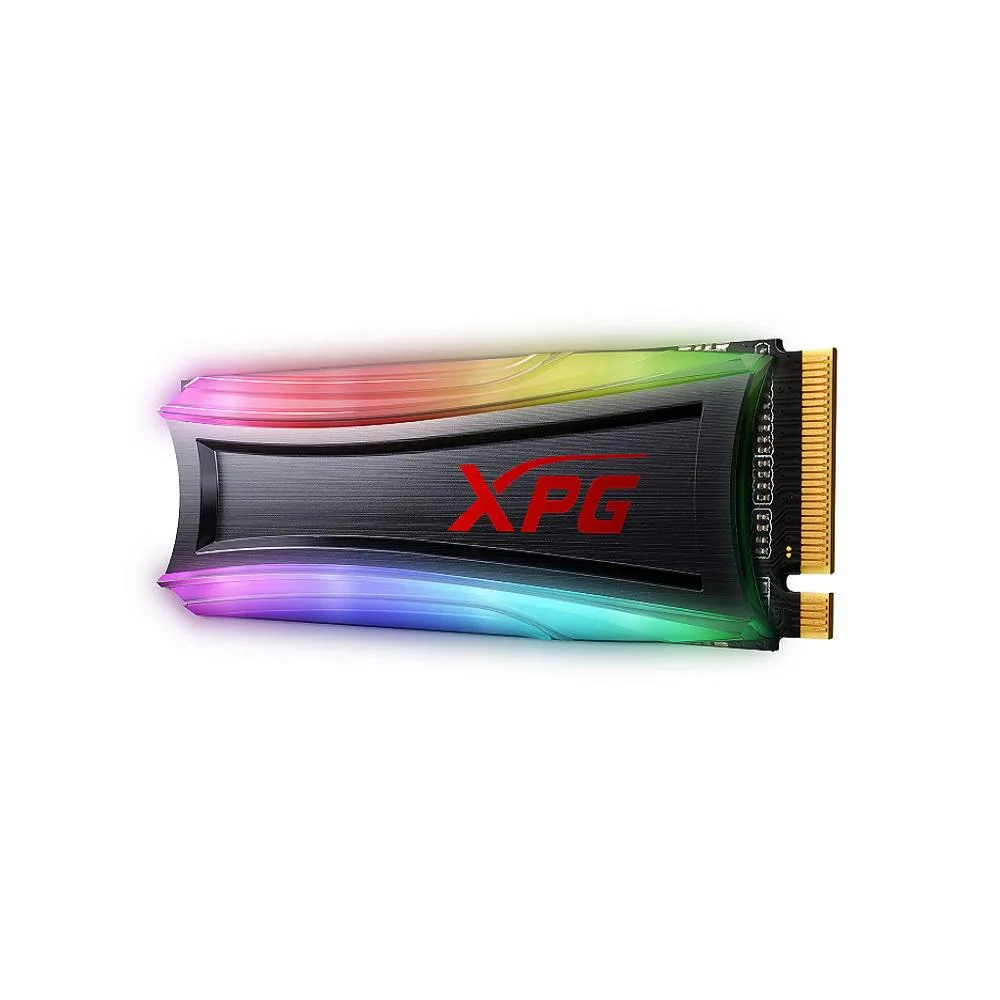

M.2 2280 SSD with integrated heatsink and RGB lighting strip

XPG

XPG SPECTRIX S40G RGB 4TB internal SSD

SKU CH-8CPM-9TTPW

High-capacity 4TB internal SSD with PCIe 3.0 x4 interface reaching 3500 MB/s read and 3000 MB/s write speeds, includes a heatsink and customizable RGB lighting

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity4TB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4, NVMe 1.3
  • Up to 3500 MB/s sequential read speeds accelerate game loading
  • Up to 3000 MB/s sequential write speeds speed large-file transfers
  • 290,000 random read IOPS boost responsiveness in multitasking
  • 240,000 random write IOPS keep sustained workloads smooth
  • 2560 TBW rating supports heavy daily write cycles

Capacity and interface

The XPG SPECTRIX S40G RGB is a 4TB internal solid-state drive built for consumers who need high-capacity storage in a standard M.2 2280 slot. It connects through a PCI-Express 3.0 x4 link using the NVME 1.3 protocol and includes an integrated heatsink to manage thermals under load. Programmable RGB lighting can be synchronised with most major motherboard ecosystems via XPG control software.

Deciding specification

The drive delivers sequential reads up to 3500 MBps and writes up to 3000 MBps on the PCIe Gen3 x4 interface, with random performance of 290000 read and 240000 write IOPS. A 2560 TBW endurance rating and 2000000-hour MTBF indicate sustained reliability for heavy workloads. Power draw sits at 0.14W idle and 0.33W active across an operating range of 0°C to 70°C.

Who this suits

Gamers, content creators and PC enthusiasts who want a single 4TB NVME drive with RGB lighting and a heatsink will find this model a direct fit. Systems limited to PCIe 3.0 or builds that prioritise Gen4 or Gen5 throughput should evaluate faster alternatives. Users without M.2 2280 support or those needing a 2.5-inch form factor must choose a different drive.

Highlights

  • Up to 3500 MB/s sequential read speeds accelerate game loading
  • Up to 3000 MB/s sequential write speeds speed large-file transfers
  • 290,000 random read IOPS boost responsiveness in multitasking
  • 240,000 random write IOPS keep sustained workloads smooth
  • 2560 TBW rating supports heavy daily write cycles

Specifications

BrandXPG
SeriesSPECTRIX S40G RGB
ModelAS40G-4TT-C
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity4TB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4, NVMe 1.3
Max Sequential ReadUp to 3500 MBps
Max Sequential WriteUp to 3000 MBps
4KB Random ReadUp to 290,000 IOPS
4KB Random WriteUp to 240,000 IOPS
Terabytes Written (TBW)2560TB
MTBF2,000,000 hours
HeatSinkwith HeatSink
FeaturesTBW: 2560TB
Ultra-fast PCIe Gen3 x4 interface: R/
Power Consumption (Idle)0.14W
Power Consumption (Active)0.33W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height8.00mm
Width22.00mm
Depth80.00mm
Weight13.40g

Questions about this item

What does the 3500 MBps sequential read mean once the SPECTRIX S40G is installed?

The drive can deliver sustained reads up to 3500 MBps and writes up to 3000 MBps over its PCIe 3.0 x4 link, with random performance reaching 290K read and 240K write IOPS.

What does the PCIe 3.0 x4 NVMe 1.3 interface cap in practice?

The four-lane PCIe 3.0 connection and NVMe 1.3 protocol let the SSD hit its rated 3500/3000 MBps sequential speeds and 290K/240K IOPS random figures.

What does the M.2 2280 form factor with heatsink need to fit or mount?

The drive uses the M.2 2280 size and includes an integrated heatsink, so it needs a motherboard M.2 slot with enough vertical clearance for the taller profile.
