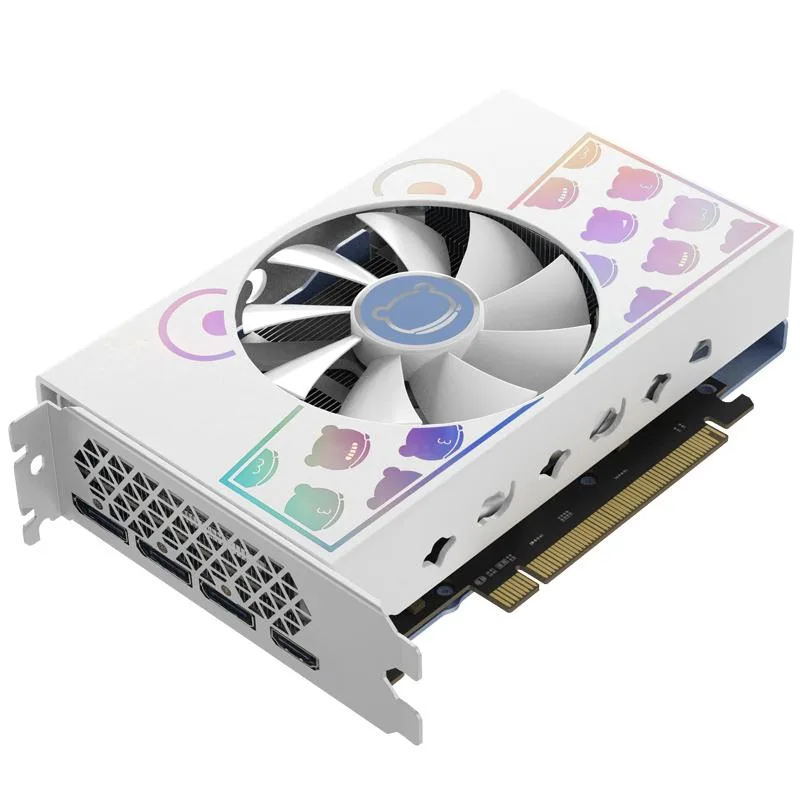

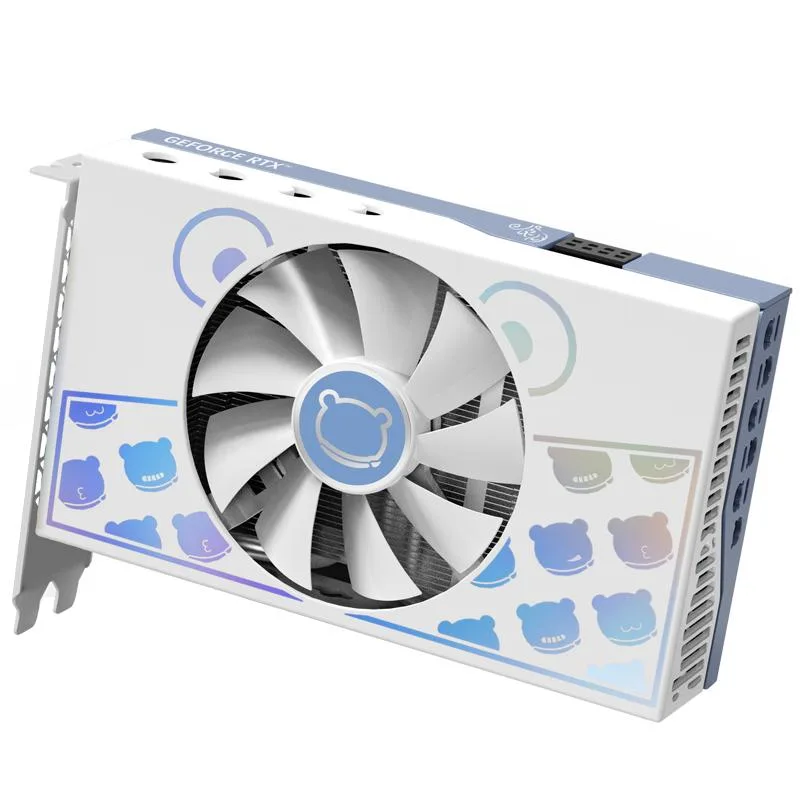

YESTON RTX 5060 8GB GDDR7 Cute Pet graphics card
A compact PCIe 5.0 x8 graphics card with 8 GB GDDR7 on a 128-bit bus, 3840 CUDA cores, boost clock of 2497 MHz and HDMI 2.1b plus three DisplayPort 2.1b outputs
- InterfacePCI Express 5.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPURTX 5060
- Core Clock2280 MHz
- Boost Clock2497 MHz
- 8GB GDDR7 memory on a 128-bit bus delivers high bandwidth for 1440p gaming
- 3840 CUDA cores with 2497 MHz boost clock accelerate raster and ray-tracing workloads
- PCI Express 5.0 x8 interface doubles link bandwidth over previous gen for faster asset streaming
- HDMI 2.1b and three DisplayPort 2.1b outputs drive 7680 x 4320 displays at high refresh rates
- Compact 185 x 129 x 40 mm design fits small-form-factor builds with a 550 W PSU requirement
Target build and role
This graphics card is built around the NVIDIA GeForce RTX 5060 GPU and is intended for desktop gaming systems that need modern display outputs and PCIe 5.0 connectivity. It suits users assembling a new PC or upgrading an existing one where an 8 GB frame buffer and 128-bit memory bus match their resolution targets.
Memory subsystem that defines fit
The card carries 8 GB of GDDR7 memory on a 128-bit interface, delivering the bandwidth that determines whether texture-heavy titles at 1440p or entry-level 4K remain playable. If your workload demands more VRAM or a wider bus, this specification marks the limit of what the board can provide.
Sustained-load behaviour
With a thermal design power of 145 W and a single 8-pin power connector, the board draws a steady load that a 550 W supply can support continuously. Clock speeds settle at the 2497 MHz boost level during extended sessions, and the 185 x 129 x 40 mm footprint keeps airflow predictable inside standard mid-tower cases.
Highlights
- 8GB GDDR7 memory on a 128-bit bus delivers high bandwidth for 1440p gaming
- 3840 CUDA cores with 2497 MHz boost clock accelerate raster and ray-tracing workloads
- PCI Express 5.0 x8 interface doubles link bandwidth over previous gen for faster asset streaming
- HDMI 2.1b and three DisplayPort 2.1b outputs drive 7680 x 4320 displays at high refresh rates
- Compact 185 x 129 x 40 mm design fits small-form-factor builds with a 550 W PSU requirement
Specifications
| Brand | Yeston |
|---|---|
| Series | RTX 5060 |
| Model | RTX-5060-08D7-MA |
| Interface | PCI Express 5.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | RTX 5060 |
| Core Clock | 2280 MHz |
| Boost Clock | 2497 MHz |
| CUDA Cores | 3840 |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Max Resolution | 7680 x 4320 |
| Thermal Design Power | 145W |
| Power Connector | 8-Pin |
| Max GPU Length | 185 mm |
Questions about this item
What does the 2497 MHz boost clock mean for actual gaming performance?
The 2497 MHz boost clock is the peak frequency the RTX 5060 GPU can reach under load, working with 3840 CUDA cores and 8GB of GDDR7 memory to determine frame rates in games.
How does the PCI Express 5.0 x8 interface affect data transfer limits?
The card uses a PCI Express 5.0 x8 connection, providing eight lanes of 5.0 bandwidth to the CPU and chipset for texture and geometry streaming.
Will the 185 x 129 x 40 mm dimensions fit my case and motherboard layout?
The card measures 185 mm long, 129 mm tall and 40 mm thick including the bracket, so check your case clearance and PCIe slot spacing against those figures.
