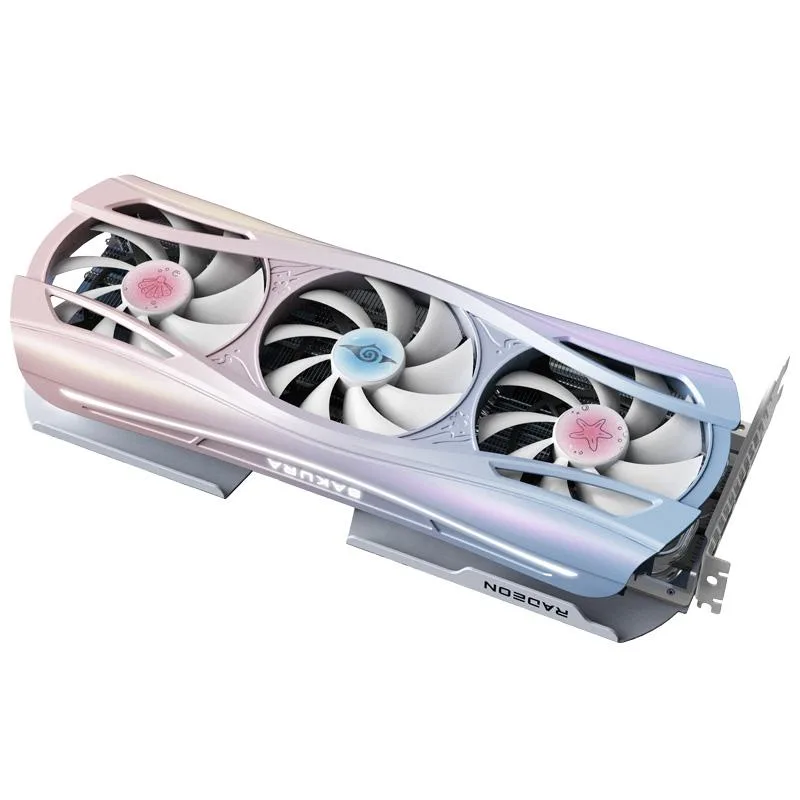

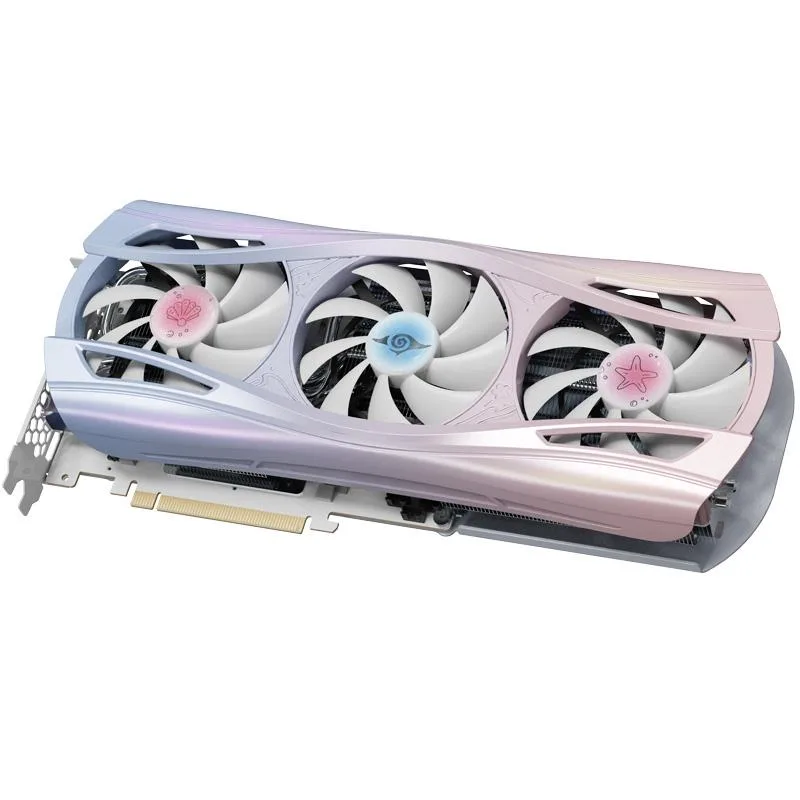

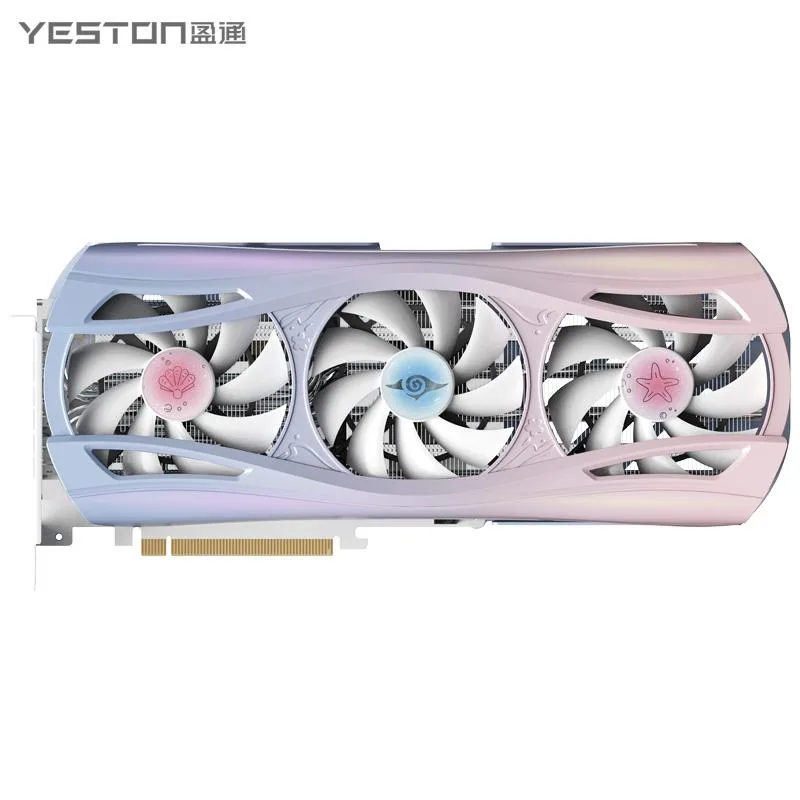

Full-length graphics card with three axial fans and a white SAKURA logo light on the backplate

YESTON

YESTON RX9070XT-16GD6-OC-YA Radeon RX 9070 XT 16GB GDDR6 graphics card

SKU CH-490K-TC3DG MPN RX9070XT-16GD6-OC-YA

Delivers 16 GB GDDR6 memory on a 256-bit bus with triple-fan cooling and dual-BIOS switching

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070 XT
  • Stream Processors4096
  • Memory Size16GB
  • 16 GB GDDR6 memory on a 256-bit bus for high-resolution textures
  • Triple-fan cooler handles the 304 W TDP under load
  • Dual BIOS switch selects STD or VAR frequency profiles
  • PCI Express 5.0 x16 interface with three DisplayPort 2.1 and one HDMI 2.1a outputs
  • 4 nm Navi 48 GPU with 4096 stream processors and 20 Gbps memory speed

16GB GDDR6 256-bit Frame Buffer

The Yeston Atlantis Radeon RX 9070 XT equips 16GB of GDDR6 memory across a 256-bit bus running at 20Gbps. This capacity targets 1440p and 4K gaming workloads where texture pools and frame buffers exceed 12GB. The Navi48 GPU is built on a 4nm process with 4096 unified shaders. A PCI Express 5.0 x16 interface supplies host bandwidth.

Dual BIOS Switch Alters Power Profile

A physical switch selects between STD and VAR firmware profiles. STD runs a 2400 to 2970 MHz boost range at the standard 304W board power. VAR raises the ceiling to 2520 to 3060 MHz for higher sustained clocks. The change takes effect after a reboot and requires no software. Three 8-pin connectors feed the board in either mode.

Triple-Fan Cooler Fits 332mm Slots

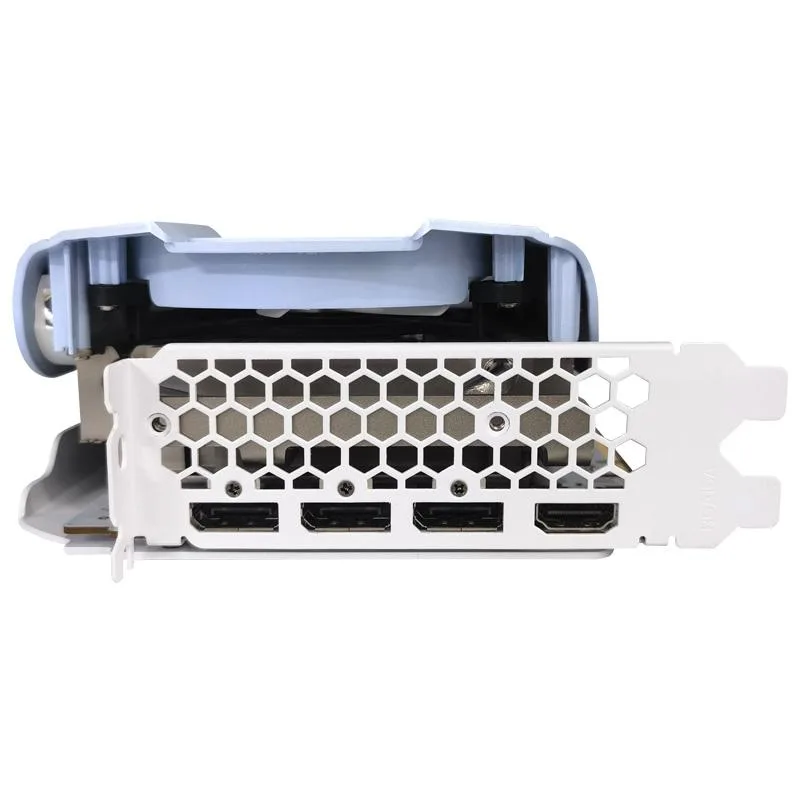

The card measures 332mm long, 138mm wide and 65mm thick including the rear baffle. Three axial fans exhaust heat through a full-length heatsink. Display outputs comprise three DisplayPort 2.1 ports and one HDMI 2.1a port, supporting 7680 x 4320 resolution. The SAKURA logo LED defaults to a white breathing effect and can be disabled.

Highlights

  • 16 GB GDDR6 memory on a 256-bit bus for high-resolution textures
  • Triple-fan cooler handles the 304 W TDP under load
  • Dual BIOS switch selects STD or VAR frequency profiles
  • PCI Express 5.0 x16 interface with three DisplayPort 2.1 and one HDMI 2.1a outputs
  • 4 nm Navi 48 GPU with 4096 stream processors and 20 Gbps memory speed

Specifications

BrandYeston
ModelRX9070XT
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070 XT
Stream Processors4096
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
HDMI1 x HDMI 2.1a
DisplayPort3 x DisplayPort 2.1
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power304W
Max GPU Length332 mm
Shipping weight1.91 kg
Package size438 × 231 × 118 mm

Questions about this item

How often will the triple-fan cooler on this Radeon RX 9070 XT need cleaning to keep temperatures in check?

Dust the three fans and heatsink fins every few months with compressed air; the dual-BIOS switch and 304 W TDP mean sustained loads will pull plenty of air through the 332 mm shroud.

Which limit appears first during long gaming sessions — the 304 W power ceiling or the 20 Gbps memory bandwidth?

The 304 W thermal design power is the first hard ceiling; the 256-bit GDDR6 interface at 20 Gbps still has headroom when the GPU hits its 2970 MHz boost in STD mode.

How loud and hot does the card get when it runs all day at the 304 W rating?

Triple fans keep the Navi 48 GPU near its 2970 MHz STD boost; expect noticeable but not extreme fan noise and exhaust heat proportional to the 304 W draw.
