Silver metal case kit with exposed green PCB motherboard and USB hub board, compact rectangular form factor

YINGHUA

YINGHUA 128MB Motherboard V2.9 + USB Hub V2.1 DIY Metal Case Kit Silver

SKU CH-9GJ9-D0YYV

Kit adds 128 MB memory, V2.9 I/O board and USB 2.1 hub in a silver metal case for DE10-Nano Mister FPGA

  • CPU TypeIntel Atom
  • Complete Mister FPGA kit with 128MB motherboard V2.9
  • Integrated USB Hub V2.1 adds extra ports

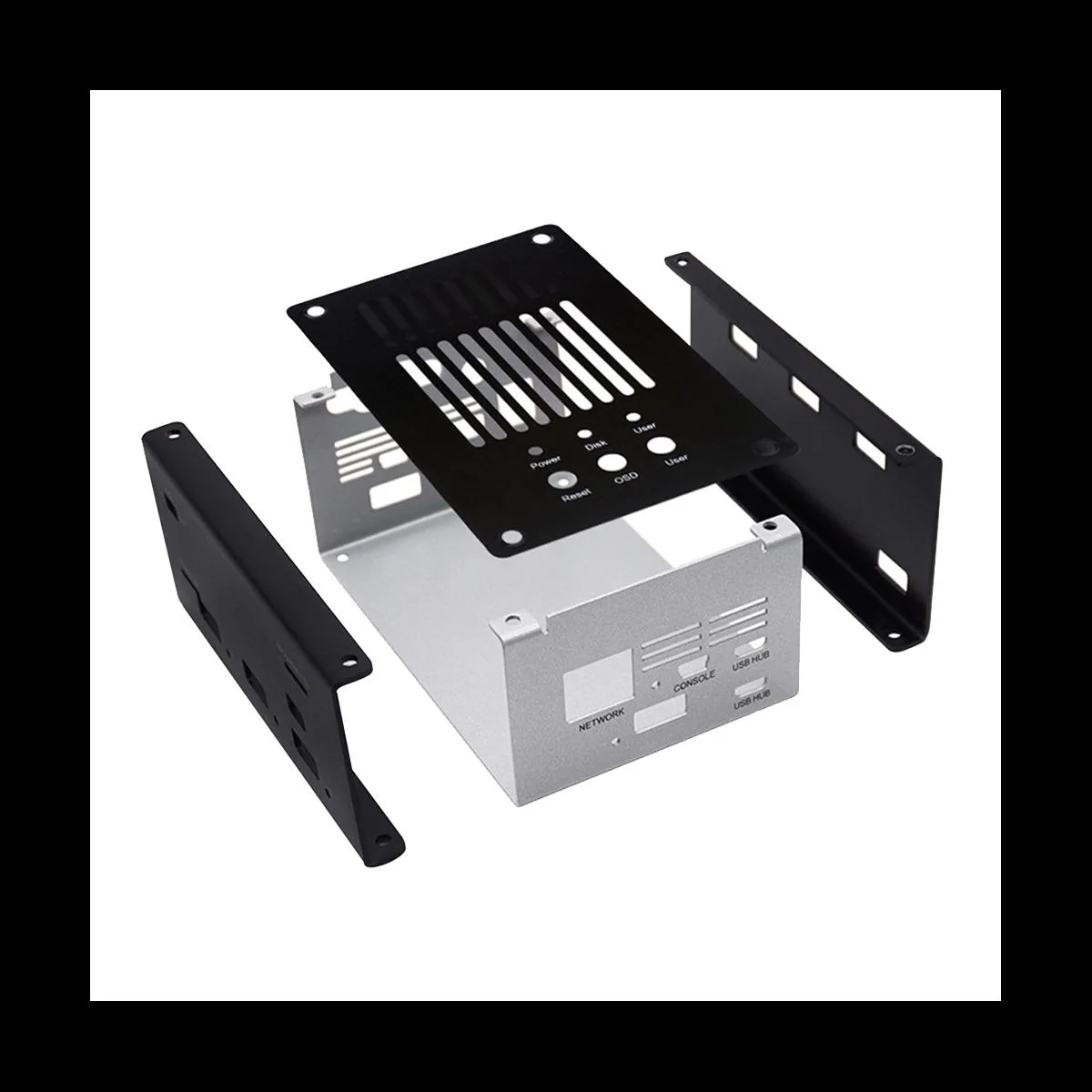

  • DIY metal case protects and houses components
  • VGA and 3.5 mm audio for analog output
  • Expansion via USB 3.0 form-factor connector

Mister FPGA 128MB Motherboard Kit

This kit provides a version 2.9 motherboard with 128MB of memory alongside a version 2.1 USB hub board. It is built for enthusiasts assembling a MiSTer FPGA system around a Terasic DE10-Nano board. The included DIY metal case gives the completed unit a silver enclosure. Everything needed for the core hardware stack is contained in the single package.

Builders expanding a DE10-Nano versus users

The kit suits builders who already own a DE10-Nano SoC board and want to add VGA output, analog audio with TOSLink, a secondary SD card slot and a cooling fan. The USB hub adds upstream micro-USB and 5V DC connections that tuck under the chassis. Users who need a ready-to-run retro console without sourcing the separate DE10-Nano should look elsewhere.

128MB memory capacity defines core support

The motherboard delivers 128MB of memory, which determines which MiSTer cores can be loaded. The USB hub uses a FE 2.1 chip and connects without extra wiring. An expansion connector uses a USB 3.0 form factor but is not a USB interface. Batch variations in colour or appearance do not affect function.

Highlights

  • Complete Mister FPGA kit with 128MB motherboard V2.9
  • Integrated USB Hub V2.1 adds extra ports
  • DIY metal case protects and houses components
  • VGA and 3.5 mm audio for analog output
  • Expansion via USB 3.0 form-factor connector

Specifications

CPU TypeIntel Atom

Questions about this item

How do I confirm the V2.9 motherboard and USB Hub V2.1 are functioning after assembly?

The 3 status LEDs on the IO board will illuminate, the fan should spin, and analog video output appears through the VGA connector when the DE10-Nano is powered.

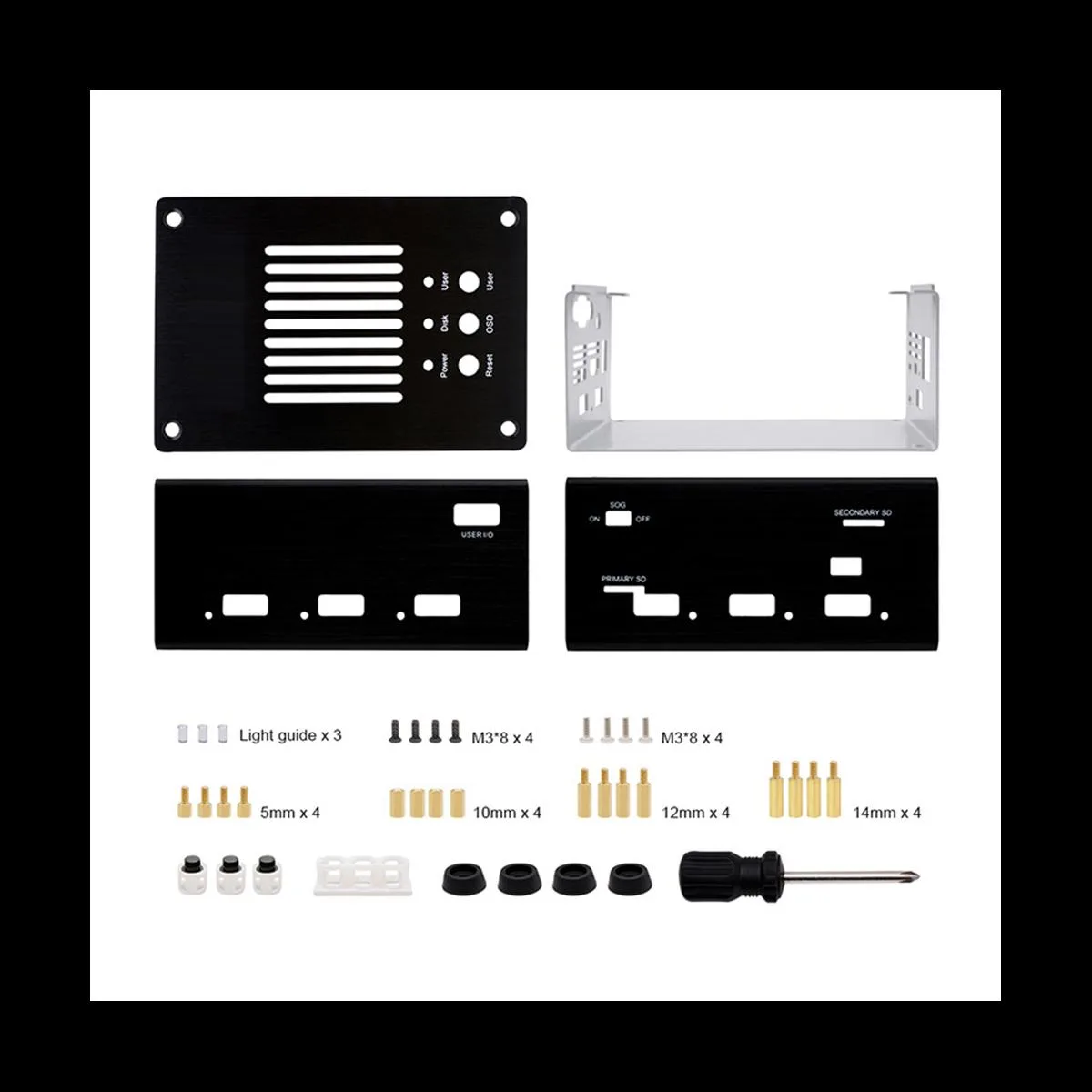

What components are included in the silver DIY metal case kit?

The package contains 1 complete kit with the 128MB motherboard V2.9, USB Hub V2.1 based on FE 2.1 chip, IO board with VGA connector, 3.5 mm audio jack, 3 buttons, secondary SD card slot, fan, and expansion connector.

Should I choose the 128MB version or is another capacity available for this V2.9 kit?

This kit is supplied with the 128MB motherboard V2.9; no other memory capacities are offered for this specific model.
