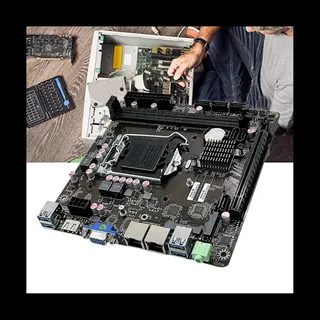

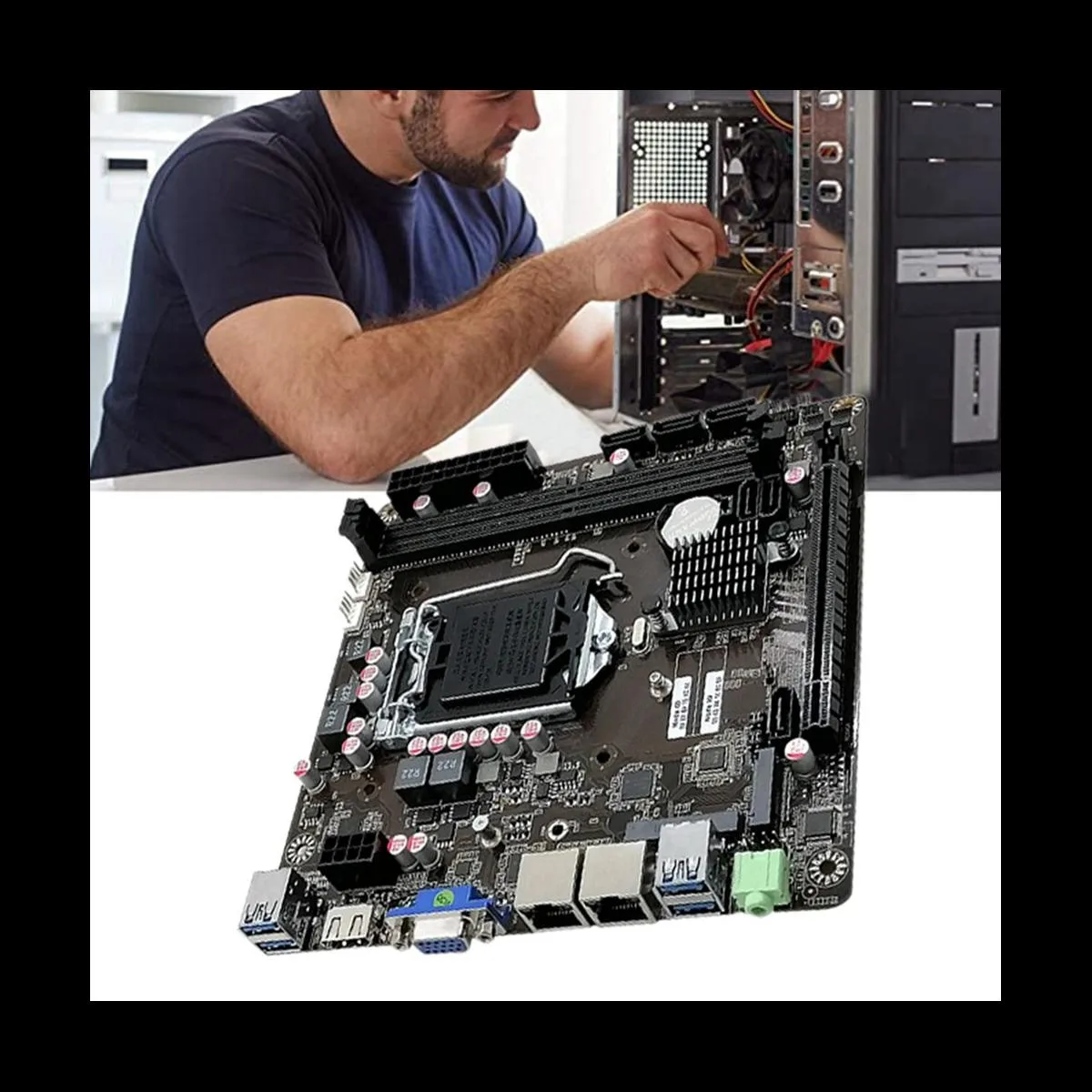

Black rectangular server motherboard with two DDR4 slots, PCIe x16 slot, HDMI output, dual LAN, M.2 slot, RAID support

YINGHUA

YINGHUA B365 Industrial Control Motherboard LGA1151 2XDDR4 PCIE 16X SATA3.0 RAID 0/1/5/10 server motherboard

SKU CH-DFQM-5EFYF

LGA1151 server board with dual DDR4 slots up to 2666 MHz, PCIe 3.0 x16, NVMe M.2, dual Intel gigabit LAN and RAID 0/1/5/10 support

  • CPU TypeIntel Atom
  • Supports 6th-9th gen Intel LGA1151 CPUs for versatile server builds
  • Dual-channel DDR4 up to 2666MHz 64GB for high memory throughput
  • Hardware RAID 0/1/5/10 via B365 chipset protects data arrays
  • PCIe 3.0 x16 plus NVMe M.2 x4 enables GPU and fast storage
  • Dual Intel gigabit LAN with six SATA3 ports for storage density

Purpose-built server board

This YINGHUA B365 industrial control motherboard uses the Intel B365 chipset and an LGA1151 socket for 6th to 9th generation Intel Celeron, Pentium and Core i3, i5, i7 processors. It provides two DDR4 DIMM slots running up to 2666 MHz with a maximum capacity of 64 GB. A PCIe 3.0 x16 slot and an onboard NVMe PCIe 3.0 x4 M.2 interface handle expansion and fast storage.

Fit for compact storage builds

The board suits builders assembling small NAS or mining systems that need hardware RAID 0, 1, 5 or 10 and dual Intel gigabit network ports. It is not for buyers who require more than two memory slots, need ECC memory support or want a workstation platform with validated ISV certifications.

Deciding specification: RAID 0/1/5/10

Onboard RAID 0, 1, 5 and 10 support is the single feature that determines whether this motherboard matches a storage-focused deployment. If the project does not need those array levels, a simpler board would serve the same CPU and memory requirements.

Highlights

  • Supports 6th-9th gen Intel LGA1151 CPUs for versatile server builds
  • Dual-channel DDR4 up to 2666MHz 64GB for high memory throughput
  • Hardware RAID 0/1/5/10 via B365 chipset protects data arrays
  • PCIe 3.0 x16 plus NVMe M.2 x4 enables GPU and fast storage
  • Dual Intel gigabit LAN with six SATA3 ports for storage density

Specifications

CPU TypeIntel Atom

Questions about this item

Should I choose one 64 GB DDR4 module or two modules for the dual-channel slots?

The board has two DDR4-DIMM slots and supports up to 64 GB total, so two modules are needed to reach the maximum capacity and enable dual-channel operation.

What does the 2666 MHz memory rating mean once the board is running?

The board supports DDR4 at 2666, 2400 and 2133 MHz; installed modules will run at the highest speed the processor and memory combination allows.

What does the PCIe 3.0 x16 slot cap in practice?

The PCIe 3.0 x16 slot provides up to 16 lanes for graphics cards or other expansion cards, while the onboard M.2 interface uses a PCIe 3.0 x4 connection for NVMe storage.
