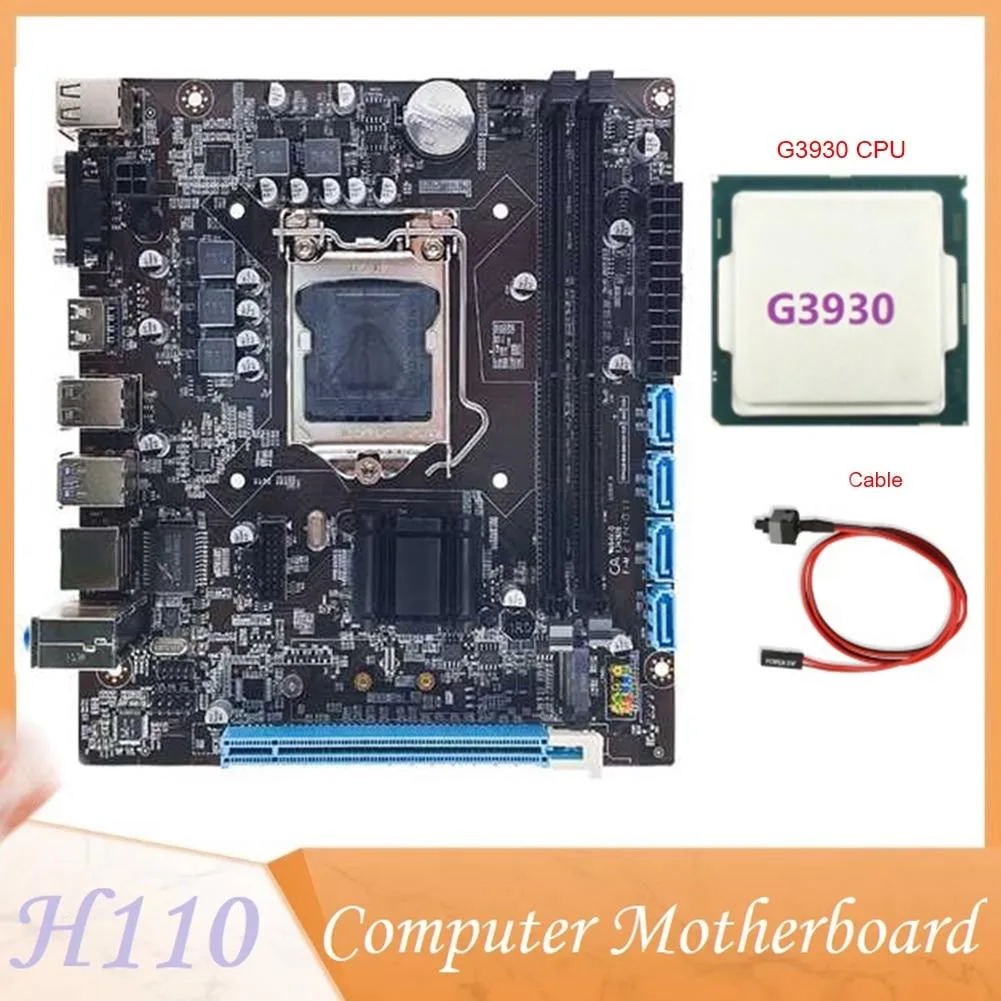

Black rectangular H110 motherboard with LGA1151 socket, two DDR4 slots, PCIe x16, M.2, four SATA ports, USB 2.0 and 3.0, VGA, HDMI

YINGHUA

YINGHUA H110 server motherboard LGA1151 DDR4 G3930 CPU switch cable

SKU CH-BKFP-NA12B

H110 board with LGA1151 socket, dual-channel DDR4 up to 32 GB, G3930 CPU and switch cable included

  • CPU TypeIntel Atom
  • Supports Intel LGA1151 6th/7th/8th generation processors
  • Includes Intel G3930 CPU and switch cable ready to use
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • M.2 NVMe slot plus four SATA ports for fast storage
  • Gigabit LAN with HDMI and VGA video outputs

Compact server board with CPU and switch cable

The YINGHUA H110 is a new micro-ATX motherboard bundled with an Intel G3930 processor and a front-panel switch cable. It fits LGA1151 socket CPUs from the 6th, 7th and 8th generation 14 nm lineup and provides dual-channel DDR4 memory support. The 19 x 17 cm black PCB includes a single PCI Express x16 slot, one M.2 NVME slot and four SATA ports for storage expansion.

Suits budget server builds and basic workstations

This bundle works for builders who need a ready-to-run platform with integrated graphics, Gigabit LAN and USB 3.0 connectivity out of the box. It supports up to 32 GB of 240-pin DDR4 across two slots at speeds of 2133, 2400 or 2666 MHz. Buyers who require more than two memory slots or additional high-speed expansion lanes should consider other form factors.

Maximum memory capacity is 32 GB

The board accepts a total of 32 GB using two 16 GB DDR4 modules, which sets the hard limit for any workload. If your application needs more memory than this ceiling allows, the platform will not scale further.

Highlights

  • Supports Intel LGA1151 6th/7th/8th generation processors
  • Includes Intel G3930 CPU and switch cable ready to use
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • M.2 NVMe slot plus four SATA ports for fast storage
  • Gigabit LAN with HDMI and VGA video outputs

Specifications

CPU TypeIntel Atom

Questions about this item

Does the YINGHUA H110 board include a processor or must I supply my own LGA1151 CPU?

The package ships with an Intel G3930 processor already installed in the LGA1151 socket, so no separate CPU purchase is required.

Will my existing DDR4 DIMMs run at their rated 2666 MHz speed on this motherboard?

The board supports DDR4 up to 2666 MHz across its two dual-channel slots, so compatible modules will operate at that frequency.

How can I confirm the M.2 NVMe drive is detected after assembly?

Enter the BIOS and verify the NVMe device appears in the storage or boot-priority list; the operating-system installer will also show it as a target drive.
