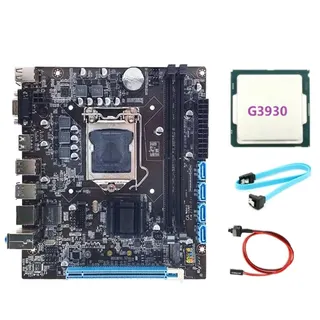

Black H110 micro-ATX server motherboard with LGA1151 socket, two DDR4 slots, PCIe x16, M.2 NVME, four SATA, HDMI, VGA

YINGHUA

YINGHUA H110 Server Motherboard LGA1151 G3930 CPU

SKU CH-QNF2-V9KMB

H110 micro-ATX board with LGA1151 socket, dual-channel DDR4 up to 32 GB, PCIe x16, M.2 NVMe, four SATA and Gigabit LAN, bundled with G3930 CPU and cables

  • CPU TypeIntel Atom
  • Supports 6th/7th/8th gen Intel CPUs via LGA1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Gigabit LAN plus four SATA ports for fast storage
  • M.2 NVMe slot plus PCIe x16 for expansion

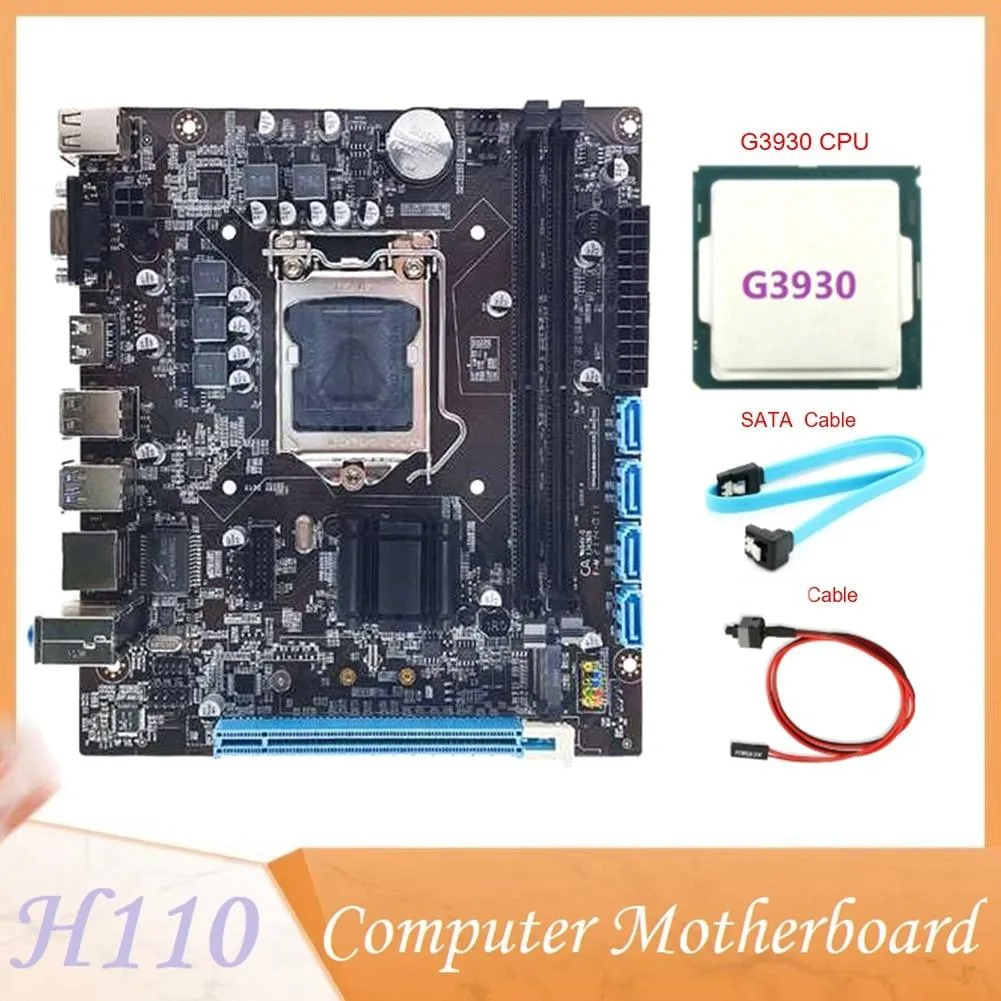

  • Bundled G3930 CPU with SATA and switch cables included

Socket and chipset

This YINGHUA H110 motherboard uses the Intel H110 chipset and an LGA1151 socket. It arrives new with an Intel G3930 processor already installed. The board targets builders who want a ready-to-run foundation for a basic desktop or entry-level server without sourcing a CPU separately.

Memory and expansion layout

Two 240-pin DDR4 slots accept up to 32 GB total at 2133, 2400 or 2666 MHz in dual-channel mode. One PCI Express x16 slot handles a graphics card, while one M.2 NVME slot and four SATA ports provide storage options. Rear I/O supplies two USB 3.0 ports, four USB 2.0 ports, VGA, HDMI, gigabit LAN and audio.

Fit and alternatives

The bundle suits users building a compact M-ATX system for office work, light home-server duties or a secondary machine where integrated graphics are sufficient. Builders who need more than two memory slots, additional PCIe lanes, overclocking features or support for newer CPU generations should consider a different platform.

Highlights

  • Supports 6th/7th/8th gen Intel CPUs via LGA1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Gigabit LAN plus four SATA ports for fast storage
  • M.2 NVMe slot plus PCIe x16 for expansion
  • Bundled G3930 CPU with SATA and switch cables included

Specifications

CPU TypeIntel Atom

Questions about this item

Will the 32 GB DDR4 ceiling become the first bottleneck under sustained server workloads?

The board supports up to 32 GB of DDR4 across two slots, so memory capacity is the first hard limit you will hit under heavy sustained loads.

How much heat and fan noise should I expect when the G3930 runs continuously?

The G3930 is a 14 nm dual-core processor with a low thermal design, so sustained operation produces modest heat and allows quiet or fanless cooling.

Which storage drives and memory modules must I already have to populate this board?

You need 240-pin DDR4 DIMMs up to 2666 MHz and either SATA drives or an M.2 NVME SSD for storage.
