YINGHUA
YINGHUA H610 server motherboard LGA1700 DDR4 32GB PCIE 16X Gigabit LAN
H610 chipset board with LGA1700 socket, two DDR4 slots up to 32 GB, PCIe x16, four SATA 3.0 ports, M.2 slot, dual display outputs and Gigabit LAN
- CPU TypeIntel Atom
- H610 chipset with LGA1700 socket supports 12th-gen Intel CPUs
- Two DDR4 slots take up to 32 GB at 2800 MHz
- PCIe 16x and PCIe 1x slots for GPU or add-in cards
- Realtek 8111H Gigabit LAN enables Wake-on-LAN and PXE boot
- Four SATA 3.0 ports plus M.2 and M.2 Wi-Fi/Bluetooth interfaces

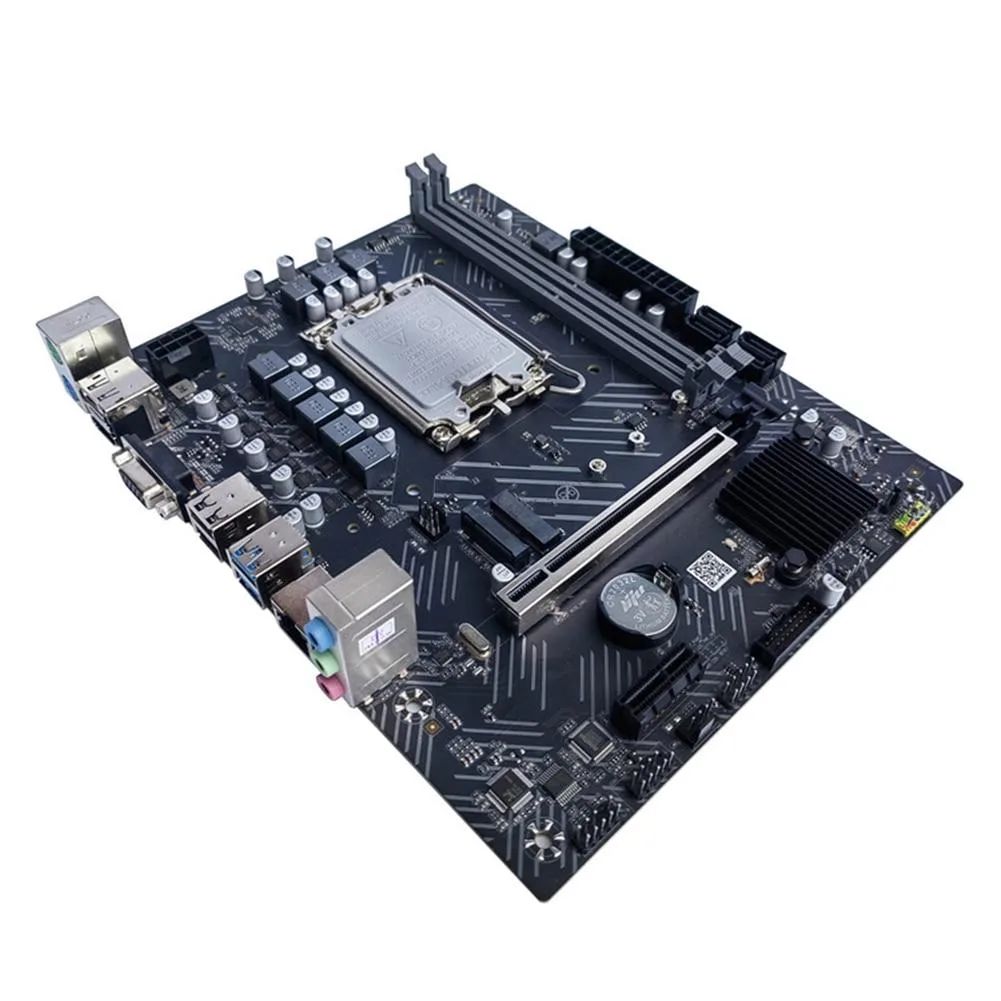

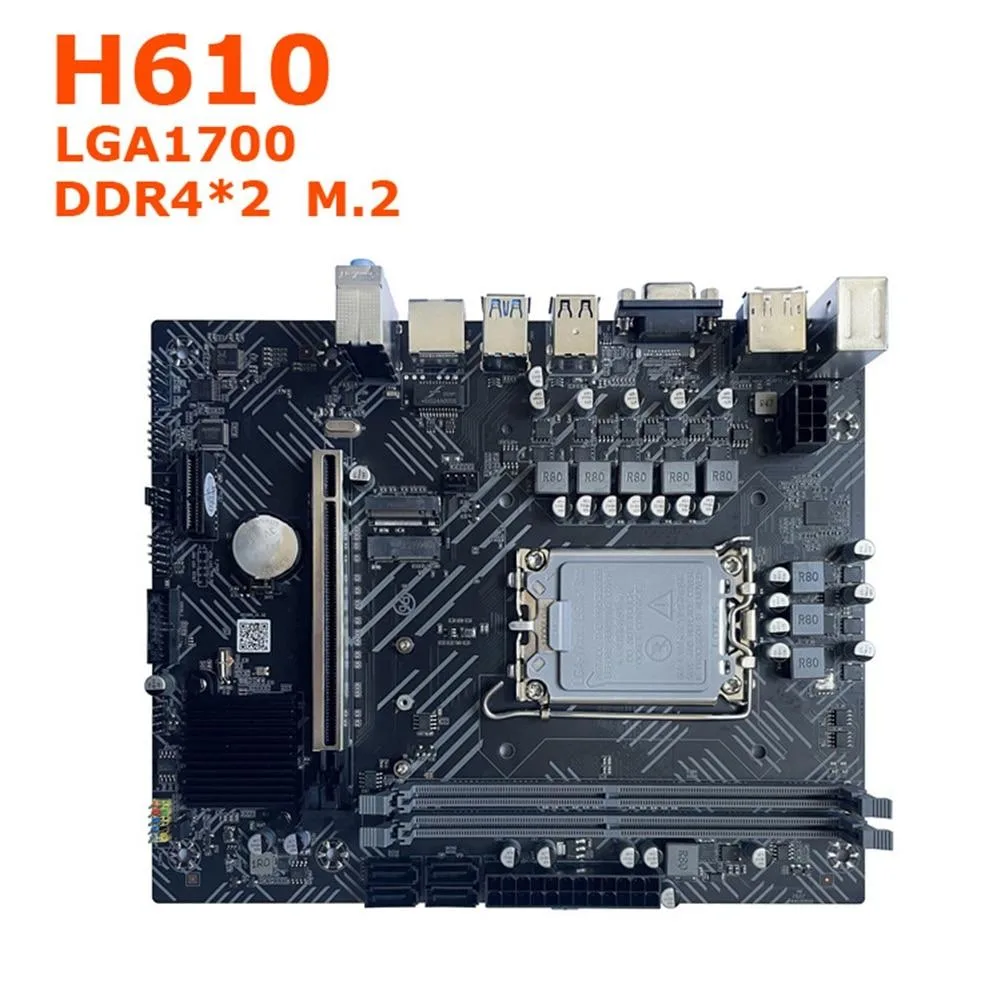

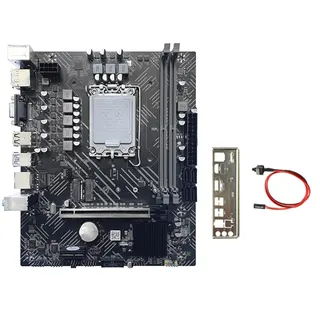

LGA1700 H610 server board with dual DDR4
This new H610 motherboard fits Intel LGA1700 processors and the H610 chipset in server builds. It provides two DDR4 slots with single-module support up to 32 GB at 2133, 2400 or 2800 MHz plus XMP overclocking. A PCIe x16 slot and a PCIe x1 slot handle expansion cards while four SATA 3.0 ports and one M.2 socket cover storage.
Suited for basic office.
The board targets cost-sensitive server and embedded roles that need Gigabit LAN, wake-on-LAN and PXE boot. Display outputs include VGA, HDMI and DP plus the PCIe x16 graphics interface. Six-channel audio, two USB 2.0 ports, two USB 3.2 ports and a PS/2 combo round out connectivity. Buyers who need more than two memory slots, additional network ports or a second full-size PCIe x16 slot should look elsewhere.
Dual DDR4 slots each accept up to 32 GB modules
Memory capacity hinges on the two DDR4 sockets, each supporting a single module of up to 32 GB at the listed frequencies. This ceiling determines whether the board fits the workload before any other feature is considered.
Highlights
- H610 chipset with LGA1700 socket supports 12th-gen Intel CPUs
- Two DDR4 slots take up to 32 GB at 2800 MHz
- PCIe 16x and PCIe 1x slots for GPU or add-in cards
- Realtek 8111H Gigabit LAN enables Wake-on-LAN and PXE boot
- Four SATA 3.0 ports plus M.2 and M.2 Wi-Fi/Bluetooth interfaces
Specifications
| CPU Type | Intel Atom |
|---|
Questions about this item
What does the 32 GB DDR4 limit per slot mean for total system memory?
The board has two DDR4 slots and each slot supports a single module up to 32 GB.
What does the Realtek 8111H Gigabit LAN cap at in practice?
The onboard Realtek 8111H controller provides a single 1 Gbps Ethernet connection.
What clearance does the PCIe x16 slot need for a graphics card?
The board includes one PCIe x16 slot for a graphics card and one PCIe x1 slot for additional expansion cards.
