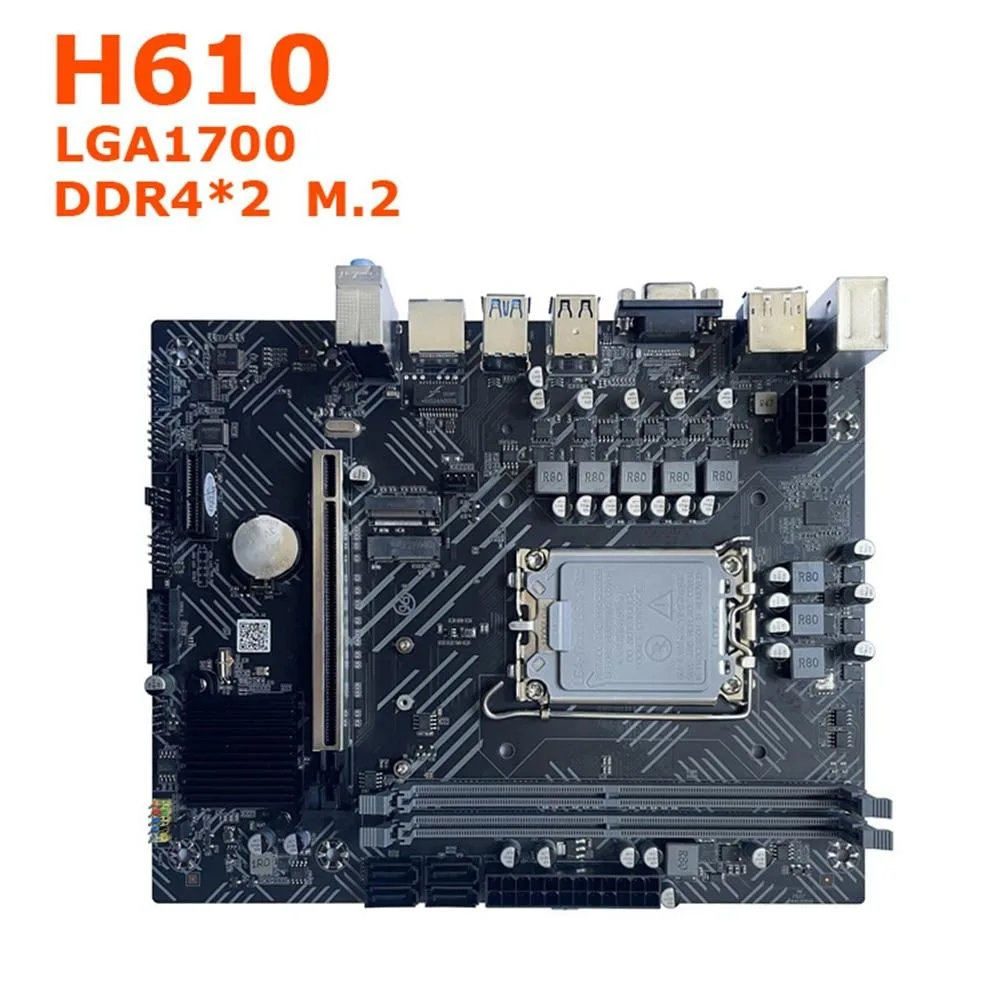

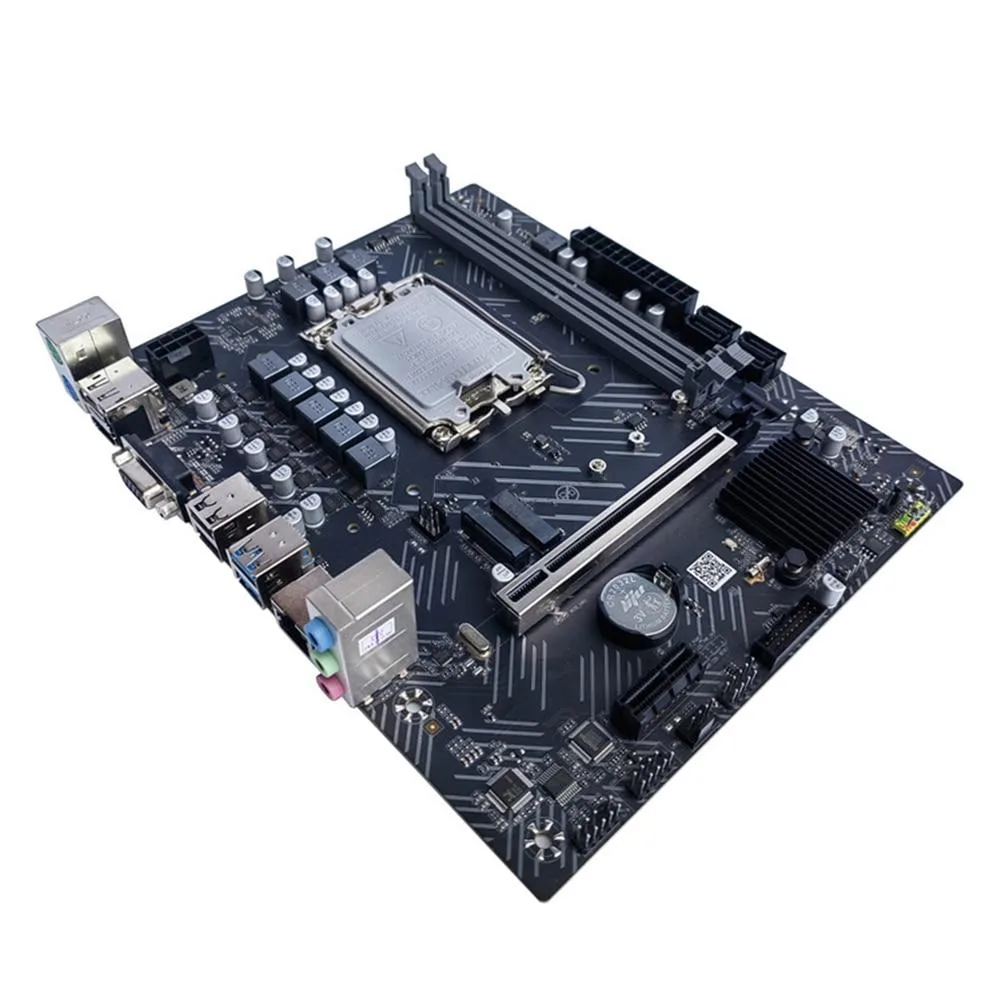

YINGHUA H610 server board, LGA1700 socket, DDR4 slots, Gigabit LAN, matte black PCB

YINGHUA

YINGHUA H610 server motherboard LGA1700 DDR4 Gigabit LAN

SKU CH-Z9AE-W02AB

H610 chipset server board with LGA1700 socket, dual DDR4 slots, Gigabit LAN, M.2 and four SATA 3.0 ports

  • CPU TypeIntel Atom
  • LGA1700 socket accepts Intel 12th-Gen processors
  • H610 chipset provides stable platform for embedded workloads
  • Dual-channel DDR4 supports up to 32 GB at 2133/2400/2800 MHz
  • Realtek 8111H Gigabit LAN enables wake-on-LAN and PXE boot
  • One PCIe x16, one PCIe x1, four SATA 3.0 and two M.2 slots offer flexible expansion

Socket LGA1700 server board

The YINGHUA H610 is a new server motherboard built around the Intel H610 chipset and an LGA1700 socket. It accepts 12th-generation Intel processors such as the G6900, G7400, i3-12100 and i5 models. The board targets embedded industrial use, office workstations and media terminals that need reliable expansion in a compact platform.

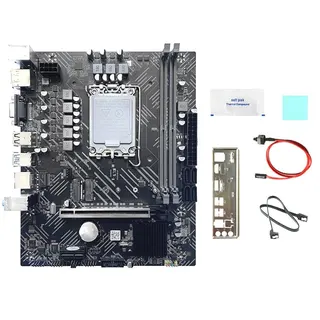

Bundled thermal kit and I/O

A baffle, thermal pad and thermal grease are included to assist cooler installation and heat transfer. Onboard connectivity covers one Gigabit LAN port, six-channel audio, two USB 2.0 ports, two USB 3.2 ports, a PS/2 combo jack, one COM header, plus VGA, HDMI and DisplayPort video outputs. Storage options comprise four SATA 3.0 ports, one M.2 slot for storage and a second M.2 slot reserved for wireless add-in cards.

Power and memory checks before ordering

Verify that your power supply delivers the ATX and CPU connectors required by the H610 layout. The board provides two DDR4 DIMM slots with a single-module ceiling of 32 GB at 2133, 2400 or 2800 MHz and XMP support. Expansion space includes one PCIe x16 slot for a graphics card and one PCIe x1 slot for additional peripherals.

Highlights

  • LGA1700 socket accepts Intel 12th-Gen processors
  • H610 chipset provides stable platform for embedded workloads
  • Dual-channel DDR4 supports up to 32 GB at 2133/2400/2800 MHz
  • Realtek 8111H Gigabit LAN enables wake-on-LAN and PXE boot
  • One PCIe x16, one PCIe x1, four SATA 3.0 and two M.2 slots offer flexible expansion

Specifications

CPU TypeIntel Atom

Questions about this item

Will the onboard REALTEK 8111H Gigabit LAN need a firmware update or replacement later?

The REALTEK 8111H controller is soldered to the board and has no user-serviceable parts; firmware updates are handled through the BIOS if the vendor releases them.

What limits sustained throughput on the Gigabit LAN during all-day transfers?

The single REALTEK 8111H port caps at 1 Gbps, so the wire speed is the first bottleneck before CPU or memory saturation occurs.

How much heat and fan noise should I expect from the H610 chipset and VRM area under continuous load?

The H610 chipset runs cool enough for passive cooling; VRM temperature depends on the installed CPU, but the included thermal pad and grease help dissipate heat quietly.
