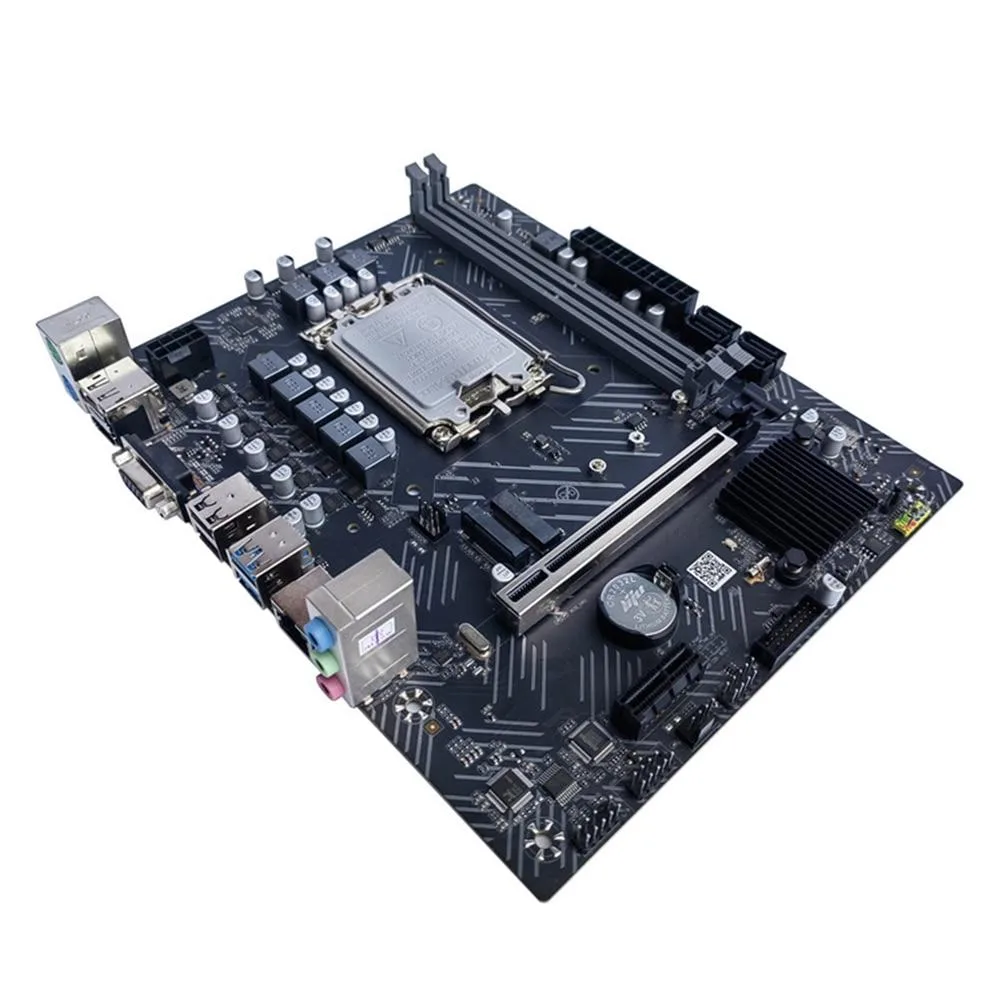

YINGHUA H610 server motherboard with thermal pad and grease, LGA1700 socket, DDR4 slots, Gigabit LAN

YINGHUA

YINGHUA H610 server motherboard LGA1700 DDR4 Gigabit LAN thermal pad grease

SKU CH-44H9-0Z1XJ

Server motherboard with LGA1700 socket, DDR4 memory up to 32 GB, Gigabit LAN, multiple video outputs, and included thermal pad and grease

  • CPU TypeIntel Atom
  • H610 chipset supports 12th-generation Intel CPUs
  • Two DDR4 slots accept up to 32 GB each at 2133/2400/2800 MHz
  • Realtek 8111H Gigabit LAN enables wake-on-LAN and PXE boot
  • Four SATA 3.0 ports plus one M.2 slot for storage expansion
  • One PCIe x16 and one PCIe x1 slot for add-in cards

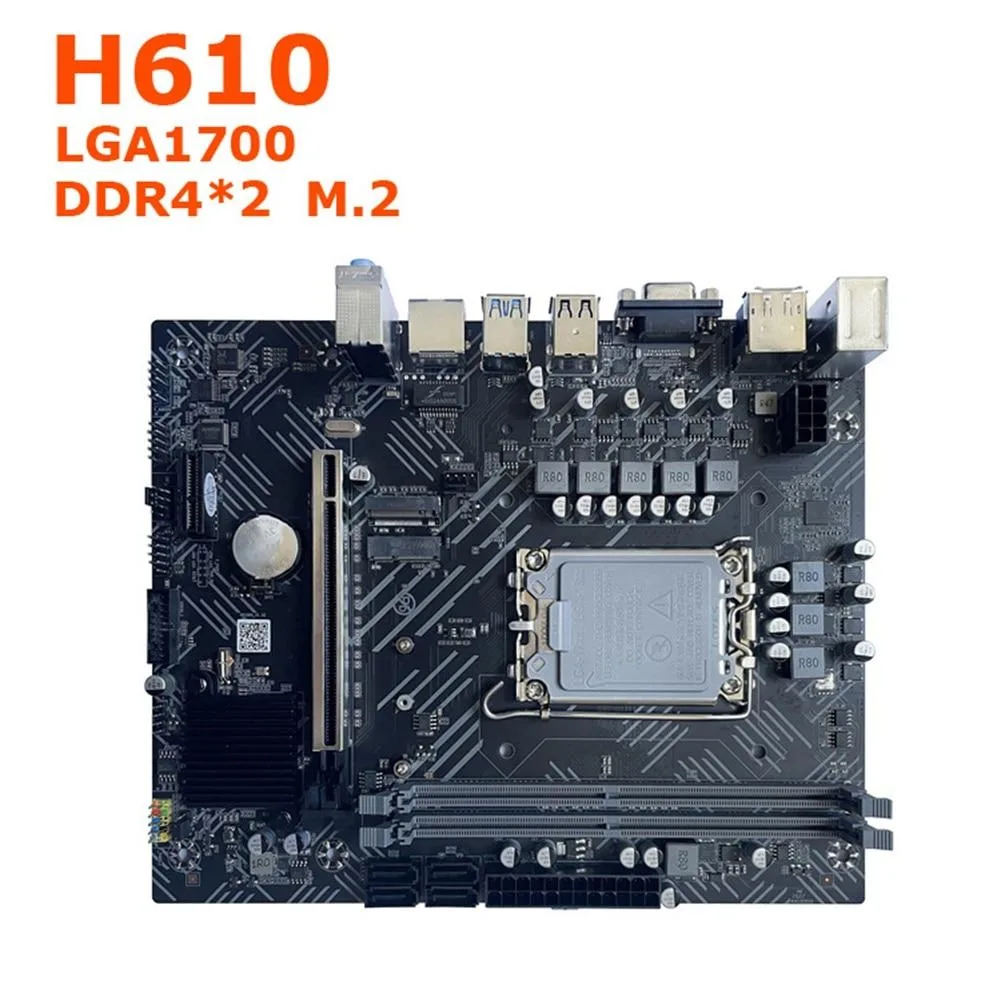

H610 Server Board with LGA1700 Socket

The YINGHUA H610 is a new server motherboard built around the Intel H610 chipset and an LGA1700 socket. It accepts Intel Atom processors and includes a thermal pad and thermal grease in the package. Two DDR4 slots support up to 32 GB per module at 2133, 2400 or 2800 MHz with XMP overclocking. A single Realtek 8111H Gigabit LAN port provides wired networking.

Suited for Basic Servers and Terminals

This board fits offices, media playback devices and light gaming terminals that need multiple display outputs and a compact expansion layout. It offers one PCIe x16 slot, one PCIe x1 slot, four SATA 3.0 ports, one M.2 storage interface and one M.2 Wi-Fi/Bluetooth interface. Builders who require dual LAN ports, additional PCIe lanes or more than two memory channels should select a different platform.

Single Realtek 8111H Gigabit LAN

The onboard network controller is a single Realtek 8111H Gigabit Ethernet port with Wake-on-LAN and PXE boot support. No second Ethernet port or higher-speed PHY is present. If the deployment depends on redundant links or throughput above 1 GbE, this motherboard will not meet that requirement.

Highlights

  • H610 chipset supports 12th-generation Intel CPUs
  • Two DDR4 slots accept up to 32 GB each at 2133/2400/2800 MHz
  • Realtek 8111H Gigabit LAN enables wake-on-LAN and PXE boot
  • Four SATA 3.0 ports plus one M.2 slot for storage expansion
  • One PCIe x16 and one PCIe x1 slot for add-in cards

Specifications

CPU TypeIntel Atom

Questions about this item

Will the H610 board run alongside my existing DDR4-2400 sticks?

The board supports DDR4 at 2133, 2400 and 2800 MHz; your 2400 MHz modules will operate at their rated speed.

How do I confirm the Realtek 8111H LAN is active after assembly?

Verify the port LEDs light on link-up and check the OS network adapter shows a gigabit connection.

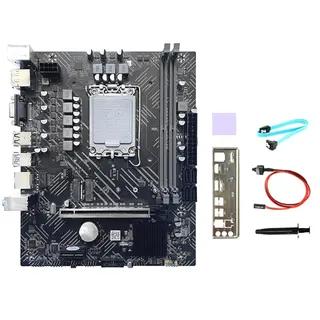

Does the package include the thermal pad and grease shown in the title?

Yes, the bundle supplies the H610 motherboard plus a thermal pad and thermal grease; no extra cooling compounds are required.
